Selenium series: Preparing the resources

This post is part of a series about creating a Selenium WebDriver test framework.

When running code as an AWS Lambda we are responsible for configuring the environment every time the application runs. Although Lambda is often referred to as serverless computing (which inspired the name for the Serverless application we installed in the last post), there is still a server involved. The term serverless refers to the fact that the server does not need to be provided or managed by us as the end user, and for the most part, we can run our code without worrying too much about the details of the server that hosts it.

However, running WebDriver tests against a headless Chrome browser does require us to configure the environment to ensure the resources we need are available. Namely, we need to have the Chrome browser and the binary driver available for WebDriver to use.

Despite the fact that our code will be running on a Linux server, we don’t have the luxury of installing Chrome from a package manager. In fact, we can’t even download and run a standard distribution of Chrome, because the Linux environment that hosts Lambda functions is not quite standard enough for these official builds to work.

There is a detailed post on Medium that talks about how a custom build of Chrome can be compiled to run in the Lambda environment. Needless to say, the process of building Chrome for Lambda is not particularly easy. The good news is that the author of the blog post has automated the process, and offers regularly updated builds of Chrome for Lambda at https://github.com/adieuadieu/serverless-chrome/releases. We will use these releases for our own environment.

The second resource that we need to configure is the Chrome binary driver. As we did when running WebDriver tests locally, this binary driver needs to be downloaded, extracted, and configured as part of our tests.

When running tests locally, it was convenient to place this binary driver in a directory on the PATH. We don’t have this luxury in the Lambda environment, as it is heavily restricted and we do not have permissions to place files in the locations that might normally be on the PATH. But this is OK, as we saw in an earlier post, we can set the webdriver.chrome.driver system property to point to the location of the binary driver.

Lambda also places restrictions on the size of the Lambda package. Today we are limited to a package size of 50MB. As we will see in the next post, our code already takes up a significant amount of that limit, and does not leave enough room to also package files like the Chrome distribution and the binary driver.

Lambda does allow us to download and extract additional files at run time though, and we will take advantage of this by downloading the Chrome distribution and drivers with each test. To make the process of downloading these files as fast as possible, we need to host them in S3, which can be accessed by a Lambda function over a high speed connection because both Lambda and S3 are services hosted by AWS.

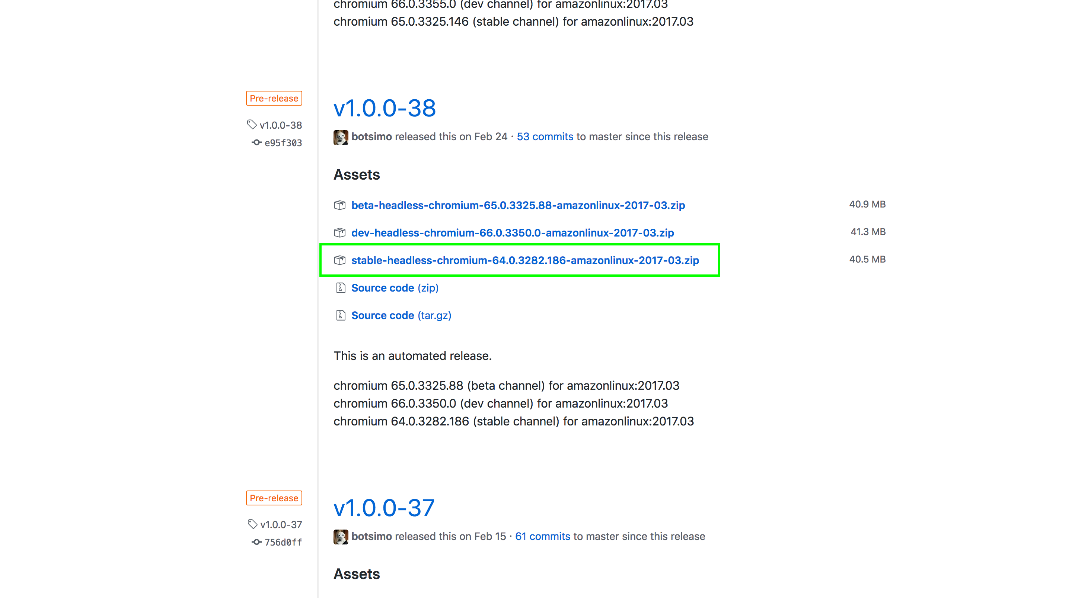

First, we download these files locally. Open https://github.com/adieuadieu/serverless-chrome/releases and download version 64 of the Chrome distribution.

In my testing, versions 65, 66, and 67 did not work correctly when called from an AWS Lambda, so we have to specifically use version 64.

The fact that some versions of Chrome don’t work highlights the code we are using here should be considered experimental.

C:\28ca95431547e5da83c8e95b3a3b6bd2

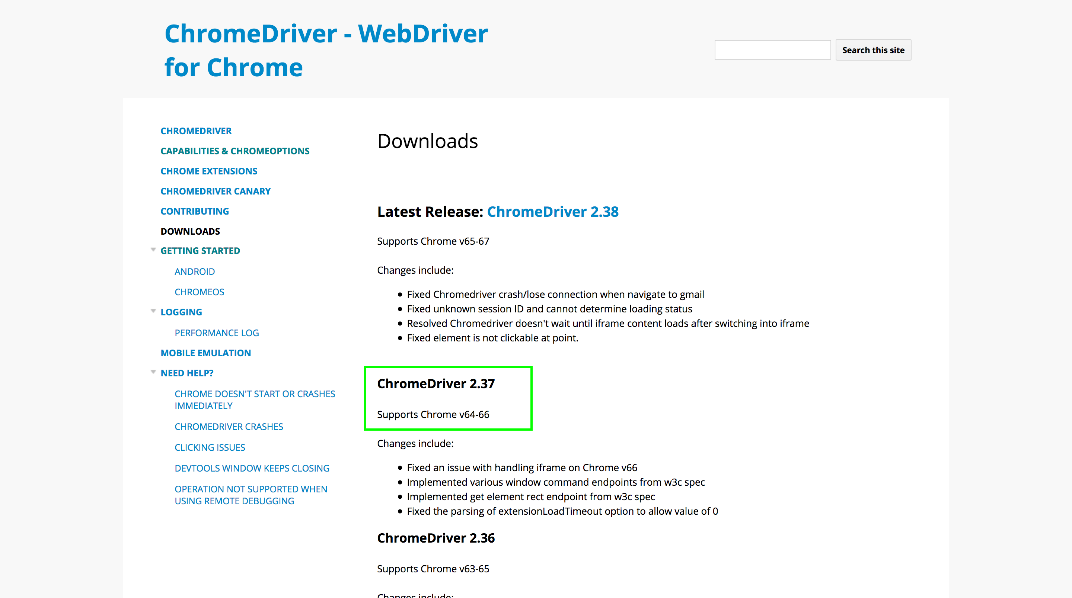

Then open https://sites.google.com/a/chromium.org/chromedriver/downloads to find the version of the Linux binary driver that supports Chrome 64. From the list of drivers we can see that version 2.37 supports Chrome 64.

C:\1a719eb43daf93909897f3f65732b248

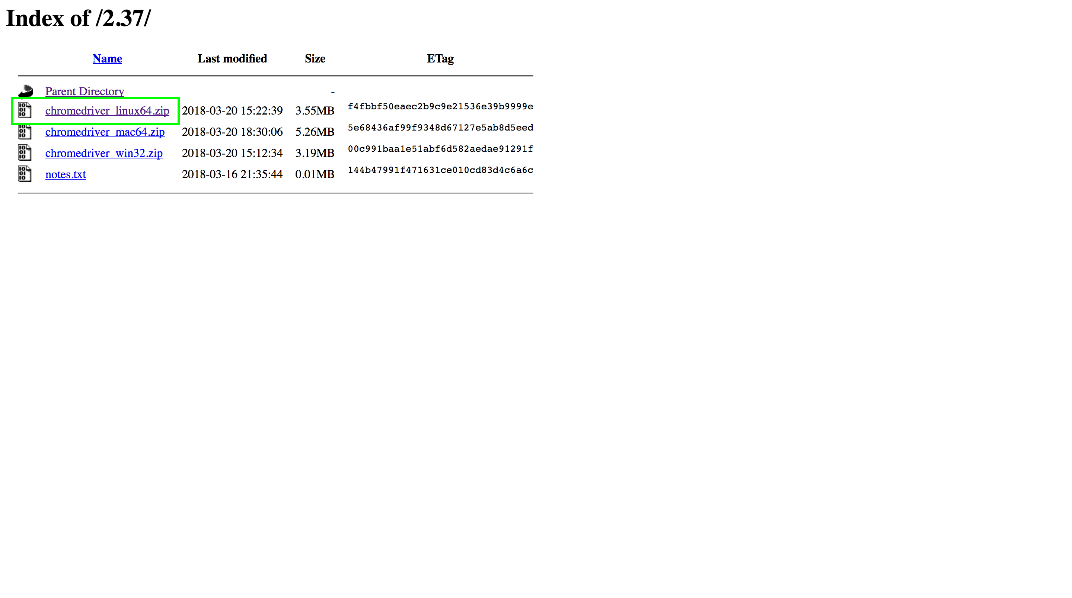

Open https://chromedriver.storage.googleapis.com/index.html?path=2.37/ to download the Linux binary driver.

C:\5225e05126dcf968a5ce5a38de270665

We’ll then upload these files to S3 in the same way we created our test public web site.

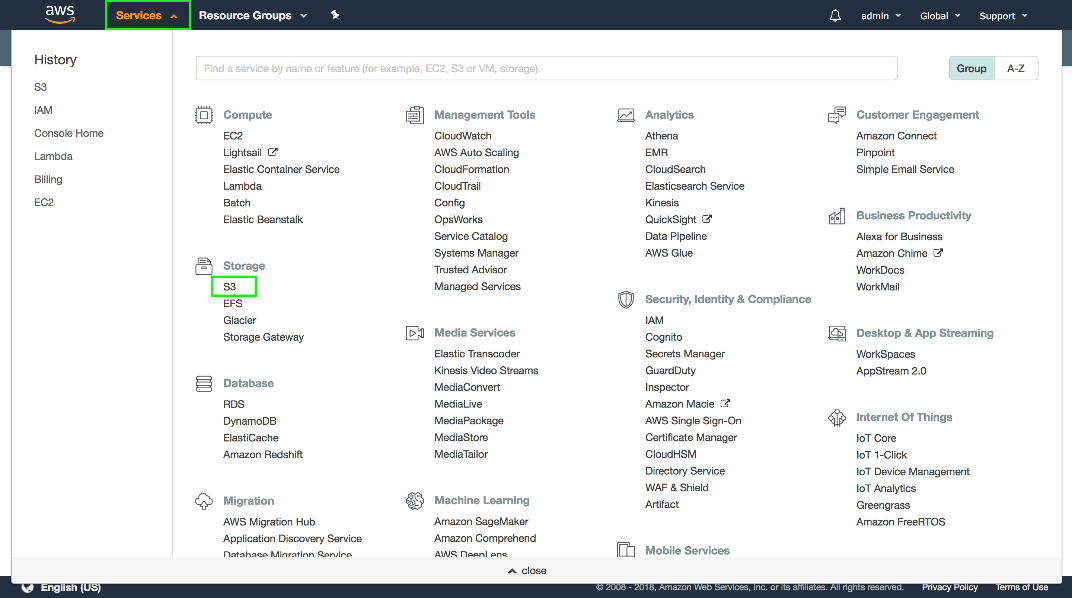

From the AWS console select Services ➜ S3.

C:\cd06dde8c14442ce9c2aab90fa2ea768

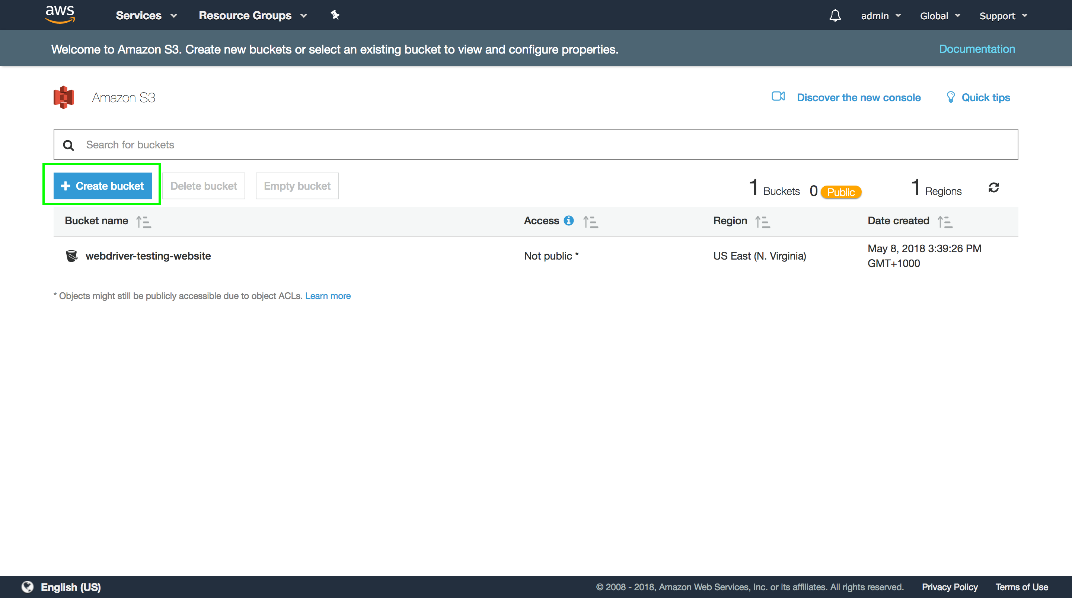

We’ll create a new bucket to hold these files, so click the Create bucket button.

C:\2dacaadbf73502e50848ded228b6e551

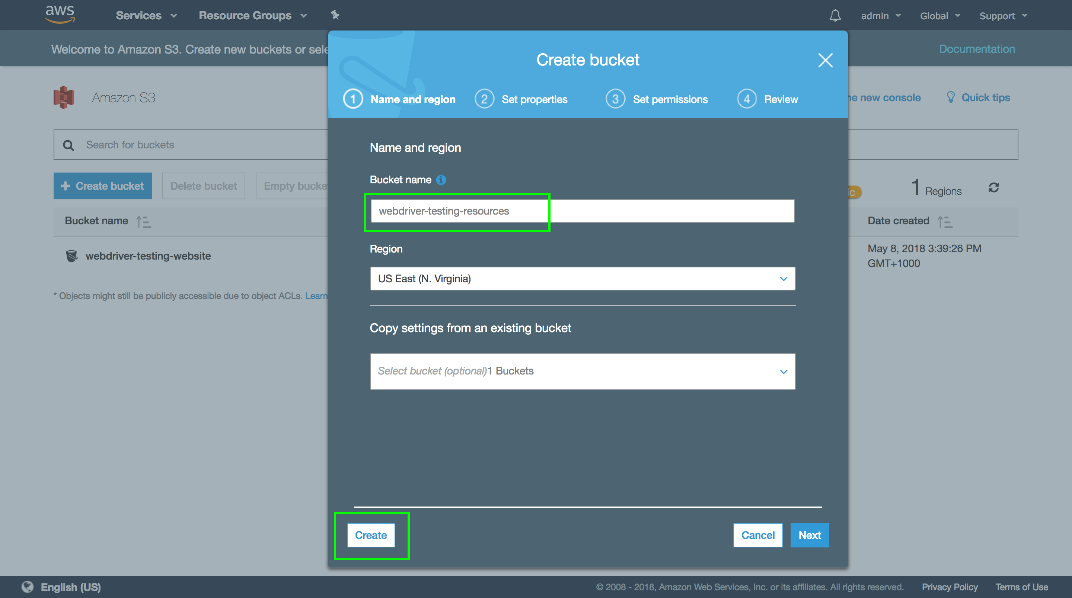

Give your bucket a name, and click the Create button.

Remember bucket names have to be globally unique, so you won’t be able to use the name that is shown here.

C:\efc40bb0f38c8ecff615823743f260f6

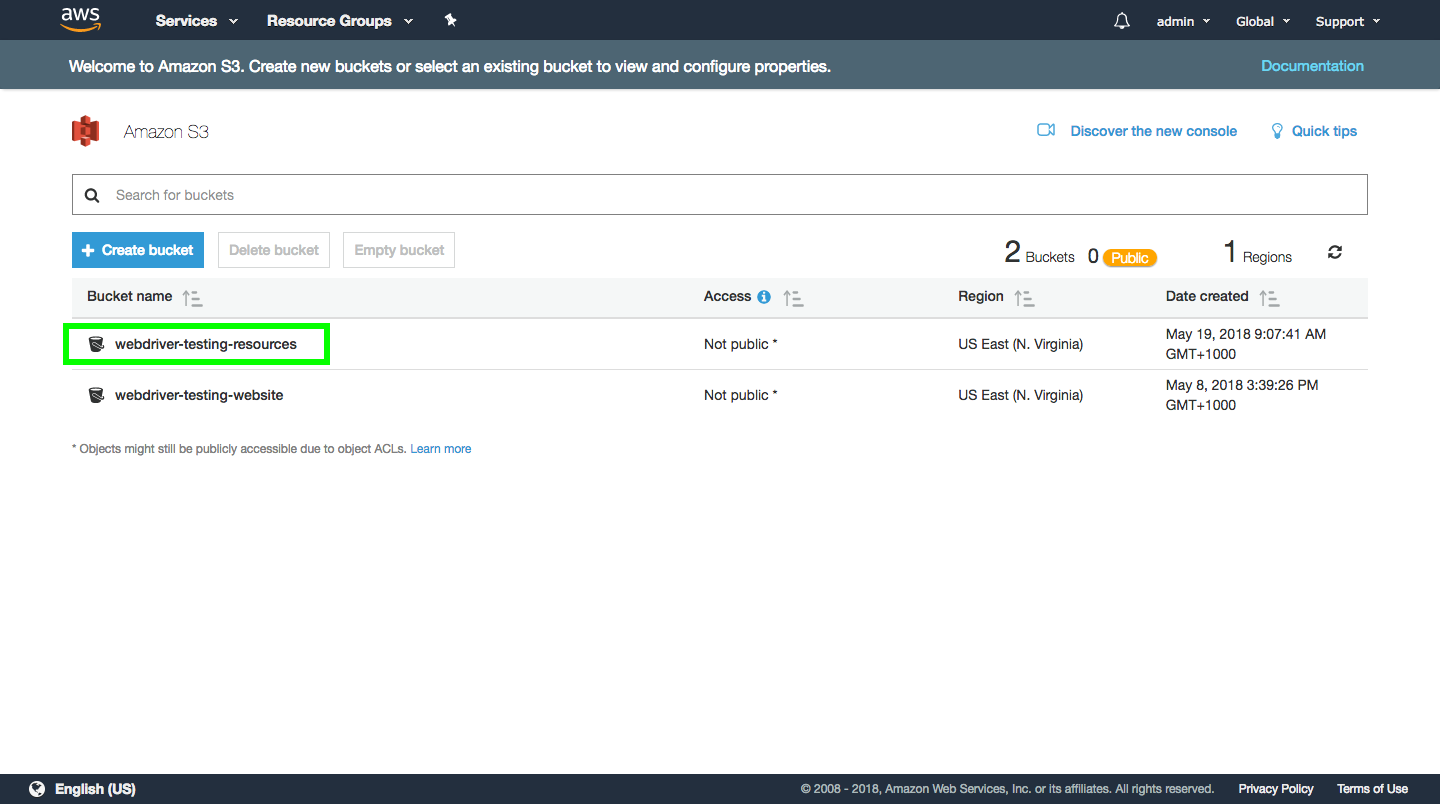

Open the newly created bucket.

C:\15a6b421a9b0c264bb584f21ac49ab28

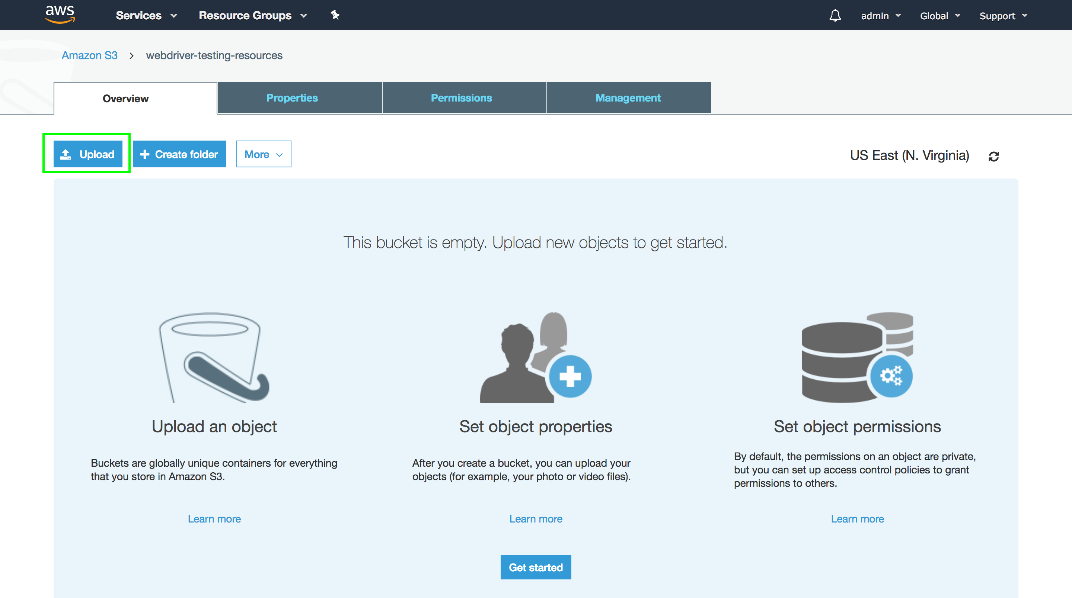

Click the Upload button.

C:\0b1219f9f544b6e824b80c0055092200

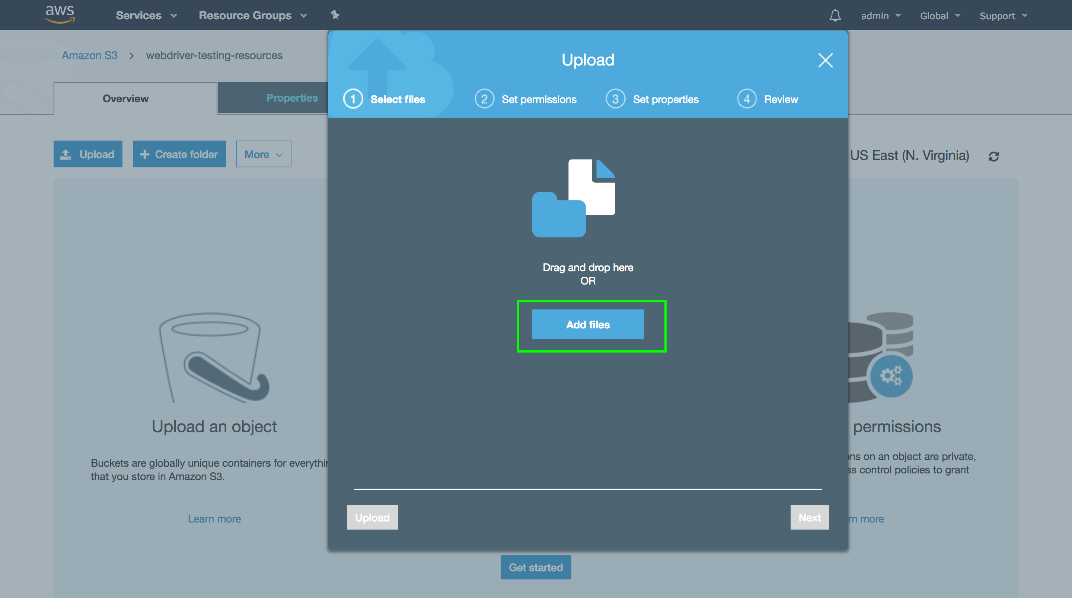

Click the Add files button.

C:\9f3dfc0744d007bd563f9f98faf0322b

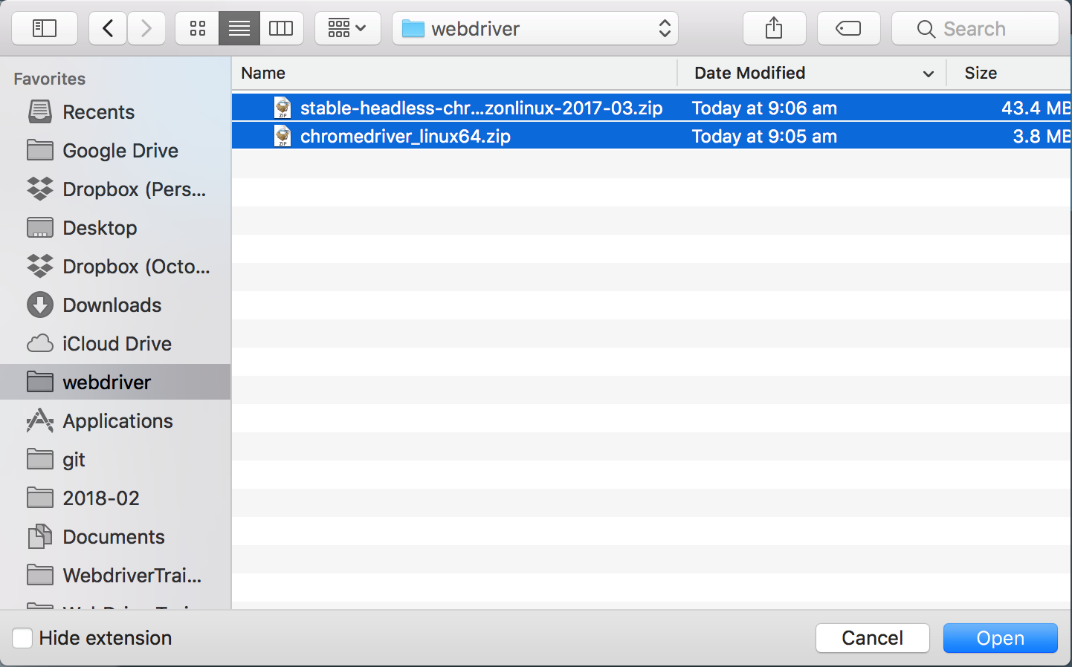

Select the two files that were downloaded earlier.

C:\4ae578d1200a04955228b4eef40dda0a

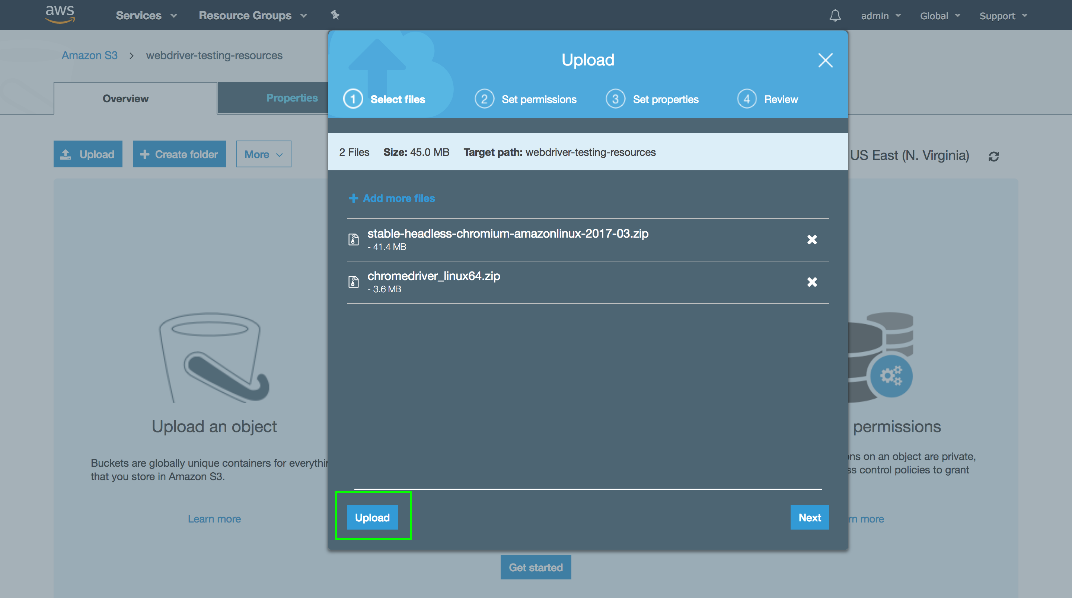

Click the Upload button.

C:\2caee4c1a0e3af9bc1c066180b7dbdcb

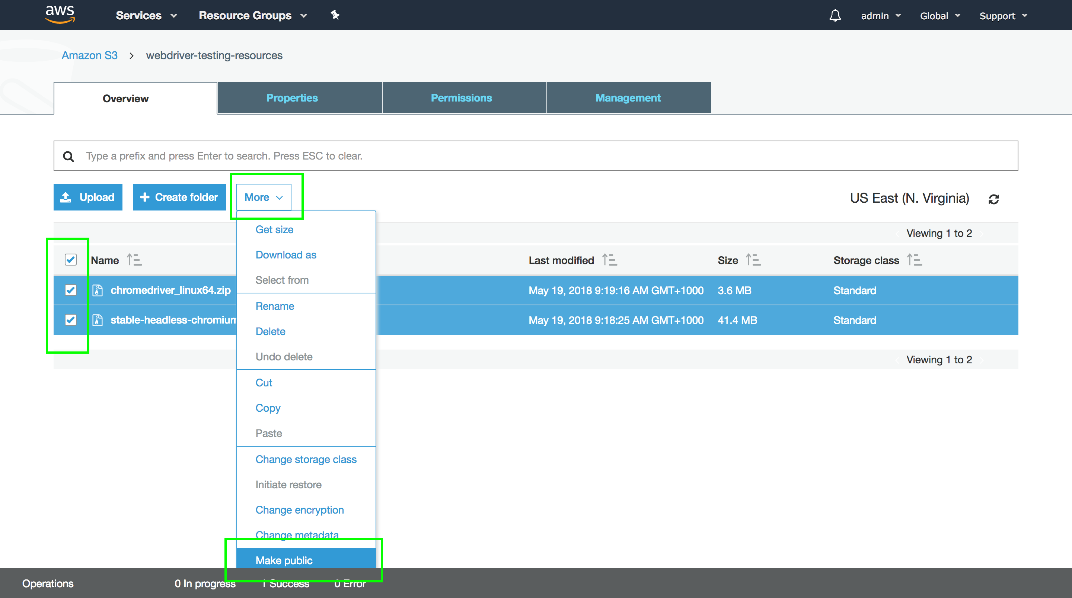

Once the files are uploaded, select them and click More ➜ Make Public.

C:\8b04930793957539c633e96af224824b

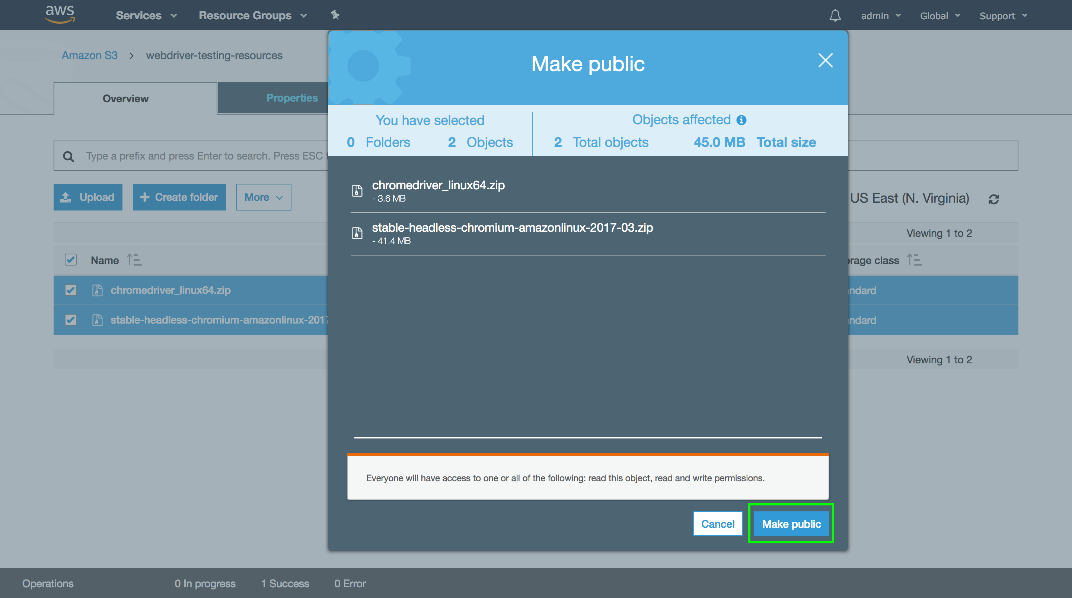

Then click the Make public button.

C:\fd218d4d8cdf2041c6064402cda7c80a

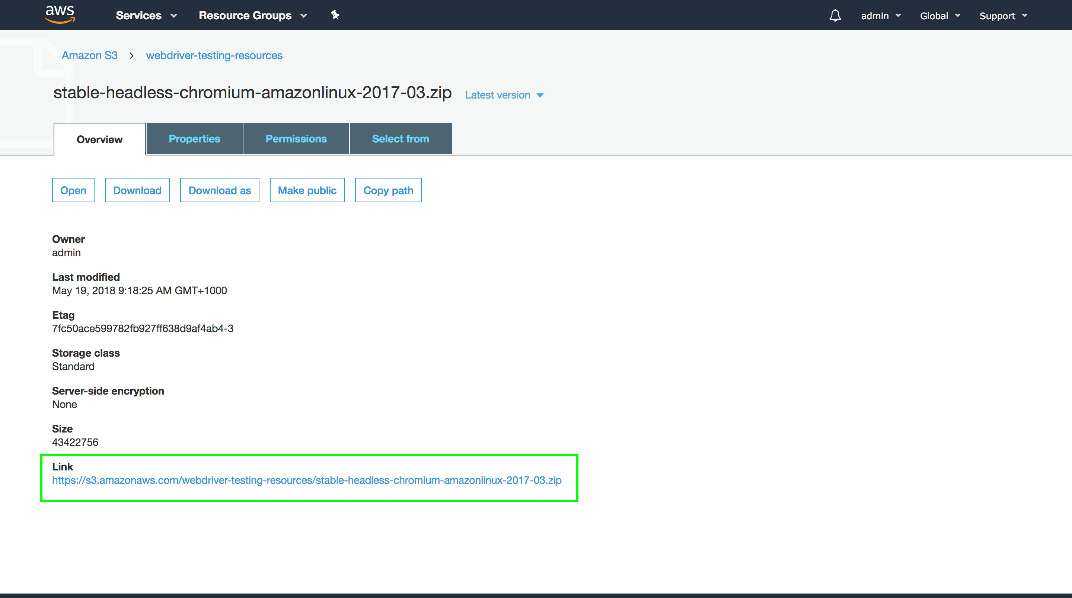

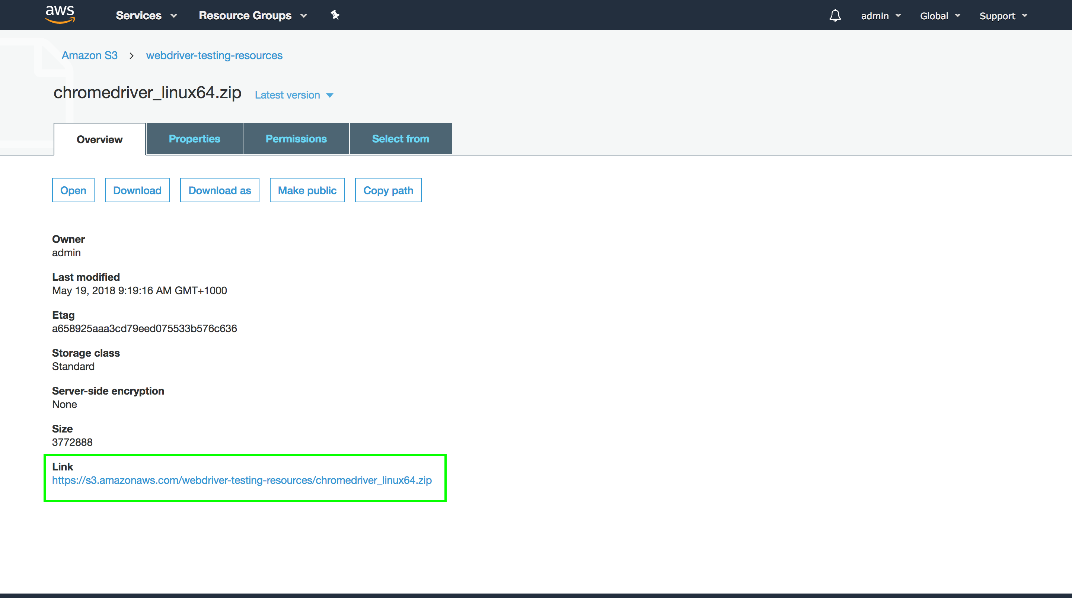

To find the URL that can be used to download these files, click the file and look at the link in the Overview tab. Make a note of these URLs as we need them in later posts to download the files and prepare the Lambda environment.

C:\83190cfd50328b1ba7f94aaa4c7aea2e

C:\aca44dddfa627539c0a74daa0d71722c

With both the custom Chrome distribution and the appropriate Chrome driver uploaded to S3, we can move on to creating a package that contains the Java code that will be executed as a Lambda function.
