Deploying to Tomcat from Octopus Deploy

Matthew Casperson

Matthew Casperson

June 2, 2017 • 7 mins

Octopus Deploy has a large collection of useful steps (both included and community provided) that can be used to deploy packages to a variety of different destinations and via different methods.

Fortunately these same deployment steps can be used to deploy Java packages to Java web servers running in Linux out of the box.

There are some caveats, which I will call out. The Octopus Deploy team is actively investigating how to improve support for Java, so expect to see improvements for Java developers in coming releases.

The following steps provide an example of the process that can be implemented with Octopus Deploy to deploy a WAR file to a Tomcat server running in Linux.

Building the WAR file

First, I am going to assume that you have a Maven project building a WAR file handy. If not, there is a small demo application at that will be used for this example.

This project uses the Maven wrapper, so all Maven commands are passed through the mvnw script. This script will download and install the appropriate version of Maven for you if it is not already locally available, and then pass the arguments to the mvn executable.

To build the WAR file, run the command:

./mvnw clean package

This will result in the file demo##<timestamp>.war (e.g. demo##201705290808.war) being created in the target directory.

The timestamp component of the WAR file is used by the Tomcat parallel deployment feature. It allows Tomcat to drain connections to old versions of the web application, while directing new traffic to the latest version.

Packaging the WAR file

This is where some of the conventions required by Octopus Deploy differs from those typically used by Java.

To upload a package to Octopus Deploy, it must follow a number of versioning rules. In practice this means creating a zip or tar.gz archive with a file name like

In Java, versioning is mostly done by way of Maven. Additionally the WAR file created above embeds a timestamp version into the WAR file name itself that is recognised by Tomcat. Octopus Deploy on the other hand uses SemVer. All these versioning scheme are mostly incompatible, and the built in repository currently does not support WAR files, which means we can't upload the WAR file as is.

The solution is to pack the WAR file into an appropriately named ZIP file, which can then be uploaded to Octopus Deploy. This “WAR in a ZIP” package allows us to have the WAR file managed by Octopus Deploy, but does have some drawbacks, which I will mention later.

To package up the WAR file, use the Octopus Deploy CLI tool. The CLI tool is a .NET Core application that exposes a number of common operations that can be performed in Octopus Deploy, along with some handy features like creating ZIP archives with the correct naming conventions.

If you are not familiar with .NET Core, for the purposes of this blog post it is enough to know that it allows .NET applications to be run across operating systems, including Linux. The Octopus Deploy CLI tool is a self contained package that includes the .NET Core runtime, and so when you download the version for your Linux distribution, you get (almost) everything you need to run the CLI.

You may need to install a few additional dependencies to run the CLI tool from Linux environments installed using “minimal” installation options. The documentation at the Get Started with .NET Core page lists the packages required for various Linux distributions.

To create the package, run the command:

octo pack --id=Demo --version=1.0.0 --basePath=target --include=*.war --format=zip

This will create the file which contains the WAR file.

Using the CLI tool is not required for creating the ZIP file. Any ZIP tool will do. However the tools provided by Octopus Deploy are designed to yield high size reductions based on the actual content of your packaged files. See Delta compression for package transfers for more information.

Pushing the Package

To push the package, use the push command:

octo push --package --server http://my.octopus.url --apiKey API-XXXXXXXXXXXXXXXX

You can find information on API keys at How to create an API key.

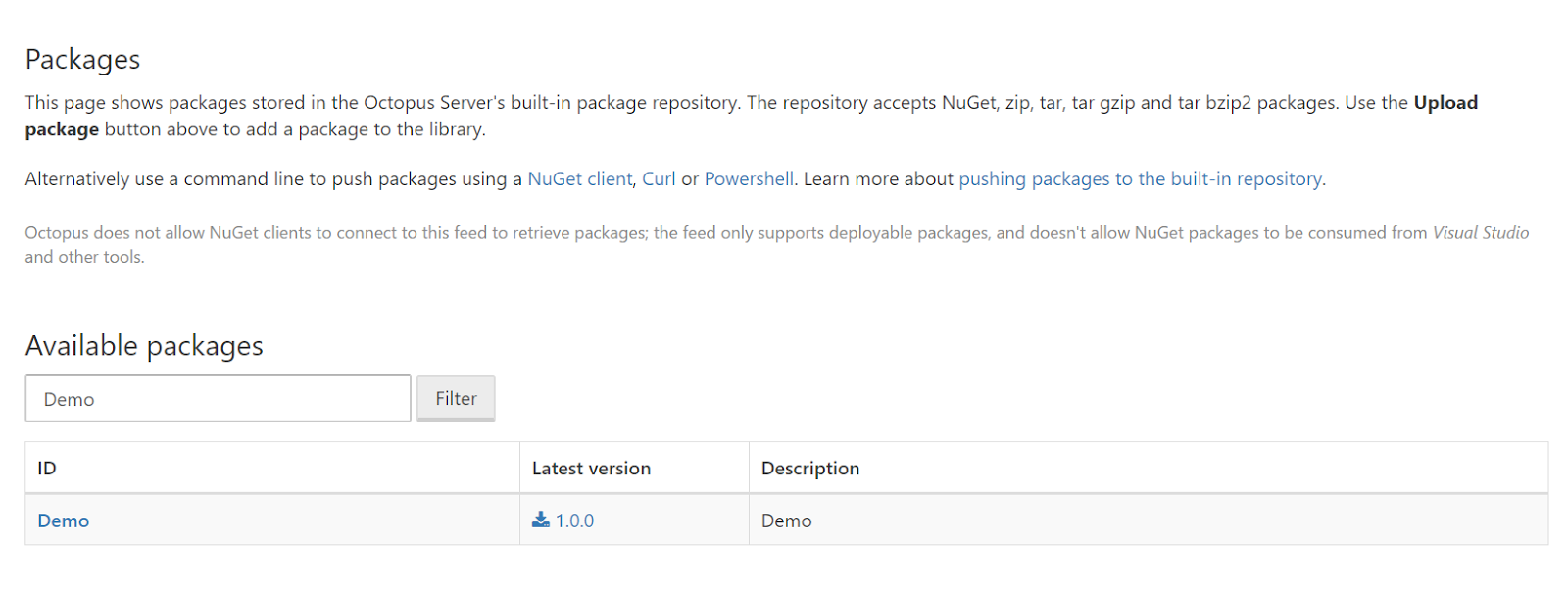

This adds the package to the Octopus Deploy built-in package repository so it can be used in deployments. See Package repositories for more information.


Creating the Octopus Deploy Environment

In Octopus, an environment is a group of machines that you will deploy to at the same time; common examples of environments are Test, Acceptance, Staging or Production. The Getting Started documentation details the process of creating a new environment in Octopus Deploy.

Creating an Octopus Deploy Deployment Target

Deployment targets represent the servers, machines and cloud services where your application and services will be deployed. The Getting Started documentation details the process of creating a new deployment target in Octopus Deploy.

In this example we’ll create a deployment target to represent the Tomcat server running on a Linux host. Almost all Linux servers run SSH as a means of remote administration, and Octopus Deploy supports SSH natively, so this is the means of communication that we will use to deploy the WAR file.

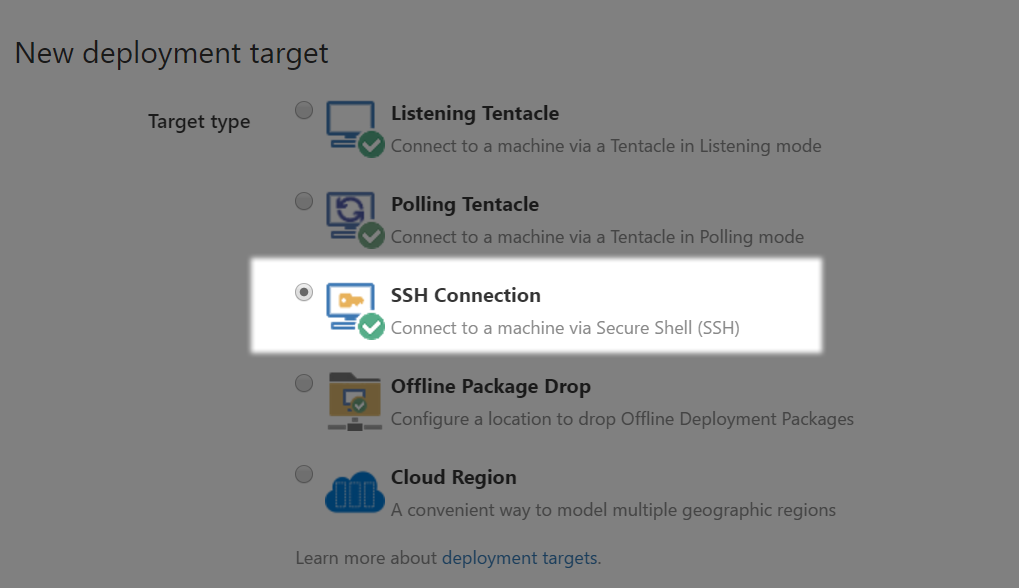

SSH Connection

Octopus uses a component called Calamari as the engine to execute deployments on deployment targets. Calamari currently requires Mono as a dependency to provide a .NET environment to operate on Linux. You will need to install Mono onto the Tomcat server to allow the Calamari to run. In the future, this will be simplified to use .NET Core without needing an additional dependency.

This can be confusing to people new to Octopus so I'll review this. You just need to know that:

  • The Octopus Deploy CLI tool uses .NET Core, and is self contained, although you may need to install additional dependencies. The CLI tool is run either on your own PC or on a CI server like TeamCity or Bamboo.
  • Calamari, the Octopus deployment execution engine, uses .NET, and .NET is provided by Mono under Linux. Calamari is run on the host you are deploying to, like the Tomcat Server, which means the Tomcat Server also needs to have Mono installed.

One thing to keep in mind with SSH deployment targets is that the user that makes the SSH connection needs to have permissions to deploy to the Tomcat webapps directory. Later on we’ll define some deployment steps that will copy the WAR file from the package that was uploaded earlier into the webapps directory, and this step will fail if the SSH user does not have the correct permissions to copy files into this location.

It is possible to deploy to a Linux server from Octopus Deploy without installing Mono. This is handy however the tradeoff is that you lose a lot of the power that Calamari provides in executing deployments. See Trying Raw Octopus for more information.

Creating a Octopus Deploy Project

Projects define a set of deployment steps that you want Octopus to perform, and their configuration variables. The Getting Started documentation details the process of creating a new deployment target in Octopus Deploy.

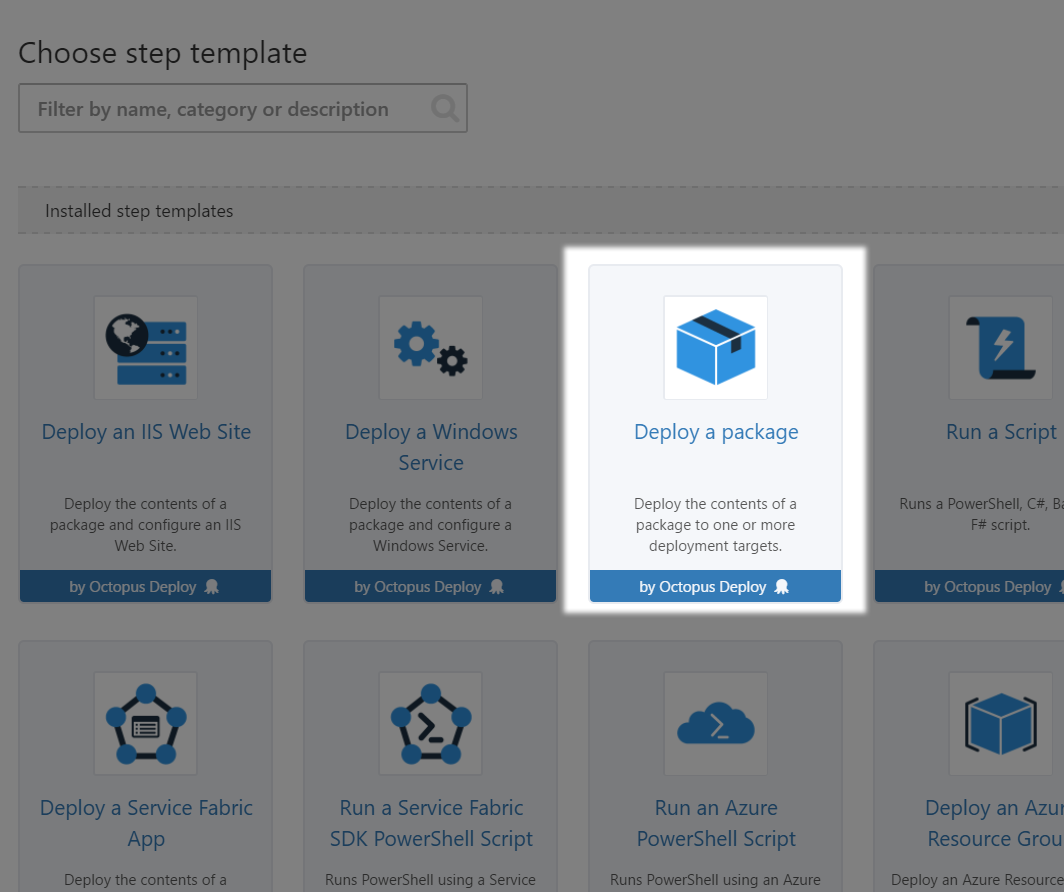

Inside the project we need to open the Process section, and add the Deploy a package step.

Deploy Package

The Deploy a package step provides a way for us to take a package and extract it to the desired location on the deployment targets. In our case, we are taking the ZIP package and extracting the WAR file to the Tomcat webapps directory.

The Configuration Variables and Configuration transforms sections provide a lot of power that unfortunately we can’t use whiledeploying a Java application. These options assume that certain XML files are available directly inside the package. This is not the case when the package contains a WAR file, and any configuration files contained in the WAR file are not available to be modified during deployment. This is a limitation of using Octopus Deploy with Java artifacts, but is something that the Octopus team is looking into in order to better support Java in future releases.

In order to define the location where the WAR file is extracted, click the Configure features link. Select the Custom installation directory option and click Apply.

A Custom install directory section will be added to the screen. Set the Install to field to the local path of the webapps folder e.g. /opt/apache-tomcat-8.5.15/webapps.

You most likely want to leave the Purge option unselected, as Tomcat may be hosting other WAR files that you do not want to delete when extracting the demo##<timetstamp>.war file.

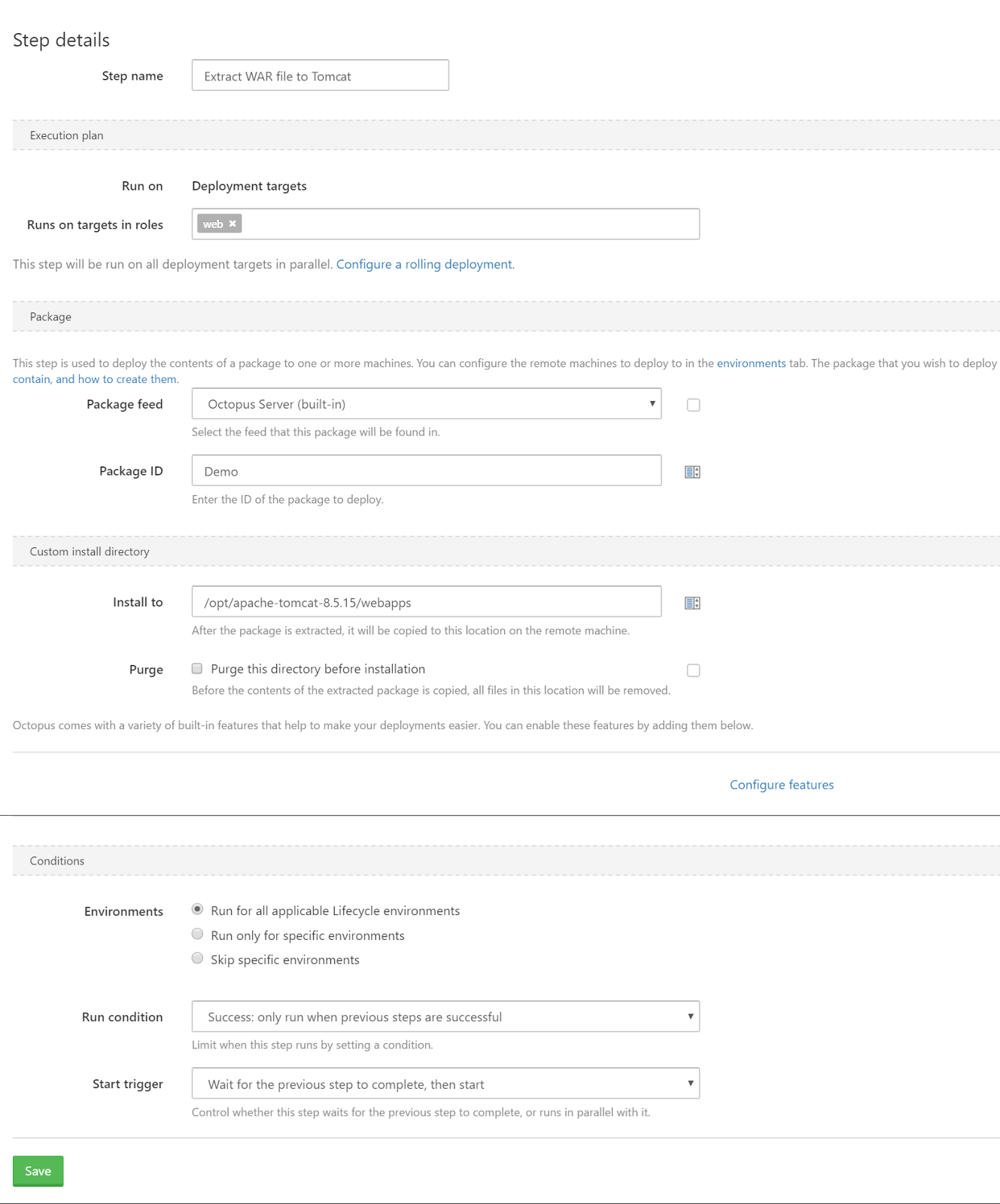

Deploy Package Configuration

Create an Octopus Deploy Release

A release captures all the project and package details so it be deployed over and over in a safe and repeatable way. The Getting Started documentation details the process of creating a new release in Octopus Deploy.

Deploy an Octopus Deploy Release

A deployment is the execution of the steps to deploy a release to an environment. An individual release can be deployed numerous times to different environments. The Getting Started documentation details the process of deploying a new release in Octopus Deploy.

In our case deploying the release means taking the package that was pushed to Octopus Deploy, installing Calamari on the Tomcat server, sending the package to the Tomcat server, and using the Calamari to extract the WAR file in the package into the Tomcat webapps directory.


At this point Tomcat now has the WAR file extracted into the webapps directory, and the Java application will be deployed by Tomcat and run.

We’re currently working on add-ons for CI servers like Bamboo that will automate the process of packing, pushing and releasing deployments, and there is already a plugin for TeamCity.

In future we are looking at ways to bring features like Configuration transforms to Java packages, which will mean that environment specific configuration like database connection strings will be applied to JAR, WAR and EAR files as they are applied to new environments.
