Mixing Keys in Tomcat

Published on: 25 Nov 2017 by: Matthew Casperson

In a previous blog post we looked at how Tomcat 8.5+ uses SNI to map certificates to the hostname of a request.

Tomcat 8.5+ can go one step further and supports multiple certificate types for each host. This is most useful for supporting RSA with older browsers, while supporting ECDSA with compatible browsers.

In this blog post we'll take a look at how to configure Tomcat with multiple certificate types.

Creating Self Signed RSA Keys

To generate an RSA private key and self signed certificate, use the following command:

openssl req -x509 -newkey rsa:4096 -keyout rsa.key -out rsa.crt -days 365

Creating Self Signed ECDSA Keys

To create a ECDSA private key, use the following command:

openssl ecparam -genkey -out ecdsa.key -name prime256v1

The name parameter is one from the list returned by the command:

openssl ecparam -list_curves

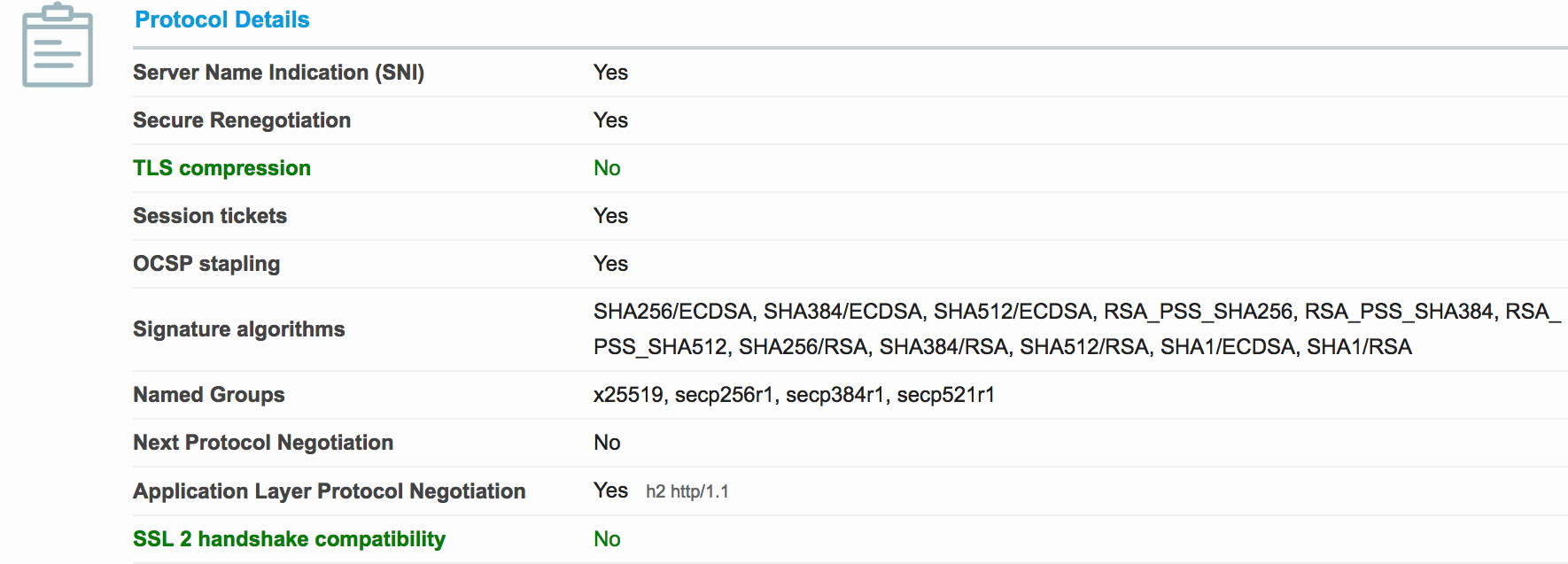

OpenSSL supports a large number of curves, but browsers typically only support a very small number. SSL Labs allows you to test your browser's support for named curves. In the screenshot below you can see the curves supported by Firefox 57: x25519, secp256r1, secp384r1, secp521r1.

secp256r1 is the OpenSSL prime256v1 curve.

Firefox Named Groups

A certificate is then created from the private key with the command:

openssl req -x509 -new -key ecdsa.key -out ecdsa.crt

Configuring Tomcat with Multiple keys

To support both certificate types, multiple <Certificate> elements can be added to a <SSLHostConfig> element. When multiple <Certificate> elements are defined, each must have a unique type attribute. The RSA certificates have the RSA type, and the ECDSA certificates have the EC type.

This is a snippet of the Tomcat server.xml configuration file with the two self signed certificates and private keys created using the OpenSSL commands above.

<Connector SSLEnabled="true" port="62000" protocol="org.apache.coyote.http11.Http11AprProtocol">
    <Certificate certificateFile="${catalina.base}/conf/ecdsa.crt" certificateKeyFile="${catalina.base}/conf/ecdsa.key" type="EC"/>
    <Certificate certificateFile="${catalina.base}/conf/rsa.crt" certificateKeyFile="${catalina.base}/conf/rsa.key" type="RSA"/>

This snippet uses the APR protocol, which accepts the PEM files that were created by OpenSSL. See Building the Apache Portable Runtime for more information on enabling APR in Tomcat.

Verifying the Configuration

High-Tech Bridge has an online service for verifying the security configuration of a web server.

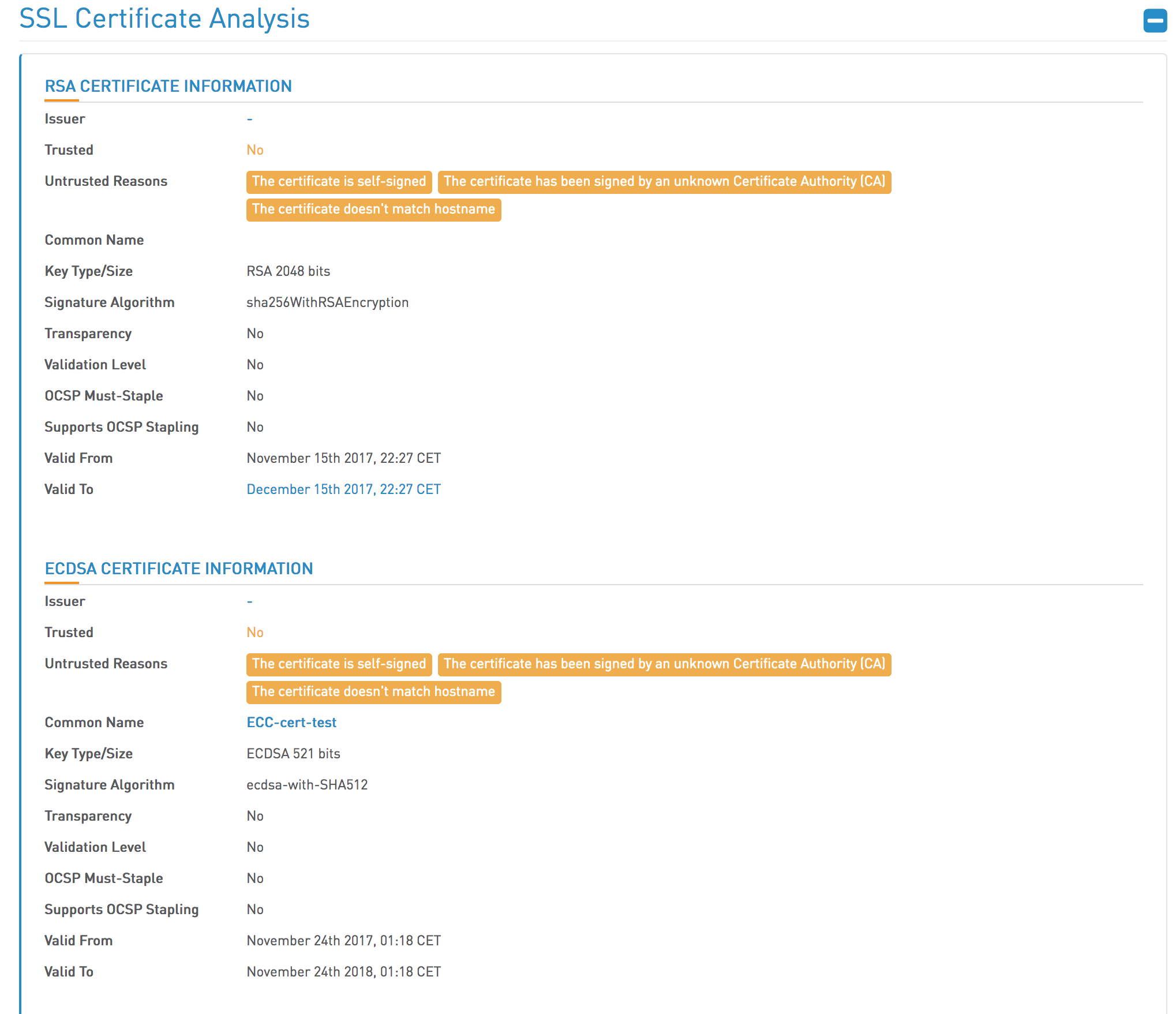

In this screenshot we can see that the Tomcat server has exposed both the RSA and the ECDSA certificates.

Cert Info


Tomcat is quite unique in its ability to support both RSA and ECDSA certificates for a single HTTPS port. This allows Tomcat to provide HTTPS to a wide range of clients without sacrificing security. This configuration can be achieved simply by defining two <Connector> elements with different type attributes.
