Selenium series: Creating an UberJAR

This post is part of a series about creating a Selenium WebDriver test framework.

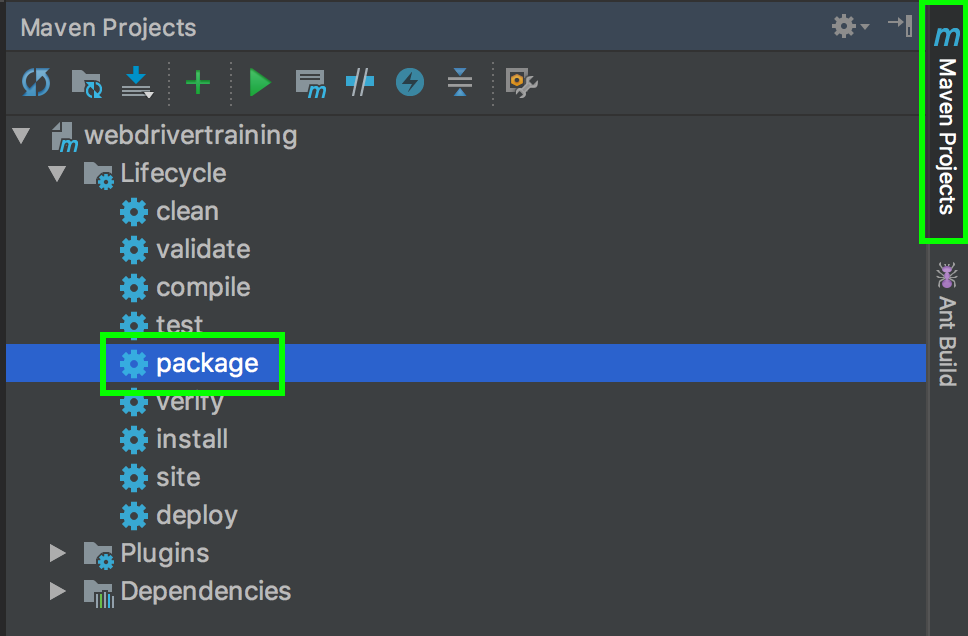

The Maven project we have used to build our code will package our classes into a JAR file. We can create this JAR file by running the Maven package lifecycle. To do this, open theMaven Projects tool window and double click the Lifecycle ➜ Package option.

C:\b4da756b8e562f2449a92910d5712a96

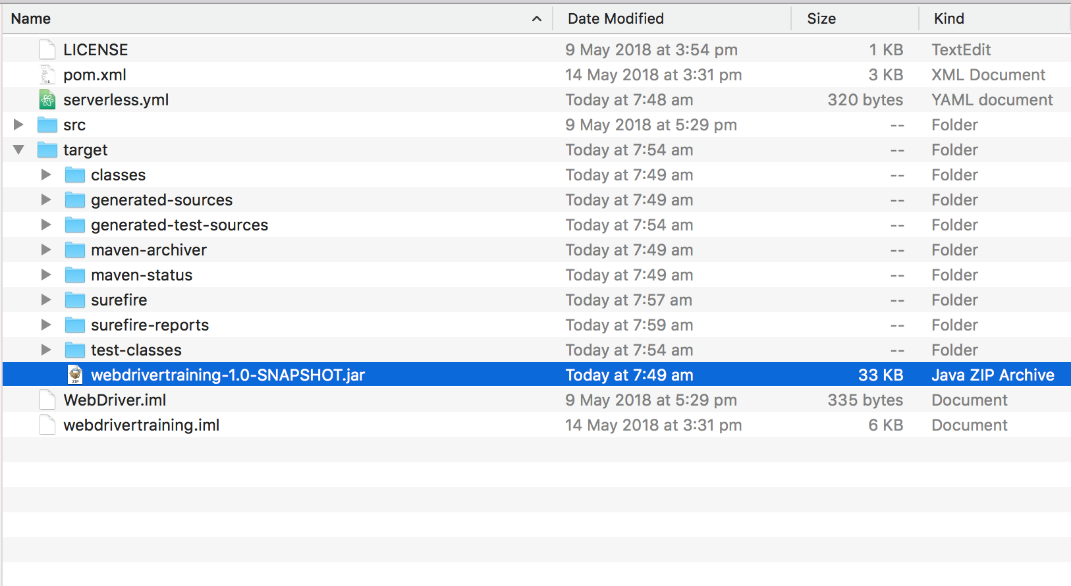

Packaging the application will first run all the tests, and then build the JAR file under the target directory.

C:\eb232509f6285bcc27ff6f6904d0429f

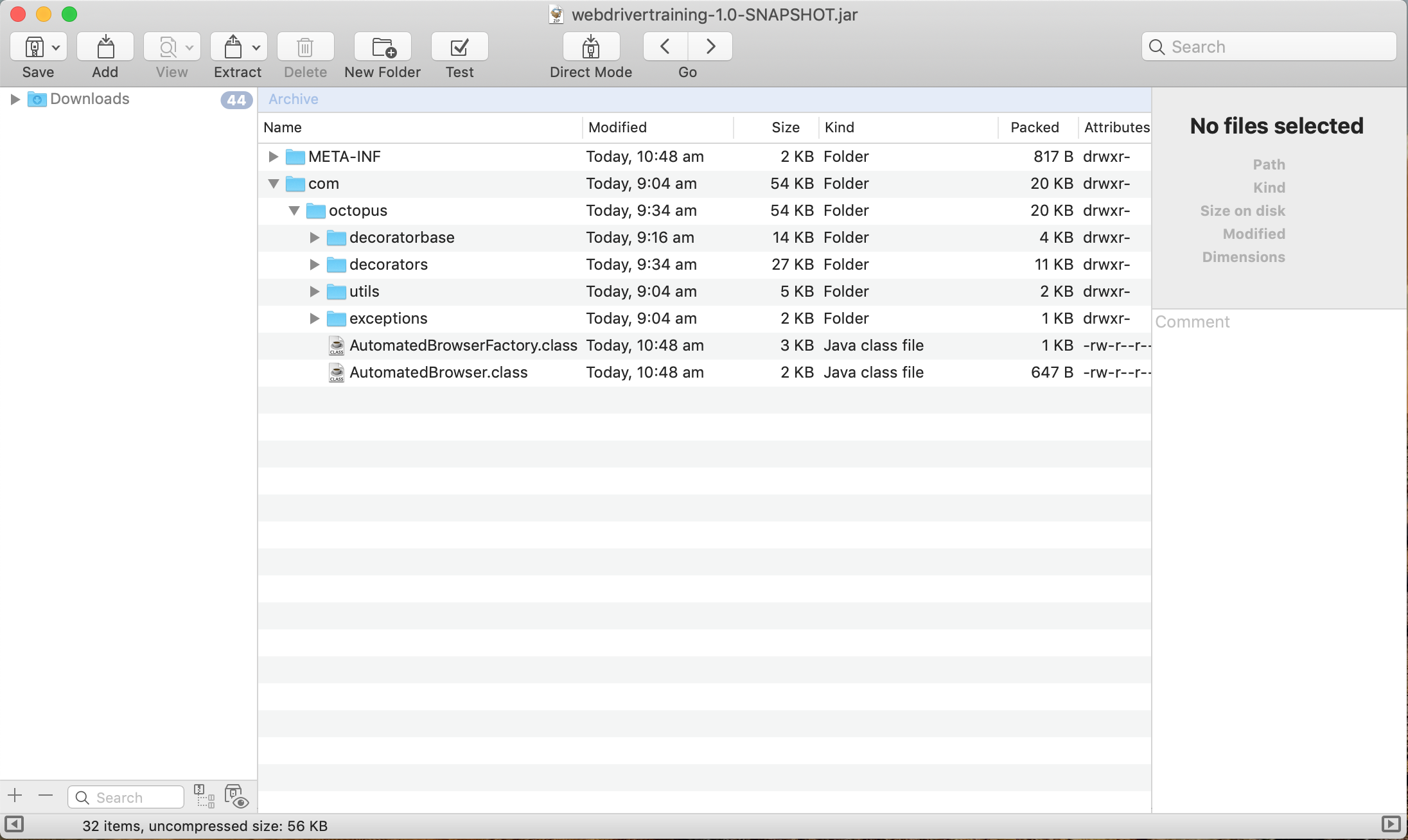

However, this file alone is not enough to run the application, because it does not include all the additional libraries we depend on such as WebDriver and Cucumber. We can confirm this by opening the JAR file in any application that views ZIP files, since JAR files are just ZIP files with a different extension. You can see the only classes inside this archive are those that we have written ourselves. None of the classes from the WebDriver or Cucumber libraries are present in this archive.

C:\c8e655e8f7f7ad56dc24ed87b905be9d

This presents something of a problem, as the code that makes up a Lambda function has to be packaged into a single archive. One solution is to build a fully self contained JAR file, otherwise known as an UberJAR.

An UberJAR is JAR file that includes all the classes required to run the application, which means it includes all the classes for code we have written, as well as all the classes from the libraries our code depends on. Maven makes it easy to build an UberJAR with the Shade plugin.

To configure the Shade plugin, we need to add its configuration under the <build><plugins> element.

This configuration specifies that the shade goal of the plugin should be run during the package phase. This means that when we package our code with Maven, the Shade plugin will be run automatically to generate the UberJAR:

<project xmlns=\"http://maven.apache.org/POM/4.0.0\"
xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\"
xsi:schemaLocation=\"http://maven.apache.org/POM/4.0.0
http://maven.apache.org/xsd/maven-4.0.0.xsd\">
  <modelVersion>4.0.0</modelVersion>
  <!-- ... -->
  <properties>
    <!-- ... -->
    <shade.version>3.1.0</shade.version>
    <!-- ... -->
  </properties>
    <build>
      <plugins>
      <!-- ... -->
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-shade-plugin</artifactId>
        <version>${shade.version}</version>
        <executions>
          <execution>
            <phase>package</phase>
            <goals>
              <goal>shade</goal>
            </goals>
          </execution>
        </executions>
      </plugin>
      <!-- ... -->
    </plugins>
  </build>
  <!-- ... -->
</project>

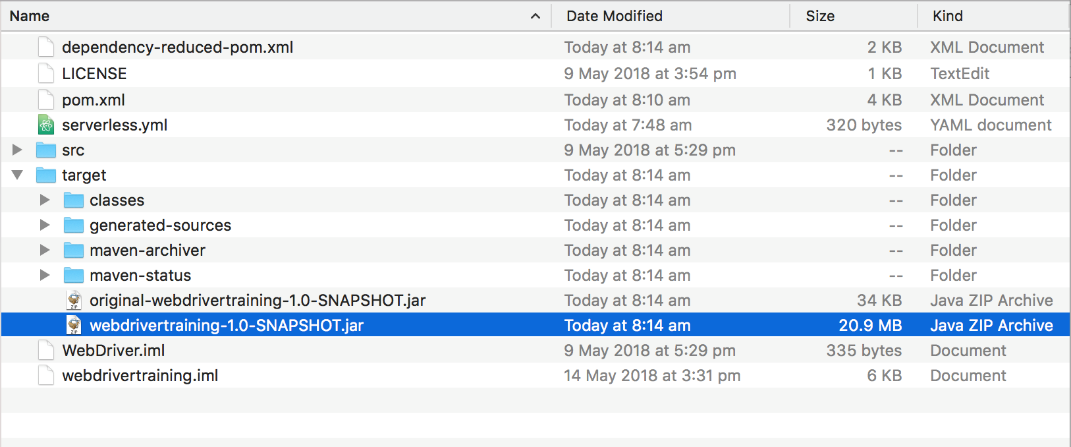

Now two JAR files are created when we package our application.

The original-webdrivertraining-1.0-SNAPSHOT.jar file is the regular JAR file that only contains the classes from our own code. You can see this file is only a few kilobytes in size.

The webdrivertraining-1.0-SNAPSHOT.jar is the UberJAR file that contains all the classes required to run this application. It is much larger at several megabytes in size.

C:\651a01a2c62fa638e66ab24197a7af10

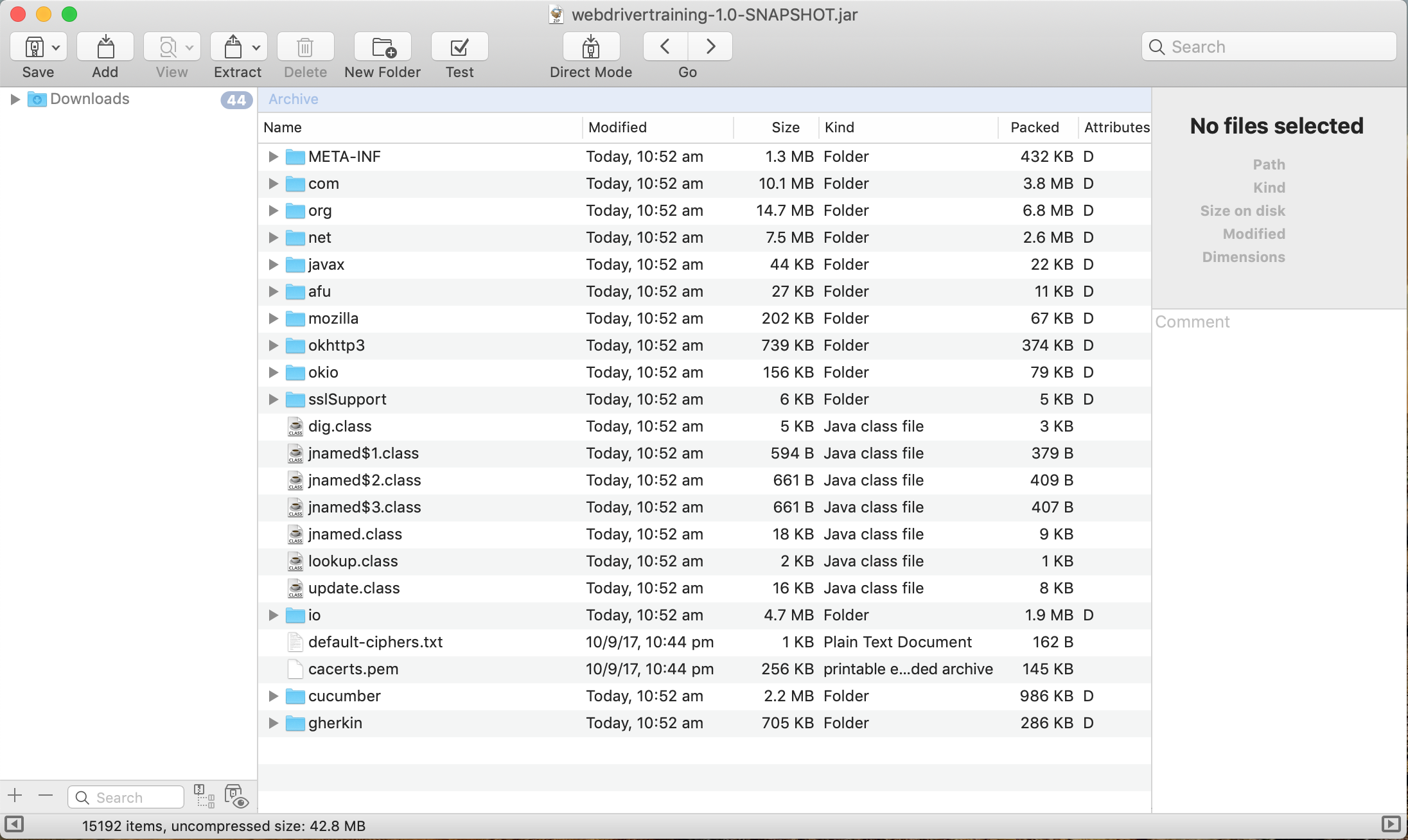

Looking at the contents of the UberJAR file, we can see that it has significantly more classes. These classes have been sourced from all the dependencies we defined in the pom.xml file, and all of their dependencies.

C:\2f1e567c929f42473046a8ad3d364a97

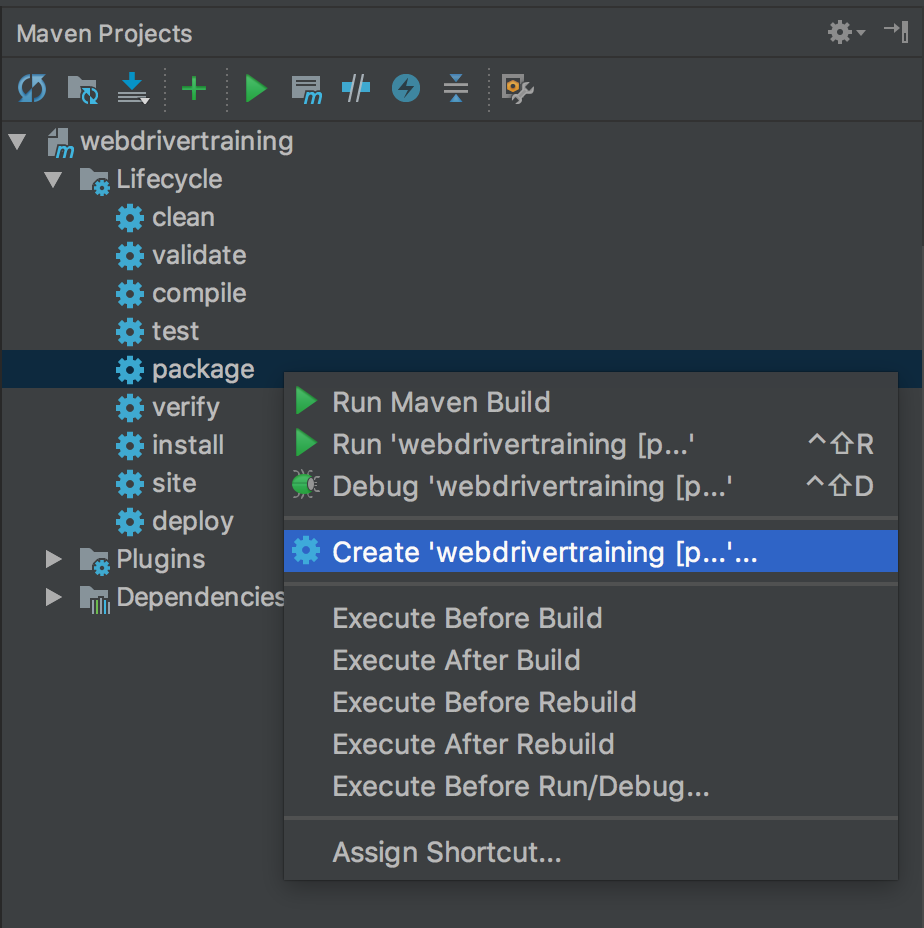

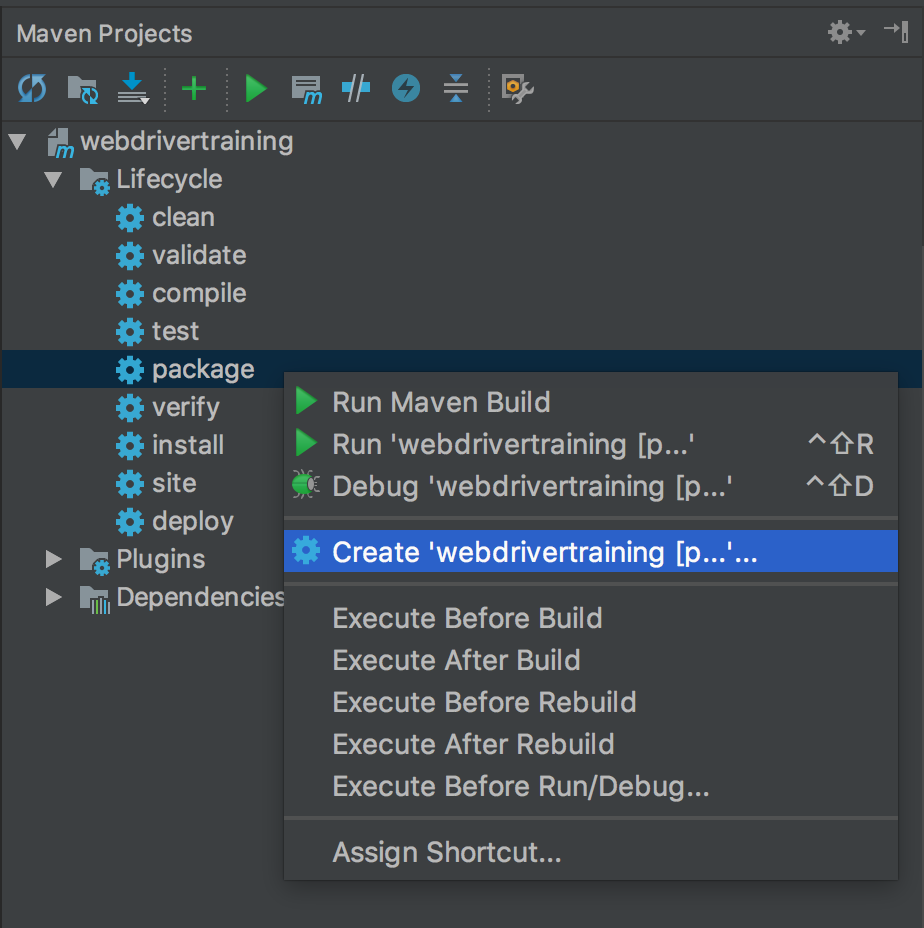

You will have noticed that running the package Maven lifecycle results in all the tests being run. Given that the tests we have written involve launching web browsers, these tests can get in the way if you just want to produce the JAR file. To prevent tests from being run, right click on the package lifecycle menu item and select the Create 'webdrivertraining...'... option.

C:\c00ed64c68f139e3bbf3bf836c200a12

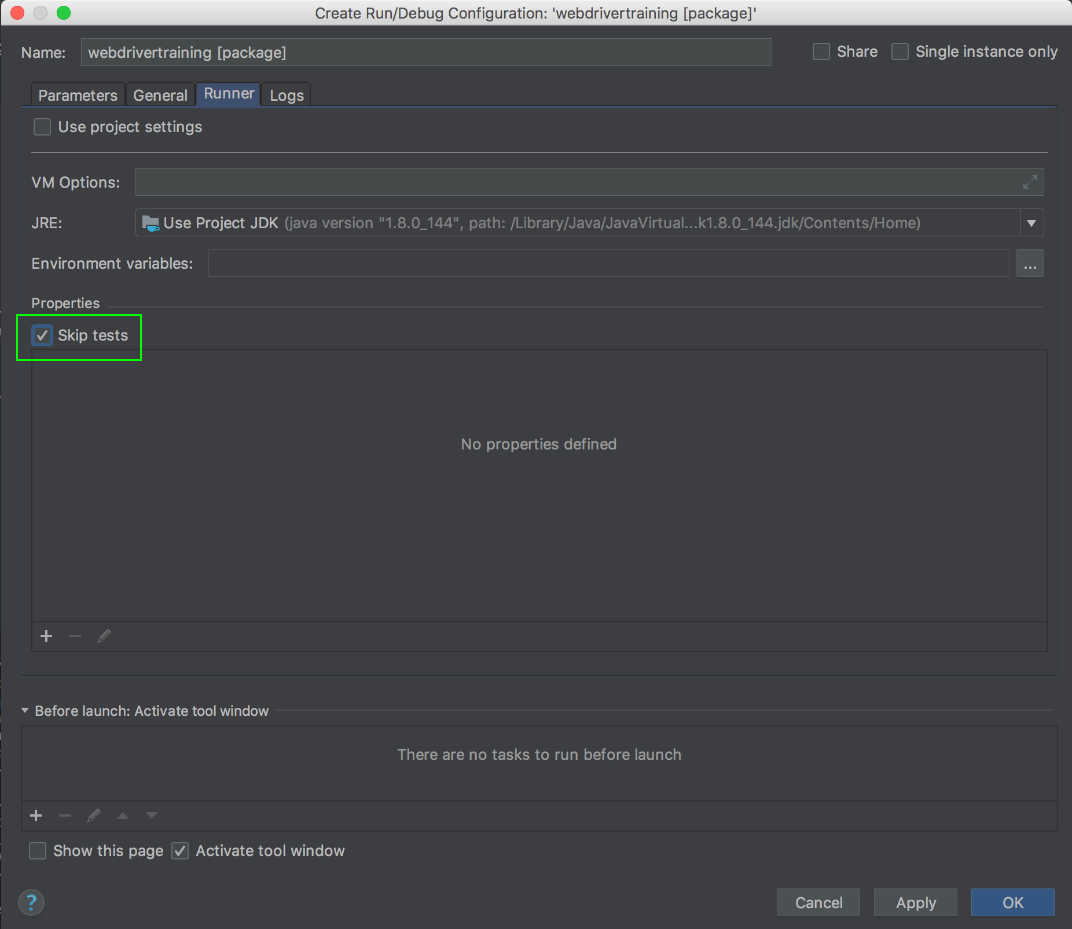

Then select the Runner tab. Unselect the Use project settings option, and then select the Skip tests option. Click the OK button to save the changed.

C:\f3de0341a982365112d4ac0fb3ff17d8

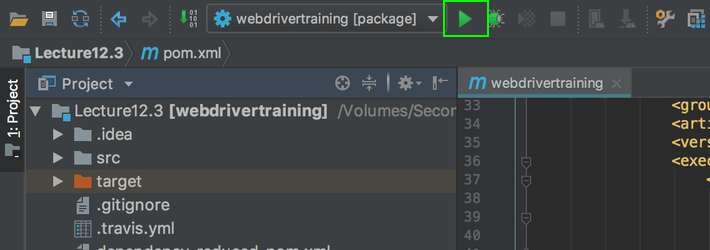

This will create a new configuration called webdrivertraining [package]. Clicking the green arrow with this configuration selected will run the Maven package lifecycle but skip the tests, allowing you to build the JAR files quickly.

C:\1eaaa83ad11078700649ee9e0810bd14

The resulting UberJAR file provides a convenient, self-contained package that we can easily distribute and run, and this is what we will deploy as an AWS Lambda. In the next post, we’ll add the code required to run a WebDriver test in Lambda, and use the Serverless application to publish the UberJAR file.

This post is part of a series about creating a Selenium WebDriver test framework.
