Selenium Series - Asynchronous Lambdas

Return to the table of contents.

We now have the ability to run Gherkin features with an AWS Lambda function. But so far we have had to trigger the tests from the AWS console. This is fine while we test that the Lambda works, but it not a very convenient way to run tests.

To allow tests to be executed without using the AWS Lambda console, we will configure a HTTP event in our Serverless configuration file. This event allows us to execute the Lambda function from a HTTP POST request, which in turn allows us to trigger tests using any standard HTTP tools or libraries.

To configure the HTTP event we update the serverless.yml file:

service:
  name: cucumber-chrome-aws

provider:
  name: aws
  runtime: java8
  region: us-east-1

package:
  artifact: target/webdrivertraining-1.0-SNAPSHOT.jar

functions:
  runCucumber:
    handler: com.octopus.LambdaEntry::runCucumber
    timeout: 300
    memorySize: 512
    events:
      - http:
          method: post
          path: runCucumber
          integration: lambda
          request:
            parameters:
              headers:
                'X-Amz-Invocation-Type': true
            template:
              text/plain: "\"$util.escapeJavaScript($input.body).replaceAll(\"\\'\",\"'\")\""
          response:
            headers:
              Content-Type: "'application/json'"
            template: $util.parseJson($input.body)

The new events section adds a http event. The HTTP method is post, the path that we can access is called runCucumber, and because this event triggers a Lambda function the integration is set to lambda:

events:
  - http:
      method: post
      path: runCucumber
      integration: lambda

When we perform a HTTP POST, we pass in the Gherkin feature file to be run in the body of the request. But, as we saw before, Lambda functions expect all inputs to be JSON data. We worked around this requirement while testing the Lambda from the console by using a simple web page to convert plain text into a JSON string. We can achieve the same conversion here using request templates.

Here we have configured a request template that is used when a request containing text/plain content is made. The key text/plain is a Multipurpose Internet Mail Extensions (MIME) type, which is a standardized way to indicate the nature and format of a document.

request:
  template:
    text/plain: "\"$util.escapeJavaScript($input.body).replaceAll(\"\\'\",\"'\")\""

The template that will process plain text requests, without the outermost quotes and the escaped quotes inside, is this:

"$util.escapeJavaScript($input.body).replaceAll("\'","'")"

The purpose of this template is the same as the web page we wrote to convert plain text into a JSON string. However, this template is written using the Velocity Template Language, which is the template library used by AWS. The logic of this template is as follows:

Pattern Meaning
" Print a literal double quote
$util.escapeJavaScript($input.body) Take the raw text from the request held in $input.body (i.e. the text that was sent as the HTTP POST body), and pass to the $util.escapeJavaScript() function.
.replaceAll("\'","'") The escapeJavaScript() function will escape single quotes, which is not valid JSON. So replace all escaped quotes with single quotes.
" Print a literal double quote

As a response, we would like to pass back the JSON returned by the Lambda function. We identify that the response returns JSON by setting the Content-Type header to the MIME type application/json.

Again we use a template to convert the response. This template takes the JSON string returned by the Lambda function, which is exposed as $input.body, and passes it to the $util.parseJson() function, which parses the JSON into an object to return to the sender:

response:
  headers:
    Content-Type: "'application/json'"
  template: $util.parseJson($input.body)

With these changes to the serverless.yml file, we can once again republish the Lambda function with the serverless deploy command. The output of this command will be something like the following:

Serverless: Packaging service...
Serverless: WARNING: Function runCucumber has timeout of 300 seconds, however, it's attached to API Gateway so it's automatically limited to 30 seconds.
Serverless: Uploading CloudFormation file to S3...
Serverless: Uploading artifacts...
Serverless: Uploading service .zip file to S3 (22.67 MB)...
Serverless: Validating template...
Serverless: Updating Stack...
Serverless: Checking Stack update progress...
........................
Serverless: Stack update finished...
Service Information
service: cucumber-chrome-aws
stage: dev
region: us-east-1
stack: cucumber-chrome-aws-dev
api keys:
None
endpoints:
POST - https://hkm5i7fmlc.execute-api.us-east-1.amazonaws.com/dev/runCucumber
functions:
runCucumber: cucumber-chrome-aws-dev-runCucumber

Notice that the log file shows the URL of the endpoint that we can use to trigger the HTTP events. In the example above the URL https://hkm5i7fmlc.execute-api.us-east-1.amazonaws.com/dev/runCucumber is what we will call with HTTP POST requests to execute a Gherkin feature.

To make a HTTP request, we'll use a tool called Postman, which you can download from https://www.getpostman.com/. Postman provides a simple interface that we can use to craft custom HTTP requests, and in this case we will make a POST request to the URL we found above.

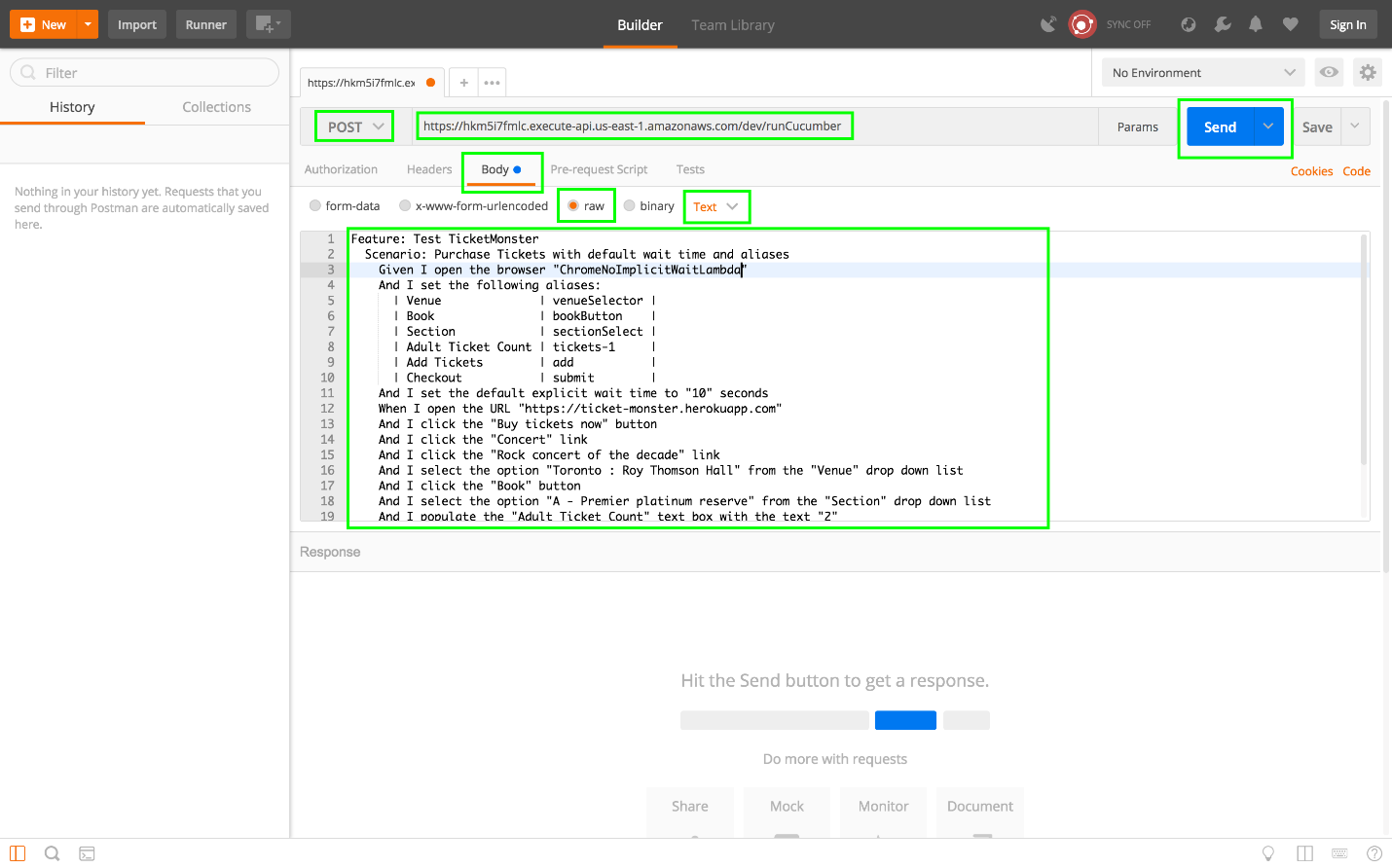

The screenshot below shows the important fields that need to be populated to make this POST request.

  • Select POST from the drop down list at the top of the tab
  • Enter the URL into the textbox at the top of the tab
  • Select the Body tab
  • Select the raw option
  • Select Text from the content type drop down list
  • Paste in the Gherkin feature into the text area at the bottom of the tab
  • Click the Send button

/C:/941191ba7e622160892a5123816cf59a

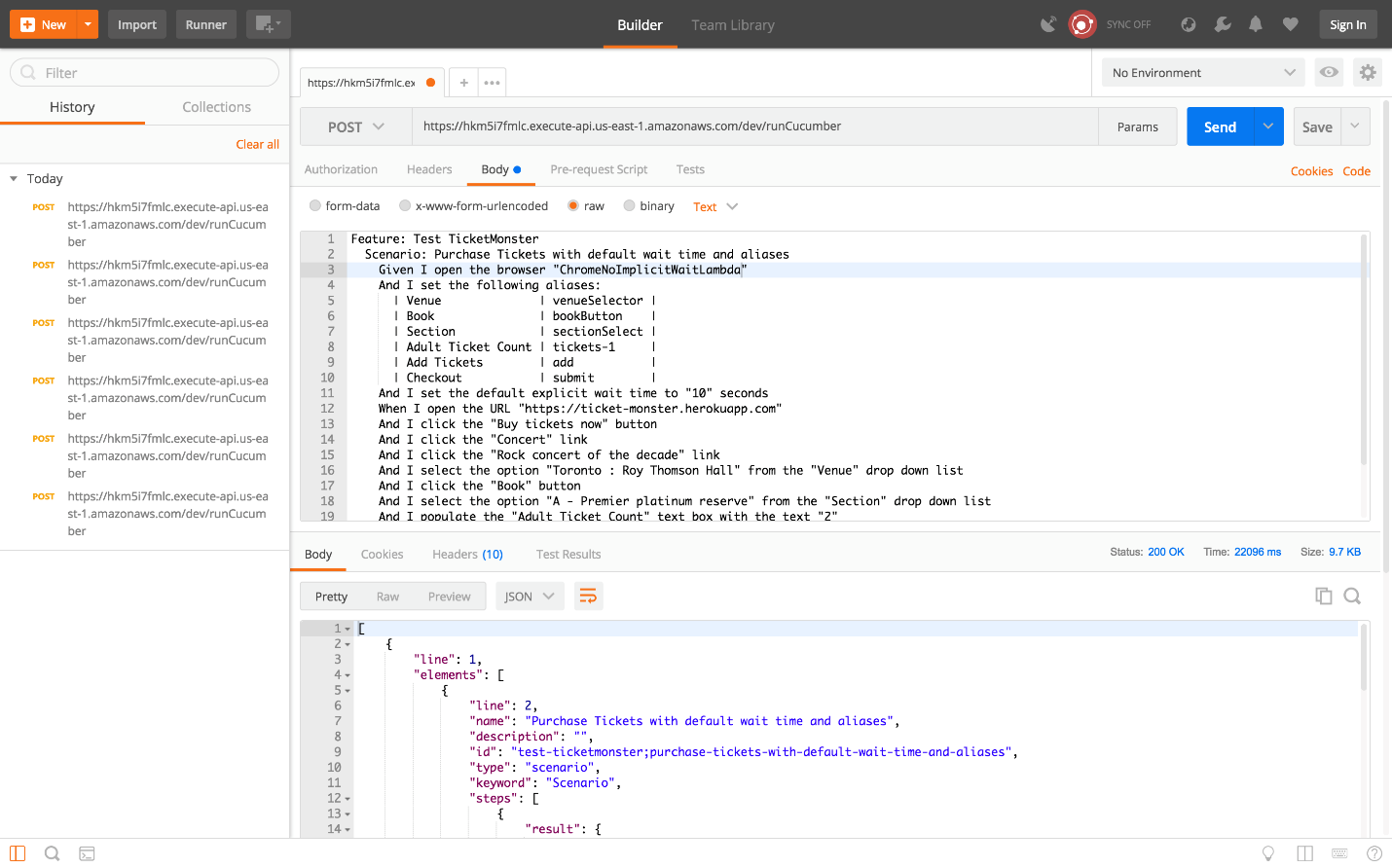

If you are lucky, you might see this response.

/C:/643a4cd7e0389640c129bc0a2485278f

I say lucky, because you may have seen the Endpoint request timed out error message instead.

/C:/6258b00237e59450e4167ba1a9104d2c

So what does the Endpoint request timed out error message mean?

This error is a result of different limitations of the services that were implemented to provide a HTTP endpoint in front of the Lambda function.

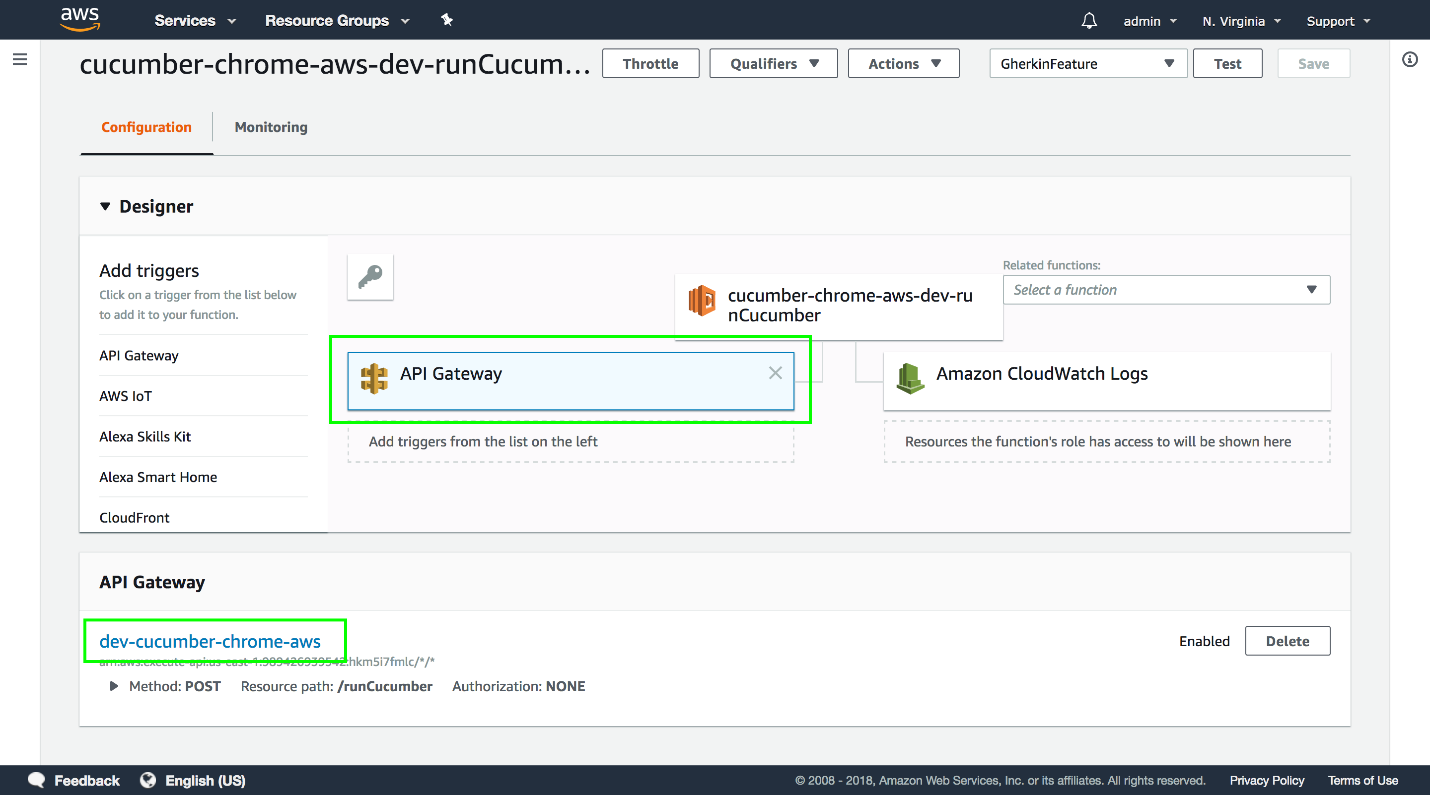

If you open up the Lambda console and view the function, you can now see that a service called API Gateway is sitting in front of the Lambda function.

/C:/edb84ea8b782041656cd633e9368260c

API Gateway is another AWS service that is used to build HTTP APIs, and it is the service that the serverless application built when we added HTTP events. It is API Gateway that is taking our HTTP requests, transforming them with the templates we defined, passing them to the Lambda function, transforming the response from the Lambda function, and passing the results back to the caller.

However, while a Lambda function can run for up to 5 minutes, a request made through the API Gateway can only stay open for 29 seconds. These are the limits imposed by AWS on these services, and we do not have the option of extending them.

The Endpoint request timed out error message is generated by the API Gateway when the Lambda function it called took longer than 29 seconds to complete.

This is something of a problem for us, as we are unlikely to write WebDriver tests that can reliably complete in 29 seconds. Usually we are writing tests that complete entire journeys through a web application, and these can take several minutes. So how can we overcome the 29 second time limit imposed by API Gateway?

The solution is to run our Lambda asynchronously. This means API Gateway initiates the Lambda, but does not wait for the return value, and instead returns an empty result to the caller straight away. This means we are no longer constrained by how long the Lambda takes to run, because it is run in the background.

To instruct API Gateway to call the Lambda asynchronously, we need to pass the X-Amz-Invocation-Type header with the value of Event.

Here is the new serverless.yml file:

service:
  name: cucumber-chrome-aws

provider:
  name: aws
  runtime: java8
  region: us-east-1

package:
  artifact: target/webdrivertraining-1.0-SNAPSHOT.jar

functions:
  runCucumber:
    handler: com.octopus.LambdaEntry::runCucumber
    timeout: 300
    memorySize: 512
    events:
      - http:
          method: post
          path: runCucumber
          integration: lambda
          request:
            parameters:
              headers:
                'X-Amz-Invocation-Type': true
              template:
                text/plain: "\"$util.escapeJavaScript($input.body).replaceAll(\"\\'\",\"'\")\""
          response:
            headers:
              Content-Type: "'application/json'"
            template: $util.parseJson($input.body)

The following configuration is where we define that the X-Amz-Invocation-Type header is required (setting the value to true means it is required):

request:
  parameters:
    headers:
      'X-Amz-Invocation-Type': true

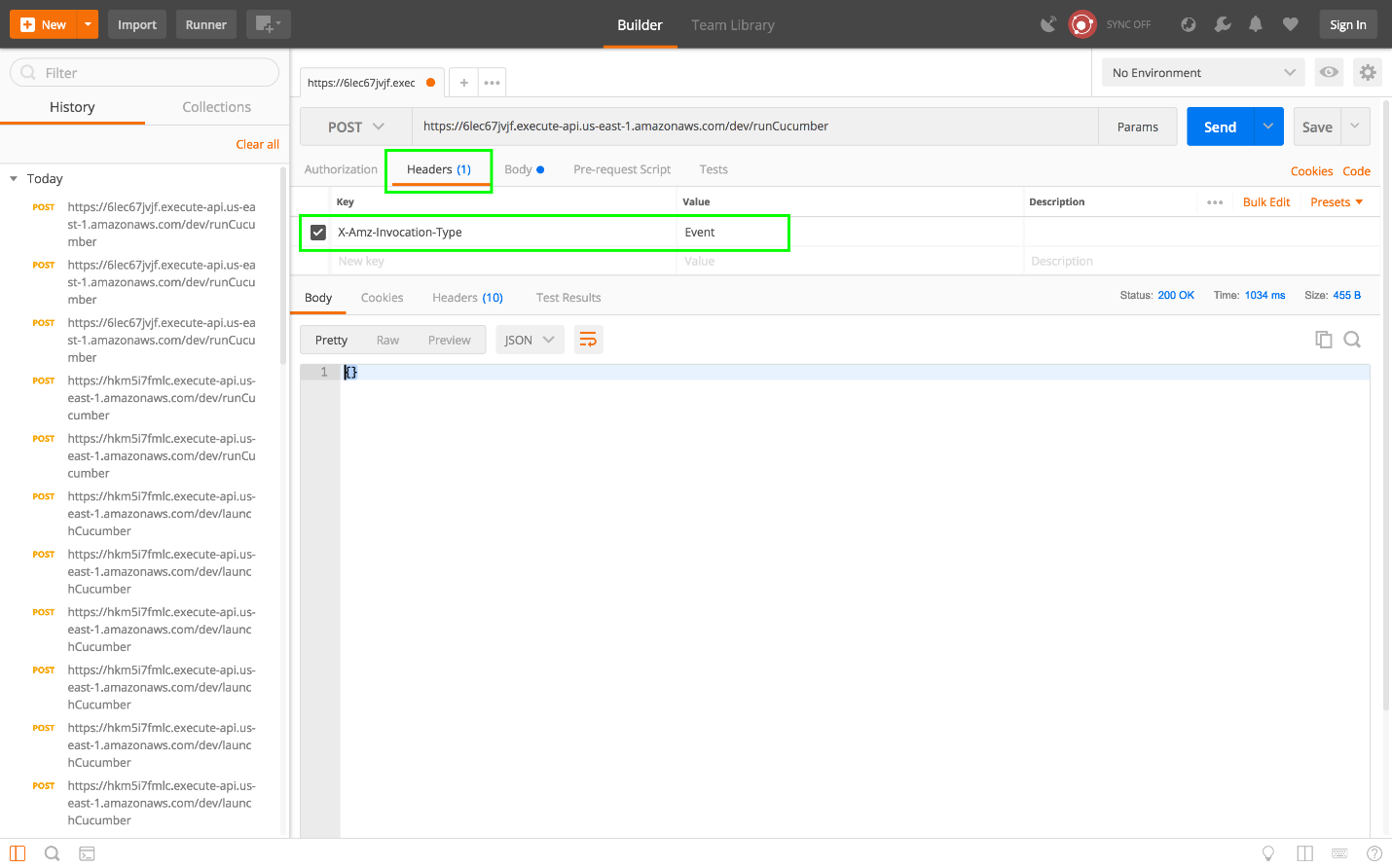

Redeploy the function with serverless. Once it has been updated, add the X-Amz-Invocation-Type header to the HTTP request in Postman by clicking on the Headers tab and adding a header with the key X-Amz-Invocation-Type and the value Event. This header and value pair is how we instruct API Gateway to execute the associated Lambda function in an asynchronous manner.

Setting the X-Amz-Invocation-Type header value to RequestResponse restores the previous default synchronous behavior, which might be useful if you are sure that your test will complete in 29 seconds.

The X-Amz-Invocation-Type header is documented in more detail at https://docs.aws.amazon.com/apigateway/latest/developerguide/integrating-api-with-aws-services-lambda.html..

/C:/c702d2a86f09873ae9edd675c653e749

This request will return almost immediately, with an empty object as the response.

Great, we now have a way to run Gherkin scripts by making a HTTP call, and without needing to worry about the time limits of requests made through the API Gateway. But now we have no way of knowing if the tests passed or failed. Running Lambda asynchronously means we get an empty response. Since the response from the runCucumber function is never captured, we no longer know what the result was.

The final piece to this puzzle is to provide a way for the runCumumber function to return the results of the test now that it is being called in an asynchronous manner.
