Selenium Series - Creating the framework

Return to the table of contents.

One of the strengths of the WebDriver API is that it is browser agnostic. You saw from the previous post that it only took a new binary driver and a new driver class to launch Firefox instead of Chrome in our test.

Although WebDriver allows us to write tests without worrying about which browser will run them, we are still required to create and configure the various driver classes such as ChromeDriver and FirefoxDriver. To make this process as flexible as possible, we'll create a factory class called AutomatedBrowserFactory to configure these objects for us.

Before we can create this class, we first need to add a new directory to our project to hold our Java files. The directory src/test/java/com/octopus that we created in previous posts is the default location for files that are used only in tests. There is a second directory under src/main/java/com/octopus that will hold regular Java classes, and we need to create this directory structure.

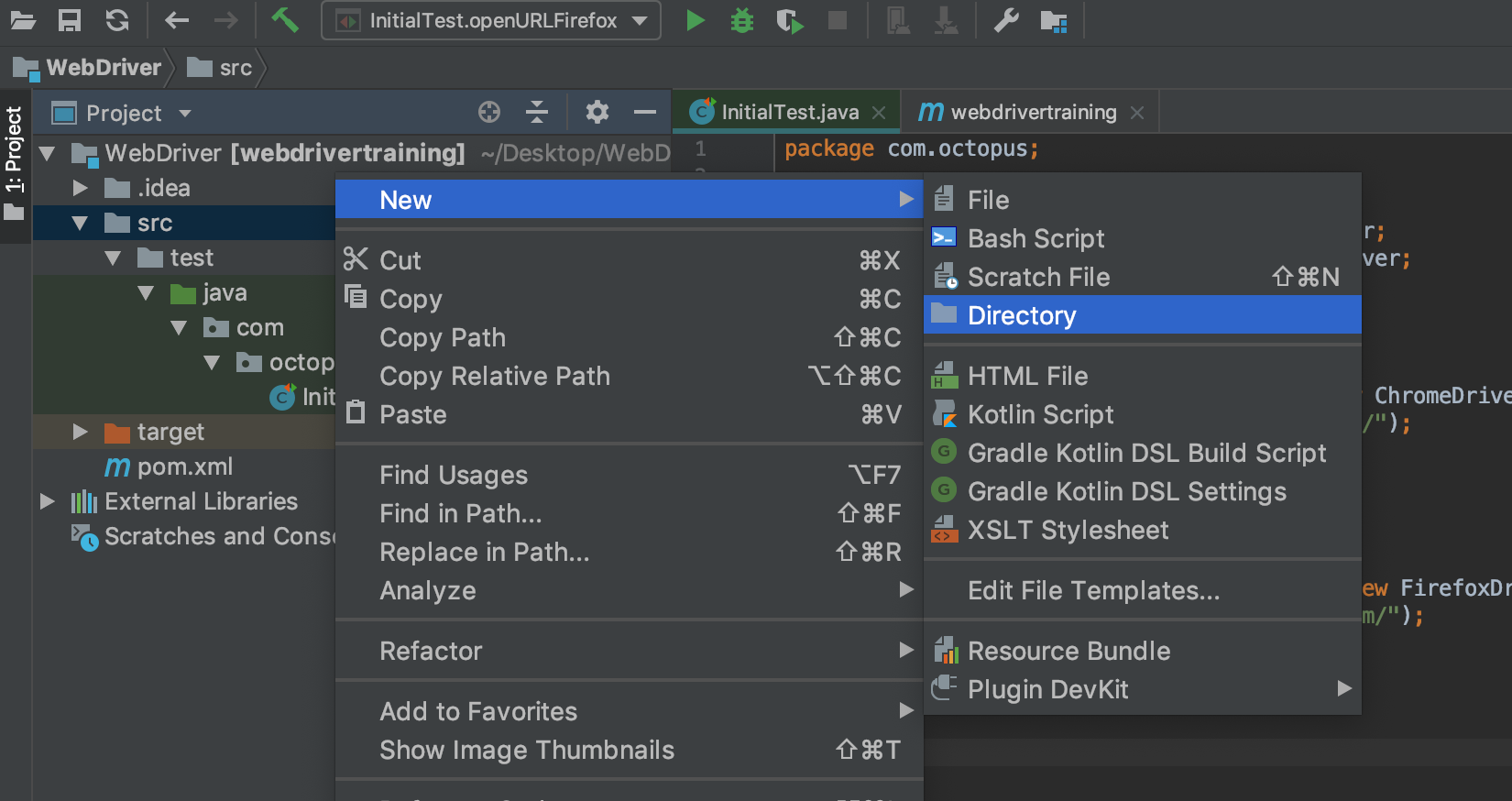

Right click on the src directory, and select NewDirectory.

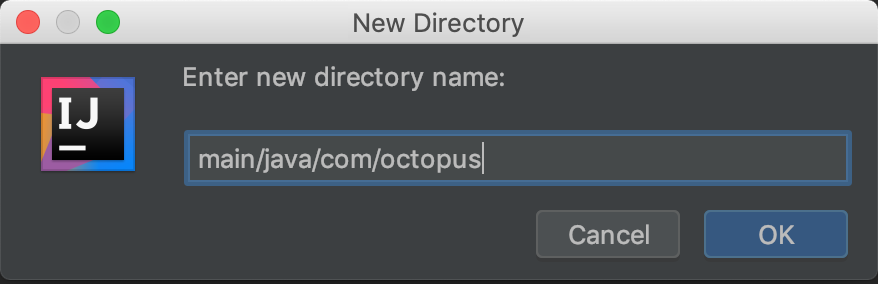

Enter main/java/com/octopus as the directory name and click OK.

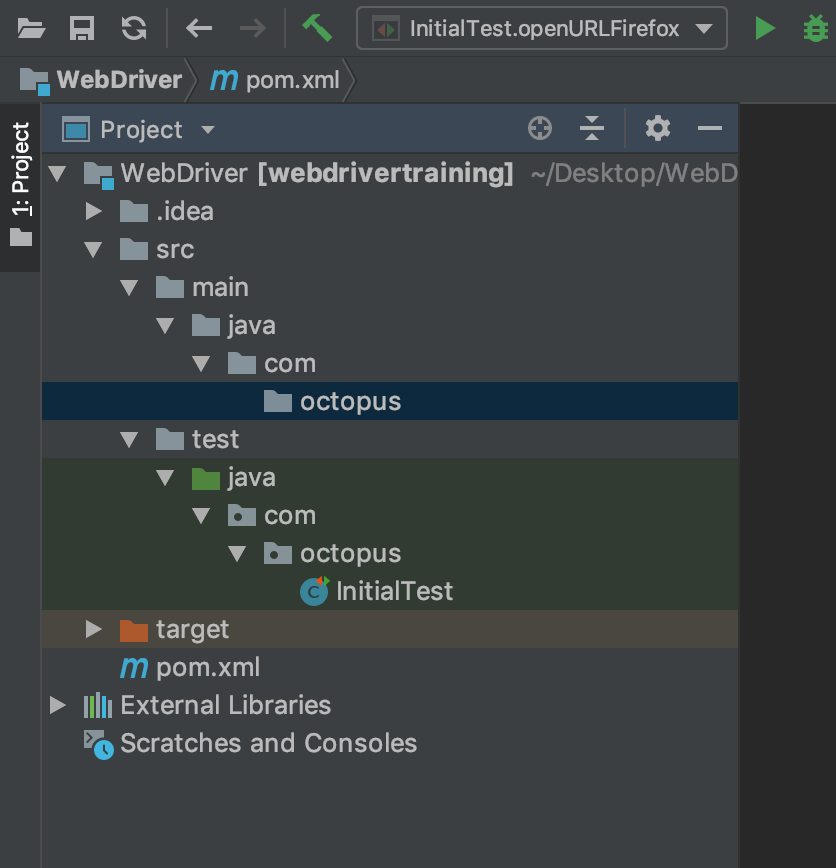

As before, the new directory structure is created, but it is not yet recognized by IntelliJ as a directory that holds Java classes.

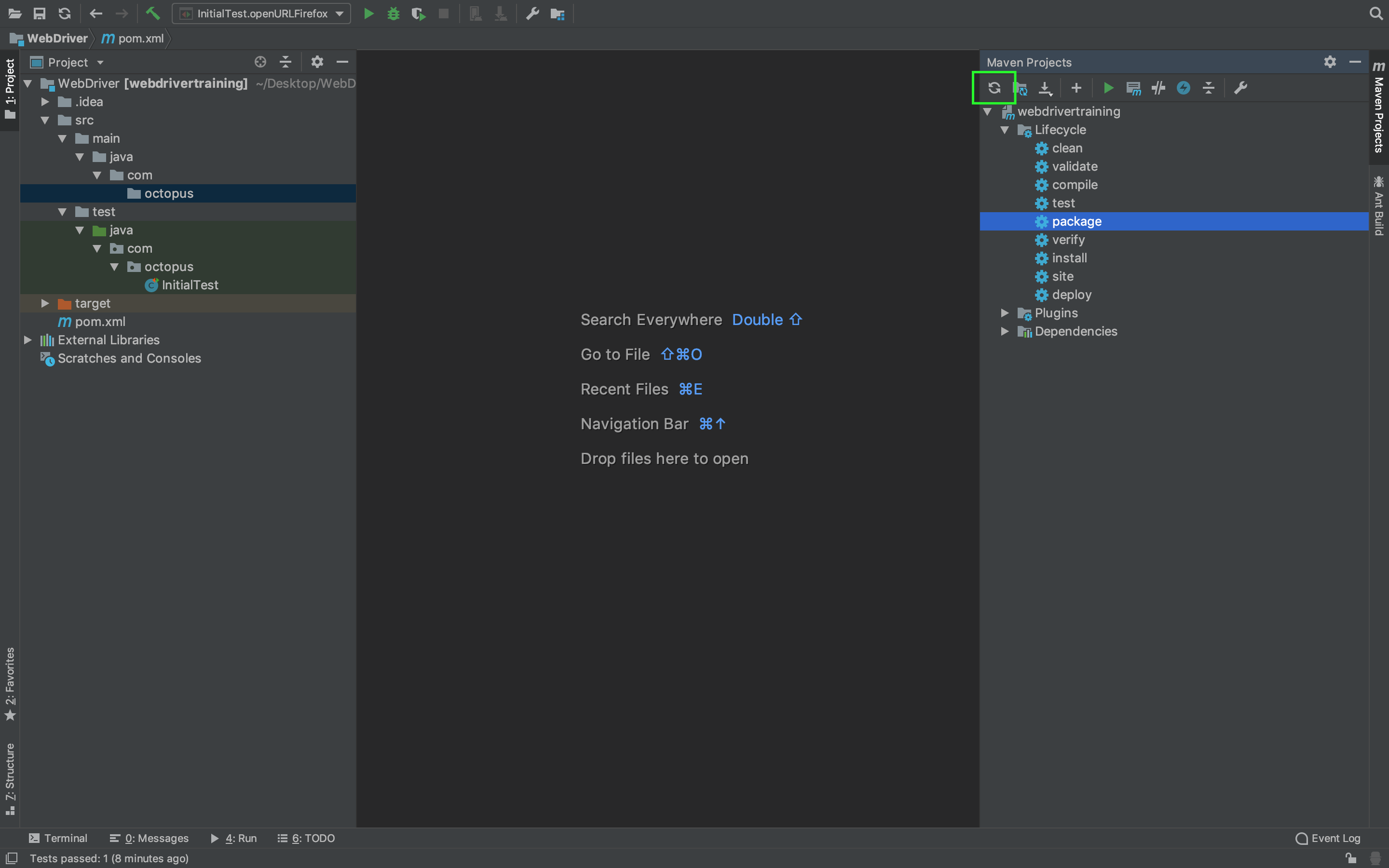

To fix this, open the Maven Projects tool window and click the Reimport All Maven Projects button.

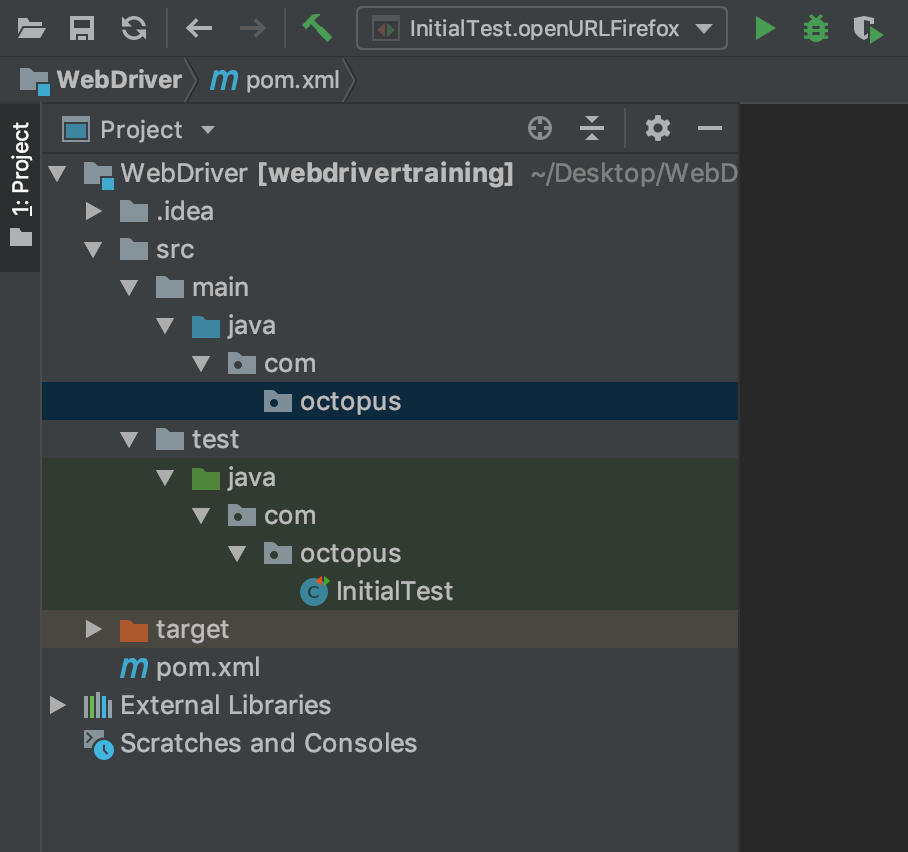

The java directory is now shown with a blue icon, which indicates that it will hold Java classes.

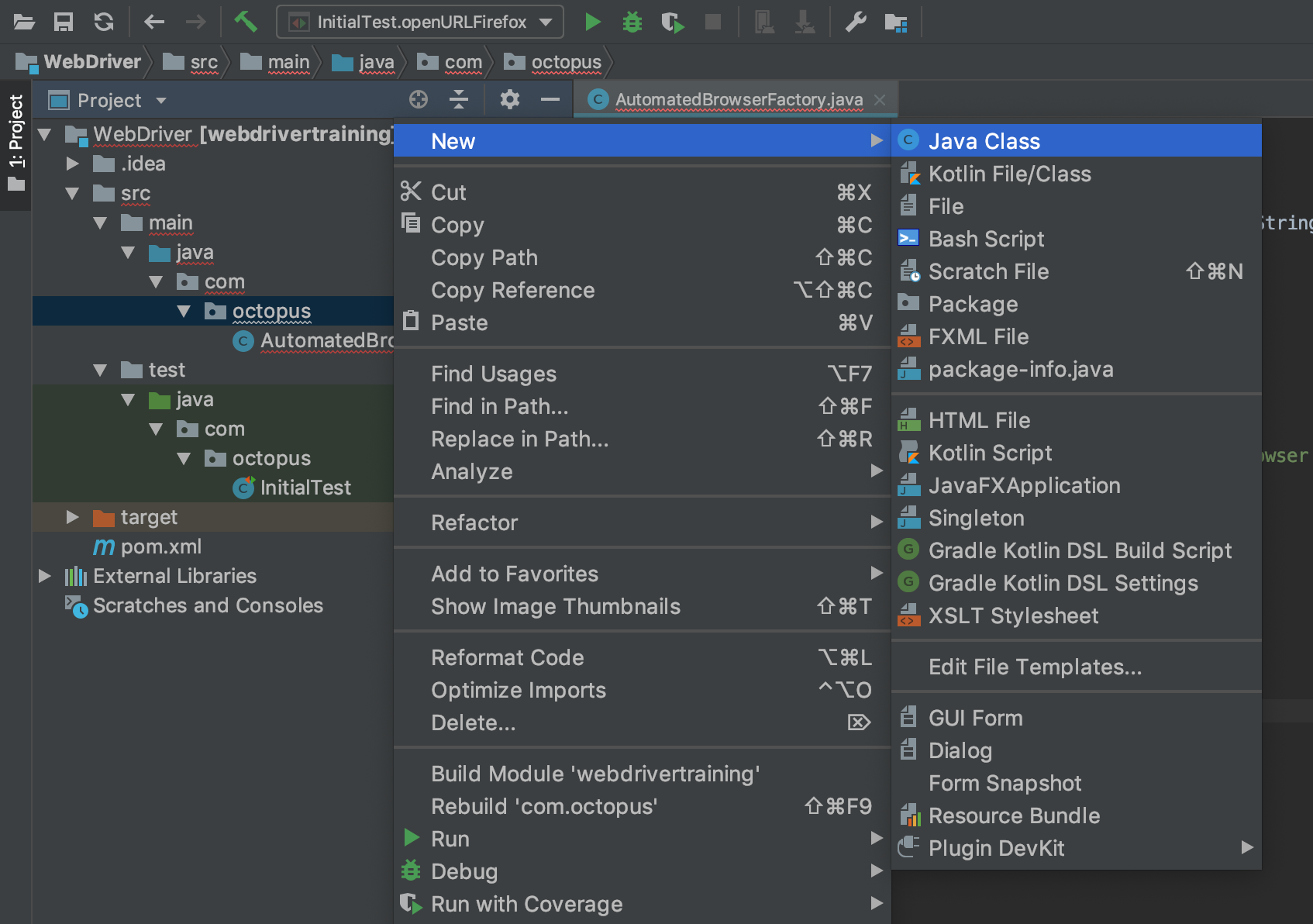

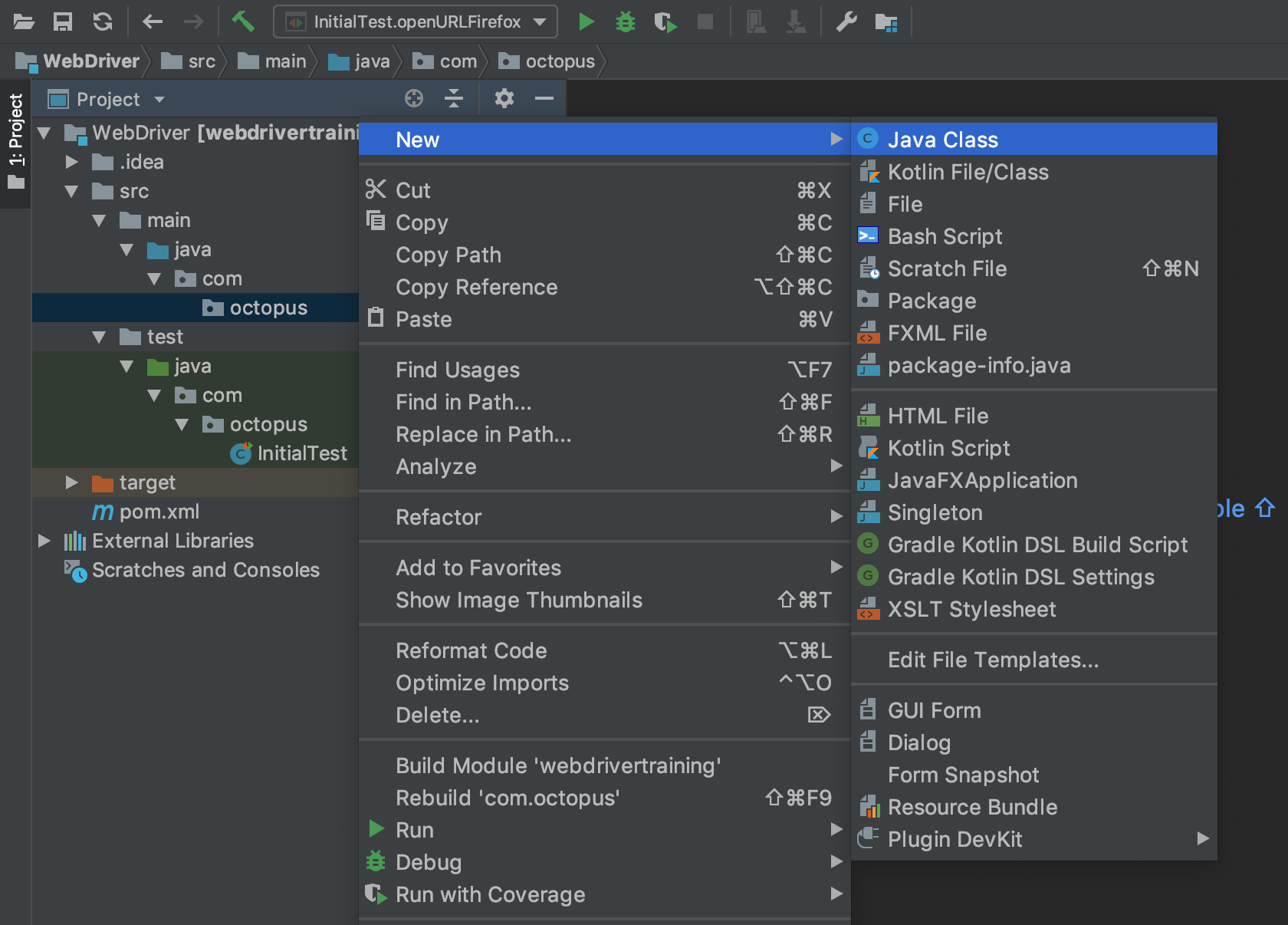

We can now create the class AutomatedBrowserFactory in the src/main/java/com/octopus directory. To create the new class right click on the octopus folder and select New ➜ Java Class.

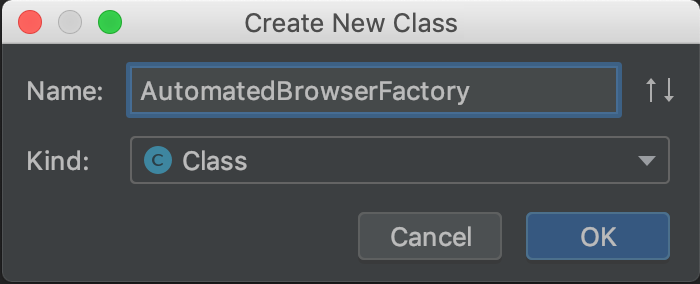

Enter AutomatedBrowserFactory in the Name field and click the OK button.

In the snippet below, we have a factory skeleton with a method called getAutomatedBrowser() that accepts the name of the browser that we wish to test against. This method returns an instance of the AutomatedBrowser interface:

package com.octopus;

public class AutomatedBrowserFactory {

  public AutomatedBrowser getAutomatedBrowser(final String browser) {

    if ("Chrome".equalsIgnoreCase(browser)) {
      return getChromeBrowser();
    }

    if ("Firefox".equalsIgnoreCase(browser)) {
      return getFirefoxBrowser();
    }

    throw new IllegalArgumentException("Unknown browser " + browser);

  }

  private AutomatedBrowser getChromeBrowser() {
    return null;
  }

  private AutomatedBrowser getFirefoxBrowser() {
    return null;
  }
}

The AutomatedBrowser interface will expose all the interactions we will perform against a browser. As a starting point we'll define some methods for initializing the WebDriver instance, opening a URL, and interacting with elements located by their ID.

To create the AutomatedBrowser interface right click on the octopus directory and select New ➜ Java Class.

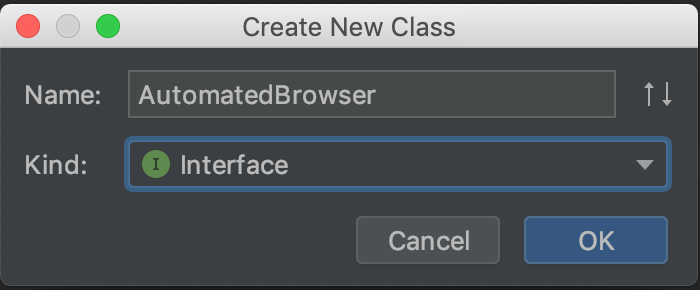

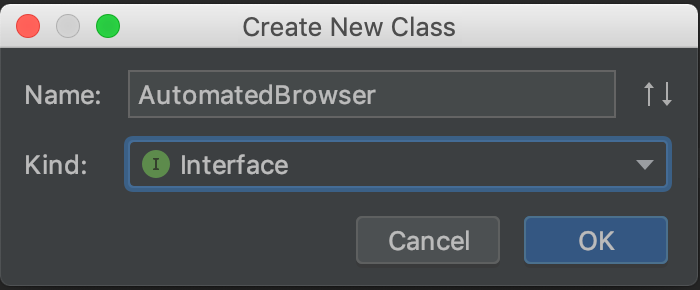

Enter AutomatedBrowser in the Name field, select the Interface option from the Kind field, and click the OK button.

Then paste the following code into the new file:

package com.octopus;

import org.openqa.selenium.WebDriver;

public interface AutomatedBrowser {

  WebDriver getWebDriver();

  void setWebDriver(WebDriver webDriver);

  void init();

  void destroy();

  void goTo(String url);

  void clickElementWithId(String id);

  void selectOptionByTextFromSelectWithId(String optionText, String id);

  void populateElementWithId(String id, String text);

  String getTextFromElementWithId(String id);

}

We'll make use of the decorator pattern to build up instances of the AutomatedBrowser interface that we will ultimately be calling to interact with a browser.

So why use the decorator pattern instead of a class hierarchy implementing AutomatedBrowser directly?

In implementing the decorator pattern we give ourselves the ability to create a whole range of independent implementations with features that enhance and customize how we interact with the browser, without trying to represent these implementations with a deep class hierarchy.

Two obvious implementations are those that configure instances of the ChromeDriver or the FirefoxDriver classes, allowing us to open either the Chrome or Firefox browsers. But as we move through this blog series we'll introduce a whole range of decorators that implement features such as proxies, stub methods for functionality not supported by mobile browsers, remote browsers and much more.

The framework for all this flexibility starts here.

To make it easier for us to create decorator classes, we'll create a class called AutomatedBrowserBase, which will implement AutomatedBrowser, and pass through all method calls to a parent instance of AutomatedBrowser.

Because the AutomatedBrowserBase class provides an implementation of every method in the AutomatedBrowser interface, decorator classes extending AutomatedBrowserBase can override only the methods that are specific to them. This significantly cuts down on the amount of boiler plate code that is required to create a decorator.

Note that AutomatedBrowserBase class is created in the com.octopus.decoratorbase package. Having this class in its own package will be an important design decision for features that we'll look at later on in the course.

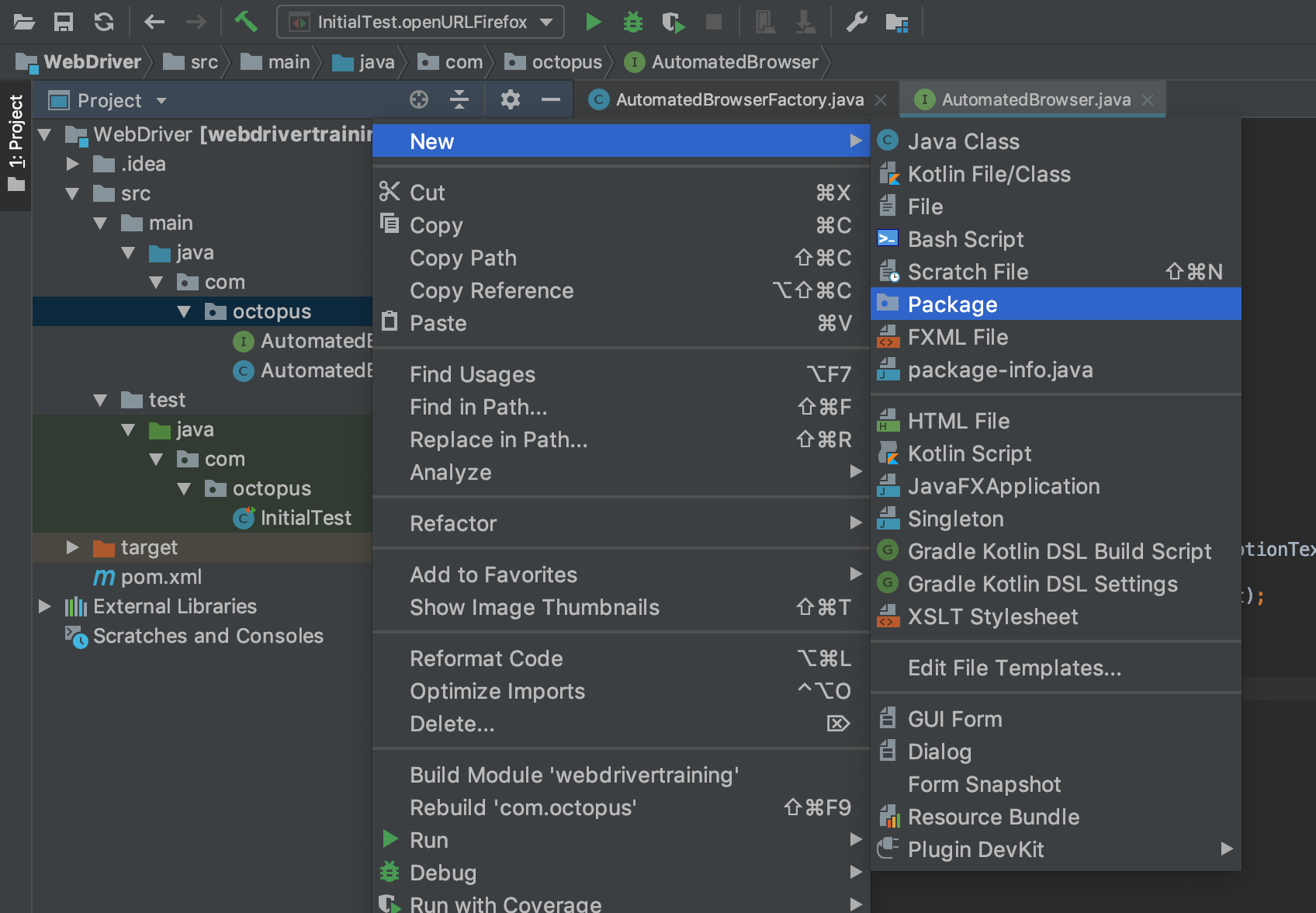

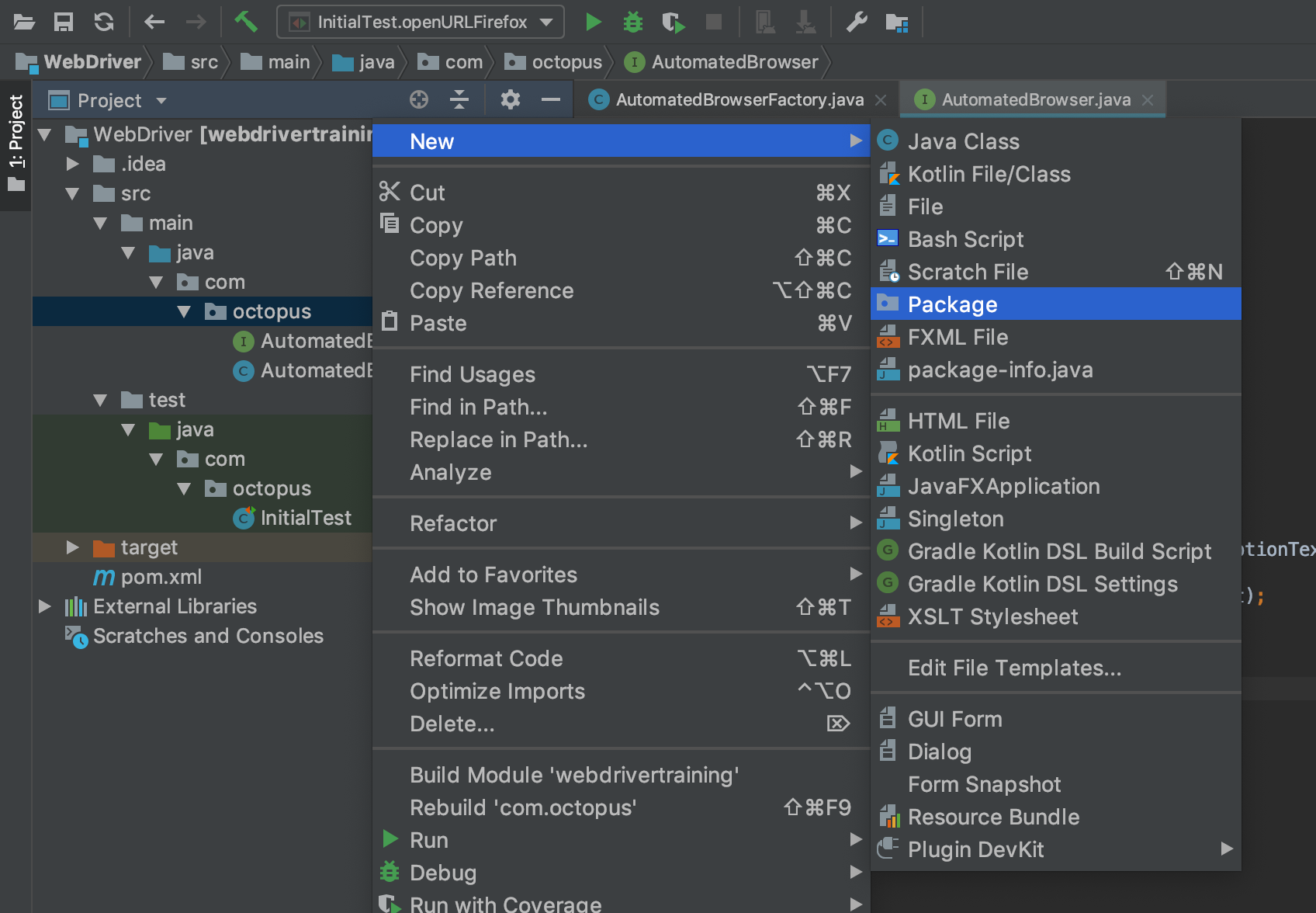

To create the new package, right click on the octopus directory and select New ➜ Package.

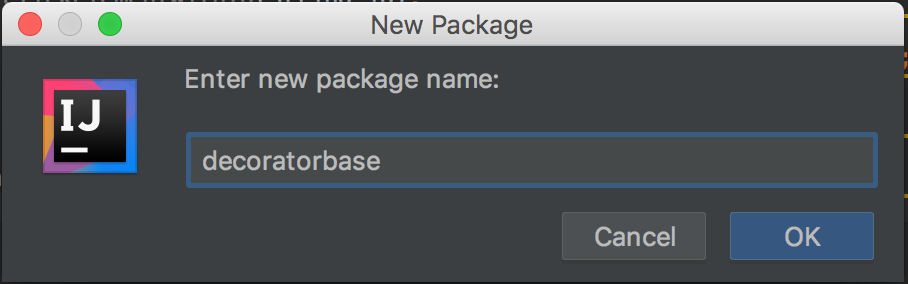

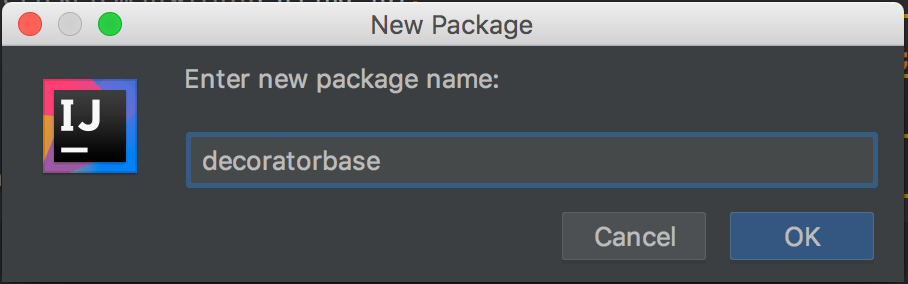

Enter the name decoratorbase, and click the OK button.

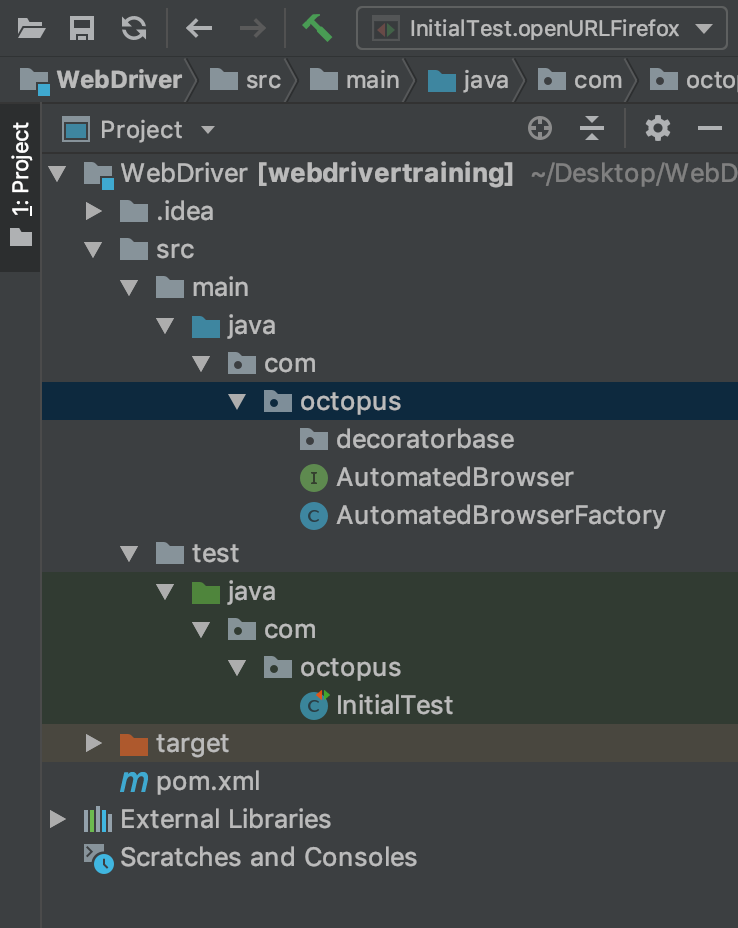

The new package is then added to the directory structure.

Inside the com.octopus.decoratorbase package create a new class called AutomatedBrowserBase with the following code. Each method defined in the AutomatedBrowser interface is implemented by passing it through to the automatedBrowser instance variable (if it is not null):

package com.octopus.decoratorbase;

import com.octopus.AutomatedBrowser;
import org.openqa.selenium.WebDriver;

public class AutomatedBrowserBase implements AutomatedBrowser {

  private AutomatedBrowser automatedBrowser;

  public AutomatedBrowserBase() {

  }

  public AutomatedBrowserBase(AutomatedBrowser automatedBrowser) {
    this.automatedBrowser = automatedBrowser;
  }

  public AutomatedBrowser getAutomatedBrowser() {
    return automatedBrowser;
  }

  @Override
  public WebDriver getWebDriver() {
    if (getAutomatedBrowser() != null) {
      return getAutomatedBrowser().getWebDriver();
    }
    return null;
  }

  @Override
  public void setWebDriver(WebDriver webDriver) {
    if (getAutomatedBrowser() != null) {
      getAutomatedBrowser().setWebDriver(webDriver);
    }

  }

  @Override
  public void init() {
    if (getAutomatedBrowser() != null) {
      getAutomatedBrowser().init();
    }
  }

  @Override
  public void destroy() {
    if (getAutomatedBrowser() != null) {
      getAutomatedBrowser().destroy();
    }
  }

  @Override
  public void goTo(String url) {
    if (getAutomatedBrowser() != null) {
      getAutomatedBrowser().goTo(url);
    }
  }

  @Override
  public void clickElementWithId(String id) {
    if (getAutomatedBrowser() != null) {
      getAutomatedBrowser().clickElementWithId(id);
    }
  }

  @Override
  public void selectOptionByTextFromSelectWithId(String optionText, String id) {
    if (getAutomatedBrowser() != null) {
      getAutomatedBrowser().selectOptionByTextFromSelectWithId(optionText, id);
    }
  }

  @Override
  public void populateElementWithId(String id, String text) {
    if (getAutomatedBrowser() != null) {
      getAutomatedBrowser().populateElementWithId(id, text);
    }
  }

  @Override
  public String getTextFromElementWithId(String id) {
    if (getAutomatedBrowser() != null) {
      return getAutomatedBrowser().getTextFromElementWithId(id);
    }

    return null;
  }
}

Now let's extend the AutomatedBrowserBase class to create the ChromeDecorator class. ChromeDecorator will override the init() method to create an instance of the ChromeDriver class.

The ChromeDecorator class will be placed in the com.octopus.decorators package, so create the new decorators package just like you did with the decoratorbase package.

Inside the com.octopus.decorators package create a class called ChromeDecorator with the following code.

Notice that the ChromeDecorator class implements only one method. This is the benefit of extending the AutomatedBrowserBase class instead of the AutomatedBrowser interface:

package com.octopus.decorators;

import com.octopus.AutomatedBrowser;
import com.octopus.decoratorbase.AutomatedBrowserBase;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;

public class ChromeDecorator extends AutomatedBrowserBase {
    public ChromeDecorator(final AutomatedBrowser automatedBrowser) {
        super(automatedBrowser);
    }

    @Override
    public void init() {
        final WebDriver webDriver = new ChromeDriver();
        getAutomatedBrowser().setWebDriver(webDriver);
        getAutomatedBrowser().init();
    }
}

And we follow the same process to create the FirefoxDecorator class, which creates an instance of the FirefoxDriver class:

package com.octopus.decorators;

import com.octopus.AutomatedBrowser;
import com.octopus.decoratorbase.AutomatedBrowserBase;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.firefox.FirefoxDriver;

public class FirefoxDecorator extends AutomatedBrowserBase {

    public FirefoxDecorator(final AutomatedBrowser automatedBrowser) {
        super(automatedBrowser);
    }

    @Override
    public void init() {
        final WebDriver webDriver = new FirefoxDriver();
        getAutomatedBrowser().setWebDriver(webDriver);
        getAutomatedBrowser().init();
    }
}

The ChromeDecorator and FirefoxDecorator classes contain the logic we need to open either the Chrome or Firefox browsers, and they achieve this by creating instances of either the ChromeDriver or FirefoxDriver classes. These driver classes are then passed to the  AutomatedBrowser instance that the ChromeDecorator and FirefoxDecorator classes "wrap up" by calling getAutomatedBrowser().setWebDriver(webDriver).

The last step is to initialize the drivers by calling getAutomatedBrowser().init(). Calling the init() method does nothing right now, but we'll use this method later on to configure some advanced features of the drivers.

The final decorator we need is one that uses the WebDriver API to perform actions against the browsers initialized by either the ChromeDecorator or FirefoxDecorator classes. For this we'll create the WebDriverDecorator class.

The WebDriverDecorator class will host a WebDriver instance, and expose it through the getWebDriver() and setWebDriver() methods. The destroy() method will close the web browser, and the goTo() method opens up the supplied URL.

Notice that WebDriverDecorator has a default constructor. This is unlike ChromeDecorator and FirefoxDecorator, which both provide a single constructor that takes a AutomatedBrowser. This difference exists because WebDriverDecorator is intended to be the base AutomatedBrowser that other decorators wrap up. We'll see this in action when we update the AutomatedBrowserFactory class.

We've already seen a lot of the code that goes into the WebDriverDecorator class in the last post, with the webDriver.get() method opening a URL, and the webDriver.quit() method closing the browser:

package com.octopus.decorators;

import com.octopus.AutomatedBrowser;
import com.octopus.decoratorbase.AutomatedBrowserBase;
import org.openqa.selenium.WebDriver;

public class WebDriverDecorator extends AutomatedBrowserBase {

  private WebDriver webDriver;

  public WebDriverDecorator() {

  }

  public WebDriverDecorator(final AutomatedBrowser automatedBrowser) {
    super(automatedBrowser);
  }

  @Override
  public WebDriver getWebDriver() {
    return webDriver;
  }

  @Override
  public void setWebDriver(final WebDriver webDriver) {
    this.webDriver = webDriver;
  }

  @Override
  public void destroy() {
    if (webDriver != null) {
      webDriver.quit();
    }
  }

  @Override
  public void goTo(final String url) {
    webDriver.get(url);
  }
}

With the decorators done we need to update the AutomatedBrowserFactory to make use of them.

Previously the getChromeBrowser() and getFirefoxBrowser() methods returned null. Now we can create instances of our decorator classes to build up customized instances of the AutomatedBrowser interface to open either Chrome or Firefox.

Note how the decorator constructors wrap each other up. This is key to the decorator pattern, and means we can mix and match decorator classes to construct a wide range of objects, all without having to create deep class hierarchies with inheritance:

private AutomatedBrowser getChromeBrowser() {
  return new ChromeDecorator(
    new WebDriverDecorator()
  );
}

private AutomatedBrowser getFirefoxBrowser() {
  return new FirefoxDecorator(
    new WebDriverDecorator()
  );
}

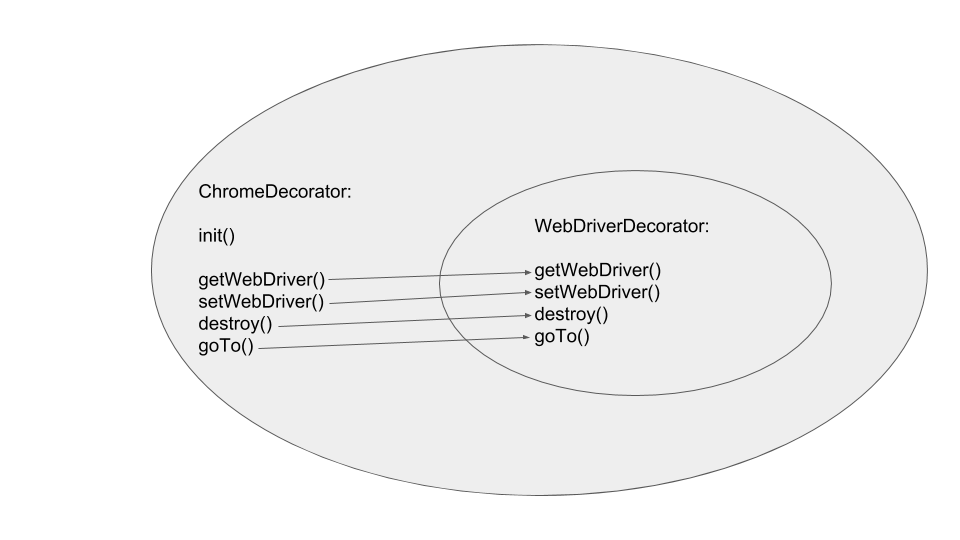

The image below shows how decorators wrap each other up, and pass method calls to the instances that they decorate.

Let's create a test that makes use of our factory and the instances of AutomatedBrowser that it creates.

Because this is a test class, it will be created in the src/test/java/com/octopus directory:

package com.octopus;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.junit.runners.Parameterized;
import java.util.Arrays;

@RunWith(Parameterized.class)
public class FactoryTest {

  private static final AutomatedBrowserFactory AUTOMATED_BROWSER_FACTORY
    = new AutomatedBrowserFactory();

  private String browser;

  public FactoryTest(final String browser) {
    this.browser = browser;
  }

  @Parameterized.Parameters
  public static Iterable data() {
    return Arrays.asList(
      "Chrome",
      "Firefox"
    );
  }

  @Test
  public void openURL() {
    final AutomatedBrowser automatedBrowser =
      AUTOMATED_BROWSER_FACTORY.getAutomatedBrowser(browser);
    automatedBrowser.init();
    automatedBrowser.goTo("https://octopus.com/");
    automatedBrowser.destroy();
  }
}

The FactoryTest class makes use of JUnit parameterization to run the test method multiple times with different inputs. We'll use this functionality to run the test against both the Chrome and Firefox browsers with a single test method.

To enable parameterization, the test class require the annotation @RunWith(Parameterized.class):

@RunWith(Parameterized.class)
public class FactoryTest {

}

It then needs a static method to return the values that will be passed to the FactoryTest constructor. In our case, these values are strings for the name of the browsers that we will test against:

@Parameterized.Parameters
public static Iterable data() {
  return Arrays.asList(
    "Chrome",
    "Firefox"
  );
}

Finally the FactoryTest() constructor is configured to accept a parameter, which will be set to one of the values returned by the data() method. In this case, we save the parameter to the browser instance variable:

private String browser;

public FactoryTest(final String browser) {
  this.browser = browser;
}

The test method can then make use of the browser instance variable to launch either the Chrome or Firefox browser as part of the test.

This ability to select a browser at run time through the AutomatedBrowserFactory will provide us with a great deal of flexibility in our testing later on:

@Test

public void openURL() {
  final AutomatedBrowser automatedBrowser =
    AUTOMATED_BROWSER_FACTORY.getAutomatedBrowser(browser);

  automatedBrowser.init();
  automatedBrowser.goTo("https://octopus.com/");
  automatedBrowser.destroy();
}

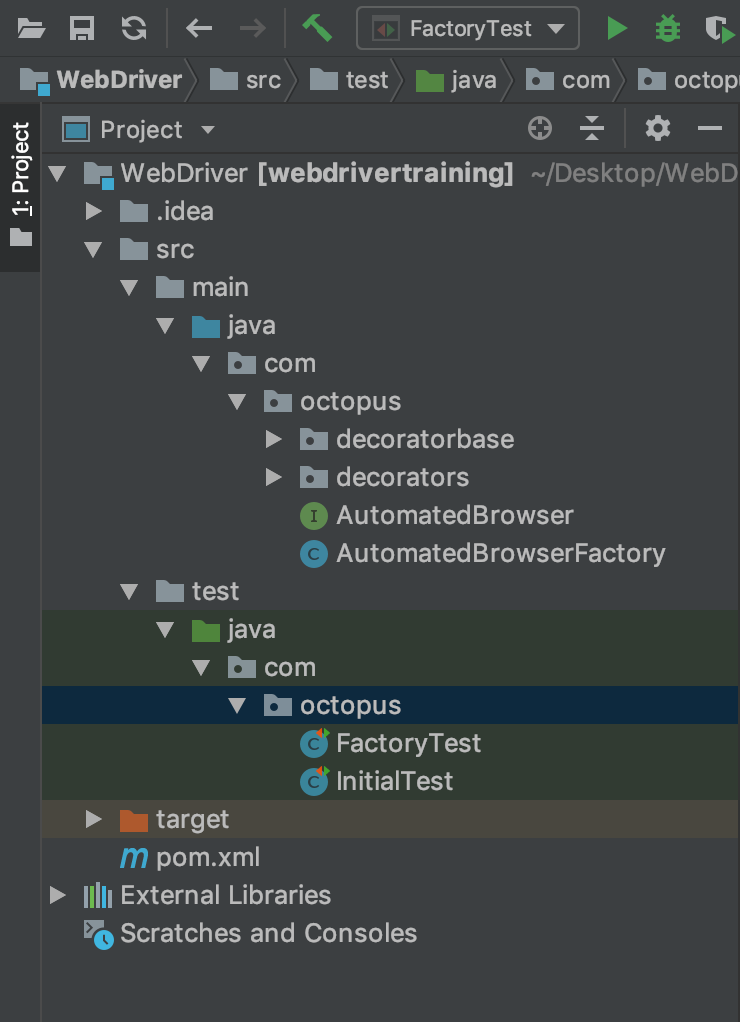

We have created a number of new classes as part of this blog, and you should end up with a directory structure that looks like this.

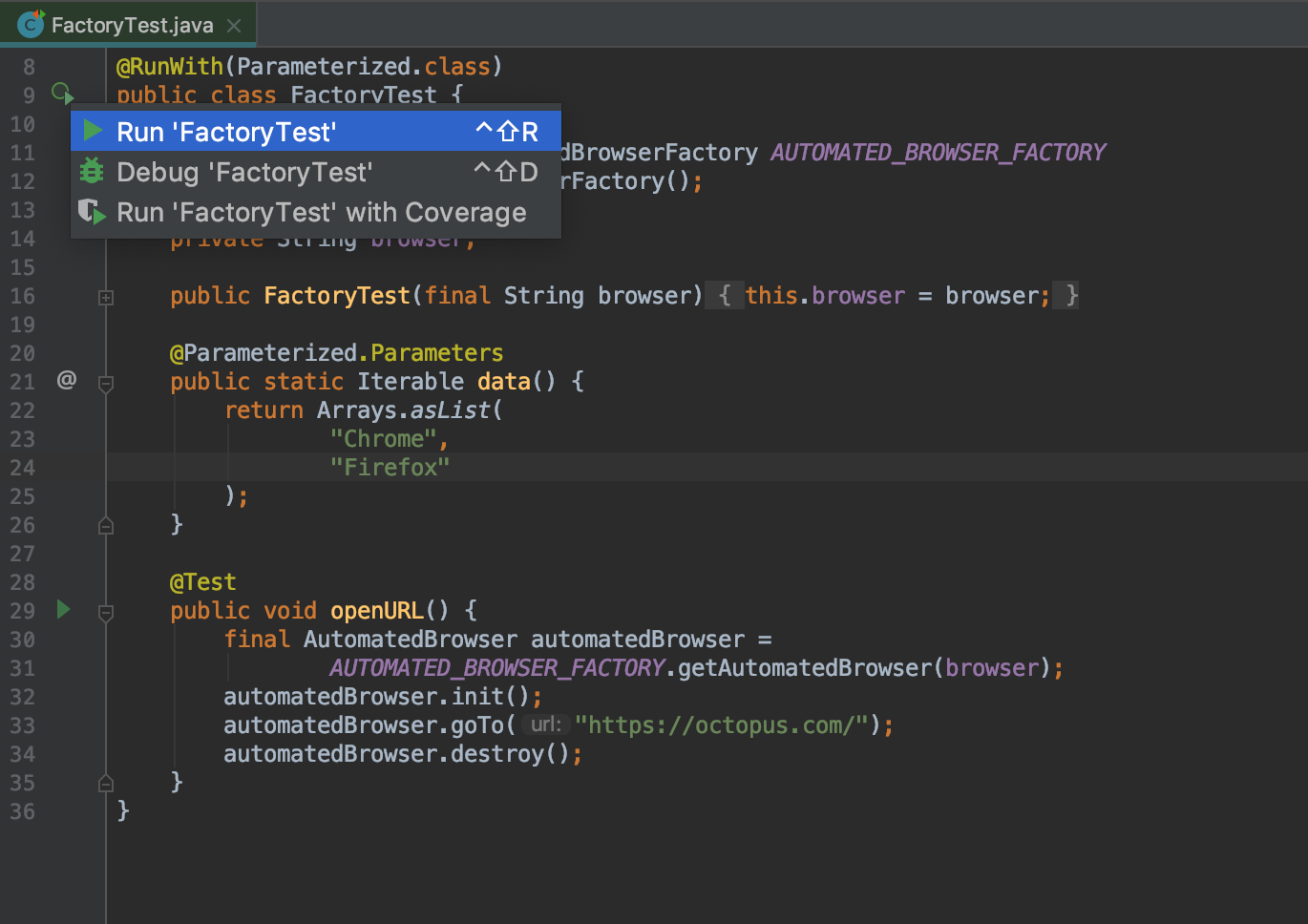

To run the tests, click the green arrow next to the FactoryTest class and select the Run 'FactoryTest' option.

You will see both Chrome and Firefox open, display https://octopus.com, and close again.

Now that we have a simple framework to run tests against multiple browsers, we need to have a web page that we can interact with, which we will create in the next post.
