Octopus Easy Mode - Argo CD Manifest Update

In the previous post, you created ephemeral environments to simulate the deployment of feature branches. In this post, you’ll create a project simulating updating an Argo CD Manifest file.

Prerequisites

• An Octopus Cloud account. If you don’t have one, you can sign up for a free trial.
• The Octopus AI Assistant Chrome extension. You can install it from the Chrome Web Store.

Creating the project

Teams that have adopted GitOps workflows with Argo CD can use Octopus to commit changes to a Git repository to promote changes through environments. The Update Argo CD Application Manifests step in Octopus commits changes to the files referenced by an Argo CD Application.

Paste the following prompt into the Octopus AI Assistant and run it to create a sample project using the Update Argo CD Application Manifest step:

Create a Git Connection called "Mock" with a random username and the allowed repository "https://mockgit.octopusdemos.com/*"

---

Create an Argo CD Manifest Update project called "16. Argo CD Manifest Update" with the slug "argo-cd-octopub-manifest".

This prompt creates a Git Credentials defining the credentials required to interact with a Git repository. In this example, we are using a mocked Git repository hosted at https://mockgit.octopusdemos.com. This Git repository lets us use Argo CD steps in Octopus without providing credentials or creating a repository on a platform like GitHub.

We then create an example project called 16. Argo CD Manifest Update with the project slug argo-cd-octopub-manifest. The slug is important because it links an Argo CD Application to an Octopus project.

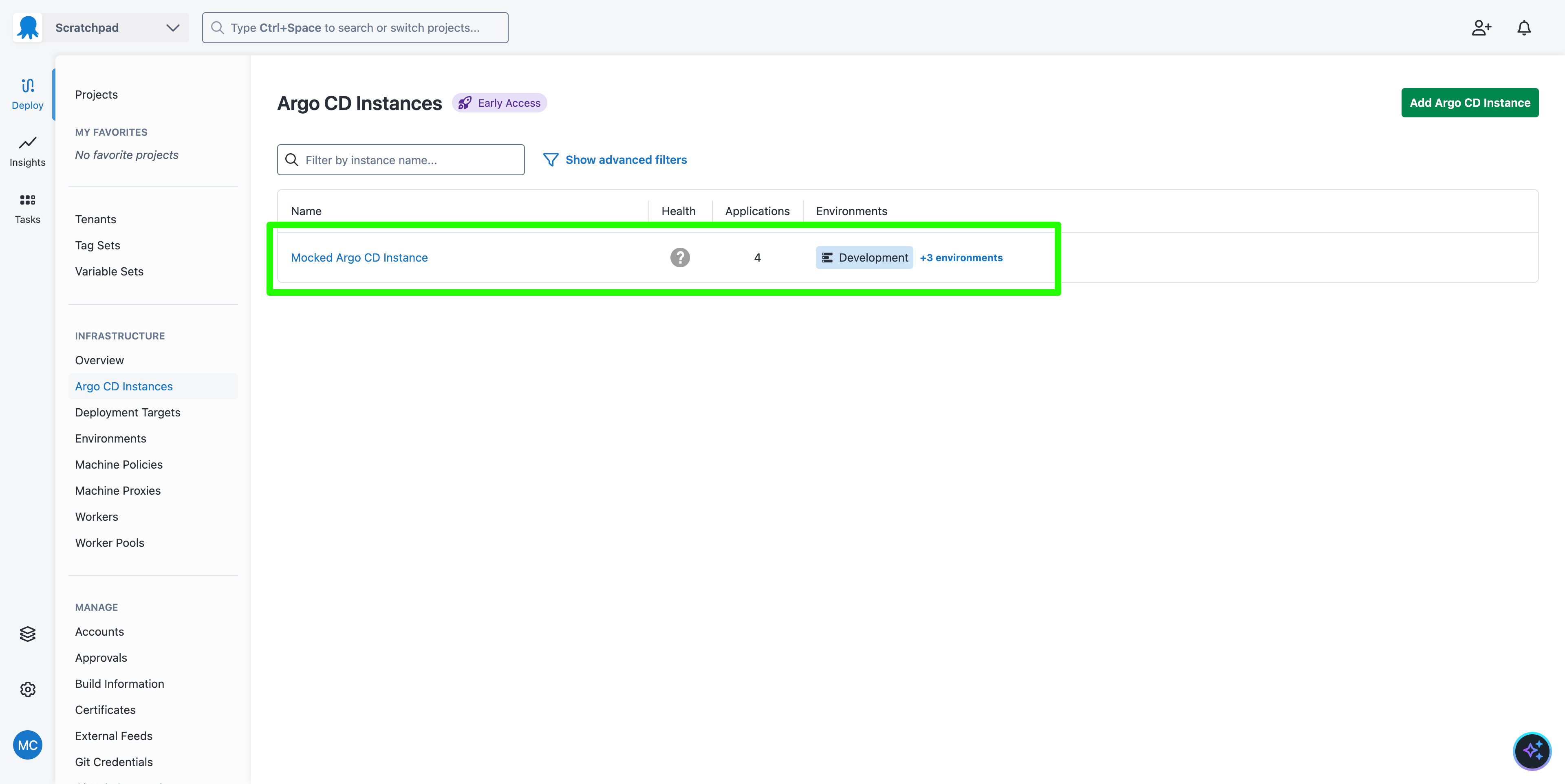

Behind the scenes, we also create a mock Argo CD Instance called Mocked Argo CD Instance:

Typically, to create an Argo CD Instance, you must install the Octopus Argo CD Gateway in the Kubernetes cluster where Argo CD is running. This gateway then registers Argo CD Applications with Octopus and monitors the cluster for any changes.

For this demonstration, however, we register a mock Argo CD Instance and several mock Argo CD Applications. The mock Applications contain the information required for Octopus to modify the correct files in the mock Git repository during a deployment, without requiring an Argo CD cluster.

The sample step configuration

The Repository URL setting in the Update Argo CD Application Manifests step defines the Git repository that Octopus will commit to as part of the deployment. The value https://mockgit.octopusdemos.com/repo/argocd is matched to the Mock Git Credentials, providing the step with the credentials required to commit to the repository.

The Path setting, set to octopub-manifest/template/octopub.yml, defines the template file that will be read, have any binding syntax replaced, and persisted to the path defined in the Argo CD Application linked to the project and environment (how these Applications are linked is described later).

To see the contents of these files, check out the mock Git repository:

git clone https://somerandomusername@mockgit.octopusdemos.com/repo/argocd

View the contents of the sample Argo CD Application:

cat argocd/octopub-manifest/octopub-development.yml

This is the example Argo CD Application manifest.

Note the repoURL field matches the Repository URL setting. The path field, set to octopub-manifest/application/development, specifies the location in the Git repository where Argo CD finds the manifest files to apply to the cluster.

Also note the annotations argo.octopus.com/project.<application name> and argo.octopus.com/environment.<application name>. These annotations link an Argo CD Application to an Octopus project and environment. The step references only Argo CD Applications that match the project’s and environment’s slugs. The prompt to create the project specified the slug argo-cd-octopub-manifest because this value is hard-coded in the example YAML:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: octopub-manifest-parent-development
  namespace: argocd
  annotations:
    argo.octopus.com/project.octopub-manifest-parent-development: "argo-cd-octopub-manifest"
    argo.octopus.com/environment.octopub-manifest-parent-development: "development"
spec:
  project: default
  sources:
    - name: octopub-manifest-parent-development
      repoURL: https://mockgit.octopus.com/repo/argocd
      # This is the destination folder where the template manifest files are placed
      path: "octopub-manifest/application/development"
      targetRevision: main

  destination:
    server: https://kubernetes.default.svc
    namespace: octopub-manifest-parent-development
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true

Display the octopub.yml file in the directory specified by the path field:

cat argocd/octopub-manifest/application/development/octopub.yml

This is the file applied by Argo CD:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: octopub-manifest-development
  namespace: argocd
spec:
  project: default
  sources:
    - name: octopub-development
      repoURL: https://mockgit.octopus.com/repo/argocd
      path: "octopub/octopub-frontend"
      targetRevision: main
      helm:
        values: |
          image:
            repository: ghcrfacade-a6awccayfpcpg4cg.eastus-01.azurewebsites.net/octopussolutionsengineering/octopub-frontend
            tag: latest
          mockBackend: true
          overrideTheme: blue

  destination:
    server: https://kubernetes.default.svc
    namespace: octopub-manifest-development
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true

Now display the template file defined by Path field on the Octopus step:

cat argocd/octopub-manifest/template/octopub.yml

Note that it includes the binding syntax #{Octopus.Environment.Name | ToLower} and #{Project.Frontend.Theme}:

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: octopub-manifest-#{Octopus.Environment.Name | ToLower}
  namespace: argocd
spec:
  project: default
  sources:
    - name: octopub-manifest-#{Octopus.Environment.Name | ToLower}
      repoURL: https://mockgit.octopus.com/repo/argocd
      path: "octopub/octopub-frontend"
      targetRevision: main
      helm:
        # Octopus will replace the value for overrideTheme during deployment
        values: |
          image:
            repository: ghcrfacade-a6awccayfpcpg4cg.eastus-01.azurewebsites.net/octopussolutionsengineering/octopub-frontend
            tag: latest
          mockBackend: true
          overrideTheme: #{Project.Frontend.Theme}

  destination:
    server: https://kubernetes.default.svc
    namespace: octopub-manifest-#{Octopus.Environment.Name | ToLower}
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true

The purpose of the Update Argo CD Application Manifests step is to:

• Read the template file (argocd/octopub-manifest/template/octopub.yml)
• Replace any binding syntax with the value of the associated Octopus variable (Project.Frontend.Theme and Octopus.Environment.Name)
• Commit the new file to the file of the same name (argocd/octopub-manifest/application/development/octopub.yml) referenced by the Argo CD Application linked via the argo.octopus.com/project.<project slug> and argo.octopus.com/environment.<project slug> annotations

This allows Octopus to inject environment-specific configuration into the files referenced by an Argo CD Application as a deployment progresses through environments.

Performing a deployment

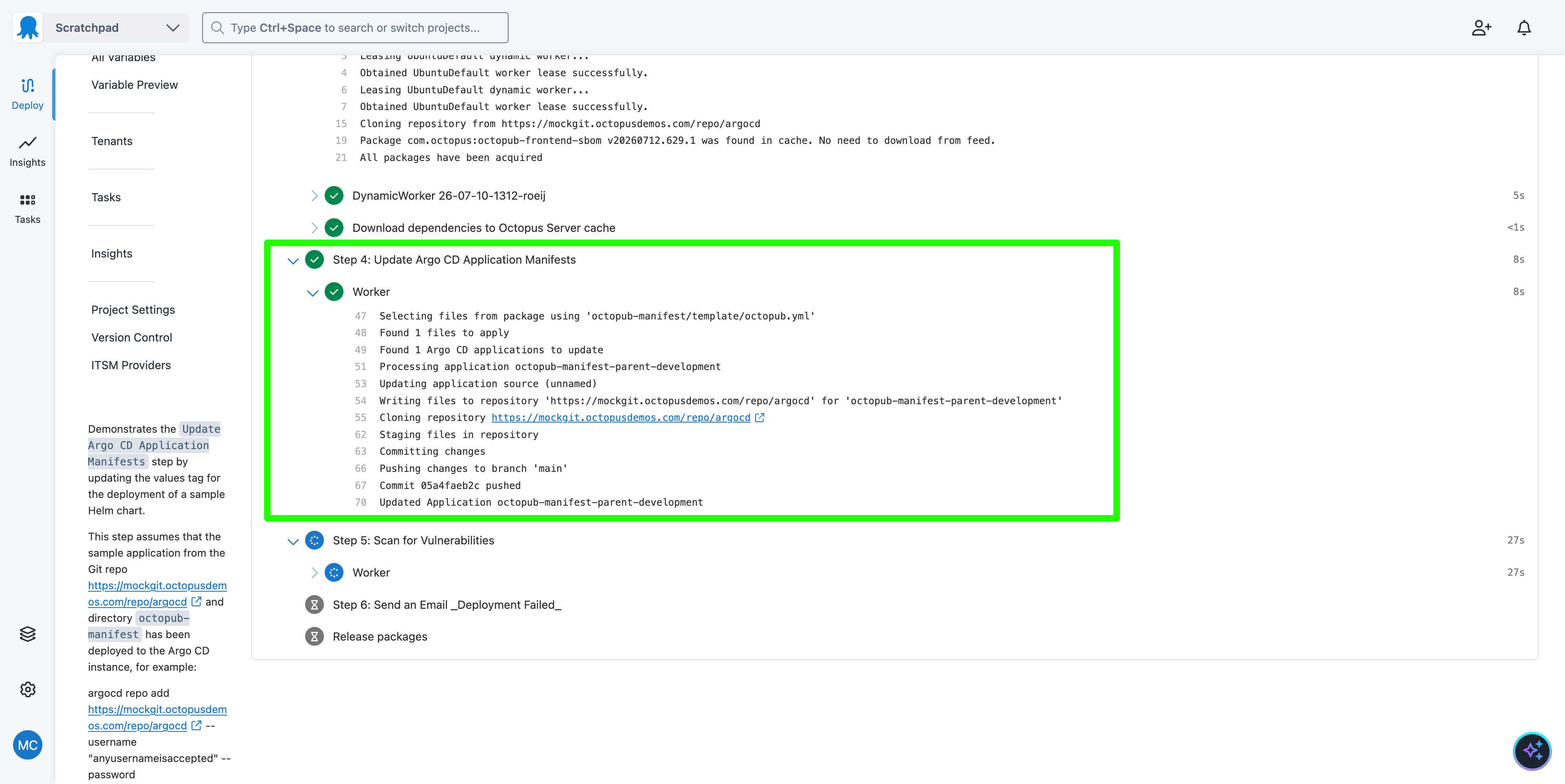

Create a new release for the project and deploy it to the Development environment. Note that Octopus commits a change reflecting the new value of the Project.Frontend.Theme and Octopus.Environment.Name variables replaced in the template YAML file:

As you promote the deployment through environments, each new environment will inject a unique value for the Project.Frontend.Theme and Octopus.Environment.Name variables into the child Argo CD Application manifest.

In a production scenario, Argo CD will detect the changes and apply them to the Kubernetes cluster. Of course, in this example, there was no Kubernetes cluster, since everything is mocked, but you can still observe commits being made to the Git repository.

What just happened?

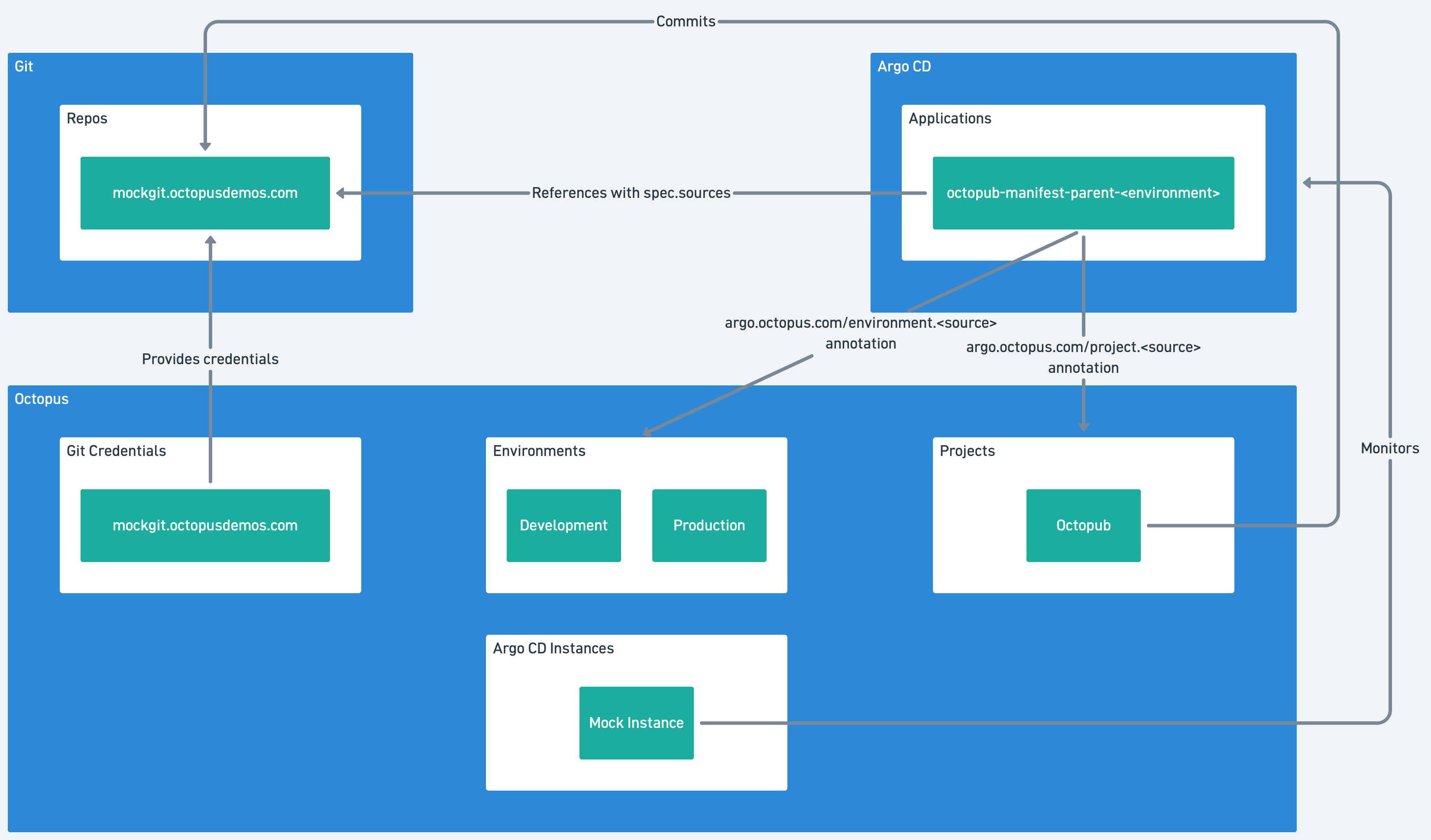

You created a sample project with:

• A mock Argo CD Instance and a number of mock Applications
• A mock Git Credentials pointing to a mock Git server
• An Update Argo CD Application Manifests step that commits a processed template file back to the mock Git repo
