Automating guided failures with an AWS Lambda and subscriptions

Shawn Sesna

Shawn Sesna

January 5, 2022 • 9 mins

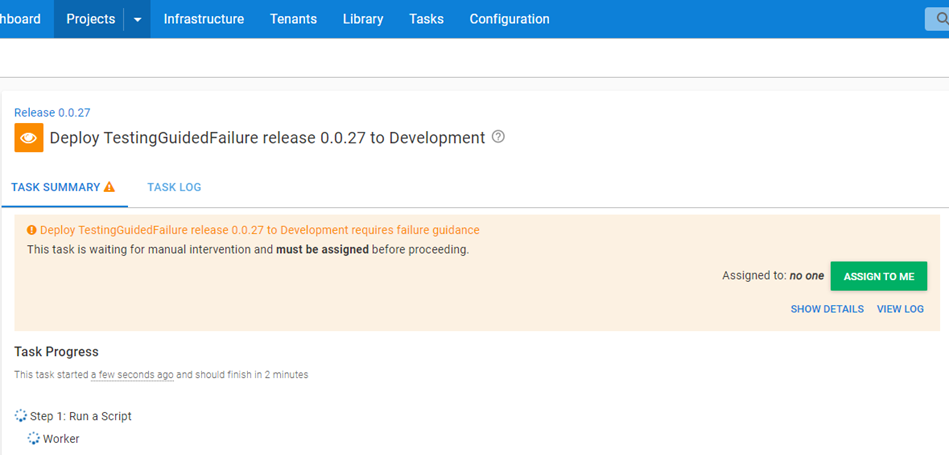

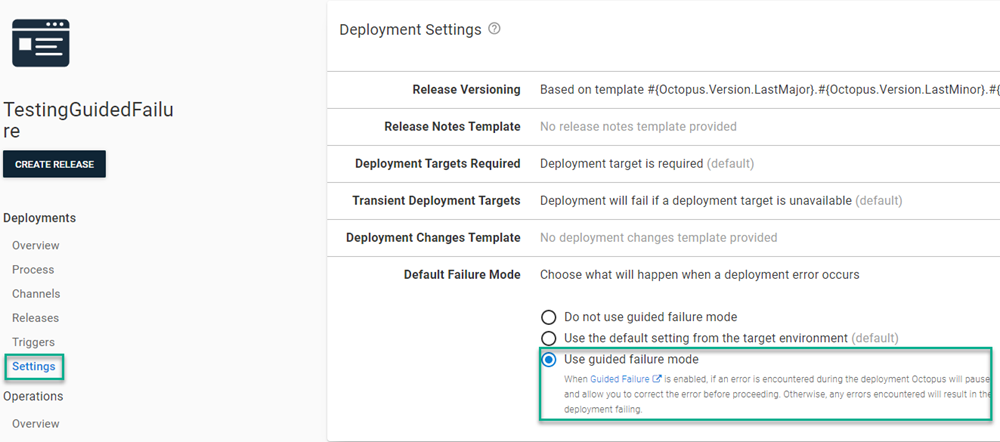

Manual intervention and guided failure are powerful features of the Octopus Deploy product. Both features pause a deployment or runbook and wait for a user to choose an option. The downside is that someone needs to be present to provide a response. With Octopus Deploy written API-first, however, it's possible to automate these responses.

This post demonstrates how to automate the response to a guided failure event using the Subscriptions feature to call an AWS Lambda function.

Example use cases

With guided failure designed to pause an action and wait for guidance, automating the response seems counterintuitive. Here are a couple of use cases where it makes sense to automate the response.

Exclude machine from deployment

Consider if you're deploying to thousands of machines. At this scale, it's not uncommon for deployment to fail for a small portion of machines (usually not Octopus-related). Guided failure gives you the option to exclude a machine from the deployment, which allows the deployment to continue to the remaining targets. Rather than babysitting the process, you can automate the Exclude machine from deployment response and deal with the failed machines later.

Automatically retry

Our team experienced another scenario; when the Samples instance was tearing down resources at night, and so many requests were being made to AWS at the same time that it experienced request rate throttling and failed. In this case, retrying the runbook is all that's needed. Implementing an automated Retry response to guided failure ensures all the resources are deprovisioned.

Solution

This post shows you how to automate a response to a guided failure event by using the Subscriptions feature of Octopus to call an AWS Lambda function.

To get started, you need to provision some AWS resources.

The OctoSubscriber repo contains the source code for the solution described in this post.

Scaffolding AWS resources

The solution in this post makes use of the following AWS resources:

It may be possible for the IAM Role to have lesser permissions but this is what the solution was tested with.

Working with AWS resources may incur costs to you or your organization.

Using a runbook, you can provision the following resources using Terraform and the AWS CLI:

  • S3 bucket
  • SQS Queue
  • API Gateway

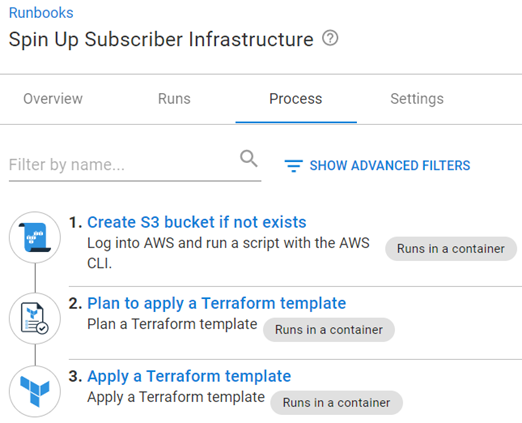

Octopus UI showing Spin Up Subscriber Infrastructure steps in the Runbooks section

Create S3 bucket if not exists

The Terraform, that creates the other AWS resources, needs a place to store State. This step uses the AWS CLI to create the back-end storage location for the Terraform step:

# Get variables
$bucketName = $OctopusParameters["Project.AWS.Backend.Bucket"]
$bucketRegion = $OctopusParameters["Project.AWS.Backend.Region"]

# Get bucket list
$awsS3BucketList = aws s3api list-buckets --query "Buckets[].Name" --output json

# Convert returned json into an object
$awsS3BucketList = ($awsS3BucketList | ConvertFrom-JSON)

# Check to see if bucket exists
if ($null -eq ($awsS3BucketList | Where-Object {$_ -eq $bucketName}))
{
    # Create the bucket
    Write-Highlight "Bucket $bucketName doesn't exist, creating ..."

    aws s3api create-bucket --bucket $bucketName --region $bucketRegion --create-bucket-configuration LocationConstraint=$bucketRegion
}
else
{
    Write-Highlight "Bucket $bucketName already exists, moving on ..."
}

Plan to apply a Terraform template

To help you start quickly, the OctoSubscriber repo contains Terraform scripts to automate the creation of the SQS and API Gateway resources. This step outputs what the Terraform will do as plan.

main.tf

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 3.0"
    }
  }

  backend "s3" {
    bucket = "#{Project.AWS.Backend.Bucket}"
    key = "#{Project.AWS.Backend.Key}"
    region = "#{Project.AWS.Backend.Region}"
  }
}

provider "aws" {
    region  = var.region
}

resource "aws_sqs_queue" "subscriber_queue" {
  name                              = var.queue_name
  kms_master_key_id                 = "alias/aws/sqs"
  kms_data_key_reuse_period_seconds = 300
}

resource "aws_apigatewayv2_api" "subscriber_gateway" {
  name                              = var.api_gateway_name
  protocol_type                     = "HTTP"
}

variables.tf

variable "region" {
    type = string
}

variable "queue_name" {
    type = string
}

variable "api_gateway_name" {
    type = string
}

terraform.tfvars

region = "#{Project.AWS.Region}"
queue_name = "#{Project.AWS.Queue.Name}"
api_gateway_name = "#{Project.AWS.API.Gateway.Name}"

Applying a Terraform template

Using the Terraform above, create the resources on AWS.

After the resources are created, you can focus on the Lambdas.

AWS Lambda functions

This solution consists of two different Lambda functions:

  • accept-message: This function places the included payload onto the SQS queue.
  • process-message: This function processes the messages that appear on the SQS queue and submits the requested responses to the Octopus server.

accept-message

This function is written in NodeJS and accepts the following querystring parameters:

  • Type: The type of interruption that has occurred.
    • Guidance: Provide this value for Guided failure.
    • Result: Provide this value for Manual Intervention.
  • Action: This is the actual response to the interruption. This value is dependent on Type:
    • Abort (Result)
    • Proceed (Result)
    • Fail (Guidance)
    • Exclude (Guidance)
    • Ignore (Guidance)
    • Retry (Guidance)
  • MaximumRetry (used with Retry Action): This specifies the maximum number of retries to perform before giving up. The default value is 1, the Guided failure feature has a maximum of 10 retries so anything larger than 10 is ignored.
var AWS = require('aws-sdk');

exports.handler = function(event, context) {
  let QUEUE_URL = process.env.sqsqueue;
  let sqs = new AWS.SQS({region : process.env.sqsregion});
  let maximumretry = "1";

  if (event.queryStringParameters.maximumretry) {
    maximumretry = event.queryStringParameters.maximumretry
  }

  var params = {
    MessageBody: event.body,
    QueueUrl: QUEUE_URL,
    MessageAttributes: {
      "Type": {
        DataType: "String",
        StringValue: event.queryStringParameters.type
      },
      "Action": {
        DataType: "String",
        StringValue: event.queryStringParameters.action
      },
      "MaximumRetry": {
        DataType: "String",
        StringValue: maximumretry
      }
    }
  };

  sqs.sendMessage(params, function(err,data){
    if(err) {
      console.log('error:',"Fail Send Message" + err);
      context.done('error', "ERROR Put SQS");  // ERROR with message
    }else{
      console.log('data:',data.MessageId);
      context.done(null,'');  // SUCCESS
    }
  });
}

The querystring parameters are attached to the message as MessageAttributes.

process-message

This function reads messages off the SQS queue and uses the Octopus.Client Nuget Package reference to automate the response to the interruption. The full solution can be found in the OctoSubscriber repo.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Amazon.Lambda.Core;
using Amazon.Lambda.SQSEvents;
using Newtonsoft.Json;
using Octopus.Client;

// Assembly attribute to enable the Lambda function's JSON input to be converted into a .NET class.
[assembly: LambdaSerializer(typeof(Amazon.Lambda.Serialization.SystemTextJson.DefaultLambdaJsonSerializer))]

namespace process_message
{
    public class Function
    {
        public Function()
        {

        }


        /// <summary>
        /// This method is called for every Lambda invocation. This method takes in an SQS event object and can be used
        /// to respond to SQS messages.
        /// </summary>
        /// <param name="evnt"></param>
        /// <param name="context"></param>
        /// <returns></returns>
        public async Task FunctionHandler(SQSEvent evnt, ILambdaContext context)
        {
            foreach(var message in evnt.Records)
            {
                await ProcessMessageAsync(message, context);
            }
        }

        private async Task ProcessMessageAsync(SQSEvent.SQSMessage message, ILambdaContext context)
        {
            // Log
            LambdaLogger.Log("Begin message processing...");

            // Get environment variables
            string octopusServerUrl = Environment.GetEnvironmentVariable("OCTOPUS_SERVER_URL");
            string octopusApiKey = Environment.GetEnvironmentVariable("OCTOPUS_API_KEY");

            // Check to see if there are message attributes
            if (message.MessageAttributes.Count == 0)
            {
                // Fail
                throw new Exception("MessageAttributes collection is empty, was the queue called with querystring paramters?");
            }

            // Log
            LambdaLogger.Log(string.Format("Retrieved environment variables, Octopus Server Url: {0}...", octopusServerUrl));

            // Deserialize message JSON
            LambdaLogger.Log(string.Format("Parsing message..."));
            dynamic subscriptionEvent = JsonConvert.DeserializeObject(message.Body);
            LambdaLogger.Log("Successfully parsed message JSON...");

            // Create Octopus client object
            LambdaLogger.Log("Creating server endpoint object ...");
            var endpoint = new OctopusServerEndpoint(octopusServerUrl, octopusApiKey);
            LambdaLogger.Log("Creating repository object...");
            var repository = new OctopusRepository(endpoint);
            LambdaLogger.Log("Creating client object ...");
            var client = new OctopusClient(endpoint);

            // Create repository for space
            string spaceId = subscriptionEvent.Payload.Event.SpaceId;
            LambdaLogger.Log(string.Format("Creating repository object for space: {0}...", spaceId));
            var space = repository.Spaces.Get(spaceId);
            Octopus.Client.IOctopusSpaceRepository repositoryForSpace = client.ForSpace(space);

            // Retrieve interruption; first related document is the DeploymentId
            string documentId = subscriptionEvent.Payload.Event.RelatedDocumentIds[0];

            // Check to see if guided failure has already been invoked once, defaults to once if nothing provided
            int maximumRetry = 1;
            if (!string.IsNullOrWhiteSpace(message.MessageAttributes["MaximumRetry"].StringValue))
            {
                // Set to value
                maximumRetry = int.Parse(message.MessageAttributes["MaximumRetry"].StringValue);
            }

            var eventList = repositoryForSpace.Events.List(regarding: documentId);

            if (eventList.Items.Count(x => x.Category == "GuidedFailureInterruptionRaised") > maximumRetry && message.MessageAttributes["Action"].StringValue == "Retry")
            {
                LambdaLogger.Log(string.Format("{0} has raised Guided Failure more than {1} time(s), updating Action to Fail to break the infinite loop.", documentId, maximumRetry));
                message.MessageAttributes["Action"].StringValue = "Fail";
            }

            LambdaLogger.Log(string.Format("Processing event for document: {0}...", documentId));
            var interruptionCollection = repositoryForSpace.Interruptions.List(regardingDocumentId: documentId, pendingOnly: true).Items;

            if (interruptionCollection.Count > 0)
            {
                foreach (var interruption in interruptionCollection)
                {
                    // Check to see if responsibility needs to be taken
                    if (interruption.IsPending)
                    {
                        // Take responsibility
                        LambdaLogger.Log(string.Format("Taking responsibility for interruption: {0}...", interruption.Id));
                        repositoryForSpace.Interruptions.TakeResponsibility(interruption);

                        // The message attributes contain the type [Manual Intervention | GuidedFailure] and the desired Action to take for it
                        interruption.Form.Values[message.MessageAttributes["Type"].StringValue] = message.MessageAttributes["Action"].StringValue;

                        // Update Octopus
                        LambdaLogger.Log(string.Format("Submitting {0}:{1} for: {2}...", message.MessageAttributes["Type"].StringValue, message.MessageAttributes["Action"].StringValue, interruption.Id));
                        repositoryForSpace.Interruptions.Submit(interruption);
                    }
                }
            }
            await Task.CompletedTask;
        }
    }
}

Building and packaging the Lambdas

Only the process-message Lambda needs to be built, however, they both need to be packaged for deployment. The OctoSubscriber project uses GitHub Actions for these operations.

# This is a basic workflow to help you get started with Actions

name: AWS Lambda

on:
  push:
    paths:
      - 'aws/accept-message/**'

  # Allows you to run this workflow manually from the Actions tab
  workflow_dispatch:

jobs:
  build:
    runs-on: ubuntu-latest
    strategy:
      matrix:
        dotnet-version: ['3.1.x']

    steps:
      - uses: actions/checkout@v2
      - name: Setup .NET Core SDK ${{ matrix.dotnet-version }}
        uses: actions/setup-dotnet@v1.7.2
        with:
          dotnet-version: ${{ matrix.dotnet-version }}

      - name: Create artifacts folder
        run: |
          mkdir "$GITHUB_WORKSPACE/artifacts"
          mkdir "$GITHUB_WORKSPACE/artifacts/process-message"
      - name: Restore dependencies for process-message
        working-directory: aws/process-message/process-message
        run: dotnet restore

      - name: Build process-message
        working-directory: aws/process-message/process-message
        run: dotnet build --configuration Release --no-restore --output "$GITHUB_WORKSPACE/artifacts/process-message"

      - name: Install Octopus CLI
        uses: OctopusDeploy/install-octopus-cli-action@v1.1.1
        with:
          version: latest

      - name: Pack and Push
        env:
          OCTOPUS_URL: ${{ secrets.OCTOPUS_SERVER }}
          OCTOPUS_API_KEY: ${{ secrets.OCTOPUS_API_KEY }}
        run: |
          octo pack --id=OctoSubscriber-AcceptMessage-Lambda --format=Zip --version=2021.1.1.$GITHUB_RUN_NUMBER --basePath="aws/accept-message/"
          octo pack --id=OctoSubscriber-ProcessMessage-Lambda --format=Zip --version=2021.1.1.$GITHUB_RUN_NUMBER --basePath="$GITHUB_WORKSPACE/artifacts/process-message"
          octo push --package=OctoSubscriber-AcceptMessage-Lambda.2021.1.1.$GITHUB_RUN_NUMBER.zip --server=$OCTOPUS_URL --apiKey=$OCTOPUS_API_KEY --space="Target - Serverless"
          octo push --package=OctoSubscriber-ProcessMessage-Lambda.2021.1.1.$GITHUB_RUN_NUMBER.zip --server=$OCTOPUS_URL --apiKey=$OCTOPUS_API_KEY --space="Target - Serverless"

In this case, the GitHub action is pushing the Lambda packages directly to the built-in Octopus Deploy package repository.

Deploying the Lambdas

This post assumes you're familiar with how to create an Octopus Deploy project and will not cover this topic.

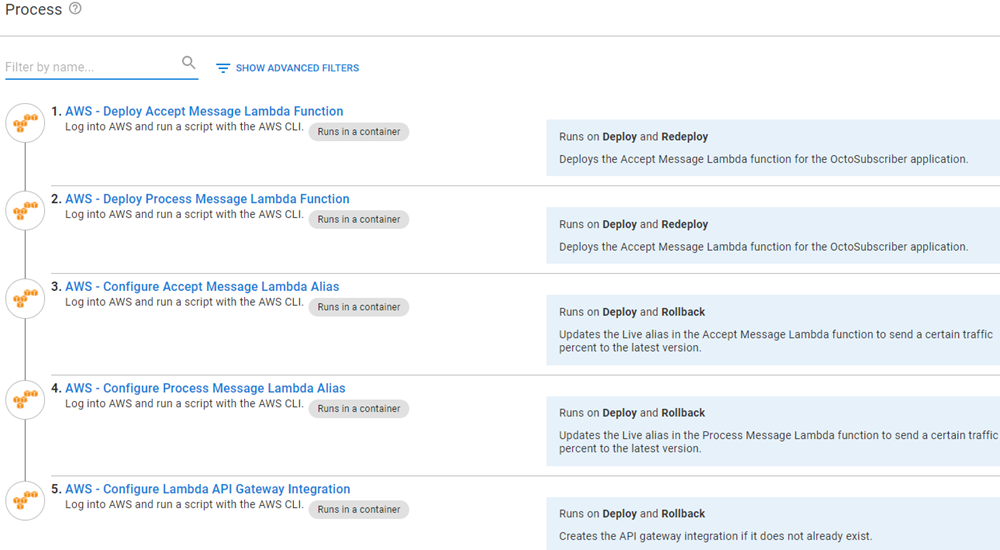

The deployment process for the Lambdas will consist of the following steps:

  • AWS - Deploy Accept Message Lamdba Function
  • AWS - Deploy Process Message Lamdbda Function
  • AWS - Configure Accept Message Lambda Alias
  • AWS - Configure Process Message Lambda Alias
  • AWS - Configure Lambda API Gateway Integration

AWS - Deploy Accept Message Lambda Function

Add an AWS - Deploy Lambda Function step to your deployment process. Click ADD STEP, then search by aws.

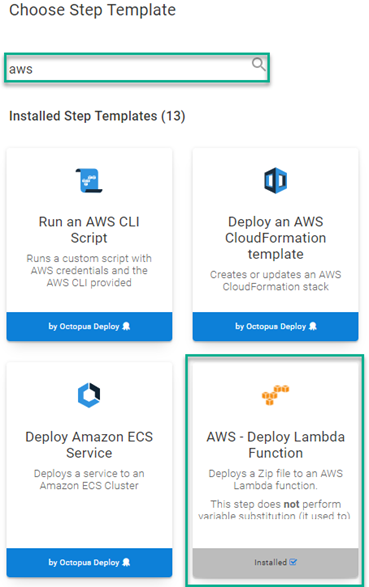

Octopus UI showing Choose Step Template with aws in search field and AWS - Deploy Lambda Function selected

Fill in the step form fields:

  • Function Name: Name of the function to deploy
  • AWS Account: AWS Account variable to use for deployment
  • Region: The region to deploy the Lambda to
  • Package: The package containing the Lambda
  • Function Role: ARN of the role you created for the Lambdas
  • Runtime: The runtime of the code, nodejs14.x for Accept Message
  • Handler: The name of the method that Lambda calls to execute your function (note: This will differ based on the runtime selected) - for Accept Message, it's index.handler
  • Memory size: The amount of memory your function has access to, must be a multiple of 64MB, 128 for Accept Message
  • Environment Variables: sqsqueue=[Name of queue],sqsregion=[Region of sqs queue]

AWS - Deploy Process Message Lambda Function

This uses the same step template as above, so I'll only list the fields that are different:

  • Function Name: Name of the function to deploy
  • Package: The package containing the Lambda
  • Runtime: dotnetcore 3.1
  • Handler: process_message::process_message.Function::FunctionHandler
  • Environment Variables: OCTOPUS_SERVER_URL=[Octopus server URL],OCTOPUS_API_KEY=[API Key]
  • Timeout: 30 (default timeout is 3 seconds which isn't enough time for the Lambda to process completely)

AWS - Configure Access Message Lambda Alias

AWS supports having multiple versions of a Lambda deployed at the same time. AWS also supports a canary-style process where you can assign a percentage of traffic to different versions of a Lambda. This is done by configuring an alias to a version and telling Lambda how much traffic to route to it.

Add an AWS Configure Lambda Alias step to your process.

Octopus UI showing Choose Step Template with aws in search field and AWS Configure Lambda Alias selected

Fill in the step form fields:

  • Function Name: The deploy step above will output the ARN for the deployed function, use the output variable here - #{Octopus.ActionAWS - Deploy Accept Message Lambda Function.Output.LambdaArn}
  • AWS Account: AWS Account variable to use for deployment
  • Region: The region the Lambda is in
  • Alias Name: Name of the Alias to use, this post uses Live
  • Alias Version Percent: Percentage of traffic this version receives, this post is using 100
  • Function Version: The version of the function for the alias, use the output variable from the deploy step - #{Octopus.Action[AWS - Deploy Accept Message Lambda Function].Output.PublishedVersion}

AWS - Configure Process Message Lambda Alias

This step is exactly like the previous step, but configured for the Process Message Lambda.

Replace AWS - Deploy Accept Message Lambda Function with AWS - Deploy Process Message Lambda Function in the output variables, using #{Octopus.Action[AWS - Deploy Process Message Lambda Function].Output.LambdaArn}.

AWS - Configure Lambda API Gateway Integration

This step configures an API v2 Gateway to connect to and invoke a Lambda Function.

Add an AWS - Configure Lambda API Gateway Integration step to your process:

Octopus UI showing Choose Step Template with aws in search field and AWS - Configure Lambda API Gateway Integration selected

Fill in the step form fields:

  • API Gateway Name: Name of the gateway to configure/create
  • AWS Account: AWS Account variable to use for deployment
  • AWS Region: The region the Lambda is in
  • Route Key: Route to use/create, this post uses /octopus/webhook
  • HTTP Method: The HTTP method of the route and integration you're creating
  • Lambda ARN: ARN of the Lambda, this post uses the output variable from the create step #{Octopus.Action[AWS - Deploy Accept Message Lambda Function].Output.LambdaArn}
  • Lambda Alias: Name of the alias, Live in this case
  • Payload Format Version: The payload format the API Gateway sends to the Lambda

Deployment

You may receive warnings in your deployment the first time you deploy if either the Lambdas, Aliases, or API Gateways did not previously exist. This is normal.

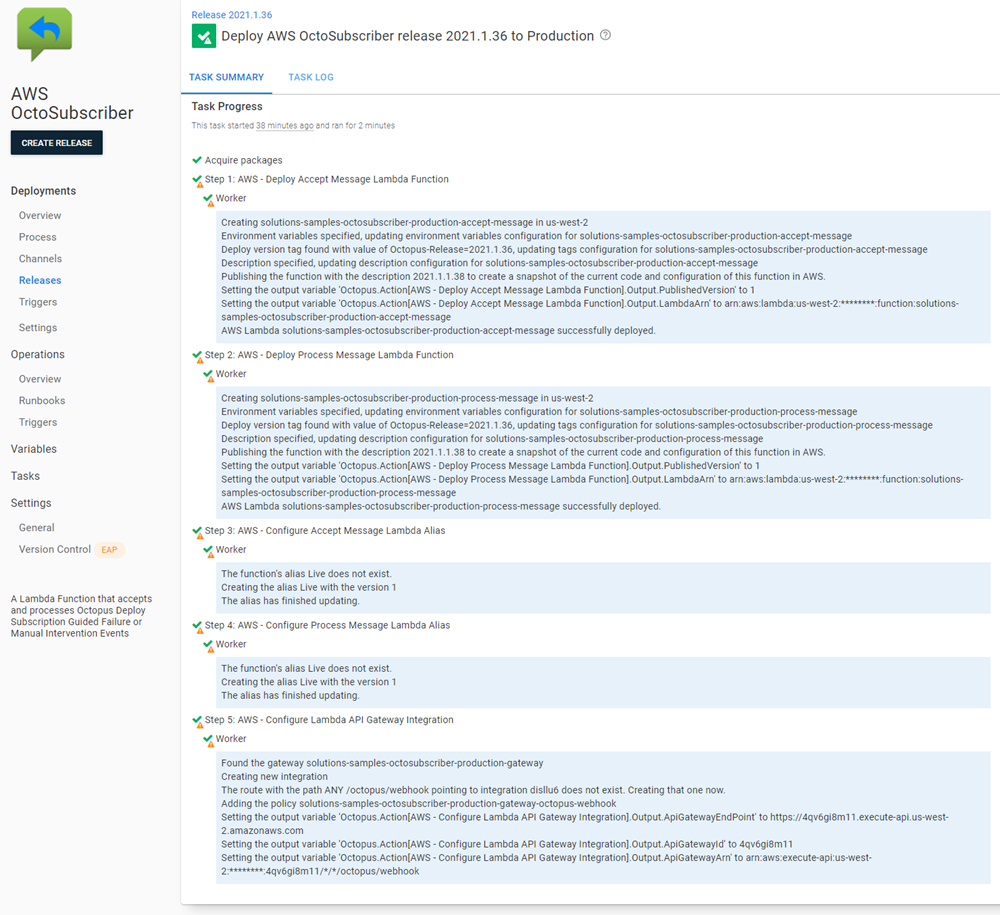

Octopus UI showing Task Summary with warnings

Configuring remaining resources

Most of what needs to be done has been done automatically through the provisioning process using Terraform and the deployment process using the AWS step templates. However, there are two remaining steps before the solution is ready to be called:

  • Create API Gateway stage
  • Connect Process Message Lambda to SQS queue

Creating API Gateway stage

Creating the stage will create the URL endpoint for the Accept Message Lambda to be called. In AWS, navigate to the Networking & Content Delivery section, then select API Gateways.

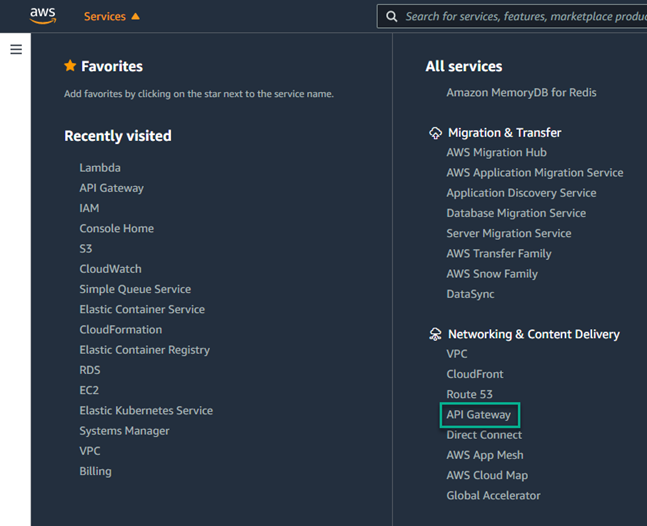

AWS Console showing Networking & Content Delivery section with API Gateways menu item highlighted

Click on the API Gateway that you want to configure. After it has loaded, click Create stage.

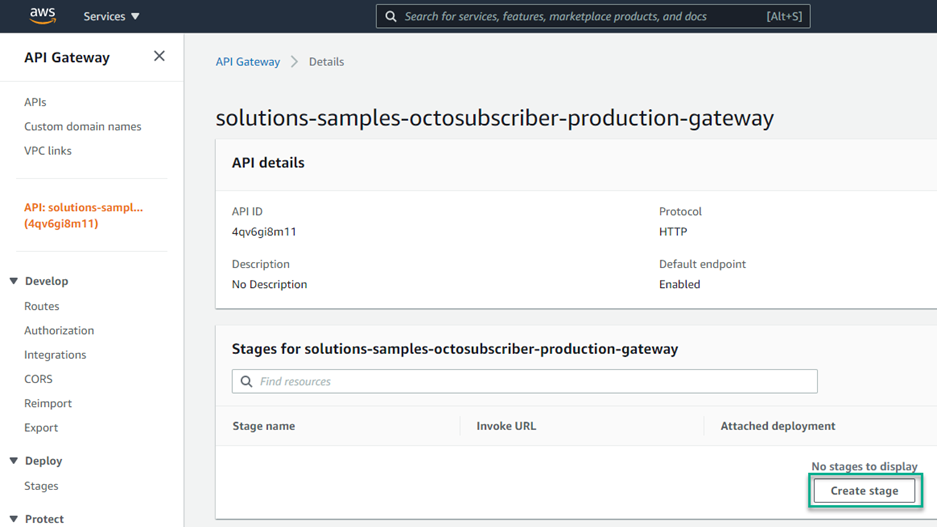

AWS Console open on API Gateways with Create stage button highlighted

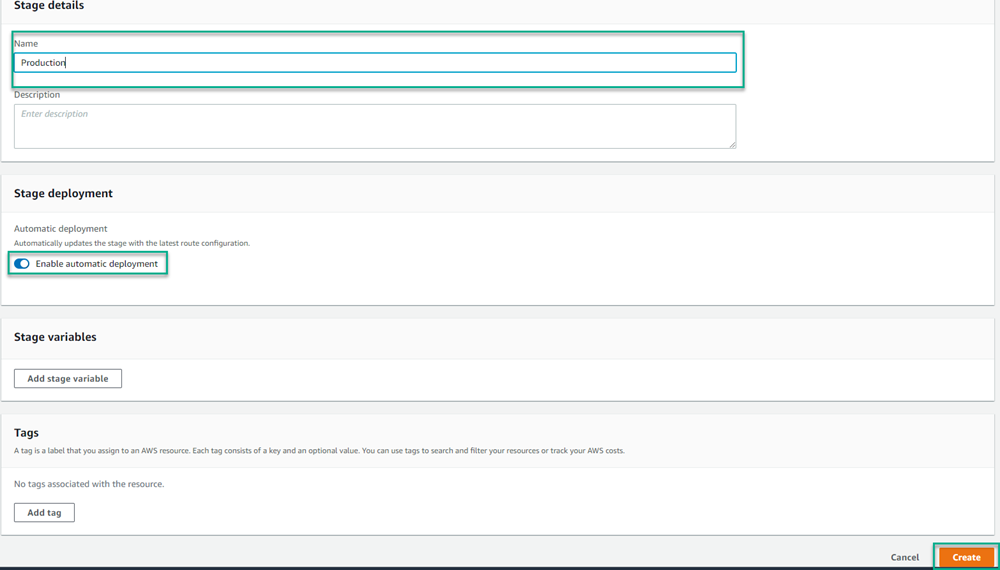

Give the stage a Name, toggle on the Enable automatic deployment option, then click Create.

AWS console showing Stage details

After the stage has been created, it will display the Invoke URL which is needed to configure the Octopus Deploy Subscription webhook.

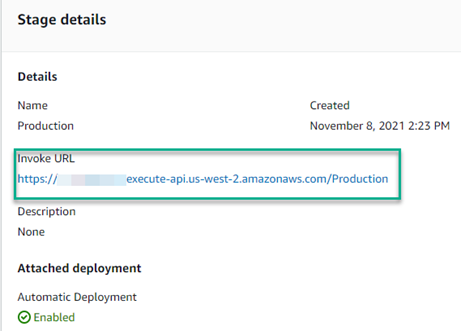

AWS console showing Stage details with Invoke URL highlighted

Connect Process Message Lambda to SQS queue

Now you need to configure the Process Message Lambda to be triggered from an SQS queue.

Navigate to Lambda in the AWS Console located under the Compute section.

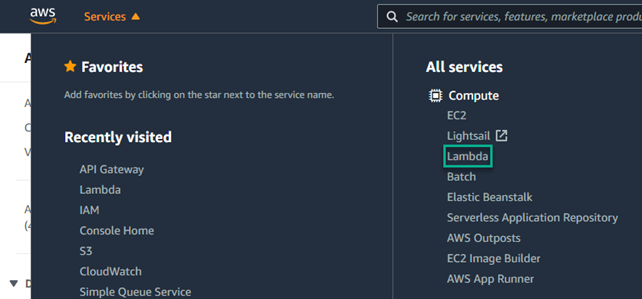

AWS Console showing All services section above Compute section with Lambda menu item highlighted

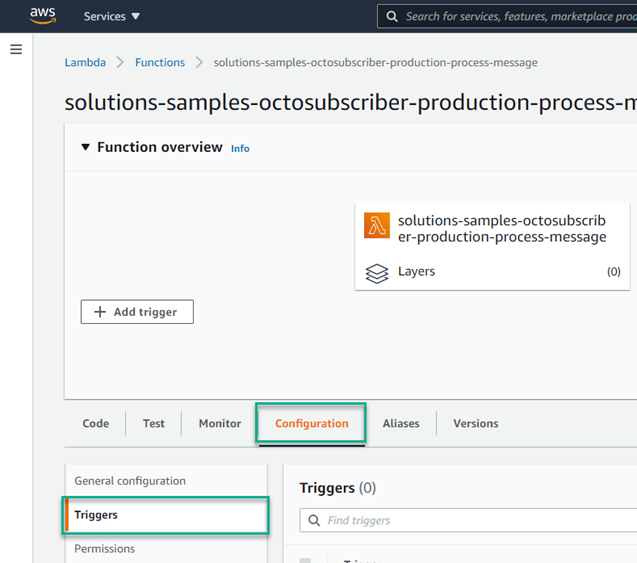

Select the Process Message Lambda, then click Configuration, then Triggers, then click Add Trigger.

AWS console showing Function overview

Select SQS from the dropdown. Clicking into the SQS queue box will bring up a list of queues. You can select from this list or enter the ARN of the queue. After that has been completed, click Add.

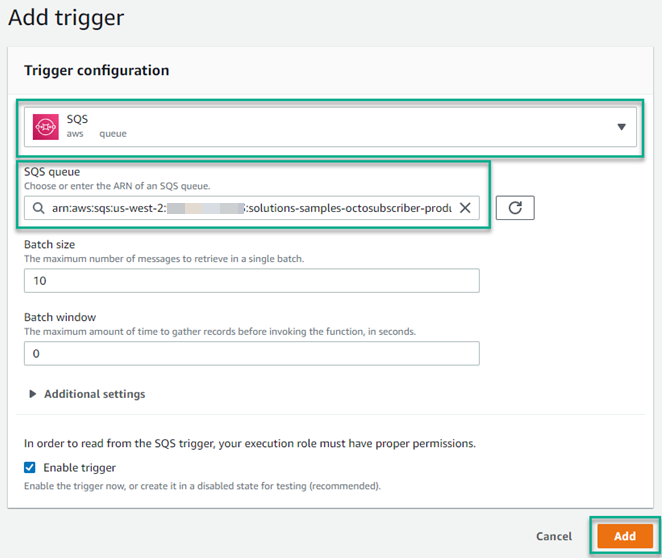

AWS console showing  Trigger configuration section with SQS section and SQS queue section highlighted

Configuring the Octopus Deploy subscription

You're now ready to configure Octopus Deploy to call your Lambda when a guided failure event occurs.

Navigate to the Configuration tab of Octopus Deploy, click Subscriptions, then ADD SUBSCRIPTION.

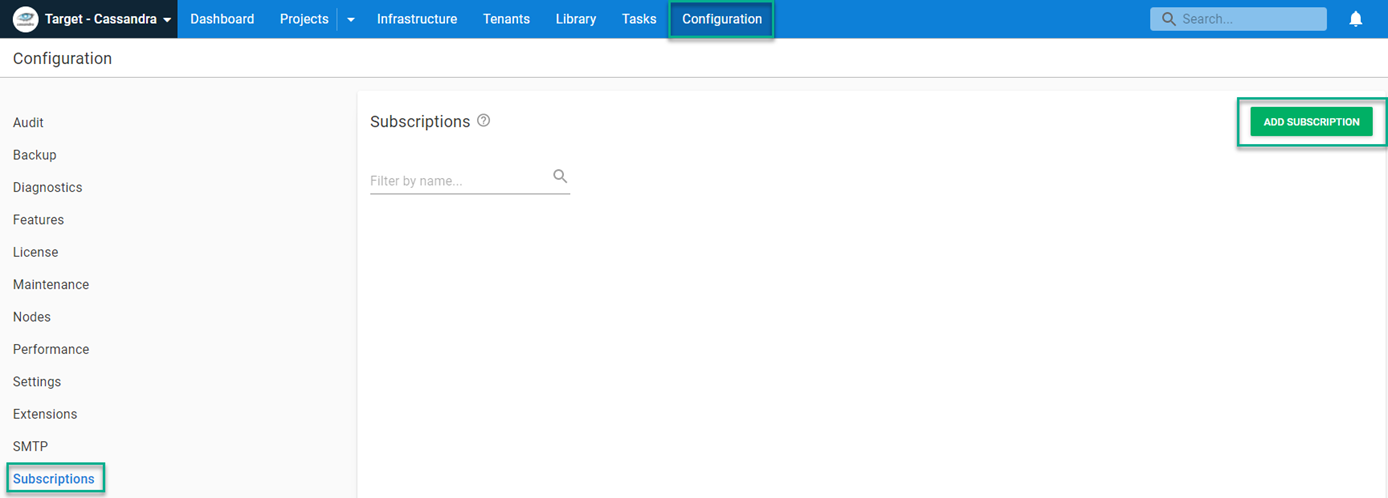

Octopus dashboard open on the Configuration tab with Subscriptions selected from the menu and ADD SUBSCRIPTION highlighted

Enter the following for the Subscription:

  • Name: Give the subscription a name
  • Event Categories: Guided failure interruption raised
  • Payload URL: [API Gateway Invoke URL]/octopus/webhook?type=Guidance&action=Fail

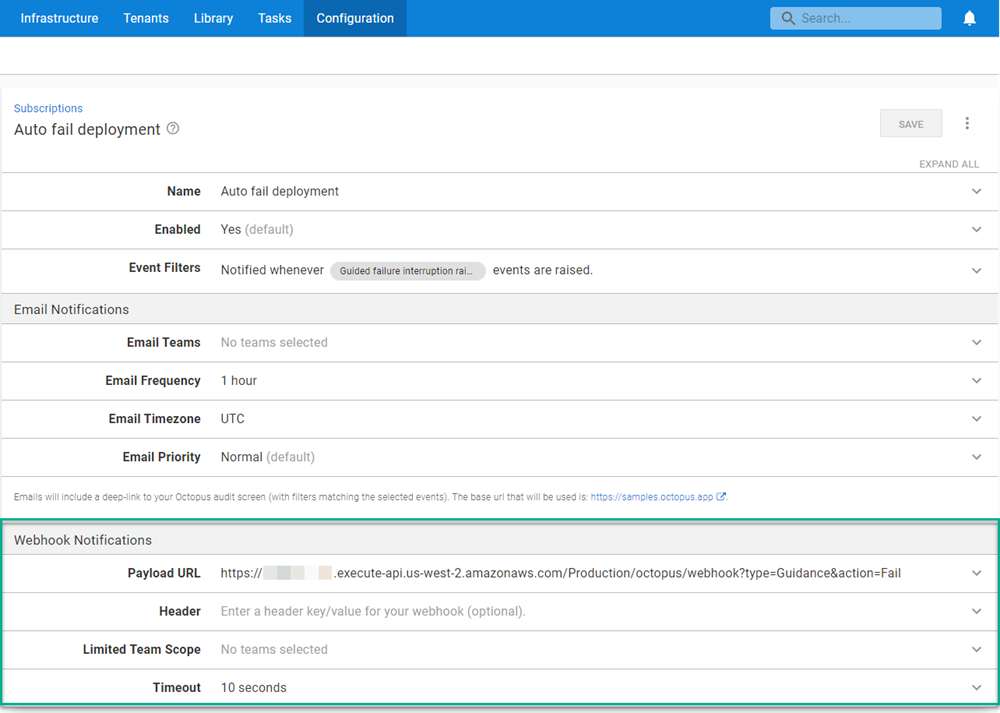

When done, it will look something like this:

Octopus dashboard open on the Configuration tab with Webhook Notifcations section highlighted and Payload URL showing

Testing the solution

To test this solution we need to do two things:

  • Enable guided failure
  • Configure the deployment to fail

Enabling guided failure

Guided failure can be enabled for either the deployment process or runbooks.

To enable for a deployment process, select Settings then choose Use guided failure mode.

Octopus dashboard showing Settings with Use guided failure mode selected and highlighted

Configuring deployment to fail

An easy way to do this is to create a deployment process with a Run a Script step. Enter the following for the script:

Fail-Step "Fail on purpose"

Running the deployment

The deployment will enter guided failure immediately and wait for guidance.

Octopus dashboard open on the Projects tab with Task summary showing an error message about waiting to be assigned

After a few seconds Octopus Deploy will process the subscription event and will fail the deployment.

Task summary with Guidance received: failed highlighted

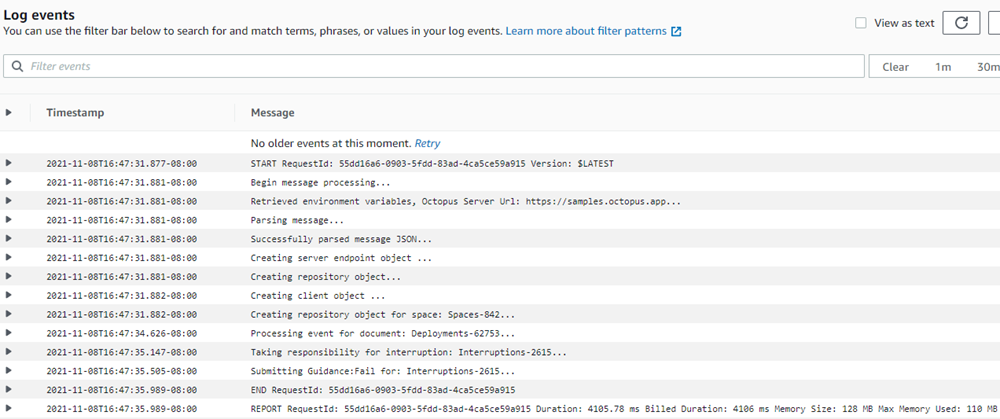

In the AWS Console, you can view the CloudWatch logs to see that the Lambda processed the message, then submitted to the Octopus Server.

AWS Console showing Log events

Conclusion

This posts walks you through using an Octopus Deploy Subscription to call an AWS Lambda to automatically respond to a guided failure incident. Although the demonstration targeted guided failure, the same Lambda can be used to automate responses to Manual intervention as well.

An alternative approach to the Lambda method is to use the Automate Manual Intervention Response community step template in a runbook that has a trigger to run periodically.

Happy deployments!

Loading...
