How to deploy Azure Container Apps

Shawn Sesna

Containerizing your application is the modern-day approach to application development. The most popular platform for hosting containers is Kubernetes. However, not everyone wants or needs to know how to operate a Kubernetes cluster. Some people just want to deploy their apps.

Azure Container Apps deploys containers to a Kubernetes cluster managed by Azure. This lets developers focus on what they do best, write code.

In this post, I show you how to deploy the eShopOnWeb application to Azure Container Apps with Octopus Deploy.

Read our guide: Kubernetes delivery unlocked

Explore the principles, practices, and tools that underpin effective Continuous Delivery for Kubernetes, specifically tailored for developers.

Get the guide

Getting started

Before you can deploy to Azure Container Apps, you need to configure:

  • A container registry for your containers
  • A build server to push your containers to the registry
  • An Octopus Docker Container Registry external feed
  • An Azure Container Apps environment

Configuring the container registry

First, you need a place to push your containers. Octopus is compatible with a variety of Docker container registries, but this post uses an Azure Container Registry. If you already have a Docker Container Registry configured, you can skip to the next section.

To create an Azure Container Registry, click Create a resource in the Azure Portal.

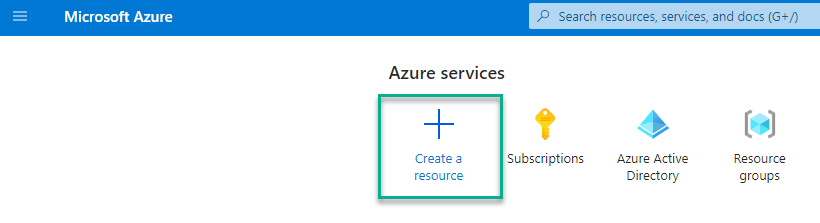

Azure Create Resource

Type Azure Container Registry in the search box and choose Container Registry from the list.

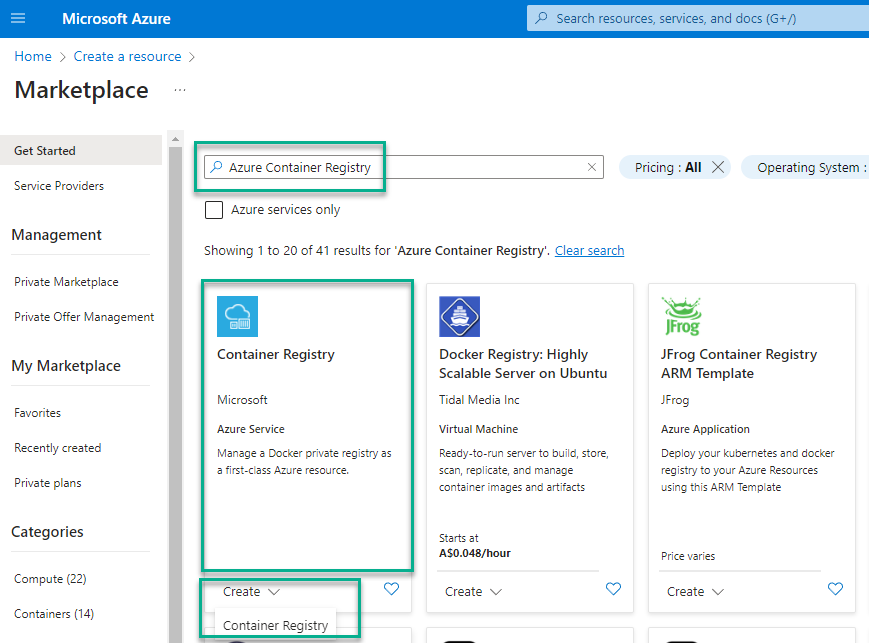

Azure Create Container Registry

Fill in the required inputs and click Create.

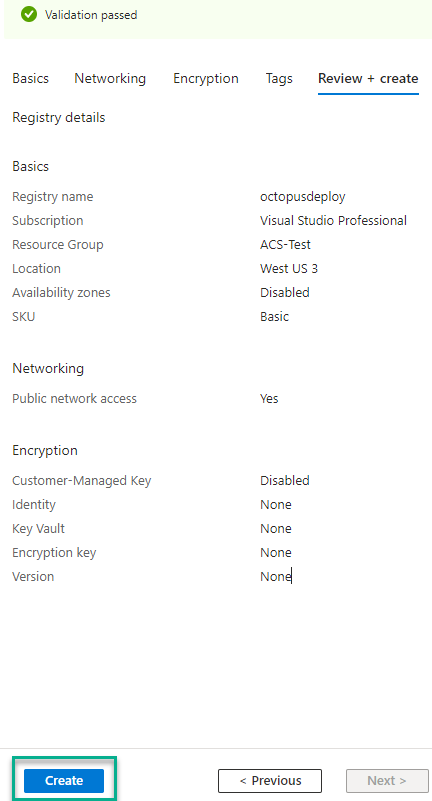

Azure Create Container Registry Create screen

After you create the resource, copy the login server information. You need this information when you configure the Docker build task and the Octopus Deploy external feed.

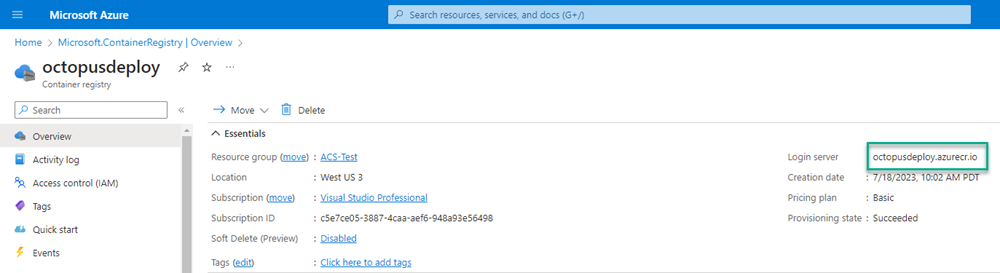

Newly created ACR resource

Configuring the build server

Now that you have a container registry, you need to configure a build server to push your containers to the registry.

For this post, I use Azure DevOps to show building the eShopOnWeb containers and pushing them to an Azure Container Registry. eShopOnWeb consists of 2 containers:

  • API
  • Web

My build consists of 2 Docker build tasks, both using the buildAndPush command.

Adding the Docker build task

Filter the list of tasks by typing docker into the search bar. Then choose the Docker task.

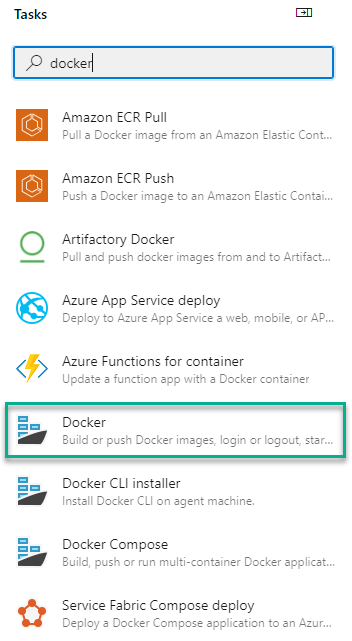

Add Docker task to build

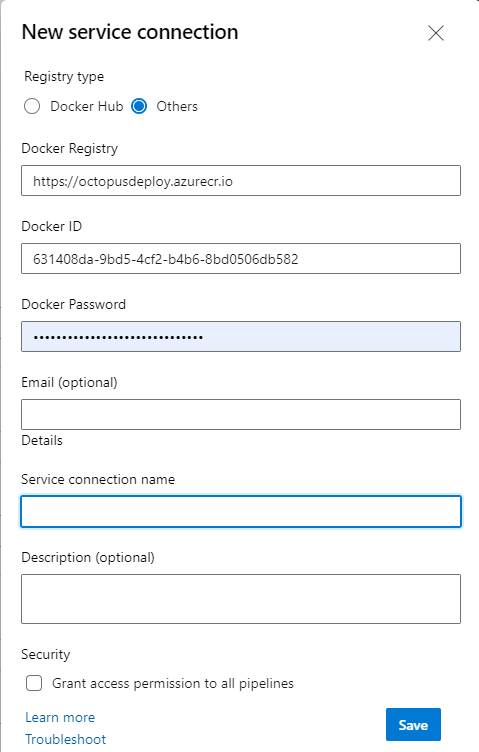

The Docker task needs a Docker Registry service connection. Select New and fill in the form details.

  • Docker Registry: The login server from your ACR in URL format = https://<Login server>, example https://octopusdeploy.azurecr.io.
  • Docker ID: User ID for logging into your ACR. I chose to use an app registration, so the value of the ID is the application (client) ID of the app registration.
  • Docker Password: Password for the User ID. If you're using an app registration, this is the secret for the app registration.
  • The rest of the fields can use the defaults.

New Azure DevOps Service Connection

For the API Docker build task, use the following values:

  • Container repository: eshop-api
  • Command: buildAndPush
  • Dockerfile: src/PublicApi/Dockerfile
  • Build context: .
  • Tags: $(Build.BuildNumber) (Optional, I set my build format number to $(Year:yyyy).$(Month).$(DayOfYear)$(Rev:r))

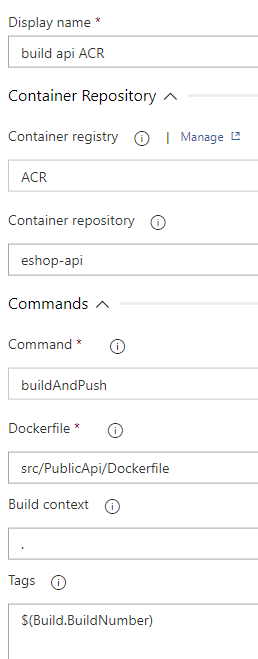

Docker build task

The Web Docker build task will be identical with the following differences:

  • Container repository: eshop-web
  • Dockerfile: src/Web/Dockerfile

After you queue a new build, it should push your containers into your registry.

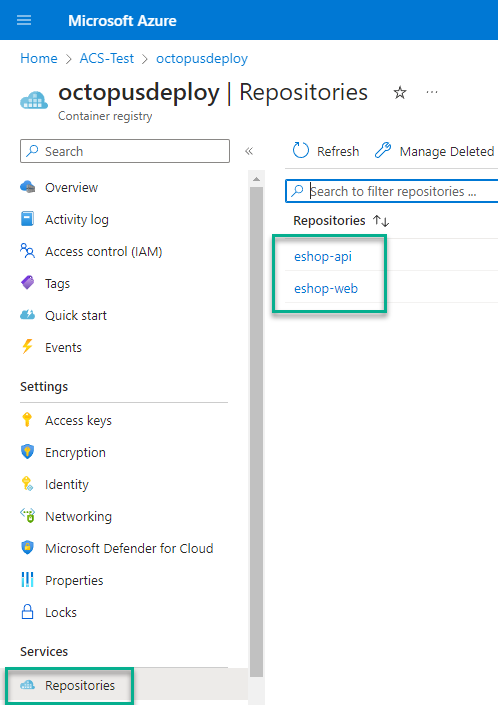

Container images in ACR

Configuring the Octopus Deploy external feed

Now the containers are hosted in ACR, you need to configure an external feed in Octopus. Navigate to Library, then External Feeds, then click ADD FEED.

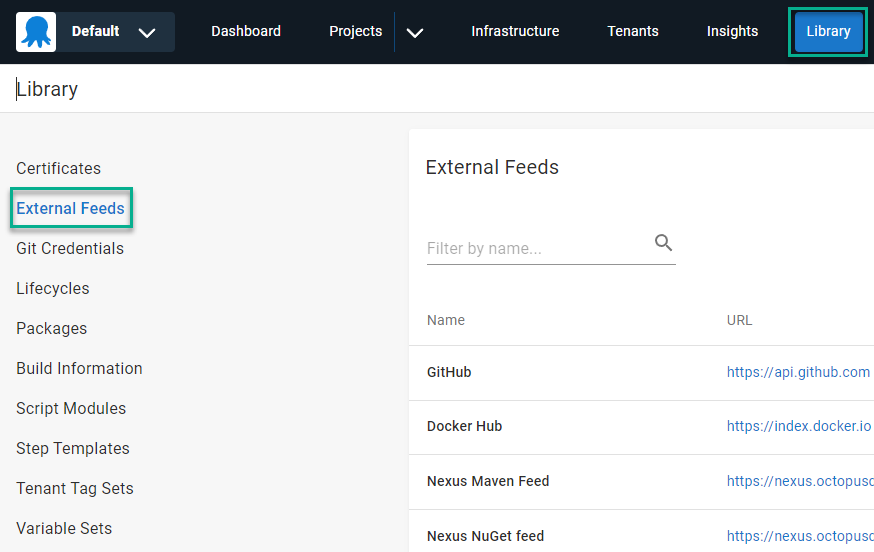

Navigate to Libary, External Feed

Select the feed type. For this post, I'm using Azure Container Registry.

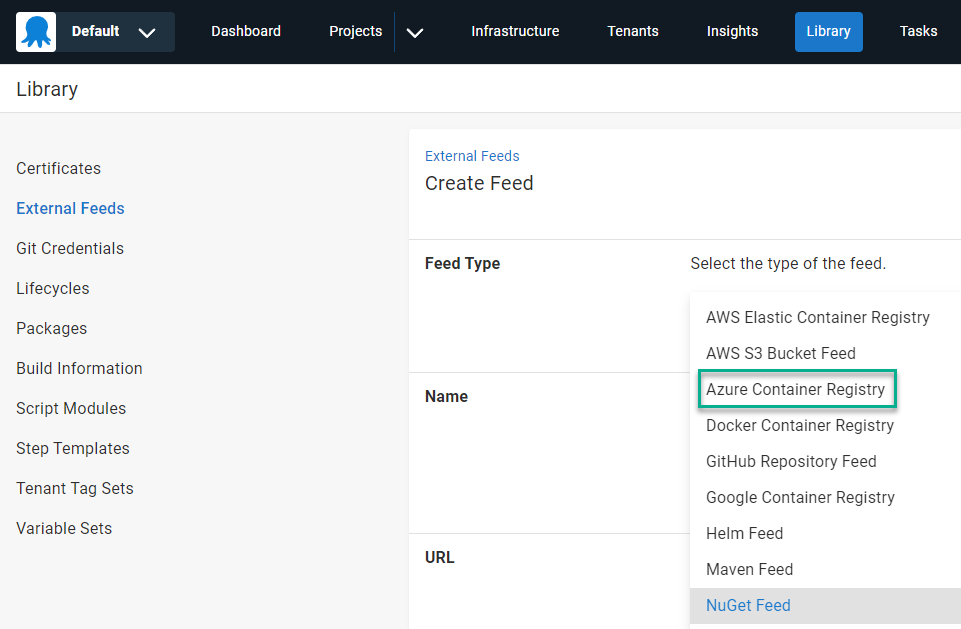

Select Azure Container Registry

Similar to the Service Connection in Azure DevOps, add the feed details:

  • Name: A meaningful name for the External Feed
  • URL: https://<Login Server> - example: https://octopusdeploy.azurecr.io
  • Credentials:
    • Feed Username: User to connect to the registry. I used an app registration.
    • Feed Password: Password for the user account. Mine was the secret for the app registration.

Next, click SAVE AND TEST.

Enter the image name, full or partial, you want to search for.

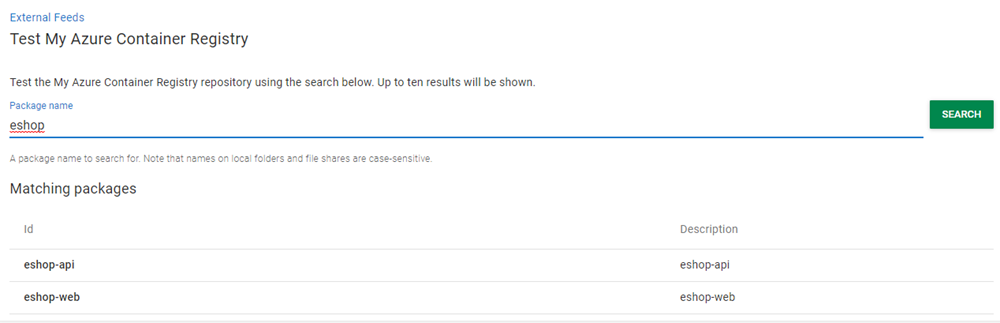

Test External Feed

Configuring project variables

This post assumes you know how to create an Octopus project and won't cover that topic. For the eShopOnWeb Octopus project, configure the following variables:

  • Project.Azure.Account: An Azure Service Prinicipal account variable. (Optional, the templates used can use Managed Identity)
  • Project.Azure.ContainerApp.Api.Name: Value to set for the Container Name, example: #{Octopus.Environment.Name}-eshop-api
  • Project.Azure.ContainerApp.Environment.Name: Name of the Azure Container App environment to create/use, example: #{Octopus.Environment.Name | ToLower} Note: Azure Container App environment names must be lower case.
  • Project.Azure.ContainerApp.Web.Name: Value to set for the Container Name, example: #{Octopus.Environment.Name | ToLower}-eshop-web
  • Project.Azure.Region.Code: The short name for the Azure Region, example: westus3
  • Project.Azure.ResourceGroup.Name: Name of the Azure Resource Group to create the resources in.
  • Project.Catalog.Database.Name: Name of the Catalog database for eShopOnWeb, example: #{Octopus.Environment.Name}-eshop-catalog
  • Project.Identity.Database.Name: Name of the Identity database for eShopOnWeb, example: #{Octopus.Environment.Name}-eshop-identity
  • Project.SQL.DNS: The DNS name for the SQL database server, example: <YourAzureSQLServer>.database.windows.net
  • Project.SQL.User.Name: Name of the SQL account for database access, example: eShopUser
  • Project.SQL.User.Password: Password for the SQL account

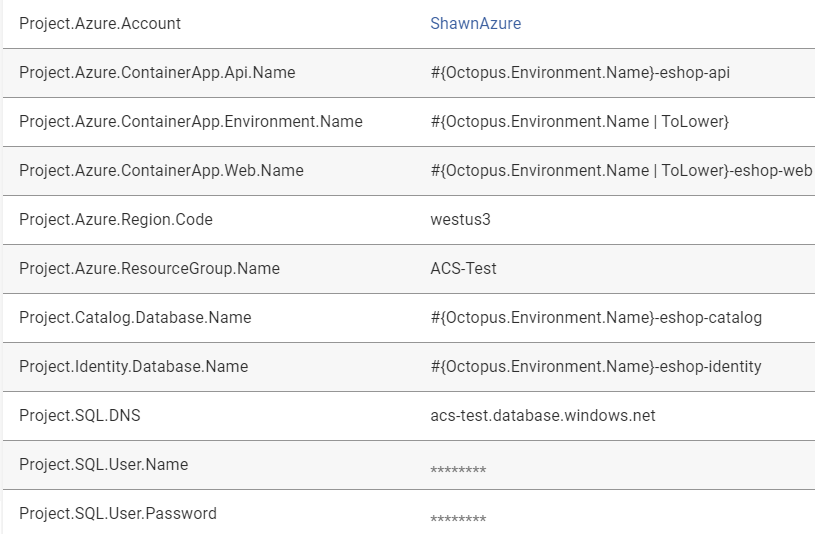

Octopus project variables

Configuring the deployment process

With the External Feed and project variables configured, you can now configure the deployment process. For the eShopOnWeb application, the process consists of the following steps:

  • Azure - Create Container App environment
  • Azure - Deploy api Container App
  • Get API DNS
  • Azure Deploy web Container App

Azure - Create Container App Environment step

To deploy to Azure Container App, you must first have an Azure Container App environment.

Add the Azure - Create Container App Environment community step template to your process. The template will first check to see if it already exists, if not, create it.

This template takes the following input:

  • Azure Resource Group Name: #{Project.Azure.ResourceGroup.Name}
  • Azure Account Subscription Id: #{Project.Azure.Account.SubscriptionNumber}
  • Azure Account Client Id: #{Project.Azure.Account.Client}
  • Azure Account Tenant Id: #{Project.Azure.Account.TenantId}
  • Azure Account Password: #{Project.Azure.Account.Password}
  • Container App Environment Name: #{Project.Azure.ContainerApp.Environment.Name}
  • Azure Location: #{Project.Azure.Region.Code}

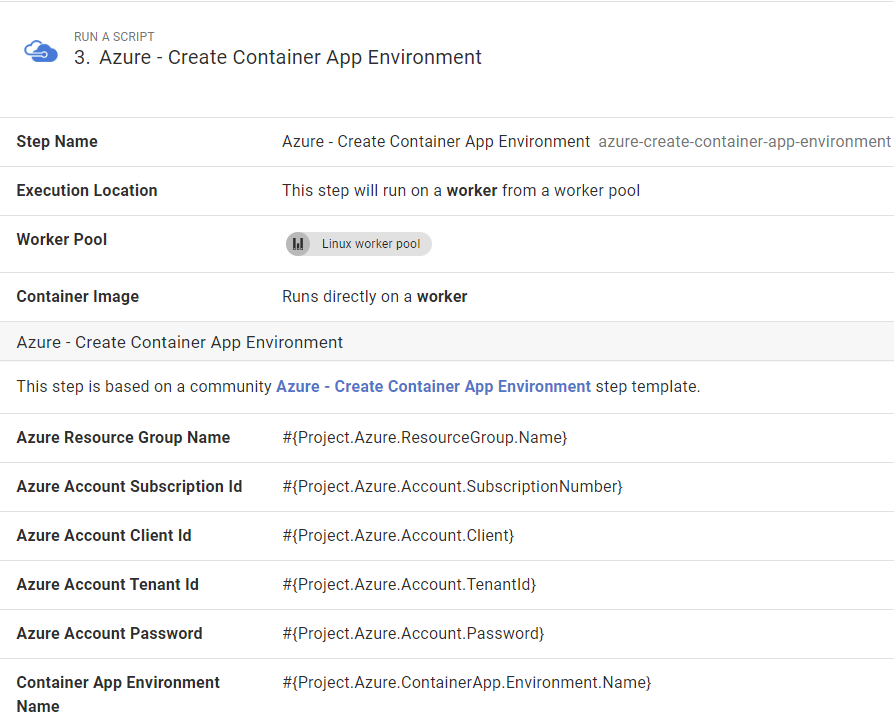

Azure - Create Container App Environment

The template sets an output variable called ManagedEnvironmentId which is the ID value of the environment it created or found if it already exists.

Azure - Deploy api Container App step

Add an Azure - Deploy Container App community step template to your process.

  • Azure Resource Group Name: #{Project.Azure.ResourceGroup.Name}
  • Azure Account Subscription Id: #{Project.Azure.Account.SubscriptionNumber}
  • Azure Account Client Id: #{Project.Azure.Account.Client}
  • Azure Account Tenant Id: #{Project.Azure.Account.TenantId}
  • Azure Account Password: #{Project.Azure.Account.Password}
  • Container App Environment Name: #{Octopus.Action[Azure - Create Container App Environment].Output.ManagedEnvironmentId} Note: This uses the output variable from the Azure - Create Container App Environment step
  • Azure Location: #{Project.Azure.Region.Code}
  • Container Name: #{Project.Azure.ContainerApp.Api.Name}
  • Container Image: Choose eshop-api from feed list.
  • Environment Variables:
[
  {
    "name": "ConnectionStrings__CatalogConnection",
    "value": "Server=#{Project.SQL.DNS},1433;Integrated Security=false;Initial Catalog=#{Project.Catalog.Database.Name};User Id=#{Project.SQL.User.Name};Password=#{Project.SQL.User.Password};Trusted_Connection=false;Trust Server Certificate=True;"
  },
  {
    "name": "ConnectionStrings__IdentityConnection",
    "value": "Server=#{Project.SQL.DNS},1433;Integrated Security=false;Initial Catalog=#{Project.Identity.Database.Name};User Id=#{Project.SQL.User.Name};Password=#{Project.SQL.User.Password};Trusted_Connection=false;Trust Server Certificate=True;"
  },
  {
    "name": "ASPNETCORE_URLS",
    "value": "http://+:80"
  },
  {
    "name": "MyTest",
    "secretref": "mysecret"
  },
  {
    "name": "ASPNETCORE_ENVIRONMENT",
    "value": "Development"
  }
]

Secrets:

[
  {
    "name": "mysecret",
    "value": "#{Project.SQL.User.Password}"
  }
]
  • Container Ingress Port: 80
  • External Ingress: Unchecked (False)

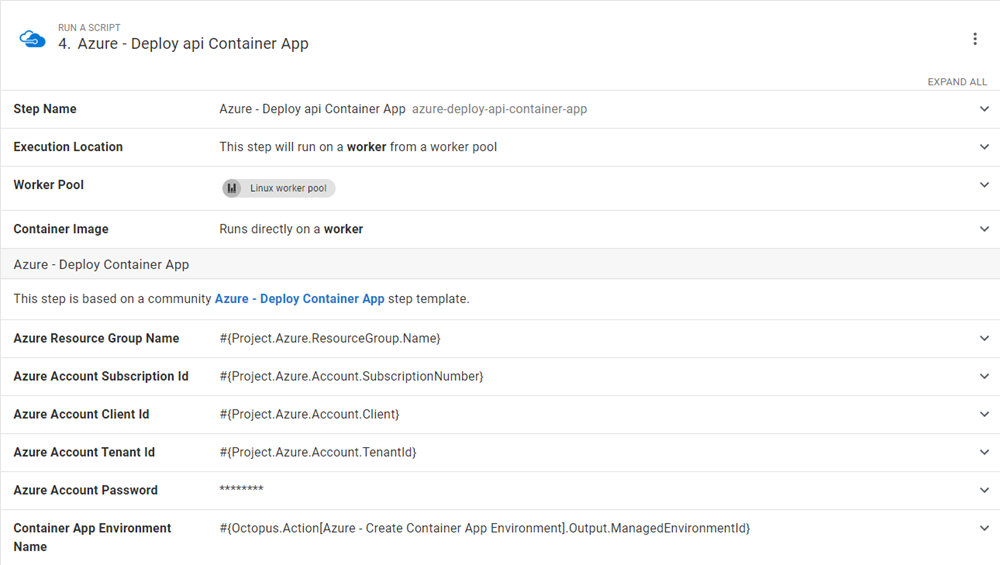

Azure - Deploy Container App

Get API DNS step

The eShopOnWeb web container needs the URL to the API container. This step runs the following code to retrieve that value and sets an output variable. This code assumes that the Az PowerShell modules aren't installed, so it does it dynamically.

$PowerShellModuleName = "Az.App"
$LocalModules = (New-Item "$PWD/modules" -ItemType Directory -Force).FullName

Save-Module -Name $PowerShellModuleName -Path $LocalModules -Force
$env:PSModulePath = "$LocalModules$([IO.Path]::PathSeparator)$env:PSModulePath"

# Import modules
Import-Module Az.App

# Get reference to the container
$apiContainerApp = Get-AzContainerApp -Name "$($OctopusParameters["Project.Azure.ContainerApp.Api.Name"])" -ResourceGroupName $OctopusParameters["Project.Azure.ResourceGroup.Name"]

Set-OctopusVariable -name "DNS" -value $apiContainerApp.IngressFQDN

Azure - Deploy web Container App step

  • Azure Resource Group Name: #{Project.Azure.ResourceGroup.Name}
  • Azure Account Subscription Id: #{Project.Azure.Account.SubscriptionNumber}
  • Azure Account Client Id: #{Project.Azure.Account.Client}
  • Azure Account Tenant Id: #{Project.Azure.Account.TenantId}
  • Azure Account Password: #{Project.Azure.Account.Password}
  • Container App Environment Name: #{Project.Azure.ContainerApp.Environment.Name}
  • Azure Location: #{Project.Azure.Region.Code}
  • Container Name: #{Project.Azure.ContainerApp.Web.Name}
  • Container Image: Choose eshop-web from feed list.
  • Environment Variables:
[
  {
    "name": "ConnectionStrings__CatalogConnection",
    "value": "Server=#{Project.SQL.DNS},1433;Integrated Security=false;Initial Catalog=#{Project.Catalog.Database.Name};User Id=#{Project.SQL.User.Name};Password=#{Project.SQL.User.Password};Trusted_Connection=false;Trust Server Certificate=True;"
  },
  {
    "name": "ConnectionStrings__IdentityConnection",
    "value": "Server=#{Project.SQL.DNS},1433;Integrated Security=false;Initial Catalog=#{Project.Identity.Database.Name};User Id=#{Project.SQL.User.Name};Password=#{Project.SQL.User.Password};Trusted_Connection=false;Trust Server Certificate=True;"
  },
  {
    "name": "ASPNETCORE_URLS",
    "value": "http://+:80"
  },
  {
    "name": "baseUrls__apiBase",
    "value": "https://#{Octopus.Action[Get API DNS].Output.DNS}"
  },
  {
    "name": "ASPNETCORE_ENVIRONMENT",
    "value": "Development"
  }
]

  • Secrets: (blank)
  • Container Ingress Port: 80
  • External Ingress: Checked (True)

When done, your process should look like this:

Octopus Deployment Process

Deployment

After the deployment is complete, it should create the following Azure resources:

  • Catalog database
  • Identity database
  • Azure Container App environment
  • eshop-api container app
  • eshop-web container app

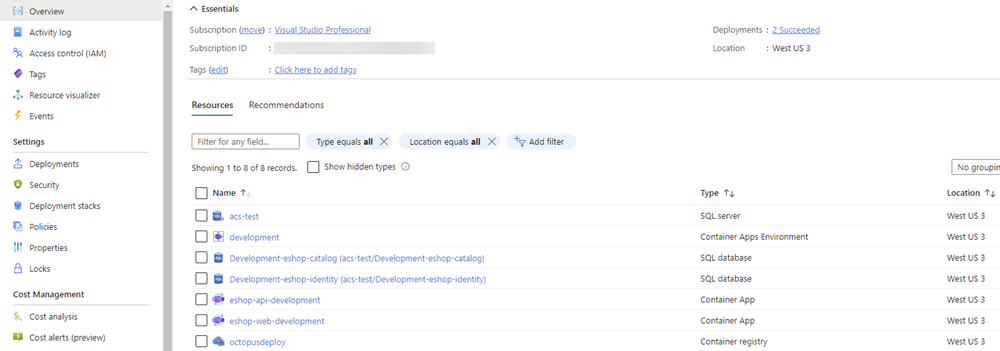

Azure resources

Click into the eshop-web Container App, then click on the application URL to see the application running.

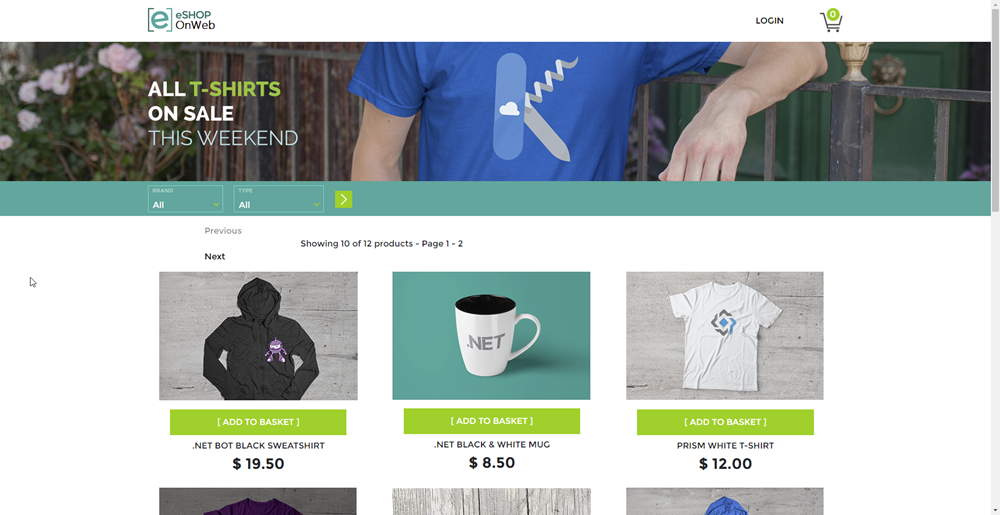

eShopOnWeb application running on Azure Container Apps

Conclusion

In this post, I demonstrated how to deploy the eShopOnWeb application to Azure Container Apps using Octopus Deploy.

Happy deployments!
