Easy and secure GitHub integration

Michael Richardson

We're introducing 2 new features to make connecting GitHub and Octopus Deploy even easier and more secure:

  • OpenID Connect (OIDC) for GitHub Actions
  • Octopus Deploy GitHub app

OpenID Connect (OIDC) for GitHub Actions

Historically, letting tools like GitHub Actions (or any other product) interact with the Octopus API meant creating an Octopus API key and configuring the tool to authenticate using the API key.

The downside of sharing API keys is that they have to be carefully managed. You need to store them securely to minimize the risk of leaking them to third parties, and it's good practice to regularly rotate the keys. It's also good practice to scope the keys as tightly as possible, which can mean a large number of keys to manage.

OpenID Connect (OIDC) has emerged as an elegant way to allow systems to authenticate without sharing long-lived credentials (for example, API keys or username/password).

What does this mean for Octopus Deploy and GitHub Actions? Let's compare the before and after.

Without OIDC

Before OIDC support, you'd create a Service Account user in Octopus, and create an API key attached to the service account.

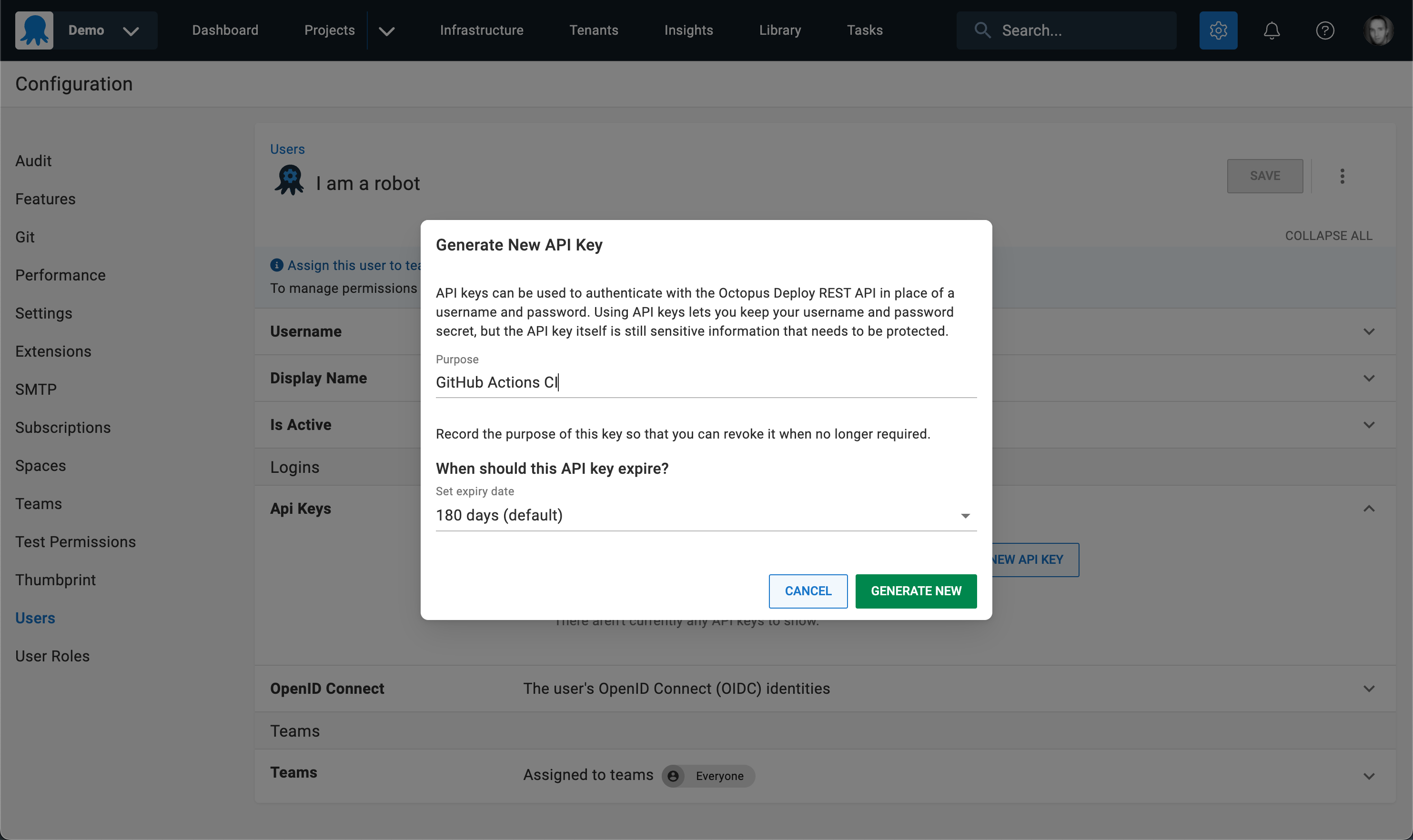

Creating the API key on the Service Account

The API key would then get copied.

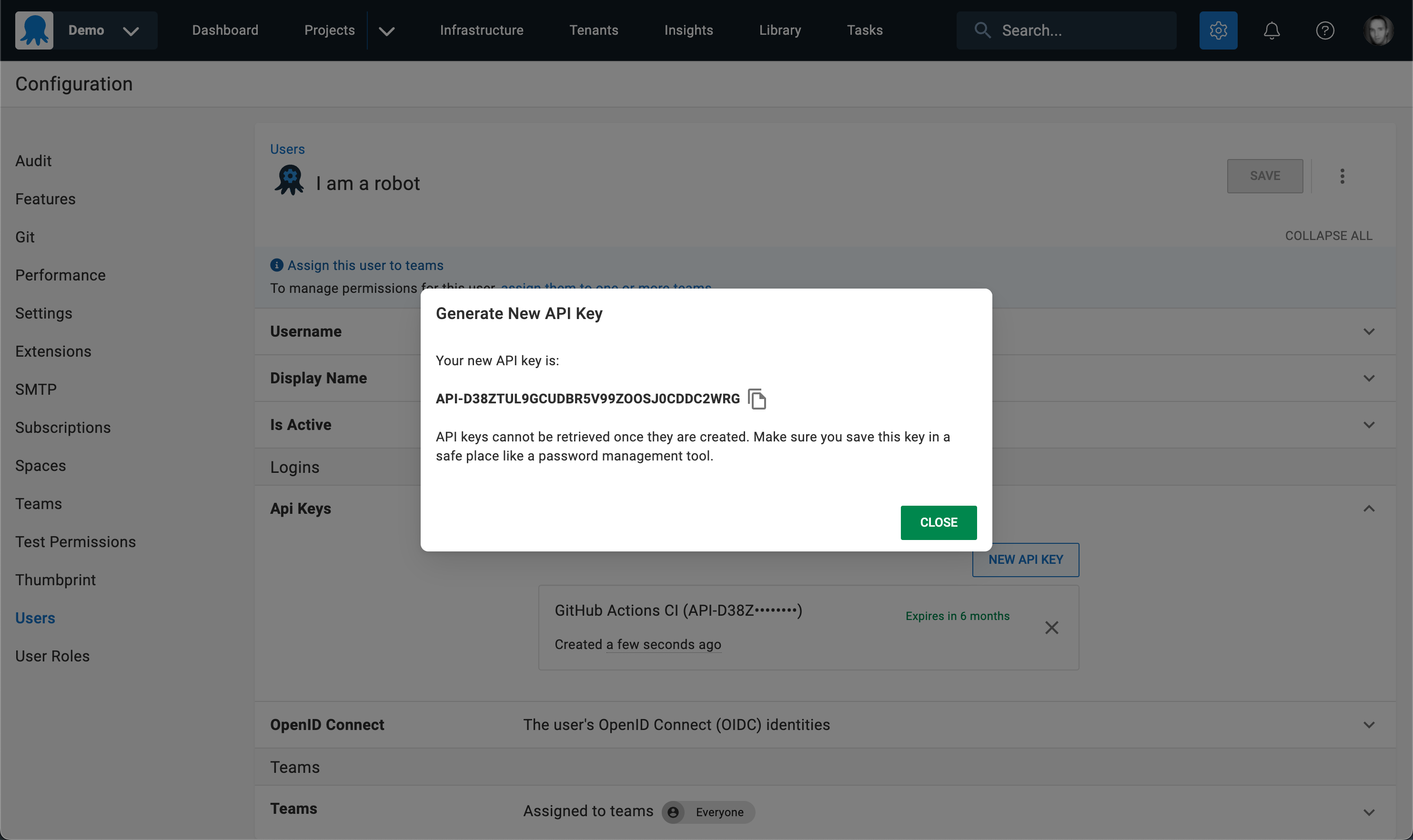

The API Key is then copied

The copied API key is then configured in the tool which calls the Octopus API, most commonly a CI Server. In the GitHub Actions example, the API key gets stored as a secret in the GitHub repository, and the Octopus actions consume the secret API key to authenticate with Octopus.

  OCTOPUS_API_KEY: ${{ secrets.API_KEY  }}
  OCTOPUS_URL: ${{ secrets.OCTOPUS_URL }}
  OCTOPUS_SPACE: 'Octo PetShop'
  # ...
  - name: Create a release in Octopus Deploy 🐙
    uses: OctopusDeploy/create-release-action@v3
      project: 'Octo PetShop Web'


Using OIDC, an OIDC identity is configured on the Service Account.

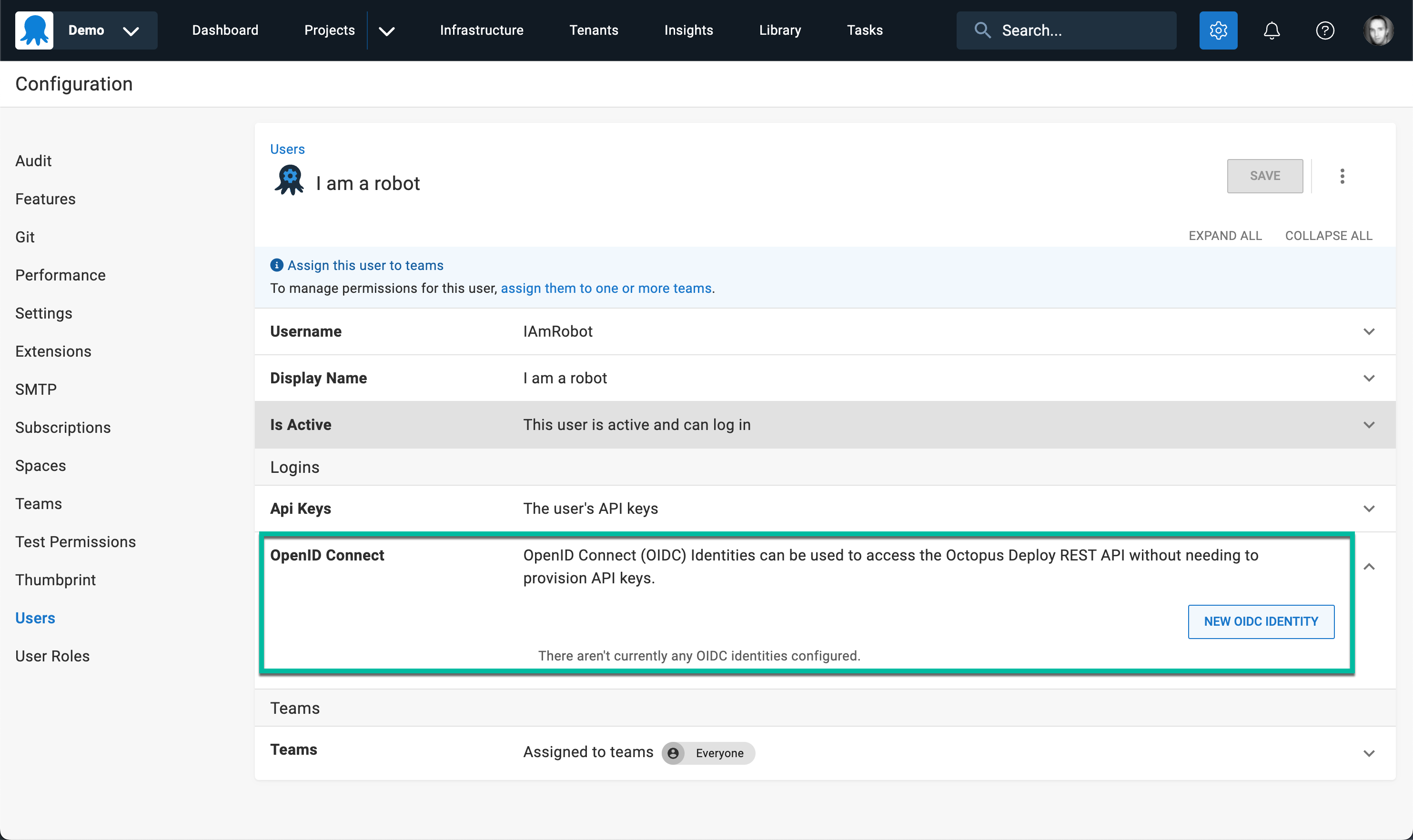

An OIDC identity is added to the Service Account

The issuer is then selected. As we envisage GitHub Actions being the most common scenario, we built a custom interface for configuring GitHub as the issuer. Using the Other Issuer option, you can configure any tool or product that supports acting as an OIDC Relying Party.

The OIDC protocol allows trusting not only a token issuer (like GitHub), but specific subjects within the issuer. In the example shown below, only workflows that run from the main branch of the https://github.com/OctopusSamples/OctoPetShop repository will match and get authenticated.

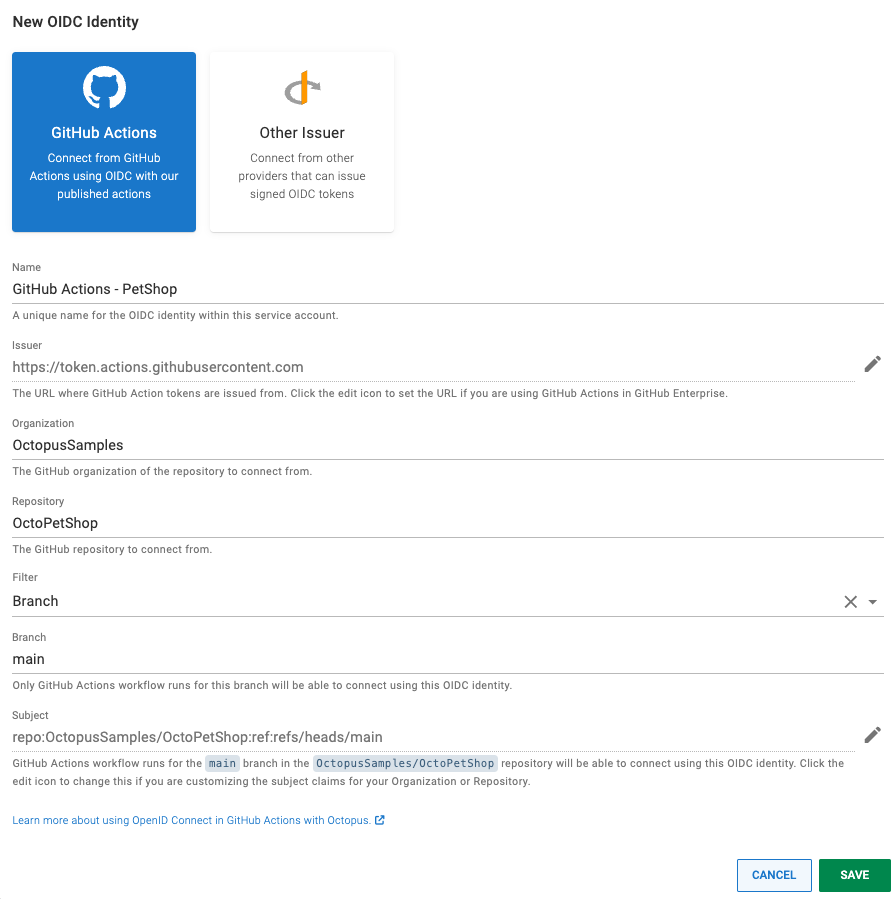

The OIDC identity is configured

We introduced an Octopus Deploy login GitHub action which can authenticate with Octopus via OIDC or an API key. Below is an example of the action configured to use OIDC. You'll notice there are no secrets referenced. The Service Account ID is not a sensitive value, as on its own it can't be used to authenticate.

- name: Login to Octopus
  uses: OctopusDeploy/login@v1
      server: https://my.octopus.app
      service_account_id: 5be4ac10-2679-4041-a8b0-7b05b445e19e

Running the action above will cause the workflow to be authenticated with Octopus, so following actions can run in an authenticated context.

Octopus Deploy GitHub app

We're building an Octopus Deploy app, that we'll publish to the GitHub Marketplace.

Where OIDC allows connections from GitHub to Octopus without pre-shared credentials, the Octopus Deploy GitHub app will enable Octopus Deploy to connect to GitHub without configuring GitHub credentials in Octopus.

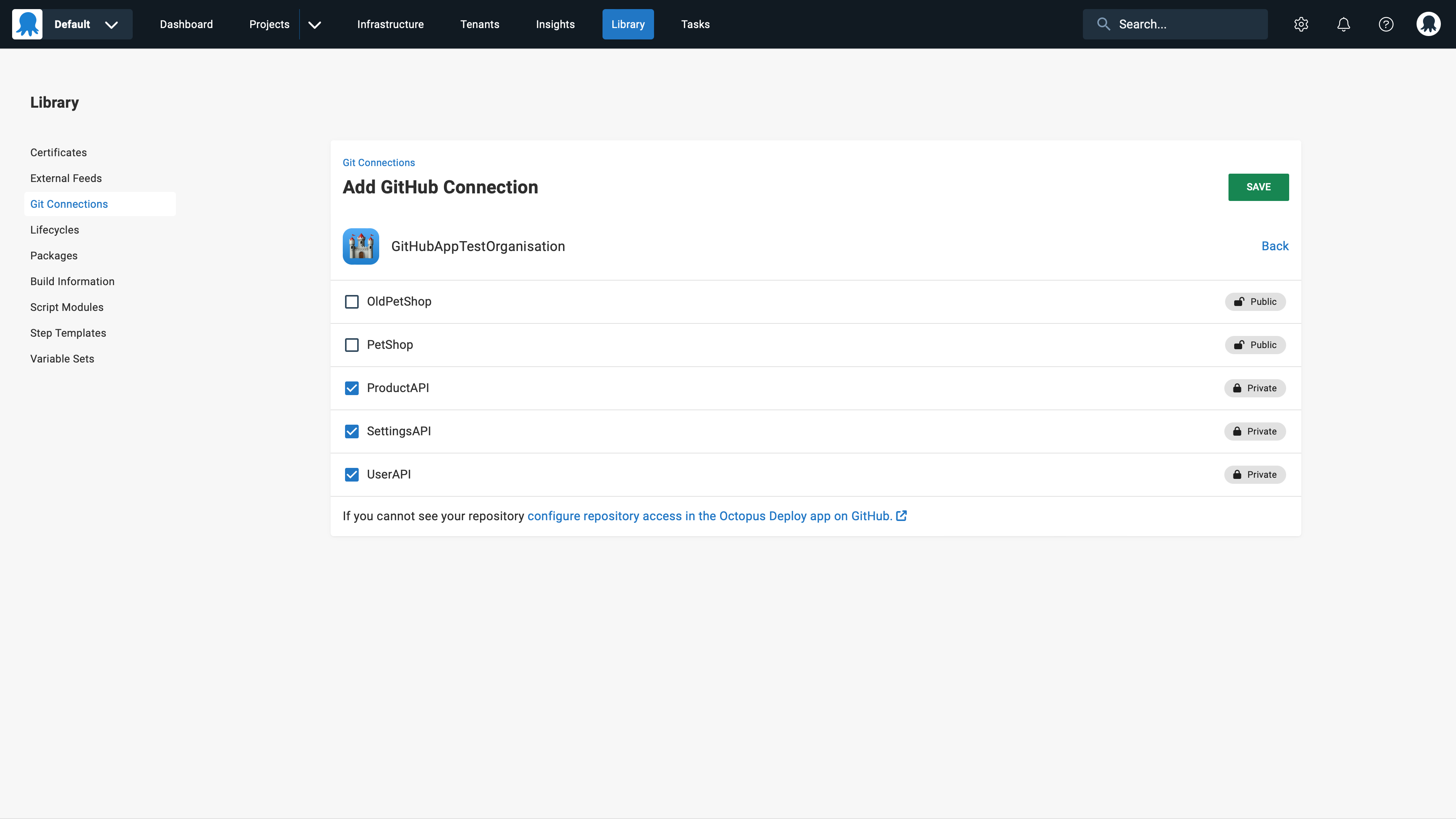

Add Git Connection

The immediate benefit will be for Octopus projects using Config as Code with repositories hosted by GitHub.

Today, GitHub credentials are configured in Octopus, letting Octopus commit changes to the deployment process to the GitHub repository. With the Octopus Deploy GitHub app installed in your organization, Octopus will be able to access approved repositories without needing credentials.

The Octopus Deploy GitHub app will also form the foundation for future features. It will unlock closer integration between Octopus Deploy and GitHub. Octopus will be able to take action based on events in GitHub and see GitHub data like commits, branches, and pull requests.


OpenID Connect and the Octopus Deploy GitHub app will make connecting GitHub and Octopus Deploy easier and more secure, as you'll no longer need to share static credentials between the 2 products.

OIDC support is rolling out to Octopus Cloud customers now. If you have an Octopus Cloud instance and would like early access to this feature, please enter your details and we'll give you access. We expect OIDC support will be available in the 2023.4 release for self-hosted customers.

The Octopus Deploy GitHub app is in development. We're aiming for release in Q1 2024.

Happy deployments!
