Running unit tests in Jenkins

Matthew Casperson

Matthew Casperson

February 2, 2022 • 5 mins

Verifying code changes with unit tests is a critical process in typical development workflows. Jenkins provides a number of plugins to collect and process the results of tests allowing developers to browse the results, debug failed tests, ignore some test failures, and generate reports on the history of tests over time.

In this post, you learn how to add unit tests to a Jenkins project and configure plugins to process the results.

Prerequisites

To follow along with this post you need a Jenkins instance. The Traditional Jenkins Installation, Docker Jenkins Installation, or Helm Jenkins Installation guides provide instructions to install Jenkins in your chosen environment.

The sample applications you'll build are written in Java and DotNET Core, so the Java Development Kit (JDK) and DotNET Core SDK must be installed on the Jenkins controller or agents that perform the builds.

You can find instructions on installing the DotNET Core SDK from the Microsoft website. The sample project is written against DotNET Core 3.1.

The OpenJDK project (and its downstream projects) provides free and open source distributions that you can use to compile Java applications. There are many OpenJDK distributions to choose from including:

I typically use the Azul Zulu distribution, although any distribution will do.

Unit testing in Java

There are many unit testing frameworks available for Java, but the most popular is JUnit.

You'll use the Random Quotes sample application to demonstrate JUnit tests running in a Jenkins project.

Installing the Jenkins plugin

You must install the JUnit plugin to process the result of JUnit tests.

To install the plugin:

  1. Click Manage Jenkins, then Manage Plugins, then Available.
  2. Enter junit in the search box.

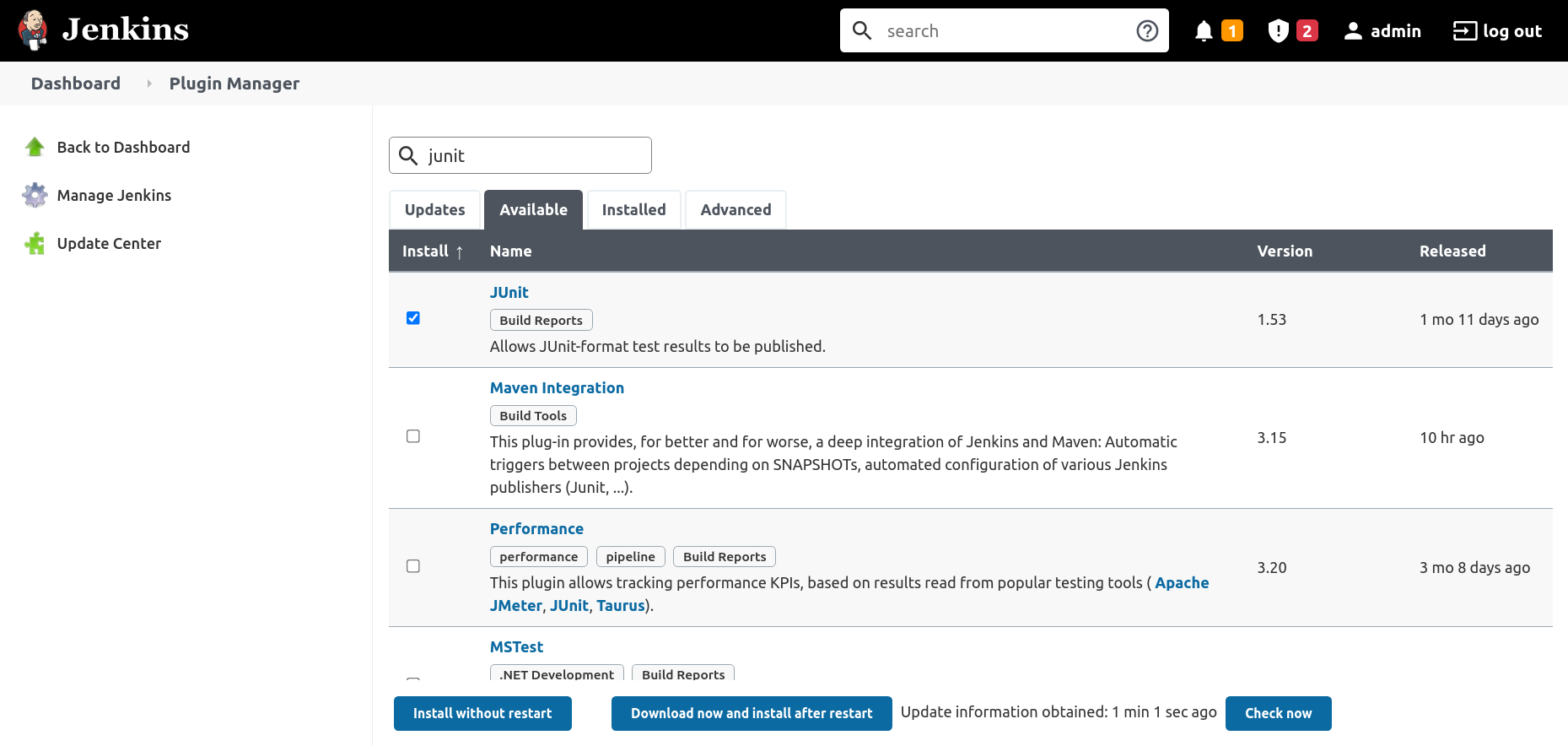

  3. Select the JUnit option, and click Install without restart:

Junit Plugin

Creating the pipeline project in Jenkins

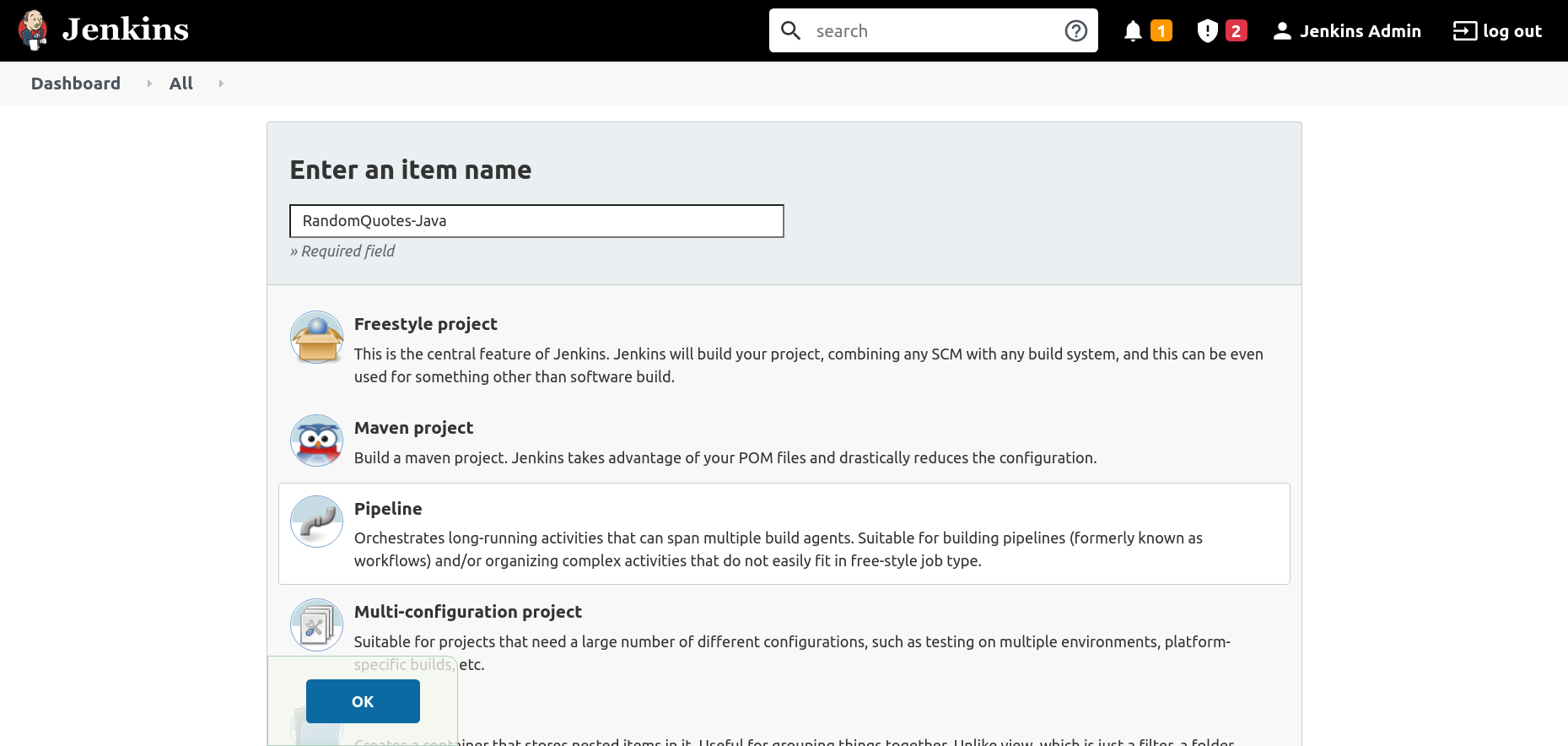

To create a new pipeline project, click New Item, enter RandomQuotes-Java for the item name, select the Pipeline option, and click the OK button:

New Java Project

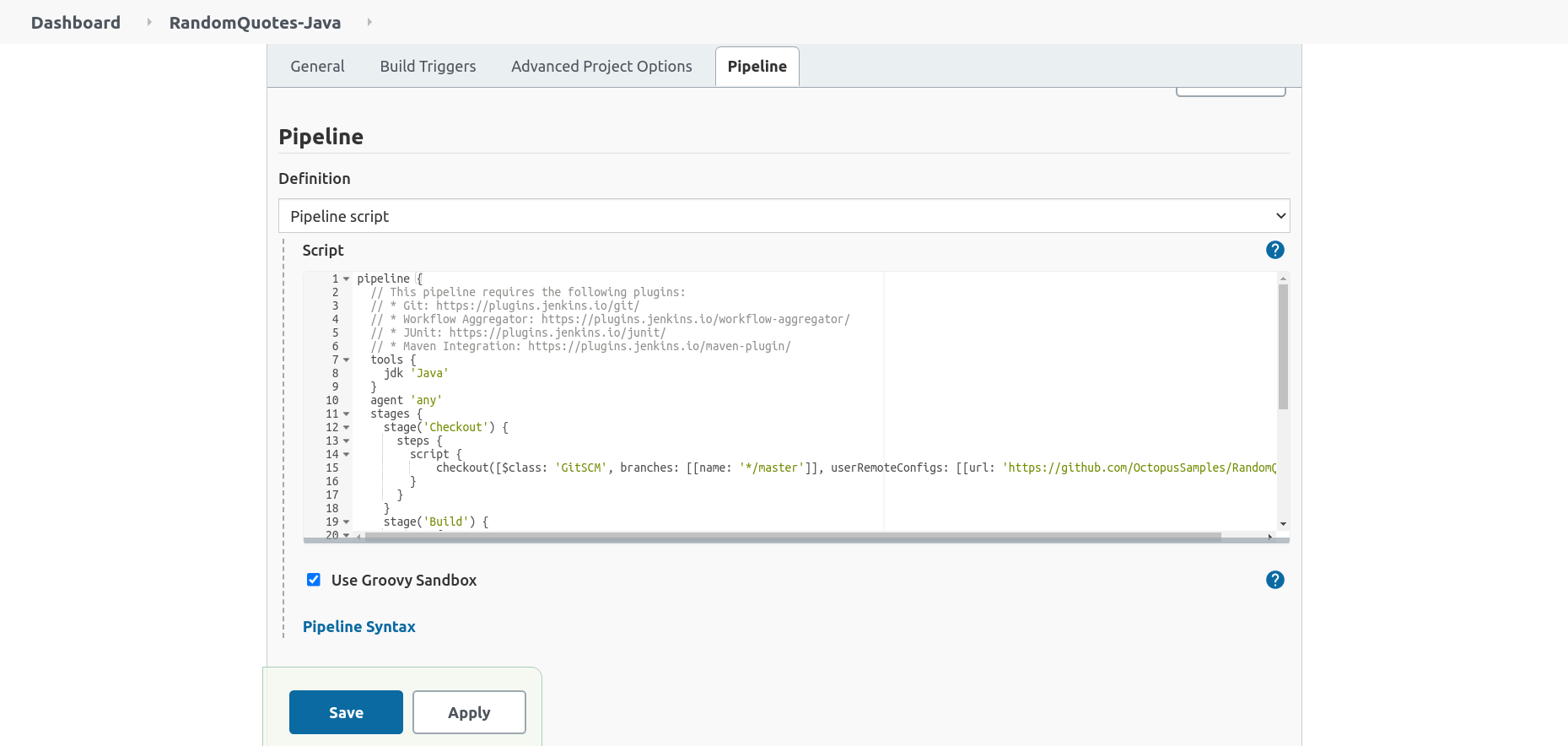

Paste the following pipeline script into the Pipeline section, and click the Save button:

pipeline {
  // This pipeline requires the following plugins:
  // * Git: https://plugins.jenkins.io/git/
  // * Workflow Aggregator: https://plugins.jenkins.io/workflow-aggregator/
  // * JUnit: https://plugins.jenkins.io/junit/
  agent 'any'
  stages {
    stage('Checkout') {
      steps {
        script {
            checkout([$class: 'GitSCM', branches: [[name: '*/master']], userRemoteConfigs: [[url: 'https://github.com/OctopusSamples/RandomQuotes-Java.git']]])
        }
      }
    }
    stage('Test') {
      steps {
        sh(script: './mvnw --batch-mode -Dmaven.test.failure.ignore=true test')

      }
    }
    stage('Package') {
      steps {
        sh(script: './mvnw --batch-mode package -DskipTests')
      }
    }
  }
  post {
    always {
      junit(testResults: 'target/surefire-reports/*.xml', allowEmptyResults : true)
    }
  }
}

Jenkins Pipeline

The Test stage contains a step running the maven test goal, passing --batch-mode to avoid unnecessary logging showing each dependency being downloaded and -Dmaven.test.failure.ignore=true to allow the step to pass successfully even if there are failing tests.

sh(script: './mvnw --batch-mode -Dmaven.test.failure.ignore=true test')

The post section contains the always condition block, which processes the test results with the JUnit plugin:

junit(testResults: 'target/surefire-reports/*.xml', allowEmptyResults : true)

The Package stage packages the application while skipping any tests with the -DskipTests argument, as testing was handled in the previous stage:

sh(script: './mvnw --batch-mode -Dmaven.test.skip=true clean package', returnStdout: true)

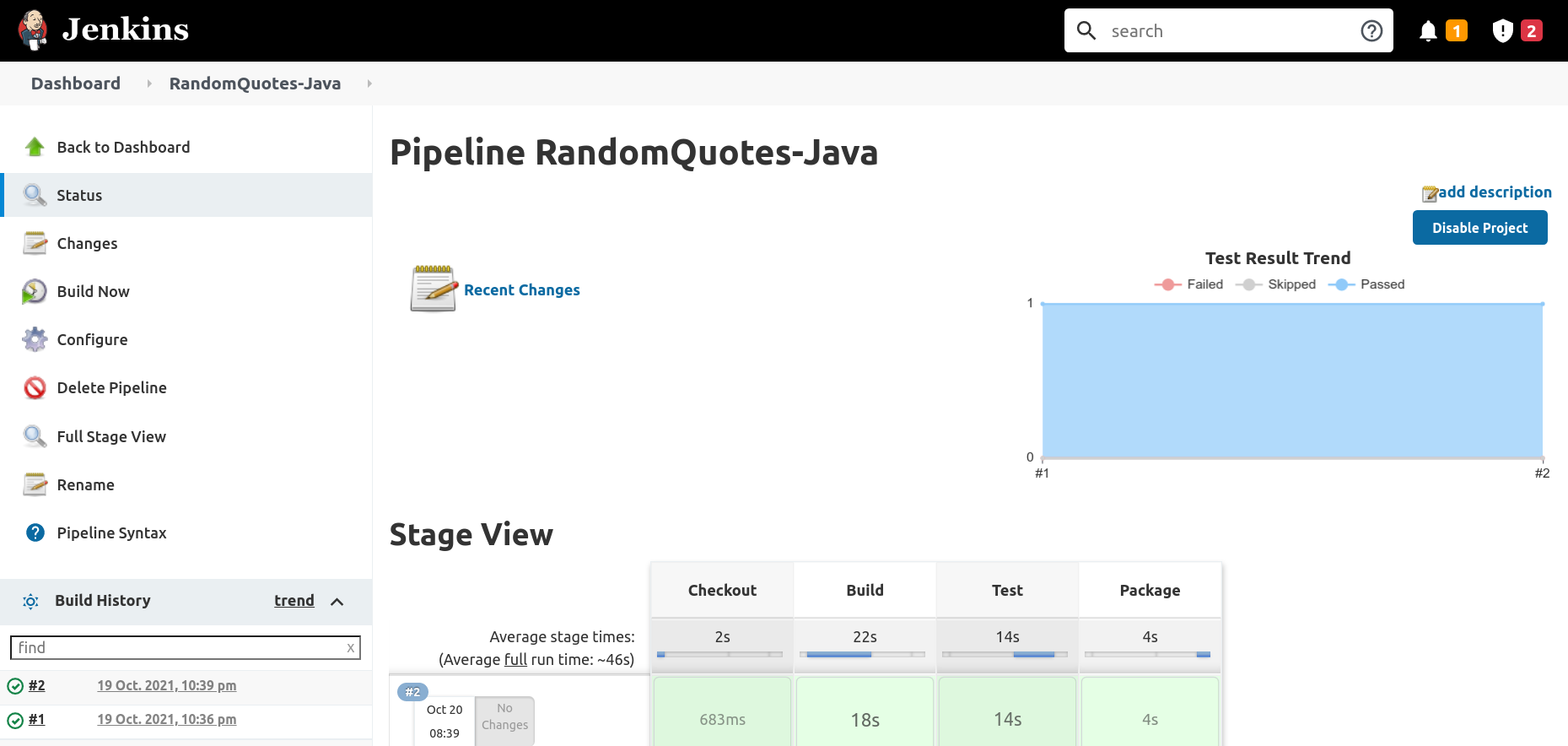

The Test Result Trend graph tracks the passed, failed, and skipped tests across the project's history:

Test Result Trend

Unit testing in DotNET Core

There are a number of popular unit testing frameworks for DotNET Core including MSTest, NUnit, and xUnit. You'll use the RandomQuotes sample application to demonstrate running NUnit tests from a Jenkins Pipeline.

Installing the Jenkins plugin

Use the MSTest plugin to process DotNET Core test results.

Install the MSTest plugin to process the result of NUnit tests. To install the plugin:

  1. Click Manage Jenkins, then Manage Plugins ,then Available.
  2. Enter mstest in the search box.

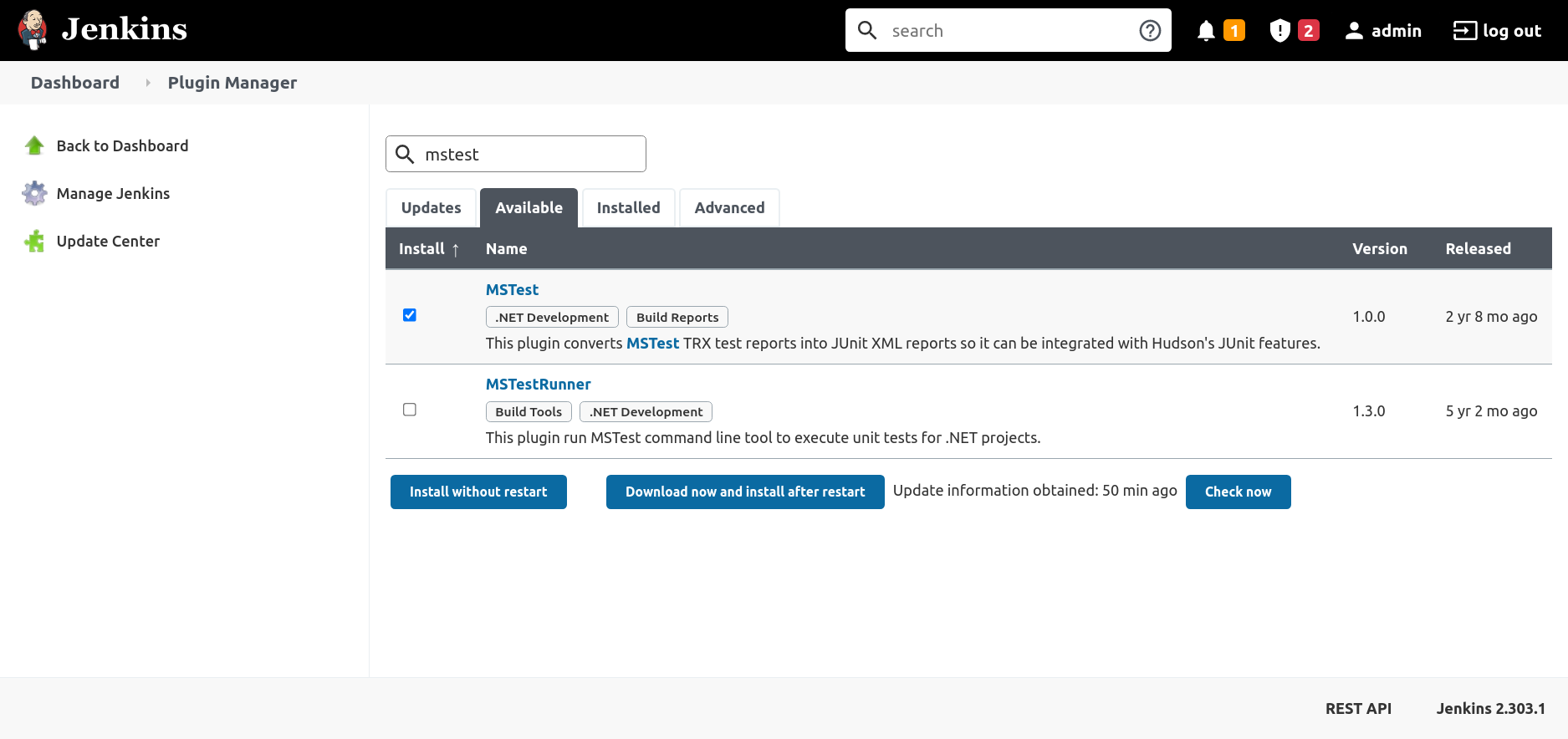

  3. Select the MSTest option, and click Install without restart:

MSTest Plugin

Creating the pipeline project in Jenkins

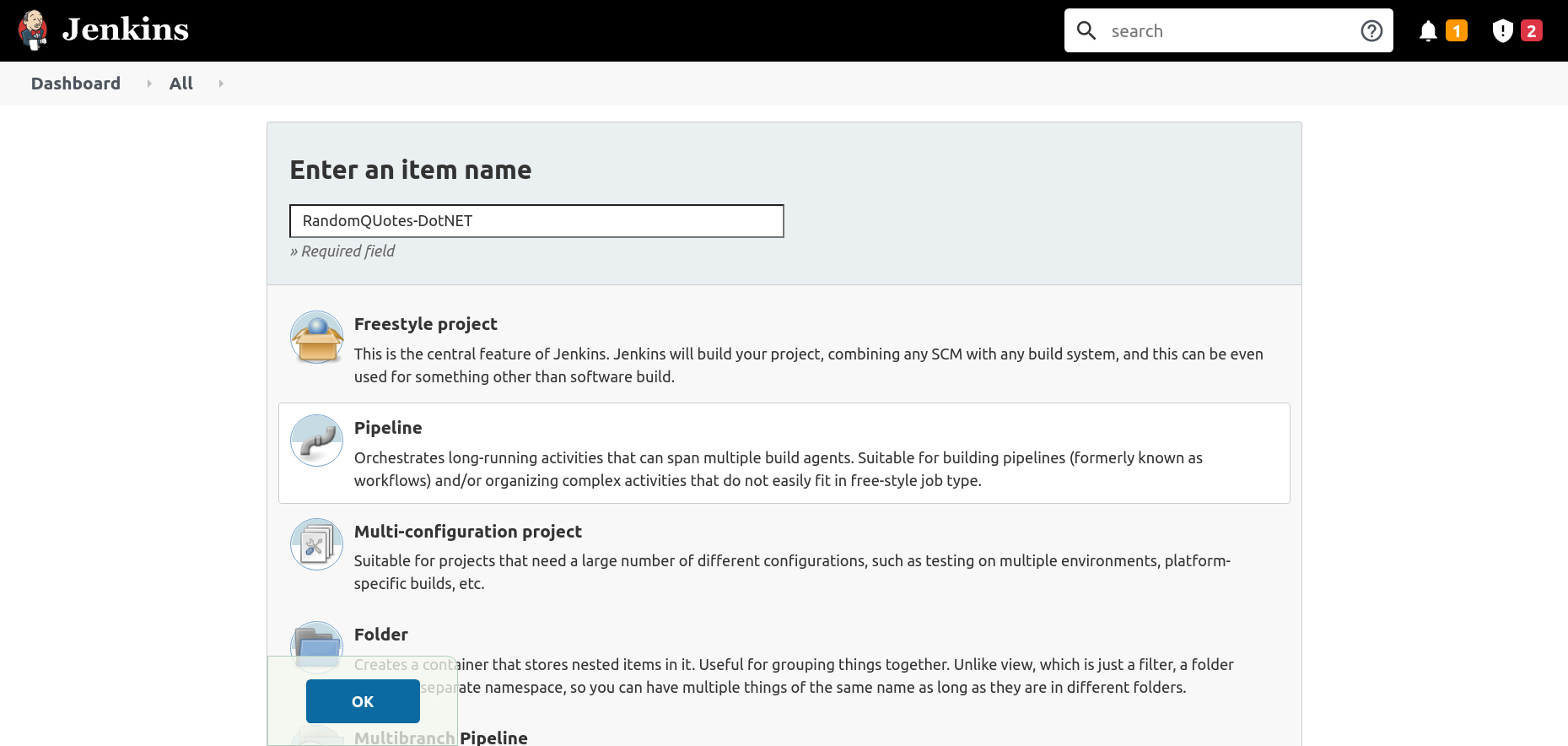

To create a new pipeline project, click New Item, enter RandomQuotes-DotNET for the item name, select the Pipeline option, and click the OK button:

New DotNET Project

Paste the following pipeline script into the Pipeline section, and click the Save button:

pipeline {
  // This pipeline requires the following plugins:
  // * Git: https://plugins.jenkins.io/git/
  // * Workflow Aggregator: https://plugins.jenkins.io/workflow-aggregator/
  // * MSTest: https://plugins.jenkins.io/mstest/
  agent 'any'
  stages {
    stage('Environment') {
      steps {
          echo "PATH = ${PATH}"
      }
    }
    stage('Checkout') {
      steps {

        script {
            checkout([$class: 'GitSCM', branches: [[name: '*/master']], userRemoteConfigs: [[url: 'https://github.com/OctopusSamples/RandomQuotes.git']]])
        }
      }
    }
    stage('Dependencies') {
      steps {
        sh(script: 'dotnet restore')
      }
    }
    stage('Build') {
      steps {
        sh(script: 'dotnet build --configuration Release', returnStdout: true)
      }
    }
    stage('Test') {
      steps {
        sh(script: 'dotnet test -l:trx || true')
      }
    }
  }
  post {
    always {
      mstest(testResultsFile: '**/*.trx', failOnError: false, keepLongStdio: true)
    }
  }
}

The Test stage calls dotnet test to run the unit tests, passing the argument -l:trx to write the test results in a Visual Studio Test Results (TRX) file.

This command will return a non-zero exit code if any tests failed. To ensure the pipeline continues to be processed in the event of a failed test, you return true if dotnet test indicates a failure:

sh(script: 'dotnet test -l:trx || true')

You then process the test results with the MSTest plugin in the post section:

mstest(testResultsFile: '**/*.trx', failOnError: false, keepLongStdio: true)

How to handle failed tests

So far, you've only run builds with successful tests. To simulate a failing test, modify the Checkout stage to point to the failing-test branch of the Java Random Quotes application:

pipeline {
  // This pipeline requires the following plugins:
  // * Git: https://plugins.jenkins.io/git/
  // * Workflow Aggregator: https://plugins.jenkins.io/workflow-aggregator/
  // * JUnit: https://plugins.jenkins.io/junit/
  agent 'any'
  stages {
    stage('Checkout') {
      steps {
        script {
            checkout([$class: 'GitSCM', branches: [[name: '*/failing-test']], userRemoteConfigs: [[url: 'https://github.com/OctopusSamples/RandomQuotes-Java.git']]])
        }
      }
    }
    stage('Test') {
      steps {
        sh(script: './mvnw --batch-mode -Dmaven.test.failure.ignore=true test')
      }
    }
    stage('Package') {
      steps {
        sh(script: './mvnw --batch-mode package -DskipTests')
      }
    }
  }
  post {
    always {
      junit(testResults: 'target/surefire-reports/*.xml', allowEmptyResults : true)
    }
  }
}

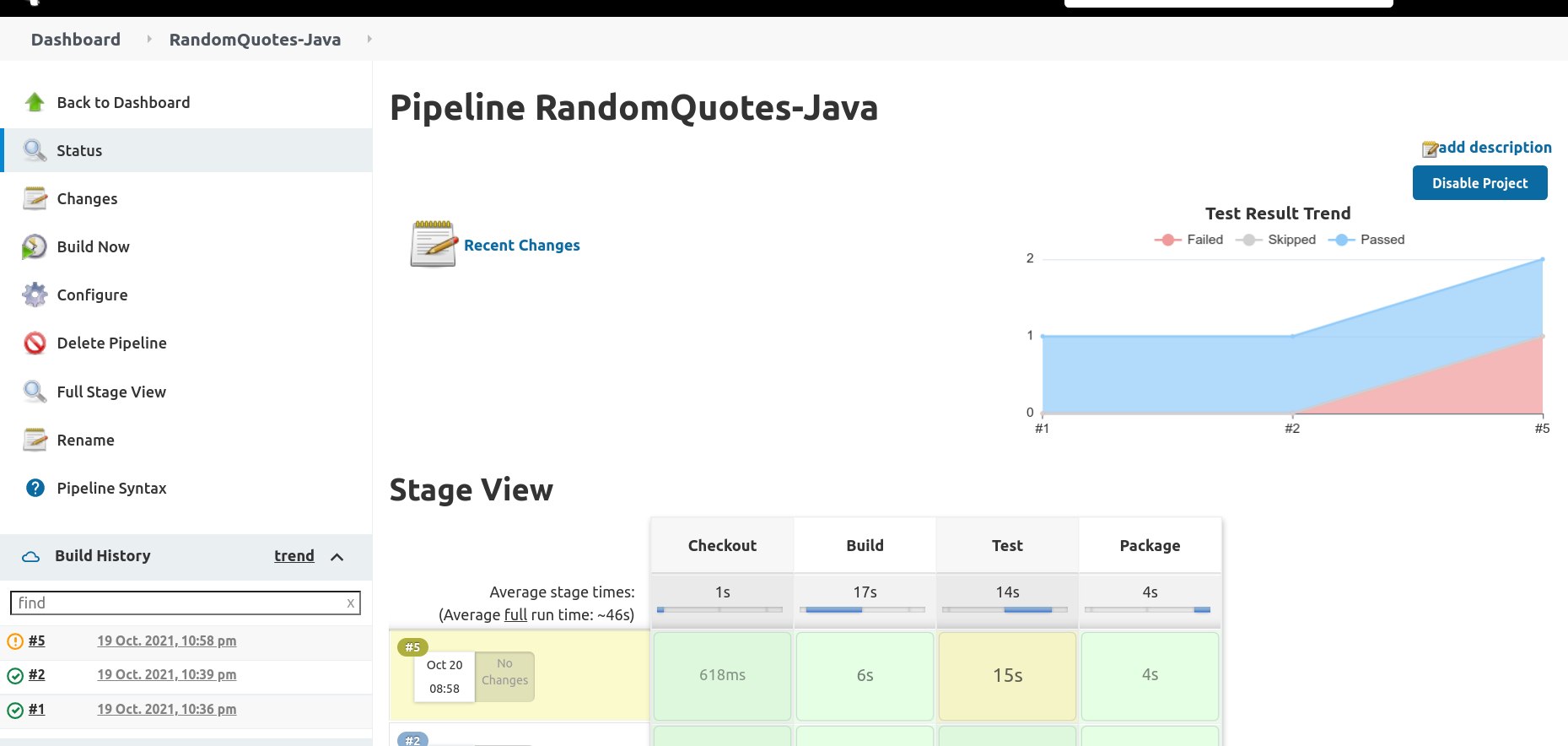

This branch has tests that always fail. Builds from this branch are marked as unstable, and the Test Result Trend graph shows a new failing test:

Failing Tests

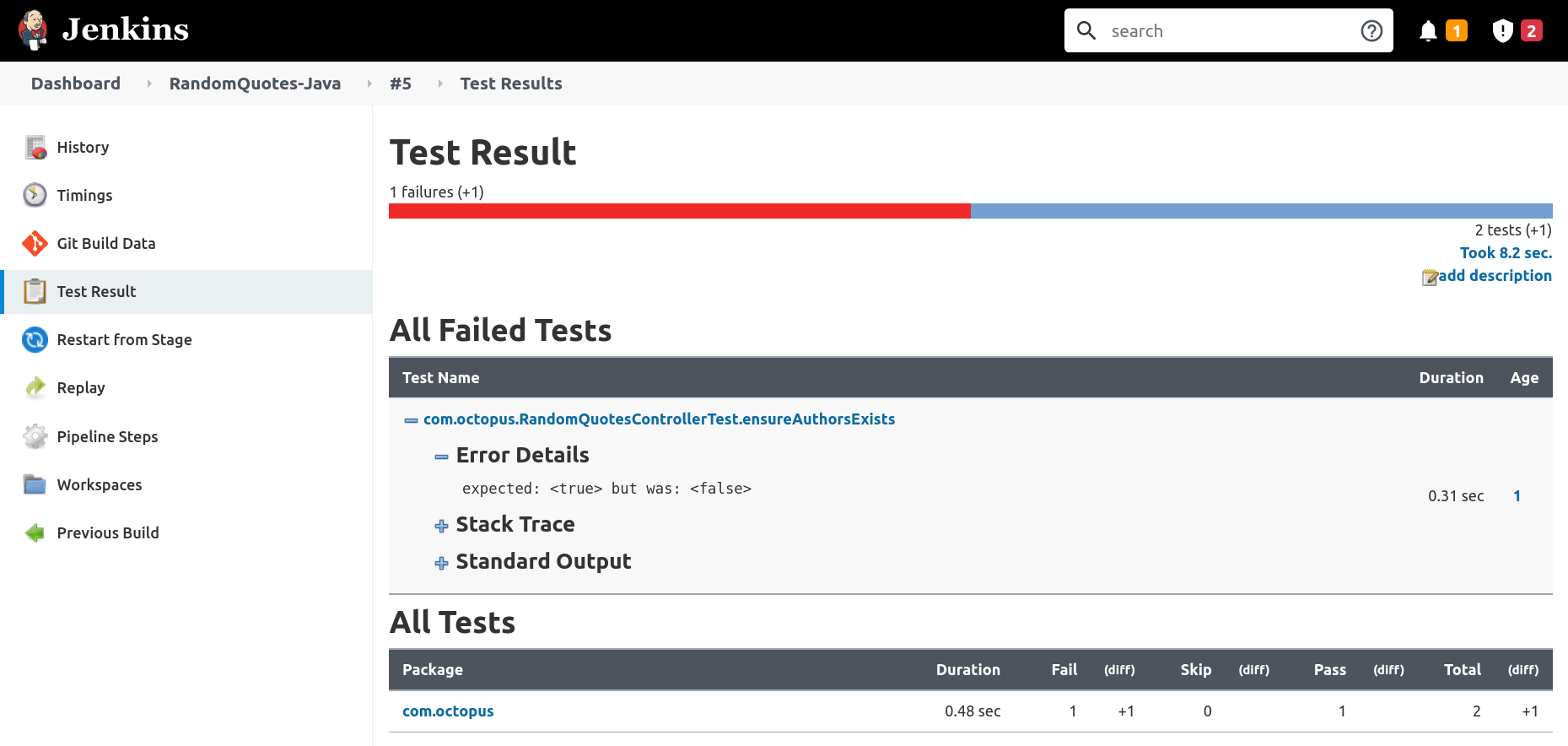

To view the details of the tests, click into the build task and click the Test Result link. Here you can drill into each test, view the test result, and view the logs:

Test results

Claiming failed tests

The example pipelines above have gone to some lengths to allow builds to succeed when tests are failing. This ensures the test results are processed by the JUnit or MSTest plugins even when tests fail. However, it's expected that test failures are still addressed by the engineering team. The Claim plugin provides the ability for Jenkins users to claim responsibility for failed tests.

The pipeline below allows failed tests to be claimed:

pipeline {
  // This pipeline requires the following plugins:
  // * Git: https://plugins.jenkins.io/git/
  // * Workflow Aggregator: https://plugins.jenkins.io/workflow-aggregator/
  // * JUnit: https://plugins.jenkins.io/junit/
  // * Claim: https://plugins.jenkins.io/claim/
  agent 'any'
  options{
    // This option allows broken builds to be claimed
    allowBrokenBuildClaiming()
  }
  stages {
    stage('Checkout') {
      steps {
        script {
            checkout([$class: 'GitSCM', branches: [[name: '*/failing-test']], userRemoteConfigs: [[url: 'https://github.com/OctopusSamples/RandomQuotes-Java.git']]])
        }
      }
    }
    stage('Test') {
      steps {
        sh(script: './mvnw --batch-mode -Dmaven.test.failure.ignore=true test')
      }
    }
    stage('Package') {
      steps {
        sh(script: './mvnw --batch-mode package -DskipTests')
      }
    }
  }
  post {
    always {
      // The testDataPublishers argument allows failed tests to be claimed
      junit(testDataPublishers: [[$class: 'ClaimTestDataPublisher']], testResults: 'target/surefire-reports/*.xml', allowEmptyResults : true)
    }
  }
}

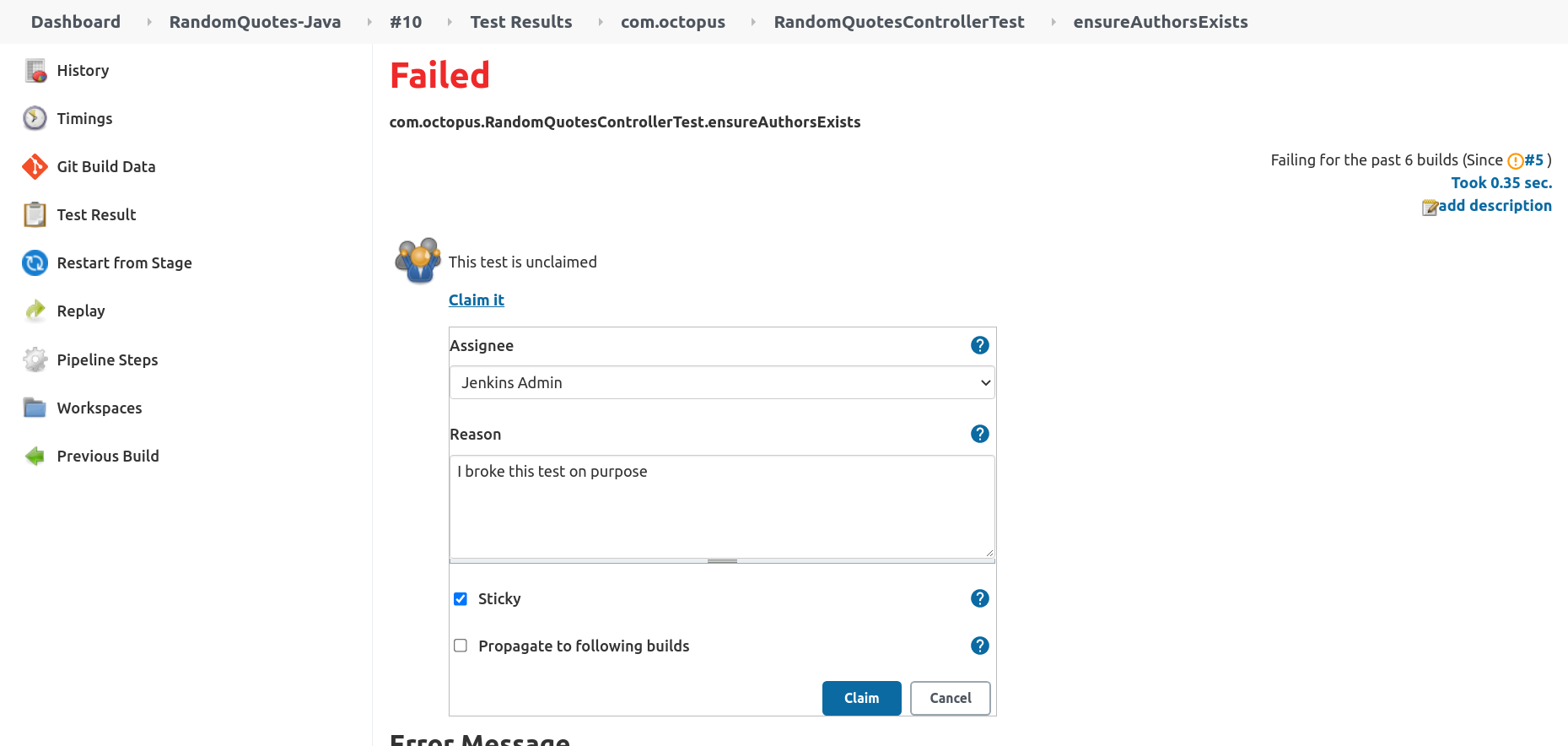

Failed tests can be claimed through the Test Result screen:

Claim Test

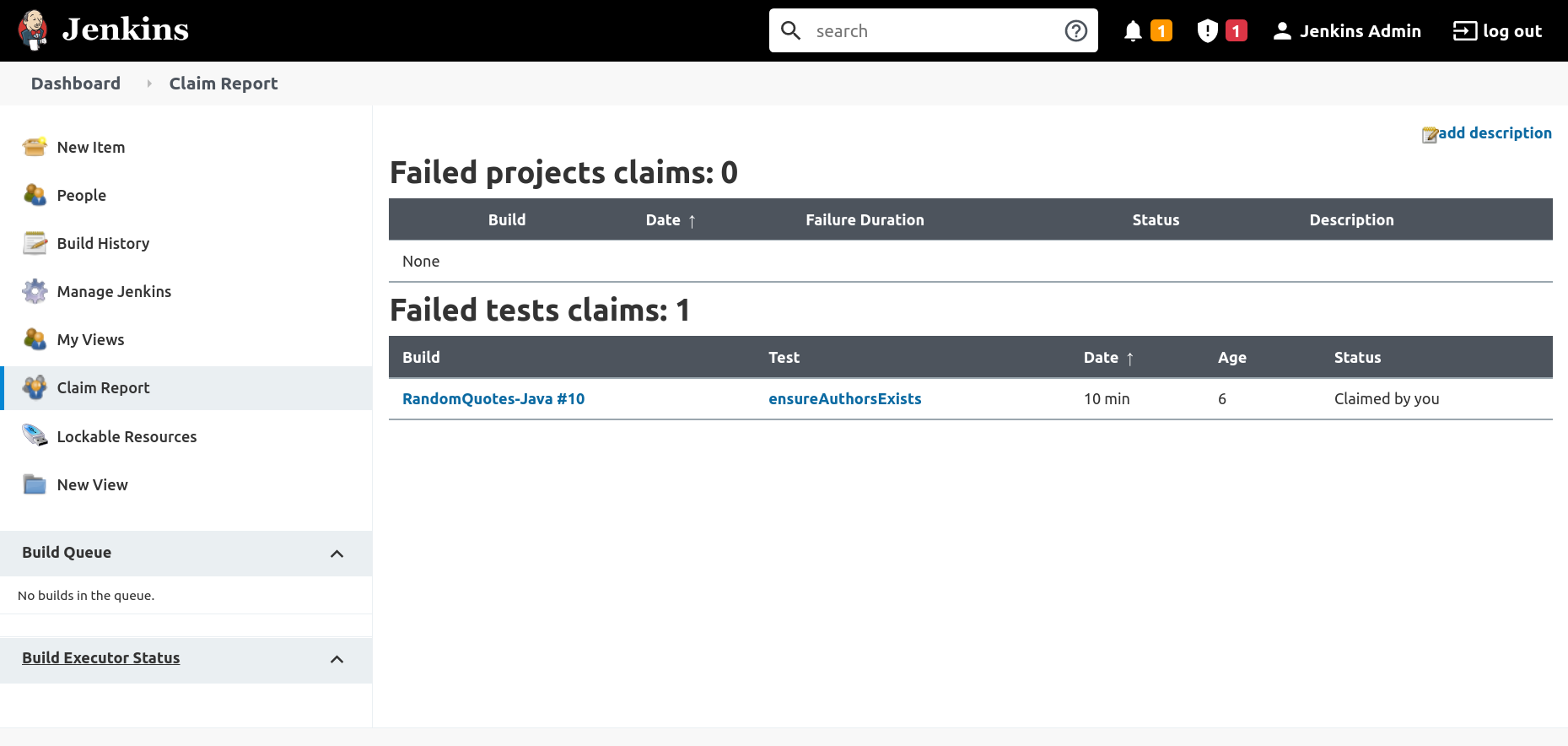

A global report of all claims can be found by opening the Claim Report link:

Claim Report

Failing the build when tests fail

You may require that builds fail rather than being marked as unstable in the event of a test failure. You generally have 2 options to achieve this:

  • Failing the test command
  • Failing the test processing

Failing the test command

The first option allows the command that ran the tests to fail. Most test runners will return a non-zero exit code if tests fail, which in turn will cause the build to fail.

You can use the following Maven command execute tests and return a non-zero exit code if any fail. The absence of the -Dmaven.test.failure.ignore=true argument reverts the command to its default behavior:

sh(script: './mvnw --batch-mode test')

The following DotNET Core command also returns a non-zero exit code if any test fails. The absence of the || true command chain ensures the dotnet exit code is returned:

sh(script: 'dotnet test -l:trx')

Failing the test processing

The second option allows the test processor to determine if the build failed or not.

The MSTest plugin provides the failOnError argument to fail the step if any tests fail:

mstest(testResultsFile: '**/*.trx', failOnError: true, keepLongStdio: true)

Unfortunately, the JUnit plugin does not have the ability to fail a build based on the test results.

An alternative is to use the xUnit plugin, which supports thresholds for skipped and failed tests.

The example pipeline below replaces the JUnit plugin with xUnit:

pipeline {
  // This pipeline requires the following plugins:
  // * Git: https://plugins.jenkins.io/git/
  // * Workflow Aggregator: https://plugins.jenkins.io/workflow-aggregator/
  // * xUnit: https://plugins.jenkins.io/xunit/
  // * Claim: https://plugins.jenkins.io/claim/
  agent 'any'
  options {
    allowBrokenBuildClaiming()
  }
  stages {
    stage('Checkout') {
      steps {
        script {
            checkout([$class: 'GitSCM', branches: [[name: '*/failing-test']], userRemoteConfigs: [[url: 'https://github.com/OctopusSamples/RandomQuotes-Java.git']]])
        }
      }
    }
    stage('Test') {
      steps {
        sh(script: './mvnw --batch-mode -Dmaven.test.failure.ignore=true test')
      }
    }
    stage('Package') {
      steps {
        sh(script: './mvnw --batch-mode package -DskipTests')
      }
    }
  }
  post {
    always {
      xunit (testDataPublishers: [[$class: 'ClaimTestDataPublisher']], thresholds: [ skipped(failureThreshold: '0'), failed(failureThreshold: '0')], tools: [[$class: 'JUnitType', pattern: '**/surefire-reports/*.xml']])
    }
  }
}

The example pipeline below replaces the MSTest plugin with xUnit:

pipeline {
  // This pipeline requires the following plugins:
  // * Git: https://plugins.jenkins.io/git/
  // * Workflow Aggregator: https://plugins.jenkins.io/workflow-aggregator/
  // * xUnit: https://plugins.jenkins.io/xunit/
  // * Claim: https://plugins.jenkins.io/claim/
  agent 'any'
  options {
    allowBrokenBuildClaiming()
  }
  stages {
    stage('Environment') {
      steps {
          echo "PATH = ${PATH}"
      }
    }
    stage('Checkout') {
      steps {

        script {
            checkout([$class: 'GitSCM', branches: [[name: '*/failing-tests']], userRemoteConfigs: [[url: 'https://github.com/OctopusSamples/RandomQuotes.git']]])
        }
      }
    }
    stage('Dependencies') {
      steps {
        sh(script: 'dotnet restore')
      }
    }
    stage('Build') {
      steps {
        sh(script: 'dotnet build --configuration Release', returnStdout: true)
      }
    }
    stage('Test') {
      steps {
        sh(script: 'dotnet test -l:trx || true')
      }
    }
  }
  post {
    always {
      xunit (testDataPublishers: [[$class: 'ClaimTestDataPublisher']], thresholds: [ skipped(failureThreshold: '0'), failed(failureThreshold: '0')], tools: [[$class: 'MSTestJunitHudsonTestType', pattern: '**/*.trx']])
    }
  }
}

Conclusion

Unit tests are common in most large code bases. By executing unit tests in Jenkins the development team has a central source of truth reporting the current and historical test results.

In this post, you learned:

  • How to run tests in Java and DotNET Core code bases
  • How to collect and process the test results with the JUnit, MSTest, and xUnit plugins
  • How to allow Jenkins users to claim failed tests to indicate they'll take responsibility for them
  • How to fail a build when the tests fail

Try our free Jenkins Pipeline Generator tool to create a Pipeline file in Groovy syntax. It's everything you need to get your Pipeline project started.

Watch our Jenkins Pipeline webinar

We host webinars regularly. See the webinars page for details about upcoming events, and live stream recordings.

Read the rest of our Continuous Integration series.

Happy deployments!
