Exploring the managed instance and space patterns

In the previous post, you learned how to deploy the enterprise patterns reference implementation. This created and configured an Octopus instance complete with all the resources to show the "managed space per business unit/application" and "managed instance per business unit/region" patterns.

In this post, we'll walk through the implementation of these patterns.

Support Levels

The process presented in this post is part of a pilot program to support platform engineering teams. It incorporates tools with varying levels of official support. The Octopus support team will make reasonable endeavors to help customers that wish to use this process. However, existing support Service Level Agreements (SLAs) do not apply to many of the tools described below.

Managed spaces versus managed instances

The enterprise patterns distinguish between the concept of a managed space and a managed instance. This is because spaces have subtle, yet significant, differences in functionality to instances. Here are the specific differences:

• Spaces on a shared instance all share the same task queue, whereas multiple instances have their own independent task queues.
• An individual Octopus instance (standalone or part of a HA cluster) must have a low latency connection to the database. This effectively limits the physical location of an Octopus instance, and the spaces it contains, to a single location. You need multiple Octopus instances to co-locate regionally disperse users and targets with an Octopus instance.
• It's often easier to satisfy the security requirements of standards like PCI using separate Octopus instances.

However, from a management point of view, it often makes no difference if you manage a separate space or a separate instance. The Octopus REST API performs all management, which means a space or an instance is simply represented by a URL and API key. There are, of course, many subtle differences that may complicate multi-instance management, including things like regional networking and firewalls. But the processes described in this post apply equally well to managing multiple spaces and multiple instances. And the reference implementation demonstrates the management of multiple spaces via configurable URLs and API keys that you can modify to support multiple instances.

Managed instance per environment vs managed spaces/instances

The "managed instance per environment" pattern describes the process of promoting projects between spaces representing environments like development, test, and production. Teams use this pattern to validate their project changes in a development environment, and they promote the changes to spaces or instances representing more stable environments.

In practice, the "managed instance per environment" pattern is a specialization of the "managed space per business unit/application" and "managed instance per business unit/region" patterns, where you model each environment as a space or instance. The first environment (typically called development) takes the role of the management space, where you iterate on template projects. After you're ready to promote the changes, you apply them to the subsequent environments (such as test and production), which you treat as managed spaces.

The Development and Test/Production spaces in the reference implementation provide an example of the "managed instance per environment" pattern.

Library variable sets and tenants representing managed spaces

The first step to managing spaces and instances is to capture the details required to connect to the Octopus REST API. To do this, we'll use a combination of library variable set variable templates and tenants.

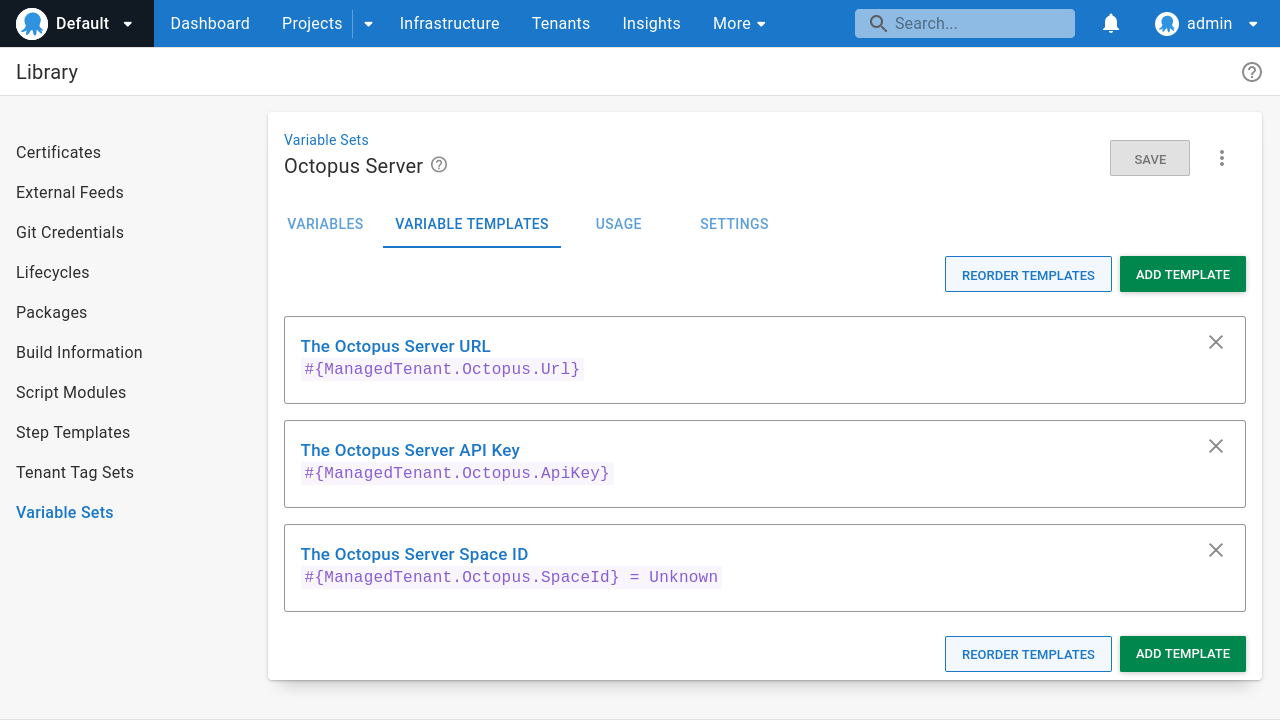

Variable templates in library variable sets provide a way to define a set of variables that a tenant must define. We'll create a library variable set called Octopus Server with 3 variable templates:

• ManagedTenant.Octopus.Url capturing the URL of the Octopus instance hosting the managed space.
• ManagedTenant.Octopus.ApiKey capturing the API key used to access the REST API.
• ManagedTenant.Octopus.SpaceId capturing the ID of the managed space.

Each managed space is then represented by a Tenant. Tenants connected to projects that link the Octopus Server library variable set then have the ability to define values for the variable templates.

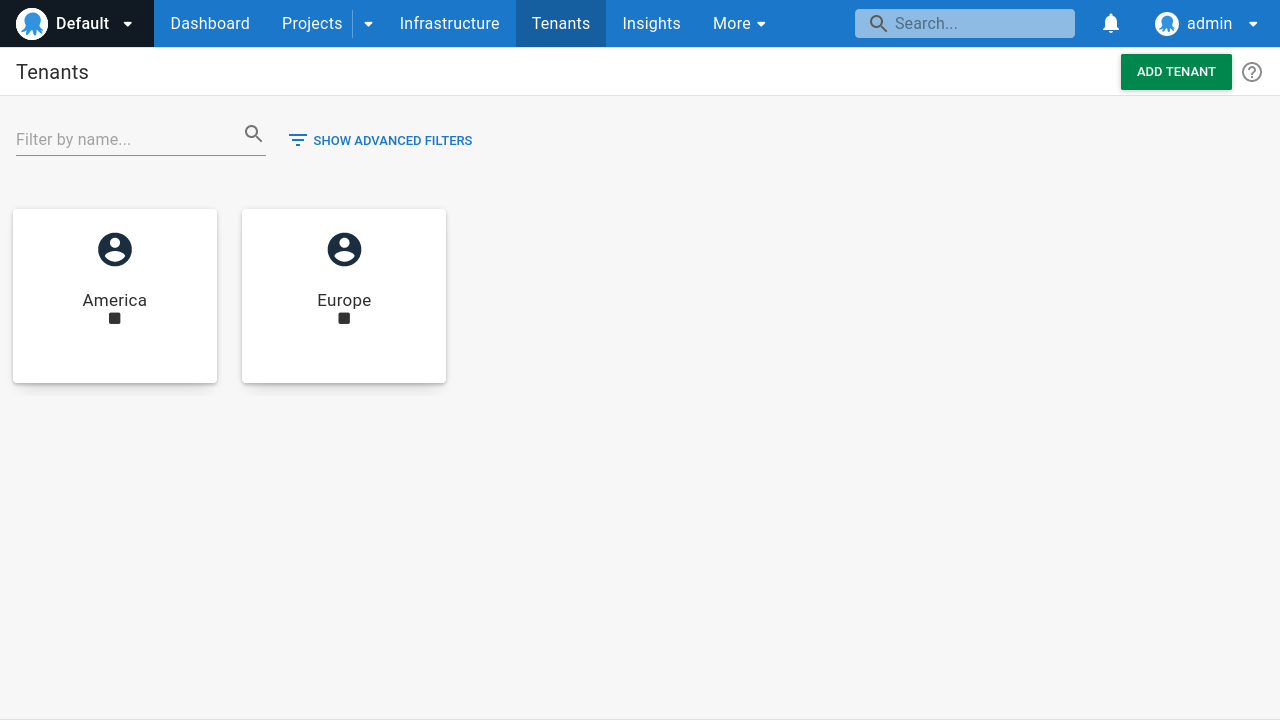

The next step is to define tenants for each managed space. The reference implementation defines two regional tenants called America and Europe:

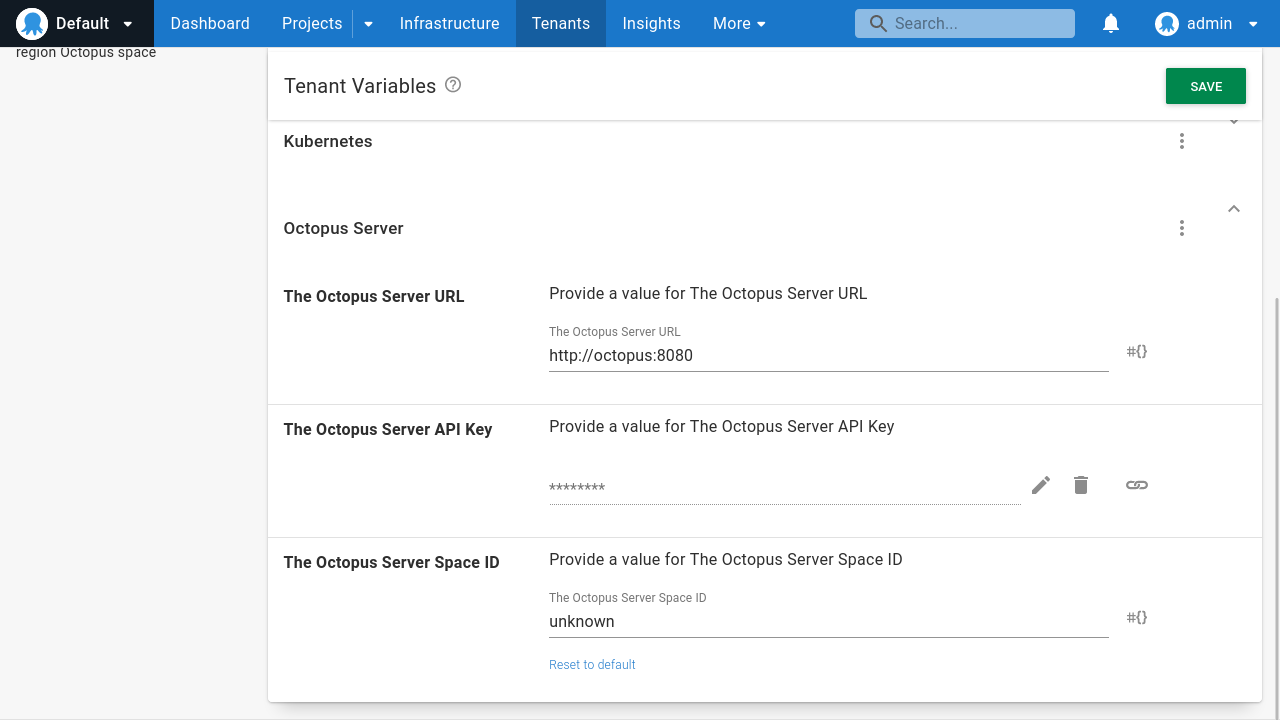

Note that you may not know the ManagedTenant.Octopus.SpaceId value just yet, as the space may not exist. This is fine, and you can define a placeholder value before you know the final value:

Creating managed spaces

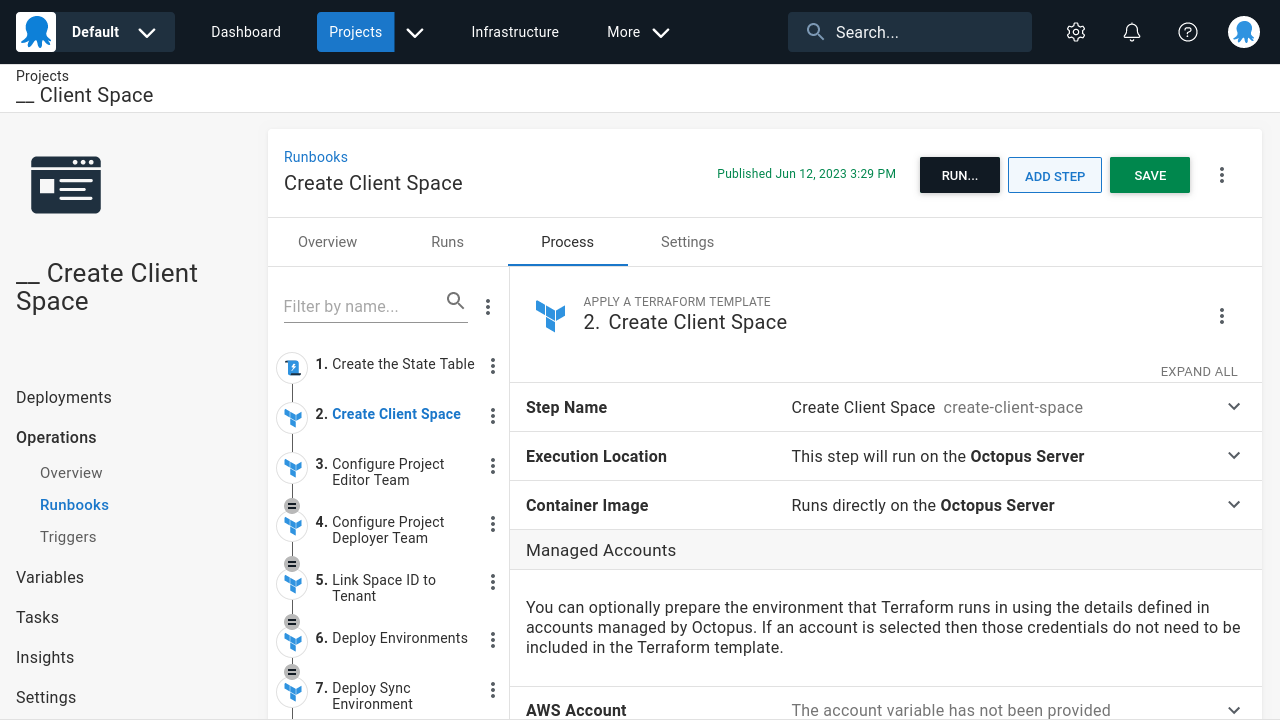

The next step is to create a runbook to create managed spaces for each tenant. The reference implementation defines a tenanted runbook called Create Client Space in the __ Client Space project:

This runbook makes use of the Octopus Terraform provider to create the new space as part of a Apply a Terraform template step:

See the Terraform configuration to create a new space below:

terraform {
  required_providers {
    octopusdeploy = { source = "OctopusDeployLabs/octopusdeploy", version = "0.12.1" }
  }

  backend "pg" {
    conn_str = "postgres://terraform:terraform@terraformdb:5432/database_name?sslmode=disable"
  }
}

You define the Terraform variables with the following values:

• octopus_server set to #{ManagedTenant.Octopus.Url}
• octopus_apikey set to #{ManagedTenant.Octopus.ApiKey}
• space_name set to #{Octopus.Deployment.Tenant.Name}

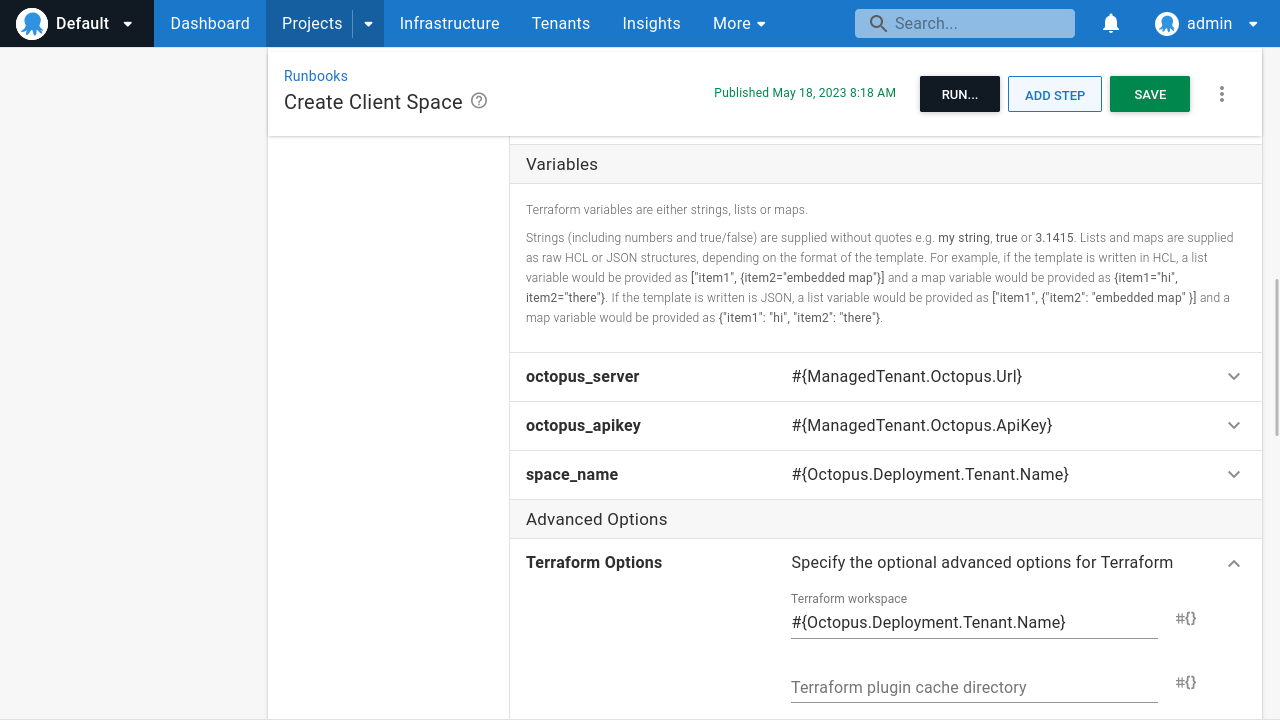

The Terraform workspace is also set to the tenant name of #{Octopus.Deployment.Tenant.Name}:

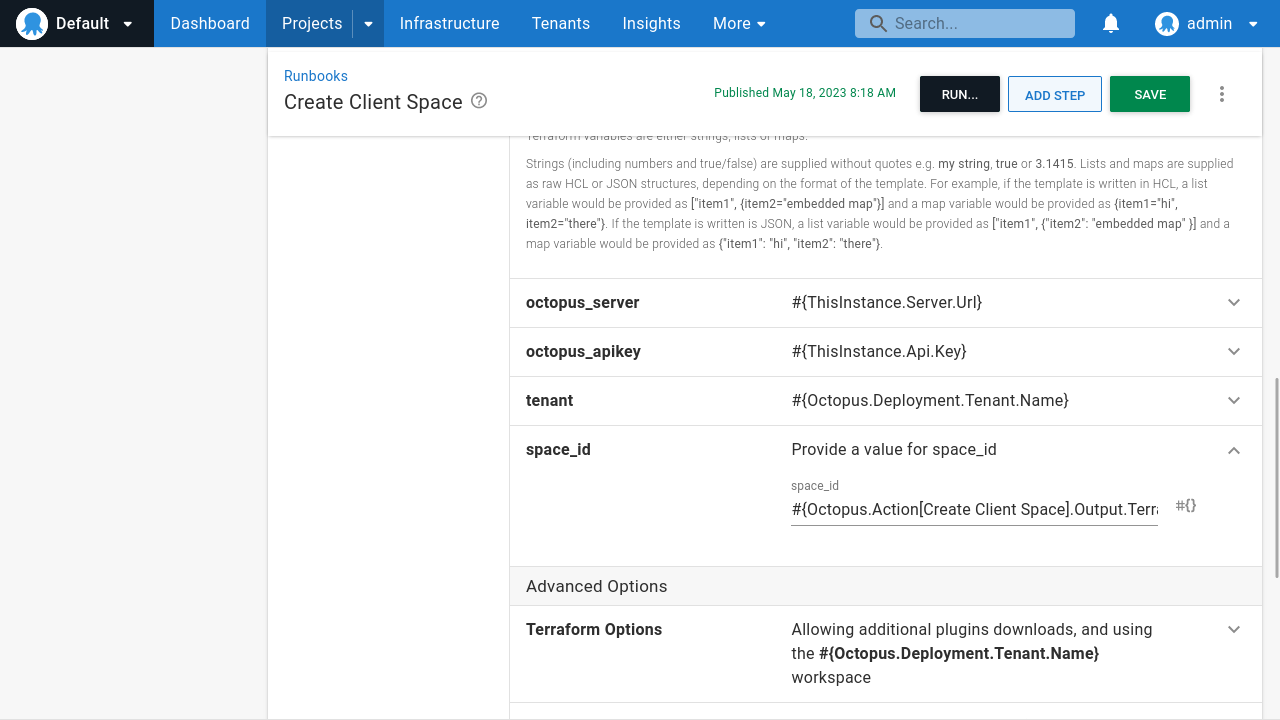

After you create the space, the new space ID must be set back in the tenant variables. If you recall from earlier, this was set to a dummy value because you didn't know the value.

The Terraform configuration below sets the value of the ManagedTenant.Octopus.SpaceId tenant variable:

Terraform output variables are automatically converted to Octopus output variables . This allows subsequent steps to consume the value. This lets you pass the space_id Terraform output variable, captured as the Octopus output variable #{Octopus.Action[Create Client Space].Output.TerraformValueOutputs[space_id]}, to the space_id variable in the configuration above:

Populating managed spaces

After you create the space, you must populate it with common global resources required to support the template projects that you'll eventually create in the space. At a minimum, these global resources include:

• Environments
• Lifecycles
• Git Credentials
• Feeds

This Terraform configuration creates the standard environments:

This Terraform configuration creates the lifecycle:

This Terraform configuration creates the shared Git credentials:

This Terraform configuration creates the DockerHub feed:

These resources are the minimum required to support the projects that you'll deploy to the managed space to support a simple "Hello World" style deployment project.

You will note, however, that the reference implementation goes beyond these steps to configure resources like teams, additional feeds, project groups, and library variable sets. These additional resources support more complex deployments to cloud platforms with associated runbooks to automate common management and support tasks.

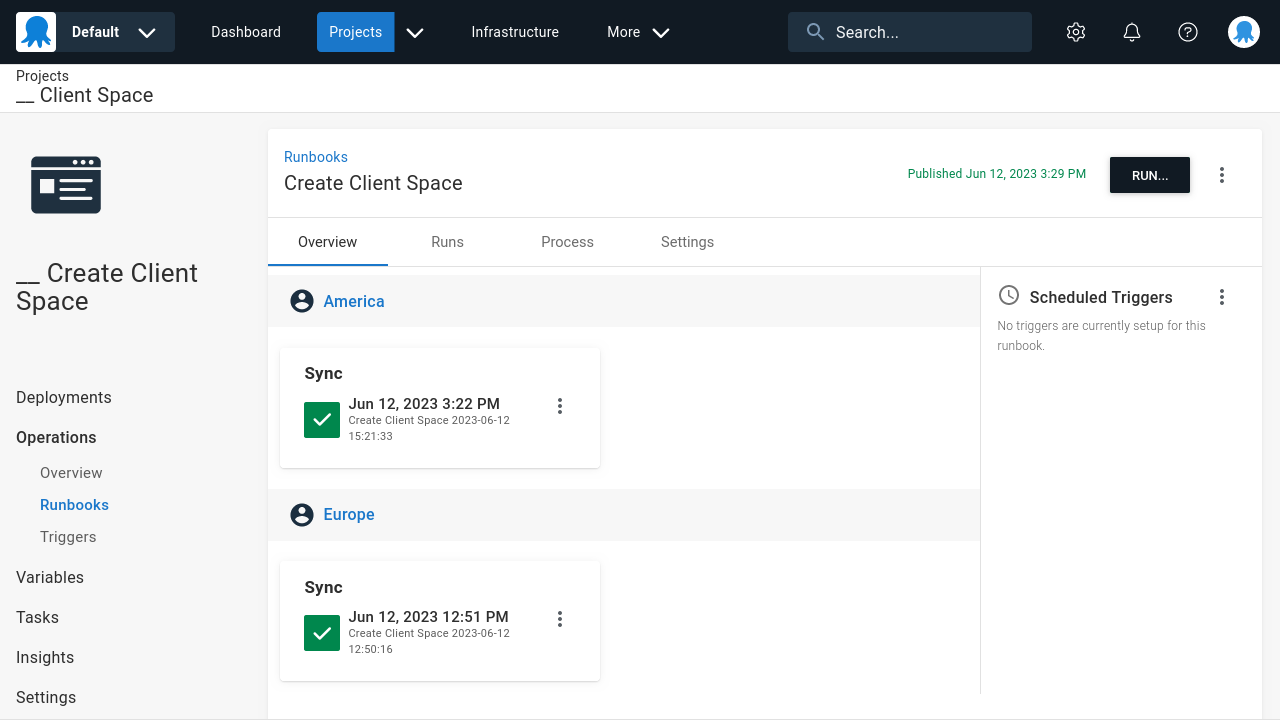

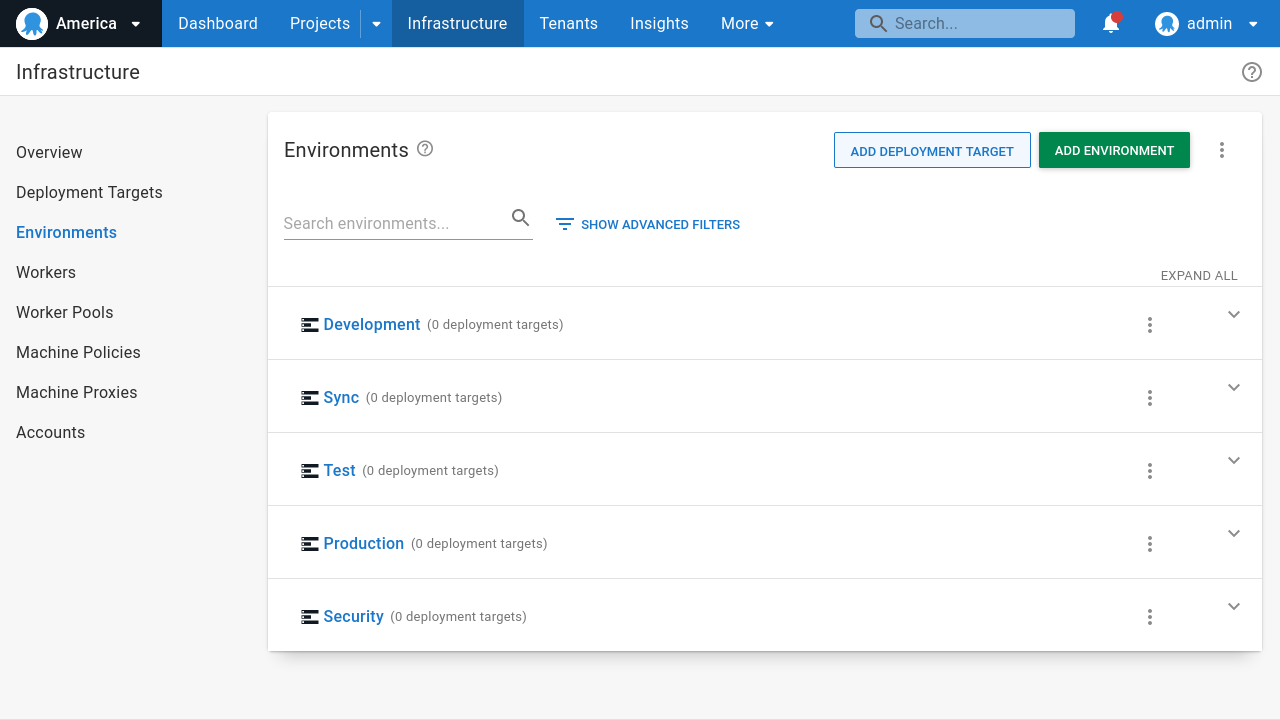

Executing the Create Client Space runbook against a tenant creates the new space on the managed Octopus instance, complete with all the common global resources required to support future managed projects. Here we see the America managed space with the global environments created:

Creating a template project

You're now ready to create the template of a project to deploy to your managed spaces. The sample project, called Hello World, defines 2 script steps and defines a handful of variables to demonstrate common scenarios that teams will likely encounter when deploying projects to managed spaces.

Deciding whether to template the templates

The reference implementation creates the template projects in the Default space with Terraform, and you can see the configuration files required to create the Hello World upstream project below. The reference implementation had no choice but to "template the templates" as we designed it to create a complete stack from scratch.

However, it's up to you if you want to create these upstream projects by hand or define them with Terraform.

The purpose of the upstream projects is two-fold:

1. To provide a source Octopus resource to be serialized into a Terraform module.
2. To provide the ability to edit and test projects directly in the Octopus UI before deploying them to managed spaces.

There's no requirement that you manage these template projects with Terraform. I'd expect most teams to manually create and edit these projects in Octopus.

Creating the Hello World project

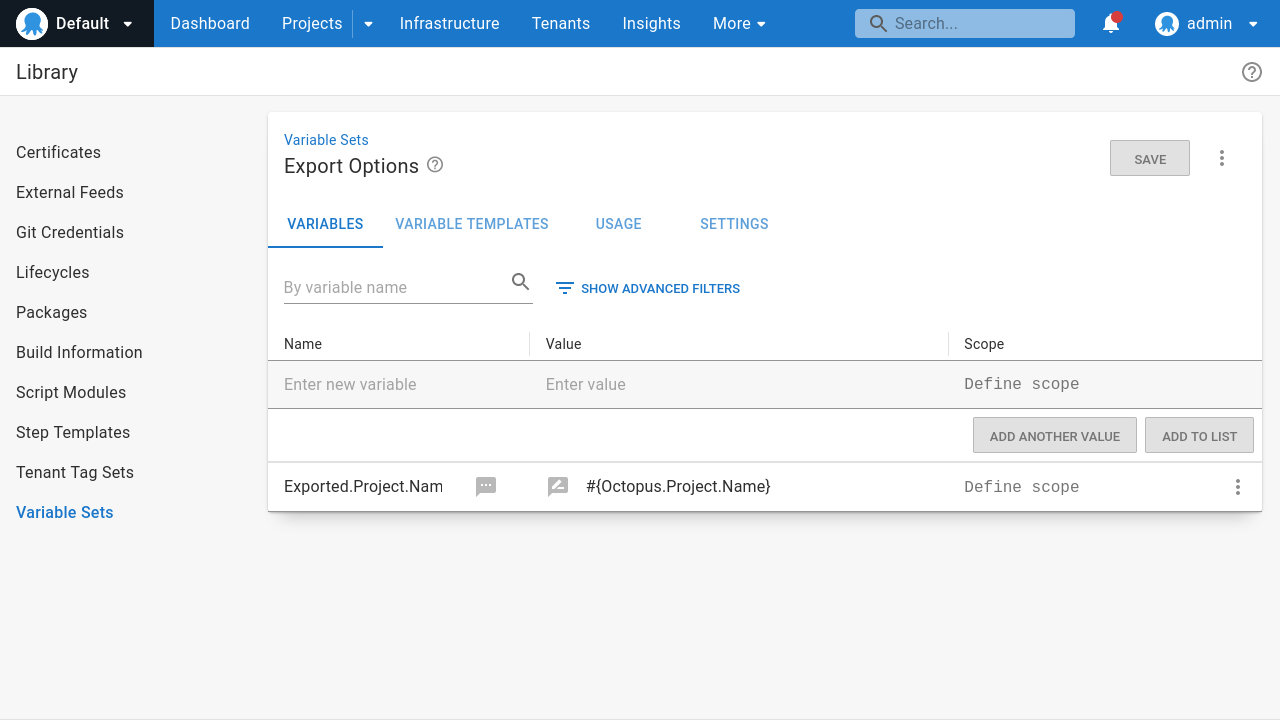

The project will reference a library variable set called Export Options. The purpose of this library variable set is to define variables used by the management runbooks (which we'll cover later). But you shouldn't include that when serializing the project to a Terraform module.

You use a library variable set rather than a project variable because it's trivial to exclude a library variable set when exporting a project. However, for Config as Code enabled projects, it's far more difficult to exclude individual project variables as they're committed directly to a Git repository and inherited by any forked repositories.

This is the Terraform configuration to create the Export Options library variable set:

This is the Terraform configuration to create the sample project:

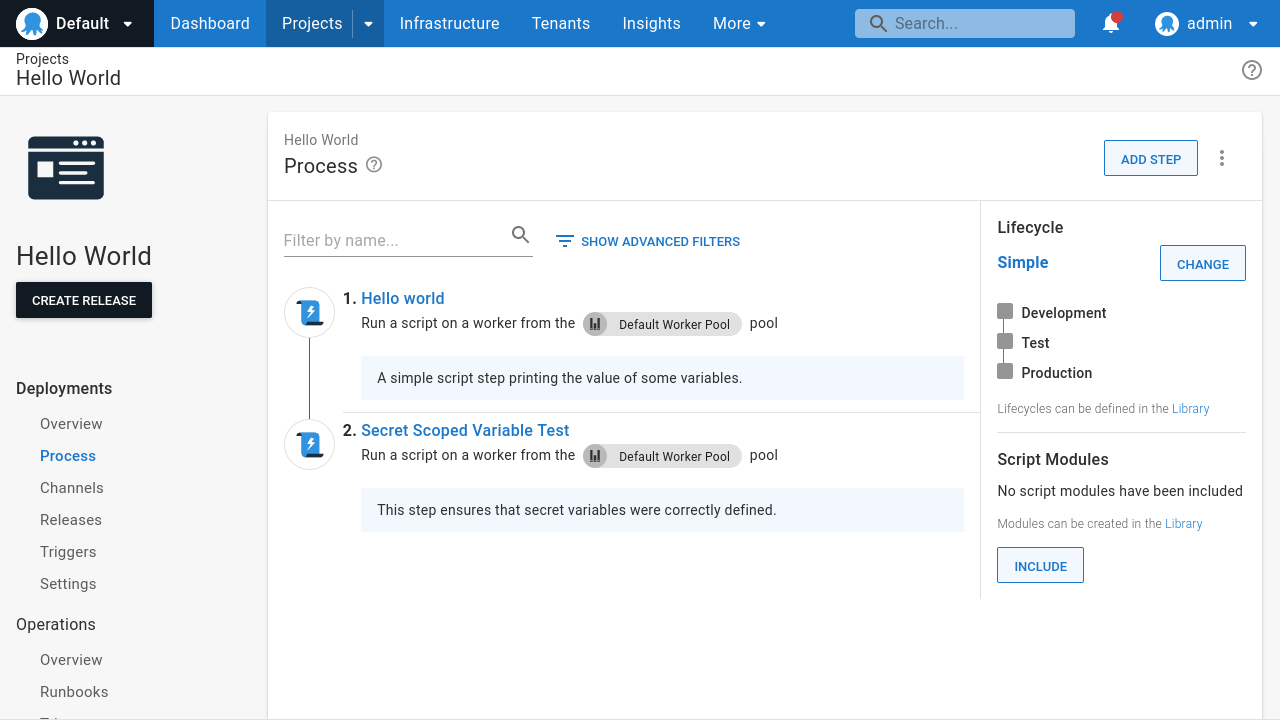

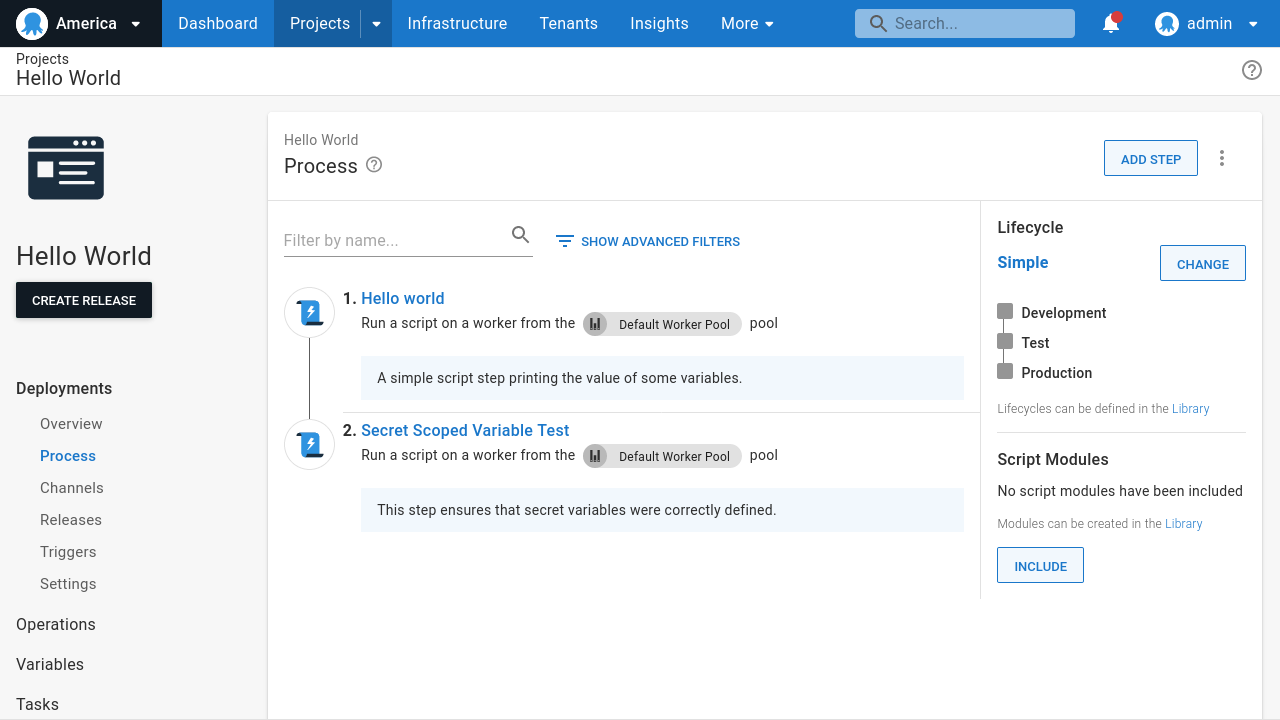

The end result of applying these Terraform configuration files is a simple project called Hello World with 2 steps:

It's important to understand that this template project isn't special. You can execute and test it in the management space and edit the steps and variables like normal.

The ability to serialize this project to a Terraform module and deploy it to managed spaces is implemented by the management runbooks attached in the next section.

Creating the management runbooks

You require 2 runbooks to turn this regular project into a template project:

1. The first serializes the project to a Terraform module.
2. The second deploys the Terraform module to a managed space.

The first runbook, called __ 1. Serialize Project, does the following:

1. Executes an open source tool called octoterra to serialize the project to a Terraform module.
2. Packages the Terraform module as a zip file with the Octopus CLI.
3. Pushes the zip file to the management space built-in feed.

The Python script shown below implements this process:

The Terraform module created by octoterra exposes 3 variables you need to define when applying the module:

1. octopus_server which defines the Octopus server that Terraform will connect to.
2. octopus_space_id which defines the space ID that Terraform will populate.
3. octopus_apikey which defines the Octopus API key Terraform uses when interacting with the Octopus API.

octoterra implements a number of conventions to allow the downstream project to be customized as it's applied.

An example of this is an optional variable called project_hello_world which can be overridden to define the name of the downstream project. If this variable is not defined, it defaults to the name of the upstream project.

Another example is that sensitive values are defined in files starting with the prefix project_variable_sensitive. This is significant because Octopus can replace Octostache template syntax in selected files before applying the Terraform module. You take advantage of this by passing octoterra the -defaultSecretVariableValues argument, which sets the default value of any secret variable to the Octostache syntax referencing the project variable.

For example, this is the value of the project_variable_sensitive_hello_world_database_development__password_1.tf file:

variable "hello_world_database_development__password_1" {
  type        = string
  nullable    = false
  sensitive   = true
  description = "The secret variable value associated with the variable Database[Development].Password"
  default     = "#{Database[Development].Password}"
}

resource "octopusdeploy_variable" "hello_world_database_development__password_1" {
  owner_id        = "${octopusdeploy_project.project_hello_world.id}"
  name            = "Database[Development].Password"
  type            = "Sensitive"
  description     = ""
  sensitive_value = "${var.hello_world_database_development__password_1}"
  is_sensitive    = true

  scope {
    actions      = []
    channels     = []
    environments = ["${data.octopusdeploy_environments.environment_development.environments[0].id}"]
    machines     = []
    roles        = null
    tenant_tags  = null
  }
  depends_on = []
  lifecycle {
    ignore_changes = all
  }
}

Note how the Terraform variable defines the value of the Octopus variable. This is another convention that lets you customize the template project when it's applied. Also, note the default value for the Terraform variable is set to the Octostache template syntax #{Database[Development].Password}.

This convention works around the fact that the Octopus API never exposes the value of secret variables. Because all the tooling used to implement the enterprise patterns accesses Octopus via its API, the value of secret variables are not directly accessible. However, by embedding Octostache template syntax into the exported Terraform modules, you can have Octopus inject secret values when applied with the Apply a Terraform template step.

This is why secret variables must be unambiguous (that is, only have a single value) and you must scope them to the Sync environment. Doing so allows the Apply a Terraform template step run in the Sync environment to correctly link up secret values in the exported project Terraform modules.

You will also note that octoterra was called with the -excludeVariableEnvironmentScopes argument set to Sync. This argument excludes any variable environment scope set to the Sync environment. This results in the exported Octopus variable having an environment scope with all environments except Sync, meaning the downstream space does not need to have a Sync environment.

The second runbook, called __ 2. Deploy Project, is a tenanted runbook that applies the Terraform module created by the first runbook via a Apply a Terraform template step with the following settings:

1. The Replace variables in default Terraform files option is disabled.
2. Variables are replaced in files matching the name **/project_variable_sensitive*.tf.
3. The Terraform workspace #{Octopus.Deployment.Tenant.Name | ToLower | Replace "[^a-zA-Z0-9]" "_"}_#{Exported.Project.Name | ToLower | Replace "[^a-zA-Z0-9]" "_"} is used.
4. The apply parameters are set to -var="octopus_server=#{ManagedTenant.Octopus.Url}" -var="octopus_space_id=#{ManagedTenant.Octopus.SpaceId}" -var="octopus_apikey=#{ManagedTenant.Octopus.ApiKey}" -var="project_#{Octopus.Project.Name | ToLower | Replace "[^a-zA-Z0-9]" "_"}_name=#{Exported.Project.Name}".

Note how the variables associated with a tenant (ManagedTenant.Octopus.Url, ManagedTenant.Octopus.SpaceId, and ManagedTenant.Octopus.ApiKey) allow you to deploy the project to any Octopus space, while the variables defined in the Export Options library variable set (Exported.Project.Name) allow you to customize the name of the downstream project.

These 2 runbooks are all you need to turn a regular non-Config as Code project into a template project.

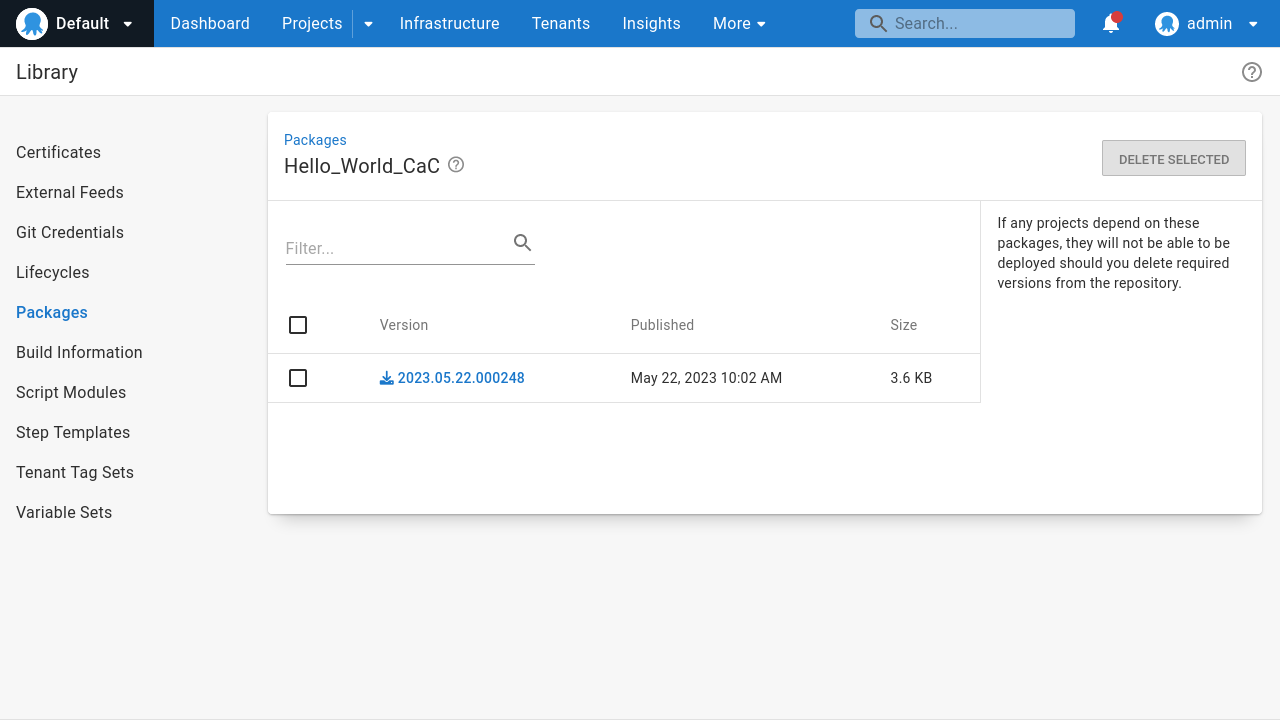

Running the __ 1. Serialize Project runbook creates a Terraform module and uploads it to the built-in feed:

Running the __ 2. Deploy Project runbook applies the Terraform module to the managed space represented by the tenant:

Creating Config as Code Hello World project

The Hello World project created in the previous section is an example of a regular non-Config as Code enabled Octopus project. Config as Code enabled projects let you take advantage of Git-based workflows for template projects, but require some additional steps to your management runbooks to populate the downstream templates.

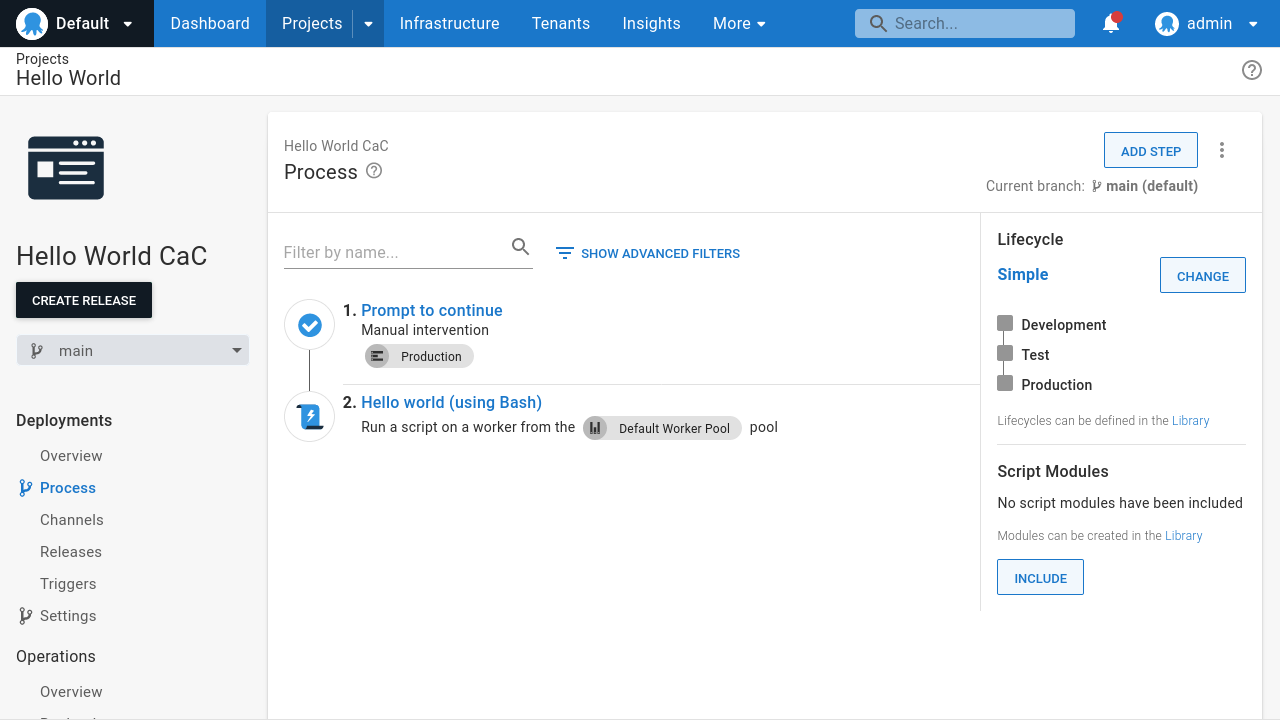

To demonstrate a Config as Code (CaC) template project, create a project called Hello World CaC with 2 steps:

1. A manual intervention step that displays a prompt when a deployment is initiated in the Production environment.
2. A simple script step printing some text to the logs.

Again, there's nothing special about this project. It is a regular Config as Code enabled project, and the deployment process, variables, and other settings can be freely edited in the Octopus UI.

As before, we have 2 management runbooks to serialize the project to a Terraform module and apply the module to the managed space.

The first runbook, __ 1. Serialize Project, is the same as described in the previous section.

The second runbook, called __ 2. Fork and Deploy Project, does the following:

1. Fork the upstream Config as Code Git repository into a new downstream Git repository.
2. Apply the Terraform module created by the __ 1. Serialize Project runbook.

The process of forking a Git repository depends on the git platform you're using. It usually requires creating a new Git repository, adding a new remote upstream to reference the upstream repository, performing a hard reset on the downstream repository, and pushing the results.

The script below runs through the process for repositories hosted by Gitea:

After you fork the repository, you can apply the template project can in the managed space. This is largely similar to the process described in the previous section, using the Apply a Terraform template step to apply the Terraform module created by the __ 1. Serialize Project runbook. One difference is the URL of the Config as Code repository is overridden to point to the newly forked repository by passing the argument -var="project_#{Octopus.Project.Name | ToLower | Replace "[^a-zA-Z0-9]" "_"}_git_url=http://gitea:3000/octopuscac/#{Octopus.Deployment.Tenant.Name | ToLower}_#{Exported.Project.Name | ToLower | Replace "[^a-zA-Z0-9]" "_"}.git".

As before, these 2 runbooks are all you need to turn a regular non-Config as Code project into a template project.

Running the __ 1. Serialize Project runbook creates a Terraform module and uploads it to the built in feed:

Running the __ 2. Fork and Deploy Project runbook forks the Git repository and applies the Terraform module to the managed space represented by the tenant:

Conclusion

In this post, we look at how to represent managed spaces with library variable sets and tenants. We created managed spaces based on the tenants, complete with shared global resources like environments, feeds, git credentials, and project groups. We then created a regular and Config as Code upstream project and attached runbooks that serialized them to Terraform modules, forked the Git repository for Config as Code enabled projects, and applied the Terraform modules to the managed spaces.

This workflow supports very simple implementations of the enterprise patterns where you create template projects push them to managed spaces. However, a more complete implementation of the enterprise patterns requires addressing the full lifecycle of managed spaces, including pushing additional changes made to upstream projects and allowing you to edit downstream projects.

In the next post, we'll dive deeper into how you can maintain projects and synchronize them over time.

We're currently refining our approach to these enterprise patterns, so if you have any suggestions or feedback about the approach described here, please leave a comment on this GitHub issue.

Happy deployments!
