AWS EC2 Auto Scaling groups (ASG) have been the workhorse of cloud deployments for almost as long as we have had the concept of the cloud. ASGs provide teams deploying virtual machines (VMs) with the ability to scale up and down based on demand, and to replace instances that have failed. When combined with load balancers, ASGs can also provide advanced deployment processes such as blue/green deployments.
In this post, we look at how to set up blue/green deployments with ASGs, and how Octopus Deploy can help automate the process.
What are blue/green deployments?
Blue/green deployments involve maintaining two stacks: the blue stack and the green stack. One of these stacks is live, while the other is inactive. When a new version of the application is ready to be deployed, the inactive stack is updated with the new version. Once the update is complete and all health checks pass, the inactive stack becomes the live stack, and the old live stack is deactivated.
Blue/green deployments provide a way to minimize downtime and reduce the risk of a failed deployment. If the new version of the application fails to start, the inactive stack remains offline and the live stack continues to serve traffic. Or, if an issue is detected after deployment, the two stacks can be quickly switched back, reverting to the previous version of the application.
Blue/green deployments with ASGs

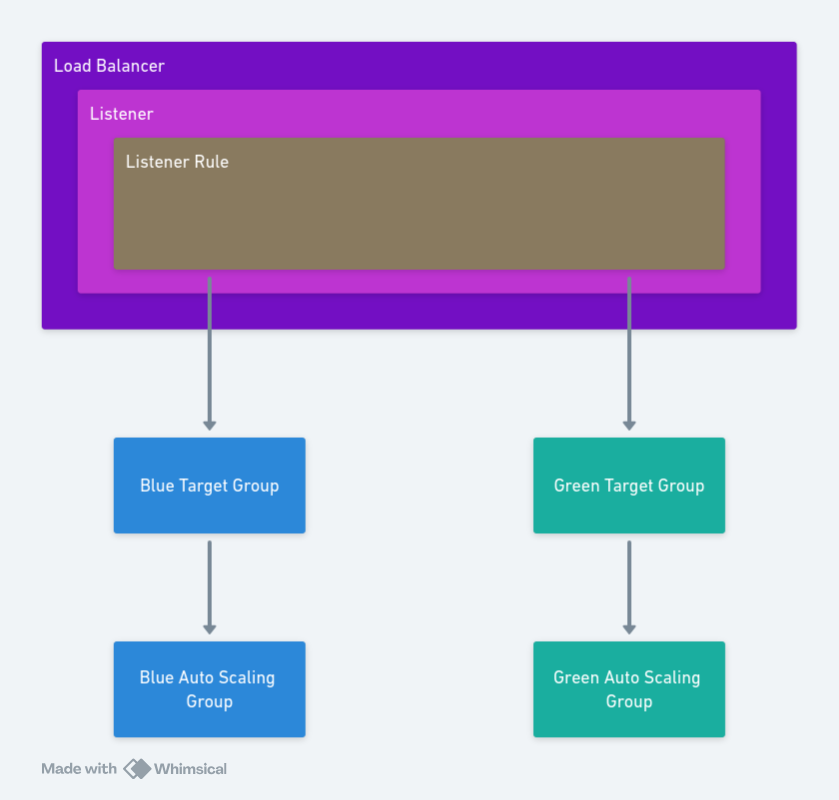

Implementing blue/green deployments with ASGs requires a few key components:
- Two ASGs: one for the blue stack and one for the green stack.
- A Network Load Balancer (NLB) or Application Load Balancer (ALB) with a Listener and Listener Rule to handle network traffic.
- Two target groups: one for the blue stack and one for the green stack.
Listener rules are very flexible and able to distribute traffic to target groups in a variety of ways. However, for blue/green deployments, we assume that either the blue or green target group is receiving 100% of traffic, and that a deployment will switch all traffic from one target group to the other.
Creating the AWS infrastructure
The blue/green deployment presented in this post requires a number of AWS resources to be created.
We first need a Virtual Private Cloud (VPC) with public subnets. These subnets will host our EC2 instances, as well as our load balancer. It also defines a security group allowing HTTP and SSH traffic:
AWSTemplateFormatVersion: 2010-09-09
Resources:
VPC:
Type: AWS::EC2::VPC
Properties:
CidrBlock: 10.0.0.0/16
EnableDnsSupport: true
EnableDnsHostnames: true
InstanceTenancy: default
Tags:
- Key: Name
Value: Test VPC
- Key: OwnerContact
Value: "@matthewcasperson"
- Key: Purpose
Value: Test VPC
InternetGateway:
Type: AWS::EC2::InternetGateway
VPCGatewayAttachment:
Type: AWS::EC2::VPCGatewayAttachment
Properties:
VpcId: !Ref VPC
InternetGatewayId: !Ref InternetGateway
SubnetA:
Type: AWS::EC2::Subnet
Properties:
AvailabilityZone: ap-southeast-2a
VpcId: !Ref VPC
CidrBlock: 10.0.0.0/24
MapPublicIpOnLaunch: true
SubnetB:
Type: AWS::EC2::Subnet
Properties:
AvailabilityZone: ap-southeast-2b
VpcId: !Ref VPC
CidrBlock: 10.0.1.0/24
MapPublicIpOnLaunch: true
RouteTable:
Type: AWS::EC2::RouteTable
Properties:
VpcId: !Ref VPC
InternetRoute:
Type: AWS::EC2::Route
DependsOn: InternetGateway
Properties:
DestinationCidrBlock: 0.0.0.0/0
GatewayId: !Ref InternetGateway
RouteTableId: !Ref RouteTable
SubnetARouteTableAssociation:
Type: AWS::EC2::SubnetRouteTableAssociation
Properties:
RouteTableId: !Ref RouteTable
SubnetId: !Ref SubnetA
SubnetBRouteTableAssociation:
Type: AWS::EC2::SubnetRouteTableAssociation
Properties:
RouteTableId: !Ref RouteTable
SubnetId: !Ref SubnetB
PackerSecurityGroup:
Type: AWS::EC2::SecurityGroup
Properties:
Tags:
- Key: Name
Value: "packer-build-sg"
GroupName: "packer Security Group"
GroupDescription: "Allow HTTP Traffic"
VpcId: !Ref VPC
SecurityGroupIngress:
- IpProtocol: tcp
FromPort: '80'
ToPort: '80'
CidrIp: 0.0.0.0/0
- IpProtocol: tcp
FromPort: '22'
ToPort: '22'
CidrIp: 0.0.0.0/0
SecurityGroupEgress:
- IpProtocol: -1
CidrIp: 0.0.0.0/0
Outputs:
VpcId:
Value: !Ref VPC
Description: VPC ID
SubnetAId:
Value: !Ref SubnetA
Description: SubnetA ID
SubnetBId:
Value: !Ref SubnetB
Description: SubnetB ID
PackerSecurityGroupId:
Value: !Ref PackerSecurityGroup
Description: Security Group ID
Next we create an ALB, a listener, two target groups, and a security group that allows HTTP traffic:
Parameters:
VpcId:
Type: AWS::EC2::VPC::Id
SubnetIdAz1:
Type: AWS::EC2::Subnet::Id
SubnetIdAz2:
Type: AWS::EC2::Subnet::Id
Resources:
LBSecurityGroup:
Type: AWS::EC2::SecurityGroup
Properties:
Tags:
- Key: Name
Value: "lb-sg"
GroupName: "Load Balancer Security Group"
GroupDescription: "Allow HTTP Traffic"
VpcId: !Ref VpcId
SecurityGroupIngress:
- IpProtocol: tcp
FromPort: '80'
ToPort: '80'
CidrIp: 0.0.0.0/0
SecurityGroupEgress:
- IpProtocol: -1
CidrIp: 0.0.0.0/0
MyNLB:
Type: AWS::ElasticLoadBalancingV2::LoadBalancer
Properties:
Name: packer-alb
Type: application
Subnets:
- !Ref SubnetIdAz1
- !Ref SubnetIdAz2
Scheme: internet-facing
SecurityGroups:
- !Ref LBSecurityGroup
LoadBalancerAttributes:
- Key: idle_timeout.timeout_seconds
Value: '60'
GreenTargetGroup:
Type: AWS::ElasticLoadBalancingV2::TargetGroup
Properties:
HealthCheckEnabled: true
HealthCheckIntervalSeconds: 5
HealthCheckPath: /
HealthCheckPort: 80
HealthCheckProtocol: HTTP
HealthCheckTimeoutSeconds: 2
HealthyThresholdCount: 2
Matcher:
HttpCode: 200
Name: OctopusGreenTargetGroup
Port: 80
Protocol: HTTP
TargetType: instance
UnhealthyThresholdCount: 5
VpcId: !Ref VpcId
BlueTargetGroup:
Type: AWS::ElasticLoadBalancingV2::TargetGroup
Properties:
HealthCheckEnabled: true
HealthCheckIntervalSeconds: 5
HealthCheckPath: /
HealthCheckPort: 80
HealthCheckProtocol: HTTP
HealthCheckTimeoutSeconds: 2
HealthyThresholdCount: 2
Matcher:
HttpCode: 200
Name: OctopusBlueTargetGroup
Port: 80
Protocol: HTTP
TargetType: instance
UnhealthyThresholdCount: 5
VpcId: !Ref VpcId
MyListener:
Type: AWS::ElasticLoadBalancingV2::Listener
Properties:
DefaultActions:
- FixedResponseConfig:
StatusCode: 404
Order: 1
Type: fixed-response
LoadBalancerArn: !Ref MyNLB
Port: 80
Protocol: HTTP
MyListenerRule:
Type: AWS::ElasticLoadBalancingV2::ListenerRule
Properties:
Actions:
- ForwardConfig:
TargetGroups:
- TargetGroupArn: !Ref GreenTargetGroup
Weight: 0
- TargetGroupArn: !Ref BlueTargetGroup
Weight: 100
Order: 1
Type: forward
Conditions:
- Field: path-pattern
PathPatternConfig:
Values:
- /*
ListenerArn: !Ref MyListener
Priority: 10
Outputs:
MyNLB:
Description: The ALB
Value: !Ref MyNLB
MyListener:
Description: The ALB listener
Value: !Ref MyListener
MyListenerRule:
Description: The ALB listener rule
Value: !Ref MyListenerRule
BlueTargetGroup:
Description: The blue target group
Value: !Ref BlueTargetGroup
GreenTargetGroup:
Description: The green target group
Value: !Ref GreenTargetGroup
Finally, we create the ASG:
AWSTemplateFormatVersion: 2010-09-09
Parameters:
VpcId:
Type: AWS::EC2::VPC::Id
SubnetIdAz1:
Type: AWS::EC2::Subnet::Id
SubnetIdAz2:
Type: AWS::EC2::Subnet::Id
SecurityGroupId:
Type: AWS::EC2::SecurityGroup::Id
AmiId:
Type: AWS::EC2::Image::Id
GreenTargetGroup:
Type: String
BlueTargetGroup:
Type: String
Resources:
BlueLaunchTemplate:
Type: AWS::EC2::LaunchTemplate
Properties:
LaunchTemplateName: !Sub ${AWS::StackName}-launch-template-blue
LaunchTemplateData:
ImageId: !Ref AmiId
InstanceType: t3.small
SecurityGroupIds:
- !Ref SecurityGroupId
TagSpecifications:
- ResourceType: instance
Tags:
- Key: Name
Value: "Blue instance"
- ResourceType: volume
Tags:
- Key: Name
Value: "Blue volume"
GreenLaunchTemplate:
Type: AWS::EC2::LaunchTemplate
Properties:
LaunchTemplateName: !Sub ${AWS::StackName}-launch-template-green
LaunchTemplateData:
ImageId: !Ref AmiId
InstanceType: t3.small
SecurityGroupIds:
- !Ref SecurityGroupId
TagSpecifications:
- ResourceType: instance
Tags:
- Key: Name
Value: "Green instance"
- ResourceType: volume
Tags:
- Key: Name
Value: "Green volume"
AutoScalingGroupGreen:
Type: AWS::AutoScaling::AutoScalingGroup
Properties:
# These values priorities quickly replacing instances at the expense of availability
InstanceMaintenancePolicy:
MinHealthyPercentage: 0
MaxHealthyPercentage: 100
HealthCheckType: ELB
HealthCheckGracePeriod: 30
DefaultInstanceWarmup: 10
VPCZoneIdentifier:
- !Ref SubnetIdAz1
- !Ref SubnetIdAz2
LaunchTemplate:
LaunchTemplateId: !Ref GreenLaunchTemplate
Version: !GetAtt GreenLaunchTemplate.LatestVersionNumber
MaxSize: '1'
MinSize: '1'
TargetGroupARNs:
- !Ref GreenTargetGroup
AutoScalingGroupBlue:
Type: AWS::AutoScaling::AutoScalingGroup
Properties:
# These values priorities quickly replacing instances at the expense of availability
InstanceMaintenancePolicy:
MinHealthyPercentage: 0
MaxHealthyPercentage: 100
HealthCheckGracePeriod: 10
HealthCheckType: ELB
# Setting this value means new EC2 instances will be marked healthy faster
# https://docs.aws.amazon.com/autoscaling/ec2/userguide/understand-instance-refresh-default-values.html
DefaultInstanceWarmup: 30
VPCZoneIdentifier:
- !Ref SubnetIdAz1
- !Ref SubnetIdAz2
LaunchTemplate:
LaunchTemplateId: !Ref BlueLaunchTemplate
Version: !GetAtt BlueLaunchTemplate.LatestVersionNumber
MaxSize: '1'
MinSize: '1'
TargetGroupARNs:
- !Ref BlueTargetGroup
Outputs:
AutoScalingGroupGreenId:
Value: !Ref AutoScalingGroupGreen
Description: Auto Scaling Group Green ID
AutoScalingGroupBlueId:
Value: !Ref AutoScalingGroupBlue
Description: Auto Scaling Group Blue ID
Building the AMI
The deployable artifact to an ASG is an Amazon Machine Image (AMI). There are many ways to create an AMI, but here will use Packer to automate the process of creating an EC2 instance, configuring it, and then creating an AMI based on the EC2 instance.
The following Packer template creates an EC2 instance, installs Apache, and then creates an AMI:
packer {
required_plugins {
amazon = {
source = "github.com/hashicorp/amazon"
version = "~> 1"
}
}
}
variable "ami_name" {
type = string
default = "packerdemo"
}
variable "aws_region" {
type = string
default = "ap-southeast-2"
}
variable "subnet" {
type = string
}
variable "vpc" {
type = string
}
variable "color" {
type = string
default = "blue"
}
locals {
versioned_ami_name = "${var.ami_name}.${formatdate("YYYY.MM.DD.hhmmss", timestamp())}"
}
data "amazon-ami" "autogenerated_1" {
filters = {
name = "ubuntu/images/*ubuntu-jammy-22.04-amd64-server-*"
root-device-type = "ebs"
virtualization-type = "hvm"
}
most_recent = true
owners = ["099720109477"]
region = "${var.aws_region}"
}
source "amazon-ebs" "AWS_AMI_Builder" {
ami_description = local.versioned_ami_name
ami_name = local.versioned_ami_name
associate_public_ip_address = "true"
ena_support = true
encrypt_boot = false
instance_type = "t3.small"
launch_block_device_mappings {
delete_on_termination = true
device_name = "/dev/sda1"
volume_size = 40
volume_type = "gp3"
}
region = "${var.aws_region}"
run_tags = {
Name = local.versioned_ami_name
}
run_volume_tags = {
Name = local.versioned_ami_name
}
security_group_filter {
filters = {
"tag:Name" = "packer-build-sg"
}
}
snapshot_tags = {
Name = local.versioned_ami_name
}
source_ami = "${data.amazon-ami.autogenerated_1.id}"
ssh_username = "ubuntu"
subnet_id = "${var.subnet}"
tags = {
Name = local.versioned_ami_name
}
vpc_id = "${var.vpc}"
}
build {
sources = ["source.amazon-ebs.AWS_AMI_Builder"]
provisioner "shell" {
inline = [
"#!/bin/bash -e",
"sudo apt-get update",
"sudo apt-get install -y apache2",
"sudo systemctl start apache2",
"current_time=$(date)",
"echo \"<html><body><h1 style=\\\"color: ${var.color}\\\">Hello Octopus!</h1><p>Build time: $current_time</p></body></html>\" | sudo tee /var/www/html/index.html",
"echo \"<Files \"index.html\">\nHeader set Cache-Control \"no-store, no-cache, must-revalidate, max-age=0\"\nHeader set Pragma \"no-cache\"\nHeader set Expires \"0\"\n</Files>\" | sudo tee /var/www/html/.htaccess"
]
pause_before = "10s"
timeout = "10s"
}
}
Deploying the AMI with a blue/green deployment
The previous CloudFormation and Packer templates create the necessary infrastructure in our AWS account. With this infrastructure in place, we can now orchestrate a blue/green deployment with Octopus.

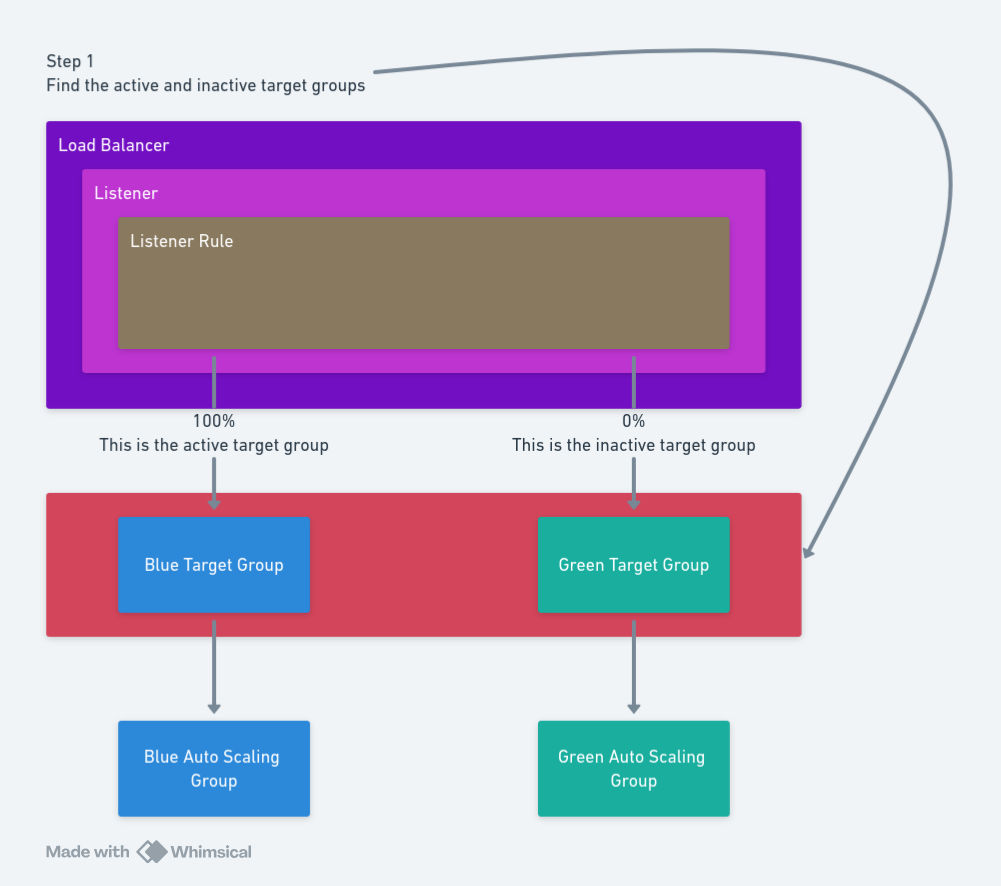

Step 1: Determine the active and inactive target groups
Step 1 is to determine which target group is receiving any network traffic. We assume this target group is the active stack, and the other target group is the inactive stack.
The AWS - Find Blue-Green Target Group step is used to find the active target group in a load balancer. The step requires the following inputs:
Region: The AWS region hosting the load balancer.Account: The AWS account used to query the load balancer.Listener ARN: The ARN of the listener.Blue Target Group ARN: The ARN of the blue target group.Green Target Group ARN: The ARN of the green target group.Rule ARN: The ARN of the listener rule.
The step generates 4 output variables:
ActiveGroupArn: The ARN of the active (or online) target group receiving network traffic.InactiveGroupArn: The ARN of the inactive (or offline) target group not receiving network traffic.ActiveGroupColor: The color of the active target group.InactiveGroupColor: The color of the inactive target group.

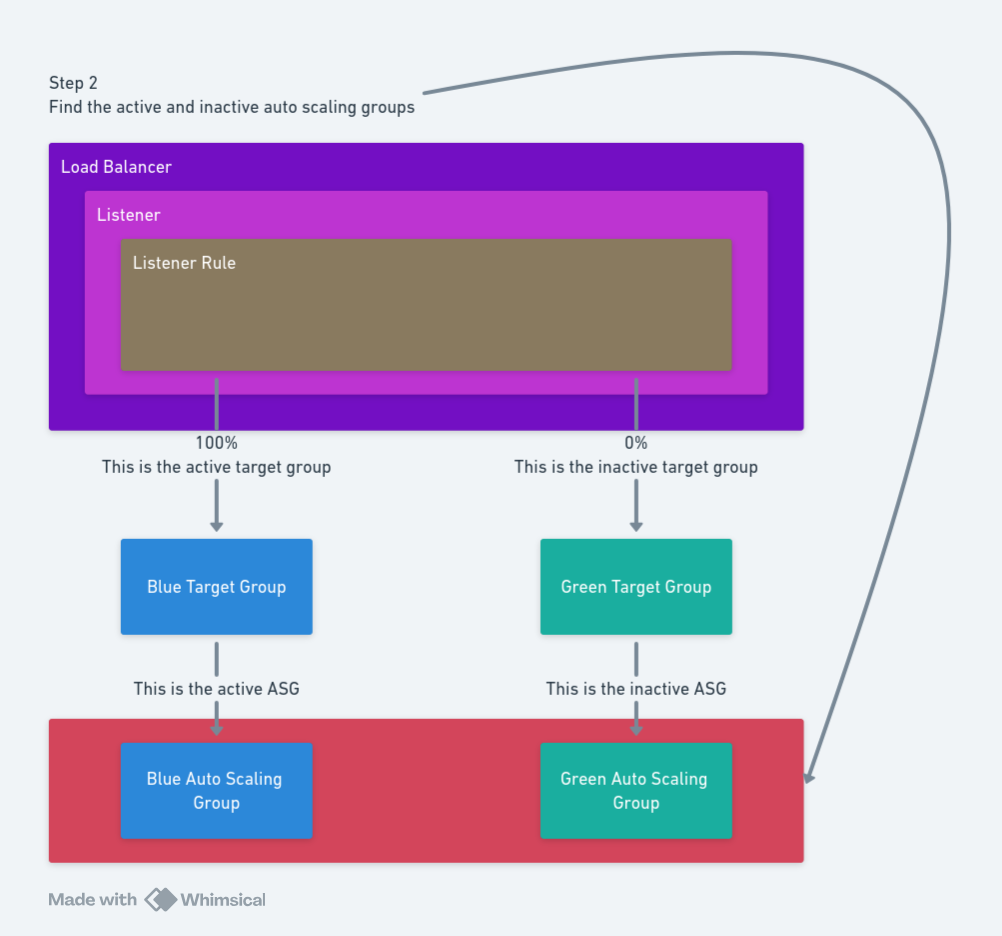

Step 2: Determine the active and inactive ASGs
Step 2 determines the active and inactive ASGs based on the inactive target group.
The AWS - Find Blue-Green ASG step provides this functionality. The step requires the following inputs:
Region: The AWS region hosting the load balancer.Account: The AWS account used to query the load balancer.Inactive Color: The inactive color as determined by the previous step.Green ASG Name: The name of the green ASG.Blue ASG Name: The name of the blue ASG.
The step generates 2 output variables:
ActiveGroup: The name of the active (or online) ASG.InactiveGroup: The name of the inactive (or offline) ASG.

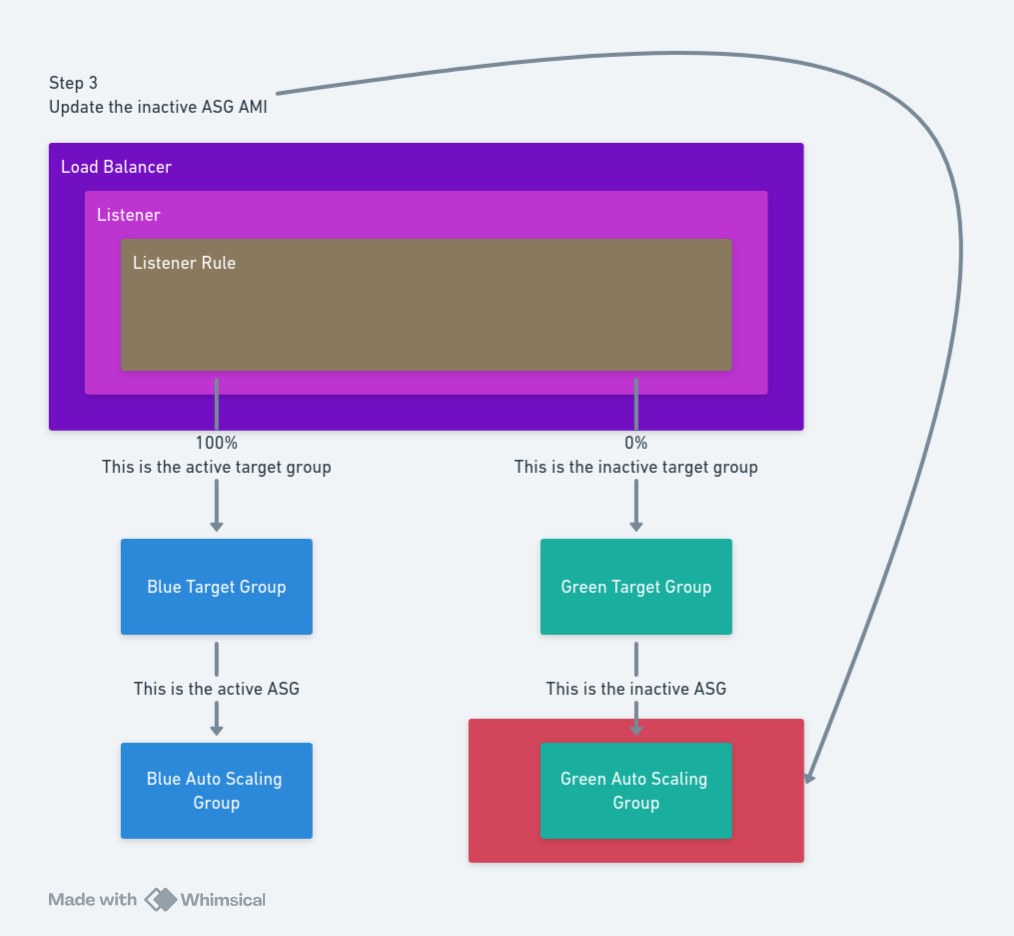

Step 3: Update the inactive ASG with the new AMI
Step 3 is to update the inactive ASG launch template with the new AMI.
The AWS - Update Launch Template AMI step provides this functionality. The step requires the following inputs:
Region: The AWS region hosting the load balancer.Account: The AWS account used to query the load balancer.ASG Name: The name of the ASG to update. This will be the inactive ASG group found in the previous step.AMI: The AMI ID to use in the launch template.Launch Template Version Description: The description of the new lunch version template.
Step 4: Initiate an instance refresh
Step 4 is to initiate an instance refresh which recreates the EC2 instances in the inactive ASG with the new AMI. We must also wait for the instance refresh to complete, after which the new EC2 instances are healthy and ready to receive network traffic.
The AWS - Initiate Instance Refresh step provides this functionality. The step requires the following inputs:
Region: The AWS region hosting the load balancer.Account: The AWS account used to query the load balancer.ASG Name: The name of the ASG to update. This will be the inactive ASG group found in step 2.

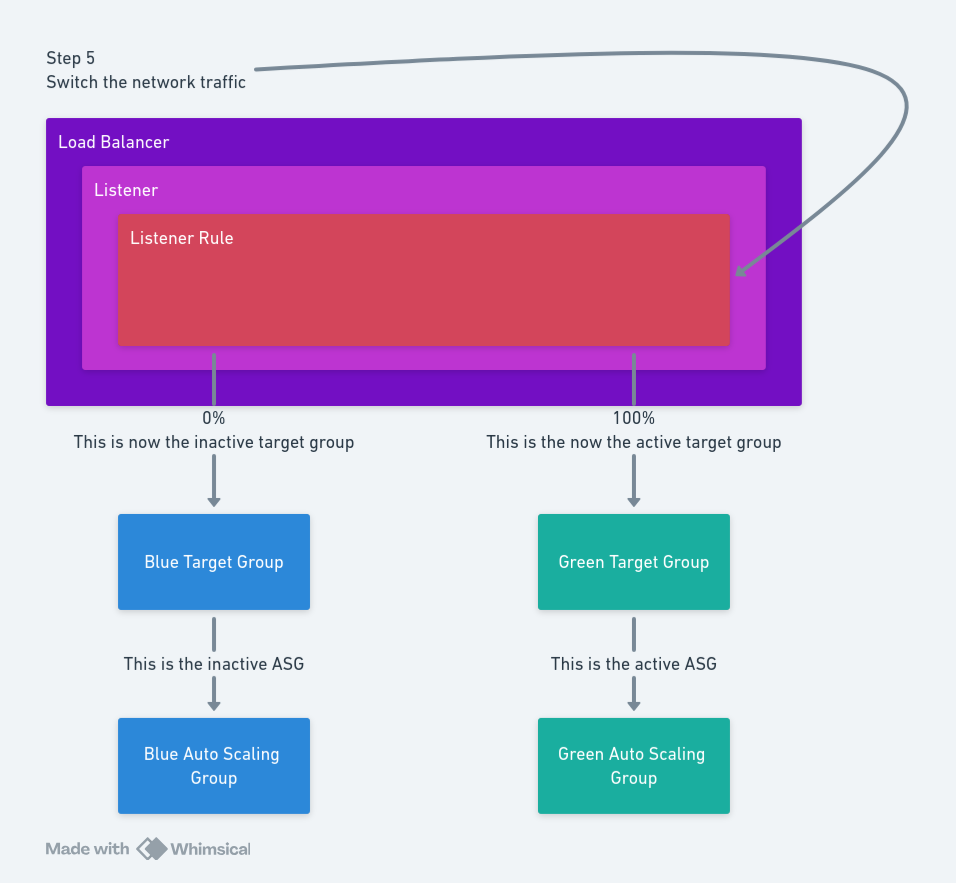

Step 5: Adjust the listener rule
Step 5 is to adjust the listener rule to direct network traffic to the target group associated with the ASG that was just updated.
Once the network traffic is directed to the new target group, the blue/green deployment is complete.
The AWS - Set Blue-Green Target Group step provides this functionality. The step requires the following inputs:
Region: The AWS region hosting the load balancer.Account: The AWS account used to query the load balancer.Rule ARN: The ARN of the listener rule.Offline Target Group ARN: The ARN of the target group to stop receiving network traffic. This is the active target group found in step 1.Online Target Group ARN: The ARN of the target group to start receiving network traffic. This is the inactive target group found in step 1.
Conclusion
By combining the power of AWS ASGs, load balancers, and Octopus Deploy, you can create a robust blue/green deployment process that minimizes downtime and reduces the risk of failed deployments. The steps outlined in this post can be automated with Octopus Deploy, providing a repeatable and reliable deployment process that can be executed with the click of a button.
