Exploring Istio - The Gateway Resource

This is part five in a series of posts exploring Istio, a popular service mesh available for Kubernetes. In this post, I'll look at what a Gateway resource is and where it fits in this stack.

• The Sample application.
• The VirtualService resource.
• The DestinationRule resource.
• The ServiceEntry resource.
• The Gateway resource.

Up until this point, our Kubernetes cluster has taken traffic from a standard load balancer Service resource, which thanks to the fact that our cluster is hosted by AWS, is exposed by an ELB with a public IP. External traffic hitting this load balancer is directed to our proxy application, and from here we have used Istio to route the internal traffic.

As well as routing internal traffic, Istio can also route external traffic entering the cluster. The Gateway resource is used by Istio to receive external traffic and route it as it enters the cluster.

In this post, we’ll add a Gateway resource to the cluster to replace the load balancer Service resource we have been relying on.

Defining the Gateway resource

Here is a minimal example of a Gateway resource:

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: default-gateway
  namespace: istio-system
spec:
  selector:
    istio: ingressgateway
  servers:
  - hosts:
    - '*'
    port:
      name: http
      number: 80
      protocol: HTTP

There are some important settings here to be discussed.

First, this Gateway resource has been created in the istio-system namespace:

namespace: istio-system

This is because this Gateway resource is going to be bound to a load balancer Service resource created when Istio was installed. The Service resource is called istio-ingressgateway and has a label of istio: ingressgateway.

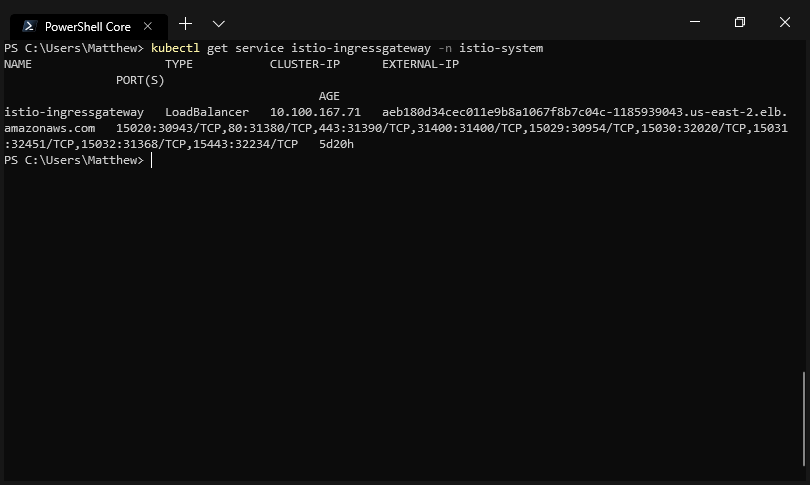

The load balancer service created by Istio during installation.

We attach this Gateway resource to the istio-ingressgateway Service with the label selectors:

selector:
  istio: ingressgateway

This Gateway resource will accept all HTTP traffic from any host:

- hosts:
  - '*'
  port:
    name: http
    number: 80
    protocol: HTTP

Routing external traffic

Just as we did with internal traffic, we’ll use a VirtualService resource to direct traffic from the Gateway resource.

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: proxy
spec:
  gateways:
  - istio-system/default-gateway
  hosts:
  - "*"
  http:
  - route:
    - destination:
        host: proxy

The difference between the VirtualService resource above and those that we used to direct internal traffic is that this VirtualService resource is bound to the Gateway resource:

gateways:
- istio-system/default-gateway

We’ll reuse the existing proxy Service for this VirtualService resource to direct traffic to. However, now it is no longer necessary for the proxy Service to be a public load balancer, as the istio-ingressgateway Service will accept the external traffic:

http:
- route:
  - destination:
      host: proxy

Here is the architecture diagram showing the load balancer istio-ingressgateway directing traffic to the proxy Gateway, which in turn has traffic routed via the proxy VirtualService to the proxy cluster IP Service.

The architecture diagram, with the Gateway (in blue).

The end result is that we can access the proxy application via the hostname assigned to the istio-ingressgateway load balancer Service.

This change doesn’t affect any of the functionality that we saw in the previous blog posts, but it does mean that Istio is now effectively assuming the role of an ingress controller by directing traffic from a shared load balancer:

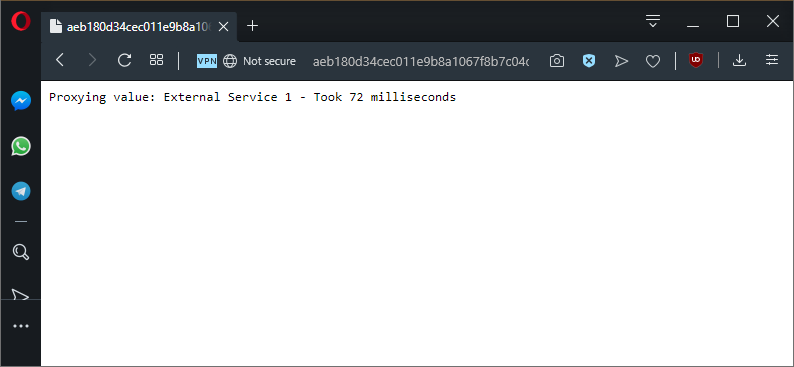

We access our proxy application through a new hostname, and everything works like it did before.

Conclusion

Gateway resources allow Istio to route external traffic entering the cluster in much the same way a standard ingress controller would. This allows the Kubernetes cluster to expose a single public IP address or hostname and have external traffic routed to internal Service resources as needed.
