Codefresh is a docker-native CI/CD platform

Codefresh Pipelines are workflows that form Codefresh’s continuous integration (CI) platform.

Integrating with Codefresh Pipelines

Codefresh pipelines allow you to customize steps to create, deploy and promote releases to your Octopus Deploy environments. The steps do this by running the Octopus CLI inside a docker container.

Octopus Deploy has several custom pipeline steps available:

Codefresh Pipeline step configuration

When creating your first Codefresh Pipeline, the pipeline workflow can be defined in the Codefresh UI or within a git-based repository. The workflow yaml defines the steps to run and any arguments required to run each step.

The details of an Octopus instance are required to run all Octopus Codefresh steps:

Variable name	Description
`OCTOPUS_URL`	The Octopus Server URL you wish to run your steps on
`OCTOPUS_API_KEY`	The Octopus Deploy API Key required for authentication
`OCTOPUS_ACCESS_TOKEN`	This value is set by the octopusdeploy-login step, and should be passed as an argument to all following steps
`AUDIENCE`	The Octopus Deploy audience or service account ID required for authentication
`OCTOPUS_SPACE`	The Space to run steps on

Authentication to Octopus server

The following steps require Octopus server authentication:

There are two options for authentication. You can:

Use the Login to Octopus step and provide OCTOPUS_ACCESS_TOKEN as an argument for each step.
Skip the login step and provide an OCTOPUS_API_KEY as an argument for each step.

Codefresh variables

It is recommended to use Codefresh variables to set the OCTOPUS_URL and an encrypted variable to set the AUDIENCE. This way, you can simply insert the variable for all octopus deploy steps in your workflow.

These can be set by clicking Add Variable from the Variable menu of your Codefresh Pipeline.

Enter your variable name and value. To insert the variable in your workflow, use the Codefresh variable syntax ${{YOUR_VARIABLE_NAME}}

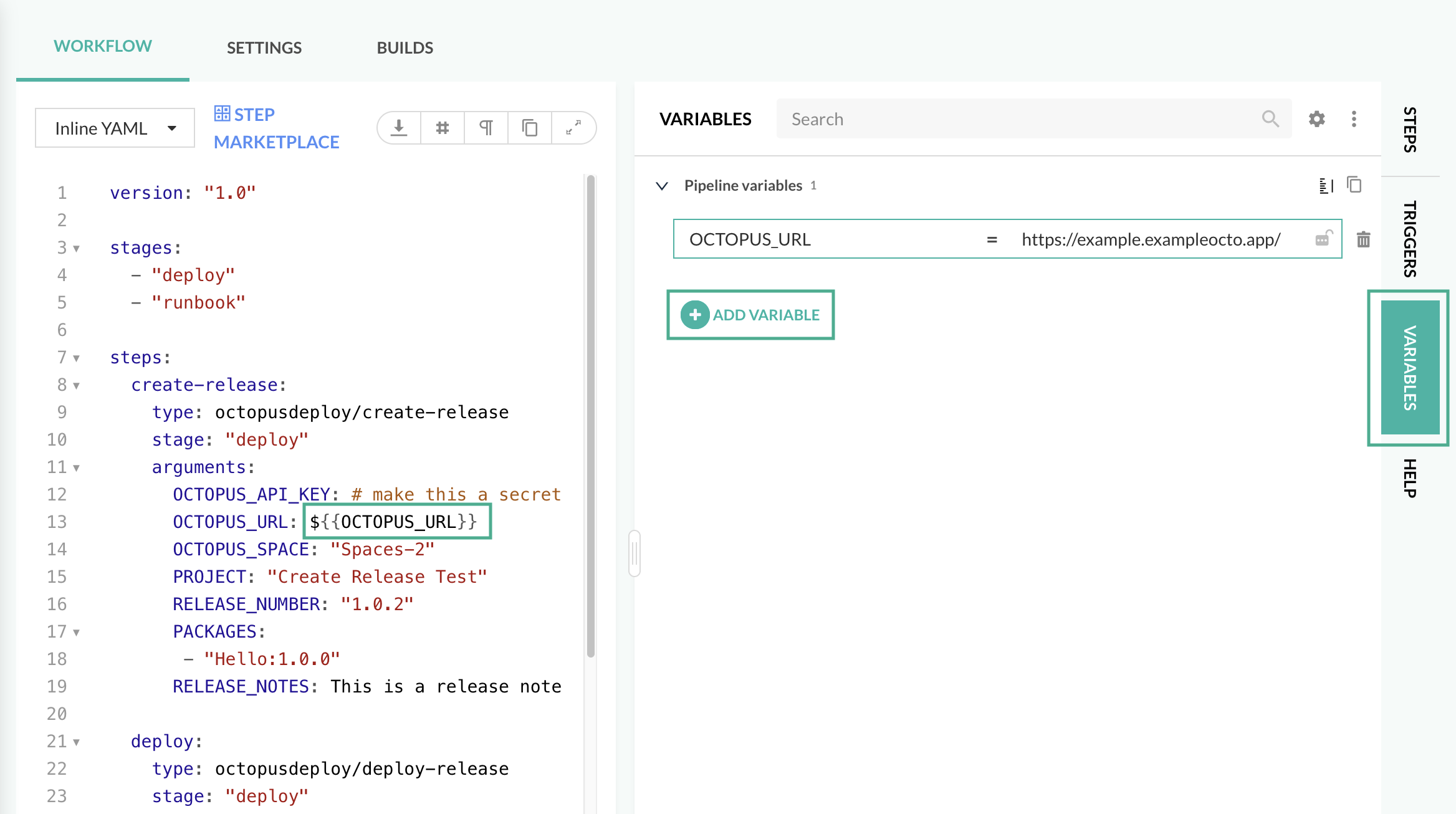

Use variables in your Codefresh workflow

For more details on Codefresh pipeline variables, see the Codefresh documentation on Variables in pipelines.

Codefresh encrypted variables

To store sensitive information such as Octopus Deploy API keys, you can use Codefresh’s encrypted variables in your workflow. To encrypt the variable, click on the lock next to the variable value.

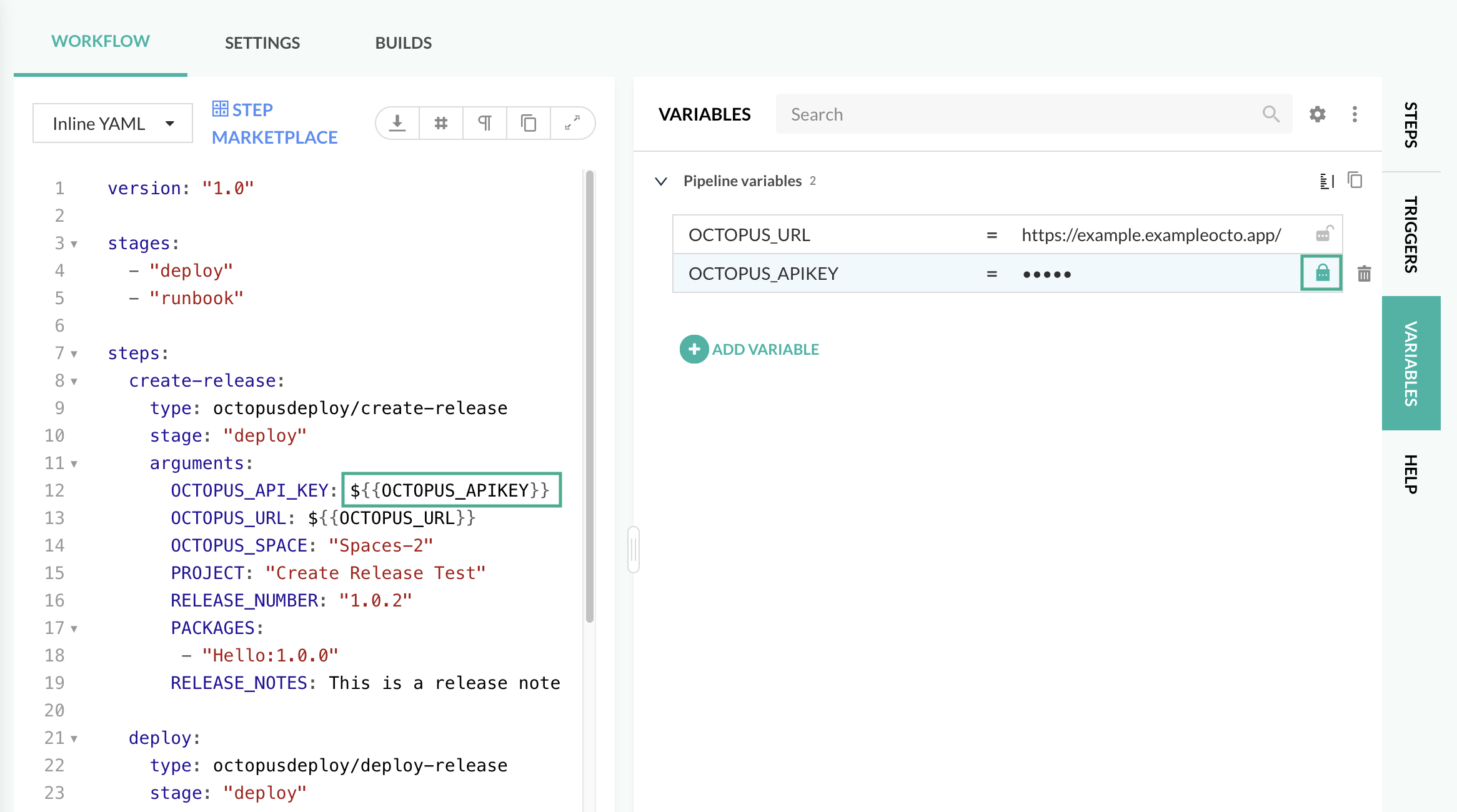

Encrypt variables in your Codefresh workflow

Triggering a build

A build can be triggered in a few different ways such as:

Push commits
Pull requests
On-demand

And others depending on your git provider. Please see the Codefresh documentation on supported git trigger events.

For details on how to configure git triggers, see the Codefresh documentation on Git Triggers.

Codefresh Pipeline stages

Codefresh Pipelines are workflows that consist of steps. By default, the Codefresh execution engine will execute sequentially from the first defined step in the codefresh.yml file. To configure parallel steps in your pipeline, see the Codefresh documentation for more details.

Before defining the steps in your workflow, you can configure in stages. You can then assign a stage for each of the steps in your pipeline. Stages are groups used to define how the steps will be visualized in the UI, and have no effect on the execution of the steps.

version: "1.0"
stages:
  - "Deploy project"
  - "Run the runbook"

steps:
  create-release:
    type: octopusdeploy-create-release
    stage: "Deploy project"
    arguments:
      ...

  deploy:
    type: octopusdeploy-deploy-release
    stage: "Deploy project"
    arguments:
      ...

  run-runbook:
    type: octopusdeploy-run-runbook
    stage: "Run the runbook"
    arguments:
      ...

Example Pipeline builds

The following examples demonstrate a Codefresh Pipeline build of an application sourced from Github.

To build and deploy this application, you’ll need the following steps:

Clone the source code
Obtain OIDC token (available from the Codefresh Marketplace)
Login
Create a package
Push package to Octopus Deploy instance
Create a release for an existing project (get started with the basics of setting up a project)
Deploy

Below is an example Codefresh Pipeline workflow which includes these steps:

Click here to view the entire example build YAML

version: "1.0"

stages:
  - "build and push"
  - "deploy"

steps:
  clone:
    title: "Cloning repository"
    type: "git-clone"
    stage: "build and push"
    repo: <<YOUR REPO URL>>
    revision: "main"
    working_directory: "/codefresh/volume"
    credentials:
      username: ${{GITHUB_USERNAME}}
      password: ${{GITHUB_PASSWORD}}

  obtain_id_token:
    title: Obtain ID Token
    type: obtain-oidc-id-token
    stage: "Login"

  login:
    type: octopusdeploy-login
    title: Login
    stage: "login"
    arguments:
      # ID_TOKEN is set as an environment variable by the obtain_id_token step
      ID_TOKEN: '${{ID_TOKEN}}'
      OCTOPUS_URL: "https://example.octopustest.app/"
      OCTOPUS_SERVICE_ACCOUNT_ID: <<YOUR_AUDIENCE_VALUE>>

  create-package:
    title: "Create package"
    type: octopusdeploy-create-package
    stage: "build and push"
    arguments:
      ID: "Hello"
      VERSION: "1.0.0-${{CF_BUILD_ID}}"
      BASE_PATH: "/codefresh/volume"
      OUT_FOLDER: "/codefresh/volume"

  push-package:
    title: "Push package"
    type: octopusdeploy-push-package
    stage: "build and push"
    arguments:
      # OCTOPUS_ACCESS_TOKEN is set as an environment variable by the octopusdeploy-login step
      OCTOPUS_ACCESS_TOKEN: ${{OCTOPUS_ACCESS_TOKEN}}
      OCTOPUS_URL: ${{OCTOPUS_URL}}
      OCTOPUS_SPACE: "Spaces-42"
      PACKAGES:
        - "/codefresh/volume/Hello.1.0.0-${{CF_BUILD_ID}}.zip"
      OVERWRITE_MODE: 'overwrite'

  create-release:
    type: octopusdeploy-create-release
    title: "Create release"
    stage: "deploy"
    arguments:
      OCTOPUS_ACCESS_TOKEN: ${{OCTOPUS_ACCESS_TOKEN}}
      OCTOPUS_URL: ${{OCTOPUS_URL}}
      OCTOPUS_SPACE: "Spaces-42"
      PROJECT: "Demo Project"
      RELEASE_NUMBER: "1.0.0-${{CF_BUILD_ID}}"
      PACKAGES:
       - "Hello:1.0.0-${{CF_BUILD_ID}}"
      RELEASE_NOTES: This is a release note

  deploy:
    type: octopusdeploy-deploy-release
    title: "Deploy release"
    stage: "deploy"
    arguments:
      OCTOPUS_ACCESS_TOKEN: ${{OCTOPUS_ACCESS_TOKEN}}
      OCTOPUS_URL: ${{OCTOPUS_URL}}
      OCTOPUS_SPACE: "Spaces-42"
      PROJECT: "Demo Project"
      RELEASE_NUMBER: "1.0.0-${{CF_BUILD_ID}}"
      ENVIRONMENTS:
        - "Development"

When using an API key

To build and deploy this application, you’ll need the following steps:

Clone the source code
Create a package
Push package to Octopus Deploy instance
Create a release for an existing project (get started with the basics of setting up a project)
Deploy

Below is an example Codefresh Pipeline workflow which includes these steps:

Click here to view the entire example build YAML

version: "1.0"

stages:
  - "build and push"
  - "deploy"

steps:
  clone:
    title: "Cloning repository"
    type: "git-clone"
    stage: "build and push"
    repo: <<YOUR REPO URL>>
    revision: "main"
    working_directory: "/codefresh/volume"
    credentials:
      username: ${{GITHUB_USERNAME}}
      password: ${{GITHUB_PASSWORD}}

  create-package:
    title: "Create package"
    type: octopusdeploy-create-package
    stage: "build and push"
    arguments:
      ID: "Hello"
      VERSION: "1.0.0-${{CF_BUILD_ID}}"
      BASE_PATH: "/codefresh/volume"
      OUT_FOLDER: "/codefresh/volume"

  push-package:
    title: "Push package"
    type: octopusdeploy-push-package
    stage: "build and push"
    arguments:
      OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
      OCTOPUS_URL: ${{OCTOPUS_URL}}
      OCTOPUS_SPACE: "Spaces-42"
      PACKAGES:
        - "/codefresh/volume/Hello.1.0.0-${{CF_BUILD_ID}}.zip"
      OVERWRITE_MODE: 'overwrite'

  create-release:
    type: octopusdeploy-create-release
    title: "Create release"
    stage: "deploy"
    arguments:
      OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
      OCTOPUS_URL: ${{OCTOPUS_URL}}
      OCTOPUS_SPACE: "Spaces-42"
      PROJECT: "Demo Project"
      RELEASE_NUMBER: "1.0.0-${{CF_BUILD_ID}}"
      PACKAGES:
       - "Hello:1.0.0-${{CF_BUILD_ID}}"
      RELEASE_NOTES: This is a release note

  deploy:
    type: octopusdeploy-deploy-release
    title: "Deploy release"
    stage: "deploy"
    arguments:
      OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
      OCTOPUS_URL: ${{OCTOPUS_URL}}
      OCTOPUS_SPACE: "Spaces-42"
      PROJECT: "Demo Project"
      RELEASE_NUMBER: "1.0.0-${{CF_BUILD_ID}}"
      ENVIRONMENTS:
        - "Development"

Octopus Deploy steps

Octopus Deploy steps and examples are available from the Codefresh Marketplace.

Each step includes one or two examples to help with setting up a workflow. Basic examples include only required arguments, and complex examples include both required and optional arguments.

The octopusdeploy-login step authenticates to Octopus via OIDC, so your Octopus server needs a service account with OIDC enabled. To allow connections from Codefresh, the service account’s OIDC identity should have Issuer https://oidc.codefresh.io and a Subject matching the Codefresh subject claim for your preferred pipeline trigger.

The octopusdeploy-login step requires an ID_TOKEN, which can be generated by running the Codefresh obtain-oidc-id-token Marketplace step. This step sets the token as an environment variable which can be passed into the Octopus login step as an argument. See the Codefresh OIDC documentation for further details.

  login:
    type: octopusdeploy-login
    arguments:
      ID_TOKEN: '${{ID_TOKEN}}'
      OCTOPUS_URL: '${{OCTOPUS_URL}}'
      OCTOPUS_SERVICE_ACCOUNT_ID: '${{OCTOPUS_SERVICE_ACCOUNT_ID}}'

This step returns OCTOPUS_ACCESS_TOKEN as a string, which should be passed into subsequent steps to authenticate.

Package artifacts

Create zip packages of your deployment artifacts by using the octopusdeploy-create-package step. Specify the files to include in each package, the location of those files and the details of the artifact to create. The following step packages all .txt files in the /codefresh/volume directory into the zip file /codefresh/volume/Fresh.1.0.0.zip:

  create-package:
    title: "Create package"
    type: octopusdeploy-create-package
    arguments:
      ID: "Fresh"
      VERSION: "1.0.0"
      BASE_PATH: "/codefresh/volume"
      OUT_FOLDER: "/codefresh/volume"
      INCLUDE:
        - "*.txt"

This step returns a json object with property Path.

Push packages to Octopus Server

Once the artifacts are packaged, use the octopusdeploy-push-package step to push the packages to the Octopus Server built-in repository:

  push-package:
    type: octopusdeploy-push-package
    arguments:
      OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
      OCTOPUS_URL: '${{OCTOPUS_URL}}'
      OCTOPUS_SPACE: "Default"
      PACKAGES:
        - "/codefresh/volume/Fresh.1.0.0.zip"

This step has no output.

Create a release

To create a release, use the octopusdeploy-create-release step. Provide the details for your Octopus instance, and the project you would like to create a release for:

create-release:
  type: octopusdeploy-create-release
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: "Default"
    PROJECT: "Project Name"

Optional arguments help to customize the creation of the release. You can specify version control details, select packages and provide release notes:

create-release:
  type: octopusdeploy-create-release
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: "Default"
    PROJECT: "Project Name"
    RELEASE_NUMBER: "1.0.0-hotfix1"
    CHANNEL: "Hotfix"
    GIT_REF: "refs/heads/main"
    PACKAGES:
      - "Sample:1.0.0-hotfix1"
    RELEASE_NOTES: This is a release note

This returns a json object with properties Channel and Version for the release that was created.

Deploy a release

To deploy a release, use the octopusdeploy-deploy-release step. Provide details for your Octopus instance, and the project and release you want to deploy:

deploy-release:
  type: octopusdeploy-deploy-release
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: "Default"
    PROJECT: "Project Name"
    RELEASE_NUMBER: "0.0.1"
    ENVIRONMENTS:
      - "Development"

Additionally, you can provide optional arguments to specify guided failure mode and variables:

deploy-release:
  type: octopusdeploy-deploy-release
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: "Default"
    PROJECT: "Project Name"
    RELEASE_NUMBER: "0.0.1"
    ENVIRONMENTS:
      - "Development"
    VARIABLES:
      - "Greeting:Hello"
    USE_GUIDED_FAILURE: "false"

This returns a json array of created deployments, with properties DeploymentId and ServerTaskId.

Deploy a tenanted release

To deploy a tenanted release, use the octopusdeploy-deploy-release-tenanted step. Provide the details for your Octopus instance, and the tenants you want to deploy to. You will need to provide either tenants or tenant tags. To deploy an untenanted release, use the octopusdeploy-deploy-release step.

deploy-release-tenanted:
  type: octopusdeploy-deploy-release-tenanted
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: Spaces 1
    PROJECT: Project Name
    RELEASE_NUMBER: 5.0.0
    ENVIRONMENT: Development
    TENANTS:
      - Tenant 1

Optional arguments help to customize the deployment of the release. You can specify prompted variable values, tenants, tenant tags, and guided failure mode.

deploy-release-tenanted:
  type: octopusdeploy-deploy-release-tenanted
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: Spaces 1
    PROJECT: Project Name
    RELEASE_NUMBER: 5.0.0
    ENVIRONMENT: Development
    VARIABLES:
      - 'LabelA:ValueA'
    TENANT_TAGS:
      - tagSetA/someTagB
      - tagSetC/someTagD
    USE_GUIDED_FAILURE: false

This returns a json array of created deployments, with properties DeploymentId and ServerTaskId.

Run a runbook

To run a runbook, use the octopusdeploy-run-runbook step. Provide the name of the runbook that you want to run, as well as the project and environment name(s).

run-runbook:
  type: octopusdeploy-run-runbook
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: Spaces 1
    PROJECT: Project Name
    NAME: Runbook Name
    ENVIRONMENTS:
      - Development
      - Production

Optional arguments include variables to use within the runbook, the option to run for specific tenants or tenant tags, as well as the option to use guided failure mode.

run-runbook:
  type: octopusdeploy-run-runbook
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: Spaces 1
    PROJECT: Project Name
    NAME: Runbook Name
    ENVIRONMENTS:
      - Development
      - Production
    VARIABLES:
      - 'Label:Value'
    TENANTS:
      - Tenant 1
    TENANT_TAGS:
      - Tenant tag 1
    USE_GUIDED_FAILURE: 'false'

This returns a json array of created runbook runs, with properties RunbookRunId and ServerTaskId.

Push build information

To push build information for a project, use the octopusdeploy-push-build-information step. Provide a list of packages that need build information, a build information json file and a version number.

By default, the step will fail if build information already exists, but this can be configured using the OVERWRITE_MODE option (fail, overwrite, or ignore).

push-build-information:
  type: octopusdeploy-push-build-information
  arguments:
    OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}' # Option to replace with OCTOPUS_API_KEY: ${{OCTOPUS_API_KEY}}
    OCTOPUS_URL: '${{OCTOPUS_URL}}'
    OCTOPUS_SPACE: Spaces 1
    PACKAGE_IDS:
      - SomePackage
      - SomeOtherPackage
    FILE: SomeFile.json
    VERSION: 1.0.0
    OVERWRITE_MODE: fail

Sample build information json file:

{
  "BuildEnvironment": "BitBucket",
  "Branch": "main",
  "BuildNumber": "288",
  "BuildUrl": "https://bitbucket.org/octopussamples/petclinic/addon/pipelines/home#!/results/288",
  "VcsType": "Git",
  "VcsRoot": "http://bitbucket.org/octopussamples/petclinic",
  "VcsCommitNumber": "12345",
  "Commits":
  [
    {
      "Id": "12345",
      "Comment": "Sample commit message"
    }
  ]
}

This step has no output.

Error handling

Codefresh provides inbuilt error handling for all steps. Retry of failed steps is enabled using the retry settings. See the Codefresh documentation on retrying a step for more details.

version: "1.0"
stages:
  - "Login"
  - "Deploy project"

steps:
  obtain_id_token:
    title: Obtain ID Token
    type: obtain-oidc-id-token
    stage: "Login"

  login:
    type: octopusdeploy-login
    title: Login
    stage: "login"
    arguments:
      # ID_TOKEN is set as an environment variable by the obtain_id_token step
      ID_TOKEN: '${{ID_TOKEN}}'
      OCTOPUS_URL: "https://example.octopustest.app/"
      OCTOPUS_SERVICE_ACCOUNT_ID: <<YOUR_AUDIENCE_VALUE>>

  deploy:
    type: octopusdeploy-deploy-release
    stage: "Deploy project"
    retry:
      maxAttempts: 5
      delay: 5
      exponentialFactor: 2
    arguments:
      # OCTOPUS_ACCESS_TOKEN is set as an environment variable by the octopusdeploy/login step
      OCTOPUS_ACCESS_TOKEN: '${{OCTOPUS_ACCESS_TOKEN}}'
      OCTOPUS_URL: "https://example.octopustest.app/"
      OCTOPUS_SPACE: "Spaces-1"
      PROJECT: "Create Release Test"
      RELEASE_NUMBER: "1.0.2"
      ENVIRONMENTS:
        - "Development"

Help us continuously improve

Please let us know if you have any feedback about this page.

Send feedback

Page updated on Thursday, October 31, 2024

Edit on GitHub
