Certificate variables

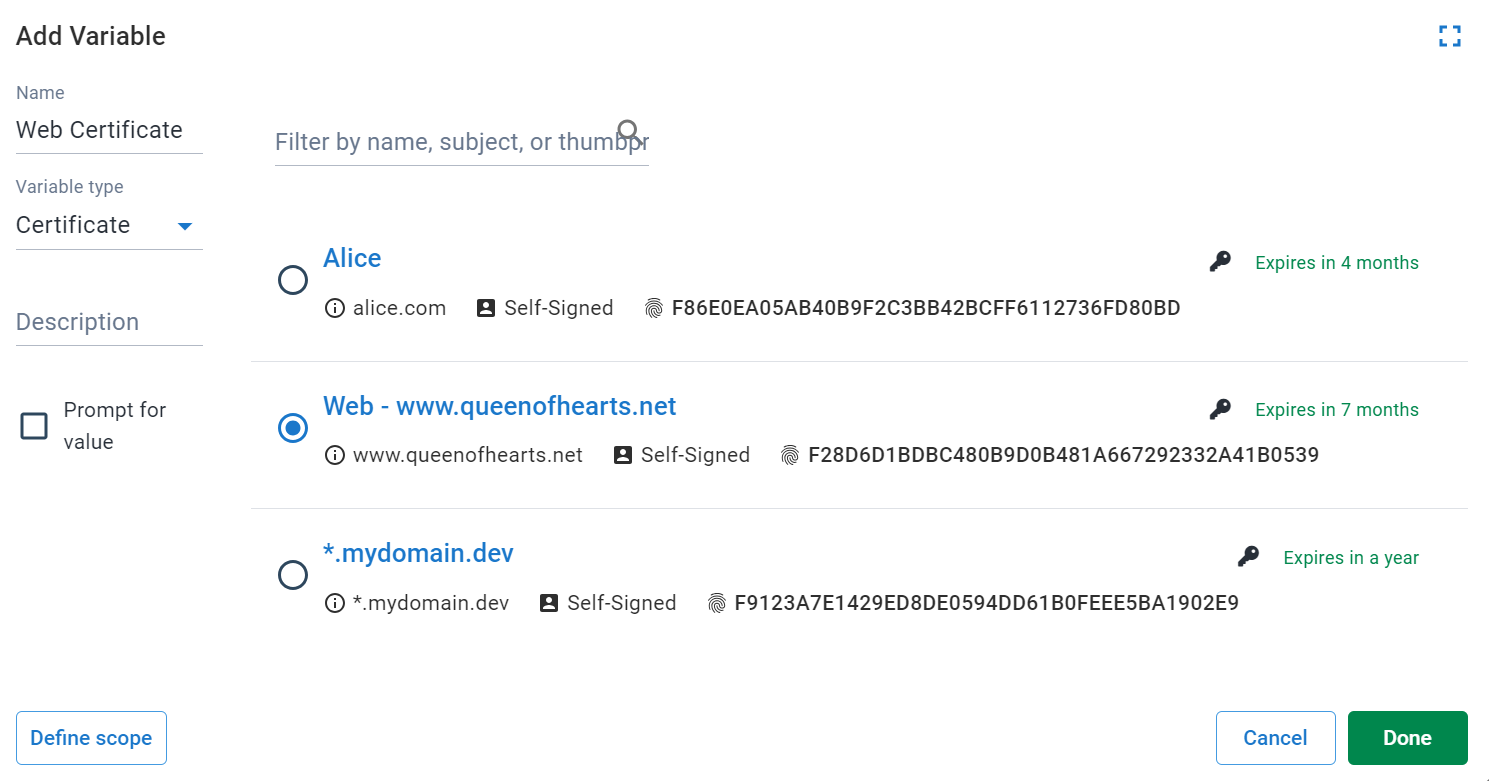

In the variable-editor, selecting Certificate as the variable type allows you to create a variable with a certificate managed by Octopus as the value.

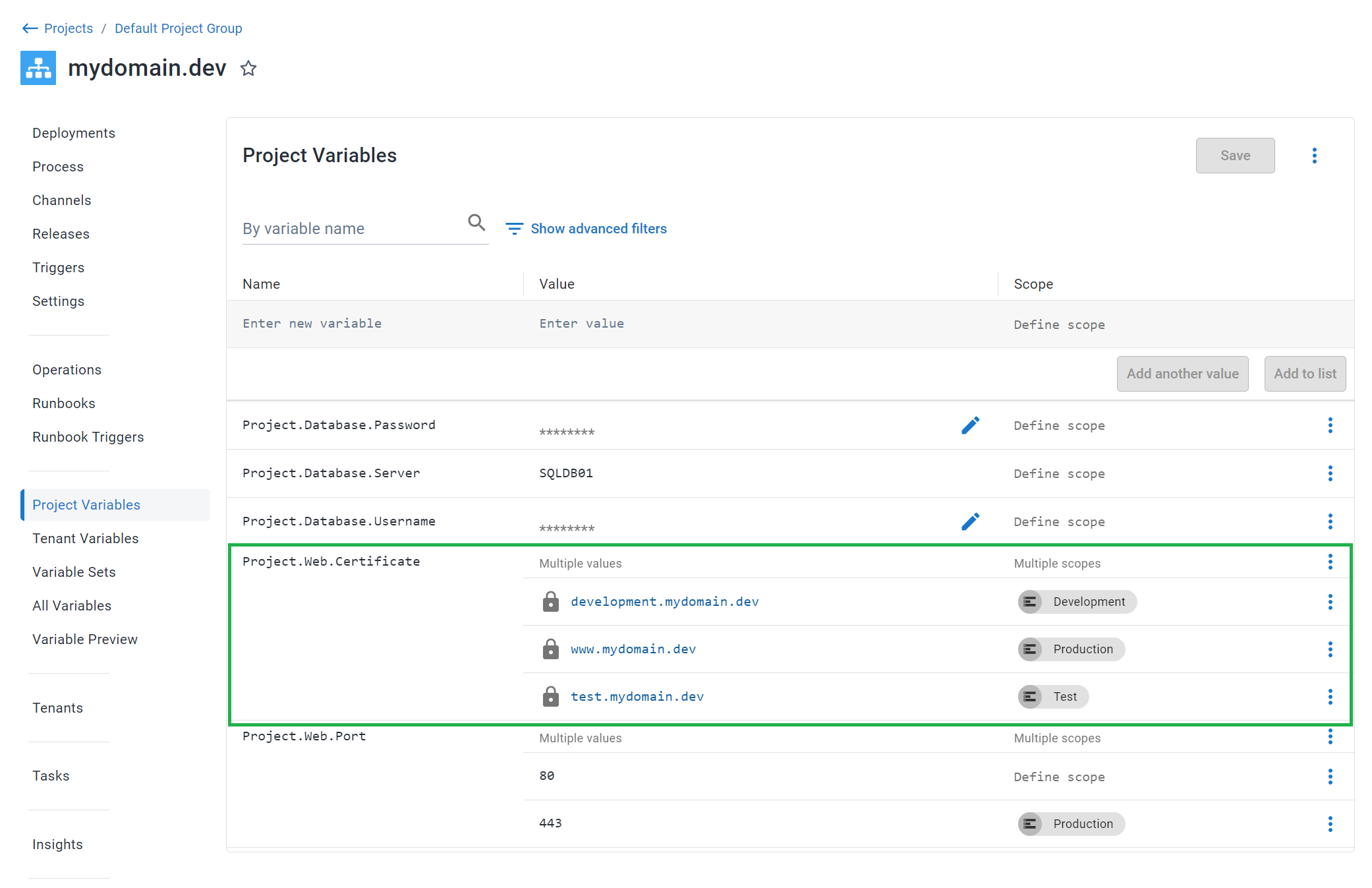

Certificate variables can be scoped, similar to regular text variables.

Expanded properties

At deploy-time, certificate variables are expanded. For example, a variable MyCertificate becomes:

Variable	Description	Example value
`MyCertificate`	The certificate ID	Certificates-1
`MyCertificate.Type`	The variable type	Certificate
`MyCertificate.Name`	The user-provided name	My Development Certificate
`MyCertificate.Thumbprint`	Thumbprint	A163E39F59560E6FE33A0299D19124B242D9B37E
`MyCertificate.RawOriginal`	The base64 encoded original file, exactly as it was uploaded.
`MyCertificate.Password`	The password specified when the file was uploaded.
`MyCertificate.Pfx`	The base64 encoded certificate in PKCS#12 format, including the private-key if present. If the originally uploaded certificate was password-protected (i.e. `MyCertificate.Password` is not empty), then this value will also be a password-protected PFX (PKCS#12) format.
`MyCertificate.Certificate`	The base64 encoded DER ASN.1 certificate.
`MyCertificate.PrivateKey`	The base64 encoded DER ASN.1 private key. This will be stored and transmitted as a sensitive variable.
`MyCertificate.CertificatePem`	The PEM representation of the certificate (i.e. the PublicKey with header\footer).
`MyCertificate.PrivateKeyPem`	The PEM representation of the private key (i.e. the PrivateKey with header\footer).
`MyCertificate.ChainPem`	The PEM representation of any chain certificates (intermediate or certificate-authority). This variable does not include the primary certificate.
`MyCertificate.Subject`	The X.500 distinguished name of the subject
`MyCertificate.SubjectCommonName`	The un-attributed subject common name
`MyCertificate.Issuer`	The X.500 distinguished name of the issuer
`MyCertificate.NotBefore`	NotBefore date	2016-06-15T13:45<30>.0000000-07<00>
`MyCertificate.NotAfter`	NotAfter date	2019-06-15T13:45<30>.0000000-07<00>

Example usage

Given the certificate variable MyCertificate, you can access the certificate thumbprint in a script like this:

PowerShell

Write-Host $OctopusParameters["MyCertificate.Thumbprint"]

Bash

thumbprint=$(get_octopusvariable "MyCertificate.Thumbprint")
echo "$thumbprint"

It’s possible to write the PEM representation of the certificate to a file for use directly with a web server e.g. Apache, or a reverse proxy like NGINX. In bash, the script looks like this:

CERT=$(get_octopusvariable "MyCertificate.CertificatePem")
echo "$CERT" > my_cert.crt

If your certificate also contains any chain certificates (e.g. intermediate or certificate authority), they can be written to a file that contains the primary certificate too. The following example shows how to do so in bash:

CERT=$(get_octopusvariable "MyCertificate.CertificatePem")
CHAIN=$(get_octopusvariable "MyCertificate.ChainPem")
COMBINED_CHAIN="$CERT\n$CHAIN"
echo -e "$COMBINED_CHAIN" > my_combined.crt

If your certificate also has a private key that you need to export, you can use the PrivateKeyPem property using bash:

KEY=$(get_octopusvariable "MyCertificate.PrivateKeyPem")
echo "$KEY" > ssl.key
