Octopus Deploy Documentation

AppVeyor Integration

Last updated

AppVeyor is a cloud-based continuous integration system that integrates natively with your source control and allows CI configuration files to live alongside your projects.

You can use AppVeyor to automatically package your applications from your source control repository, push the packaged application to the built-in Octopus repository, and create and deploy releases.

Configuring an AppVeyor Project for Octopus

To use AppVeyor with a source code repository, you'll need to create and configure a project. See the AppVeyor docs for instructions.

Configure the Build

Once you've added a project with a repository, you need to configure the build. In the settings for your AppVeyor project, navigate to the build page and check the checkbox for the Package Web Applications for Octopus deployment option.

AppVeyor will run octo.exe pack after MSBuild has finished its publish command. Because AppVeyor is running the publish command, some of the files that OctoPack would normally include might not be included by default, this includes the web.*.config files. To ensure these files are included in the package make sure they are configured to Copy to Output Directory in Visual Studio.

In the Before build script section add nuget restore as AppVeyor will not perform this operation by default.

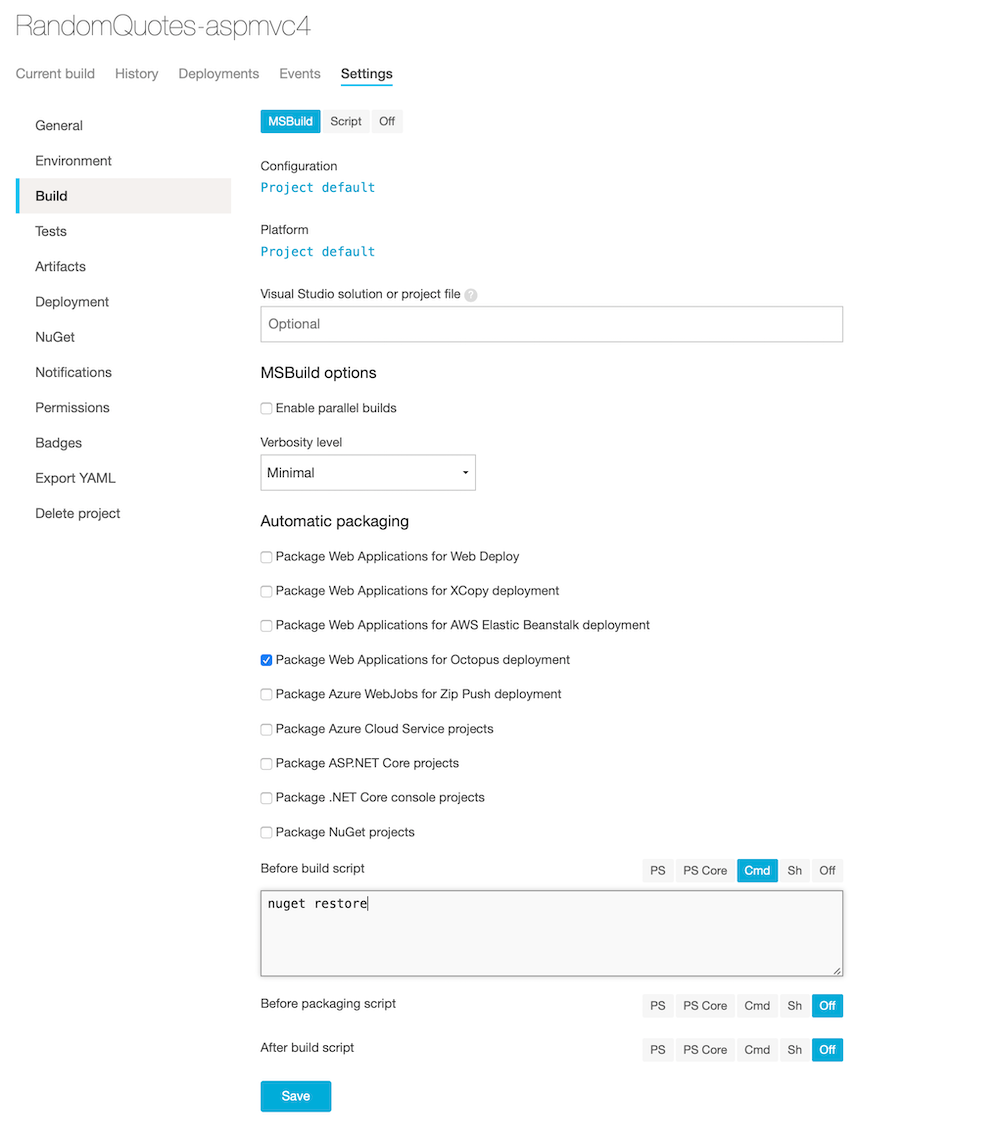

AppVeyor MSBuild Build

AppVeyor Environment Variables

The following environment variables are available and can be configured on the Environment page of your project's settings.

Variable Name Description
OCTOPUS_PACKAGE_VERSION Overrides the version in the package name. (default AppVeyor build version)
OCTOPUS_PACKAGE_NUGET Overrides the package type. (default nupkg)
OCTOPUS_PACKAGE_ADVANCED Additional arguments to pass to octo.exe pack

Non-MSbuild Projects

AppVeyor have included octo.exe into the base Windows build VM and is available via the command line. If you're running a project that is not using msbuild, you can manually invoke the octo.exe pack command during the build phase, by navigating to Build ➜ Script and adding you command to the build script section. For instance:

npm Build
octo.exe pack --outFolder ./bin --id=MyApp

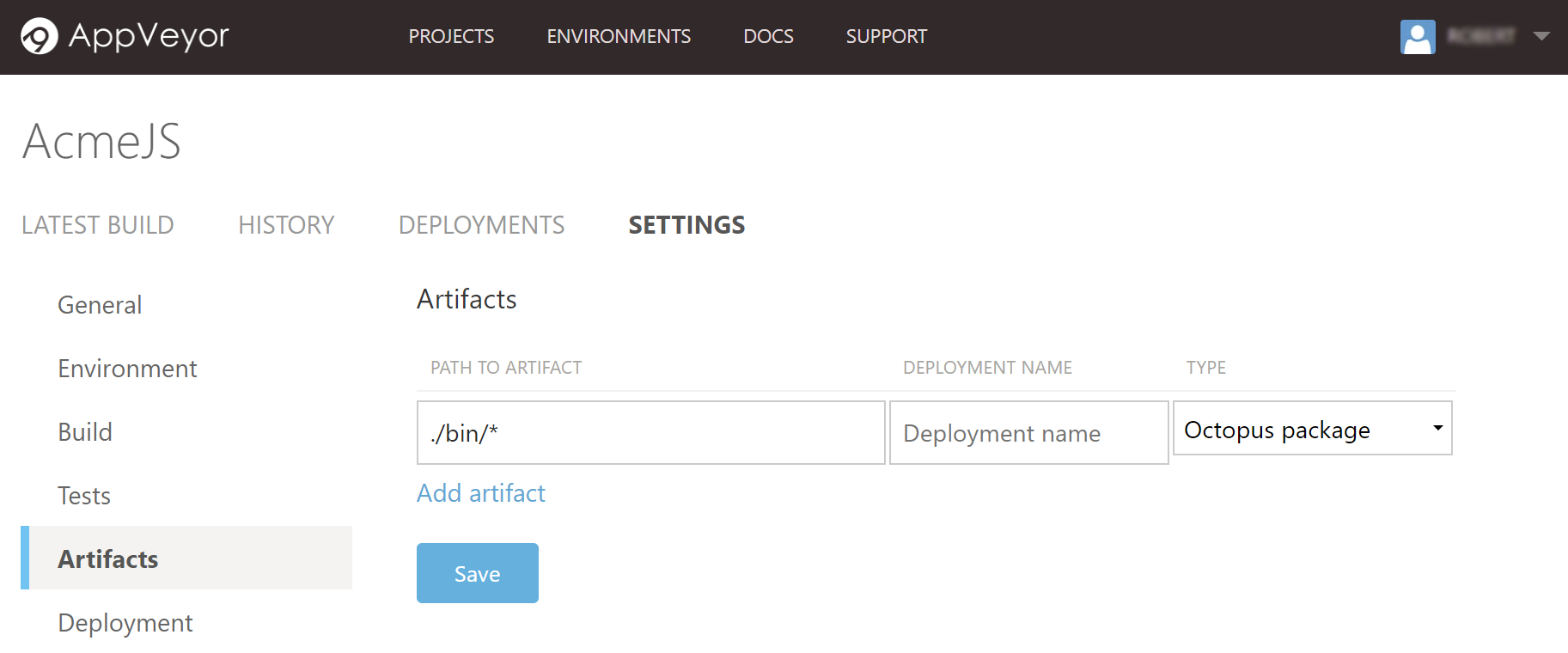

Next, flag the generated archive as an artifact of the build and should be made available for subsequence steps. On the artifact page of your project's settings add the path to the artifact, for instance:

./bin/*

You can use a wildcard to pick up the dynamically generated package.

AppVeyor Npm Build

Push To Octopus

Next, go to the Deployment page in your project's settings and click Add deployment and from the Deployment providers select Octopus Deploy.

Enter the URL where the Octopus Server can be reached, and add an API key.

AppVeyor Deploy

When you define an "Octopus package" in AppVeyor through the Package Web Applications for Octopus Deployment flag or the Artifacts page, then AppVeyor will automatically select that package to push to your Octopus Server. Set the Artifact(s) field on the Deployment page if you have manually created an archive.

If your Octopus Deploy project doesn't make use of automatic release creation or automatic lifecycle progression you can optionally trigger these actions from within the AppVeyor configuration providing the appropriate values in the inputs provided.

Unless overridden, the AppVeyor project name will be used in place of the Octopus project name when creating a release.

Build Configuration in Code

AppVeyor provides another mechanism for providing the above configuration information and this is via an appveyor.yml file contained in the repository source code. For the above configuration the YAML file is as simple as

version: 1.0.{build}
before_build:
- cmd: nuget restore
build:
  publish_wap_octopus: true
  verbosity: minimal
deploy:
- provider: Octopus
  push_packages: true
  create_release: true
  deploy_release: false
  server: https://myoctopus.acme.corp
  api_key:
    secure: 8PgmblIvjjj7jr4ZxOdZ9ADT+PeBCF6+PqRcf6PZ4A=
  project: AcmeWeb
  deploy_wait: false

Storing the configuration with the source code is a great way to version the build process, however, it is worth noting that when AppVeyor detects an appveyor.yml file in the source code, any configuration in the portal will be ignored. Although you can continue to update the configuration via the portal, this will have no effect unless you remove the YAML file or configure the project to explicitly ignore it.

Further Information

For more in-depth information about using AppVeyor, we would recommend checking out their docs.
