Configuring Ping Identity

Authentication using Ping Identity, a cloud-based identity management service.

To use Ping Identity authentication with Octopus you will need to:

1. Configure Ping to trust your Octopus Deploy instance (by setting it up as an app in Ping).
2. Configure your Octopus Deploy instance to trust and use Ping as an Identity Provider.

Configure Ping Identity

You need to configure Ping Identity to trust your instance of Octopus Deploy by creating an application in your Ping Identity account.

Create an application

You must first have an account at Ping Identity. Once you have an account, log in to the console.

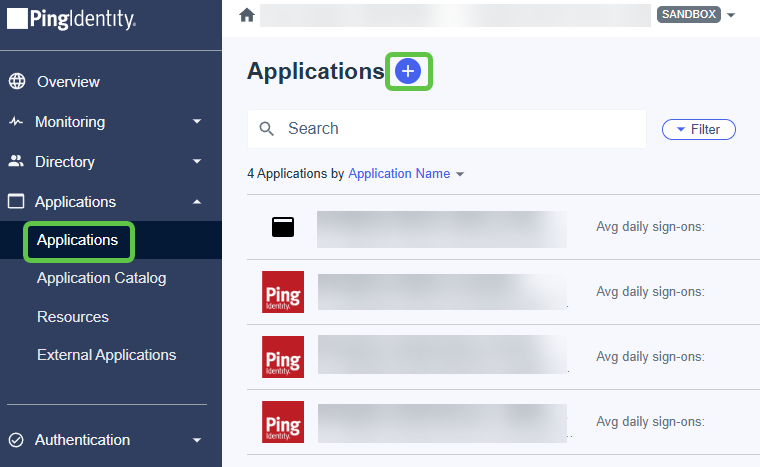

1. Select the Applications tab on the left and click the + icon near “Applications” on the right.



2. Enter a name for the application (e.g. Octopus Deploy), a description, optionally an icon, and select OIDC Web App.

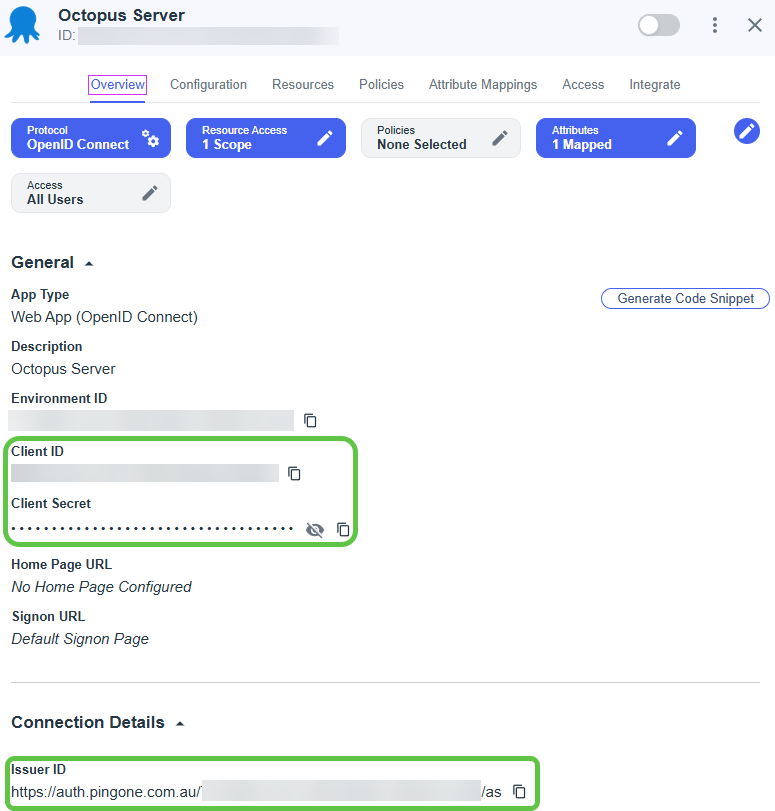

3. Click “Save”. The application configuration panel will appear. On this page you have access to the application’s Client ID, Client Secret and the Issuer - you will need these later.



4. Click “Protocol OpenID Connect”. The OIDC configuration settings appear. Ensure the following and click “Save”:

   • Response Type: Code
   • Grant Type: Authorization Code
   • PKCE Enforcement: S256_REQUIRED
   • Redirect URIs: https://your-octopus-url/api/users/authenticatedToken/GenericOidc
   • Token Endpoint Authentication Method: Client Secret Post

5. Click the “Resources” tab followed by the edit icon. You will see a list of scopes that are allowed by the application. Allow email and profile by checking them on. Click “Save”.

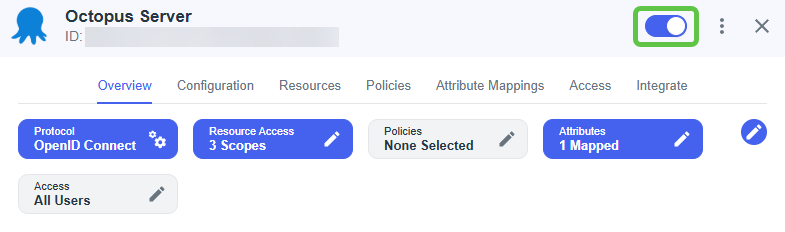

6. Toggle the switch in the top right of the panel to enable the application for use.



Configure Octopus Server

1. Navigate to Configuration ➜ Settings ➜ OpenID Connect and populate the following fields:

   • Enabled should be set to Yes.

   • Role Claim Type should be left unset.

   • Username Claim Type should be set to preferred_username.

   • Resource should be left unset.

   • Scopes should be left as the default of openid profile email.

   • Display Name can be used to customize the appearance of the button on the Octopus Deploy login screen. Use a name that your users will recognize for this identity provider.

   • Issuer, Client ID and Client Secret should be the values you noted when creating the application.

     Note that the value of Client Secret cannot be retrieved once set - it can only be changed or deleted.

   • Allow Auto User Creation determines if Octopus Deploy should automatically create user accounts, or only allow authentication for users that already exist in Octopus Deploy.

2. Click Save to apply the changes.
3. If you sign out of Octopus Deploy, you should now see a new button on the login screen to authenticate with the OIDC provider.

Octopus user accounts are still required

Octopus still requires a user account so you can assign those people to Octopus teams and subsequently grant permissions to Octopus resources. Octopus will automatically create a user account based on the profile information returned in the security token, which includes an Identifier, Name, and Email Address.

Getting permissions

If you are installing a clean instance of Octopus Deploy you will need to seed it with at least one admin user. This user will have access to create and configure other users as required. To add a user, execute the following command

Octopus.Server.exe admin --username USERNAME --email EMAIL

The most important part of this command is the email, as usernames are not necessarily included in the claims from the external providers. When the user logs in the matching logic must be able to align their user record based on the email from the external provider or they will not be granted permissions.

Troubleshooting

If you are having difficulty configuring Octopus to authenticate with Ping Identity, check your server logs for warnings.

Double and triple check your configuration

Unfortunately security-related configuration is sensitive to everything. Make sure:

• You don’t have any typos or copy-paste errors.
• Remember things are case-sensitive.
• Remember to remove or add slash characters - they matter too!

Check OpenID Connect metadata is working

You can see the OpenID Connect metadata by going to the Issuer address in your browser adding /.well-known/openid-configuration to the end. In our example this would have been something like https://auth.pingone.com.au/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/as/.well-known/openid-configuration

Contact Octopus Support

If you aren’t able to resolve the authentication problems yourself using these troubleshooting tips, please reach out to our support team with:

1. The contents of your OpenID Connect Metadata or the link to download it (see above).
2. A screenshot of the Octopus User Accounts, including their username, email address, and name.
